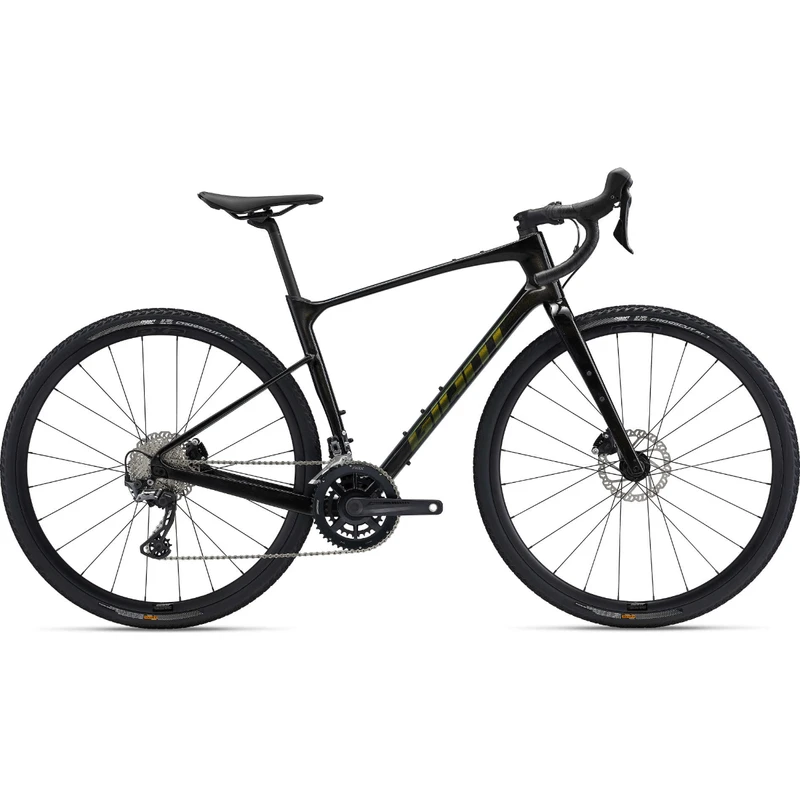

Giant Revolt Advanced 2 Bike – 2023

GIANT REVOLT ADVANCED 2 BIKE – 2023

Fast gravel, rough gravel, pavement or dirt. However you choose to roll, this bike does it all. A new composite frameset and adjustable wheelbase make it more capable than ever.

With a lightweight Advanced-grade composite frame that’s engineered for compliance, Revolt Advanced lets you push your limits on variable terrain. A composite fork eats up bumps, and the D-Fuse seatpost and handlebar absorb shocks and vibrations. A flip chip on the rear dropout adjusts wheelbase and tire clearance, and you can choose the included D-Fuse seatpost for maximum compliance or a 30.9mm round or dropper post. Details including a smart mount system for racks and accessories give you a head start on any gravel riding mission.

FEATURES

• Fast and light: New Advanced composite frame and fork save more than 160 grams compared to previous model. Updated geometry includes a lower bottom bracket, longer reach and steeper headtube angle for improved acceleration and climbing.
• Tuned compliance: New frame features thinner, dropped seatstays to absorb road shocks and vibrations. D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.
• Adaptable to the terrain: A flip chip on the rear dropout adjusts the wheelbase short for quicker handling, or long for improved stability at speed. The long setting allows for larger diameter tires up to 53mm. You can also choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.

TECH SPECS

• Frame: Advanced-Grade Composite, 12x142mm thru-axle, disc, flip chip dropout
• Fork: Advanced-Grade Composite, full-composite OverDrive steerer, 12mm thru-axle, disc
• Shock: N/A
• Handlebar: Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
• Grips: Stratus Lite 3.0
• Stem: Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
• Seatpost: Giant D-Fuse, composite, 14mm offset
• Saddle: Giant Approach
• Pedals: N/A
• Shifters: Shimano GRX RX-600, 2×11
• Front Derailleur: Shimano GRX RX-810
• Rear Derailleur: Shimano GRX RX-810
• Brakes: Shimano GRX RX-400 hydraulic, Giant MPH rotors [F]160mm, [R]160mm
• Brake Levers: Shimano GRX RX-600 hydraulic
• Cassette: Shimano 105, 11-speed, 11×34
• Chain: KMC X11SL-1
• Crankset: FSA Omega AGX, 32/48 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
• Bottom Bracket: Praxis, press fit
• Rims: Giant P-X2 Disc wheelset
• Hubs: Giant P-X2 Disc wheelset
• Spokes: Giant P-X2 Disc wheelset
• Tires: Giant CrossCut AT 1, 700x38c, tubeless
• Extras: tubeless prepared, 53mm max tire size in “long” flip chip position, 42mm max tire size in “short” flip chip position
• Weight: The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories.
