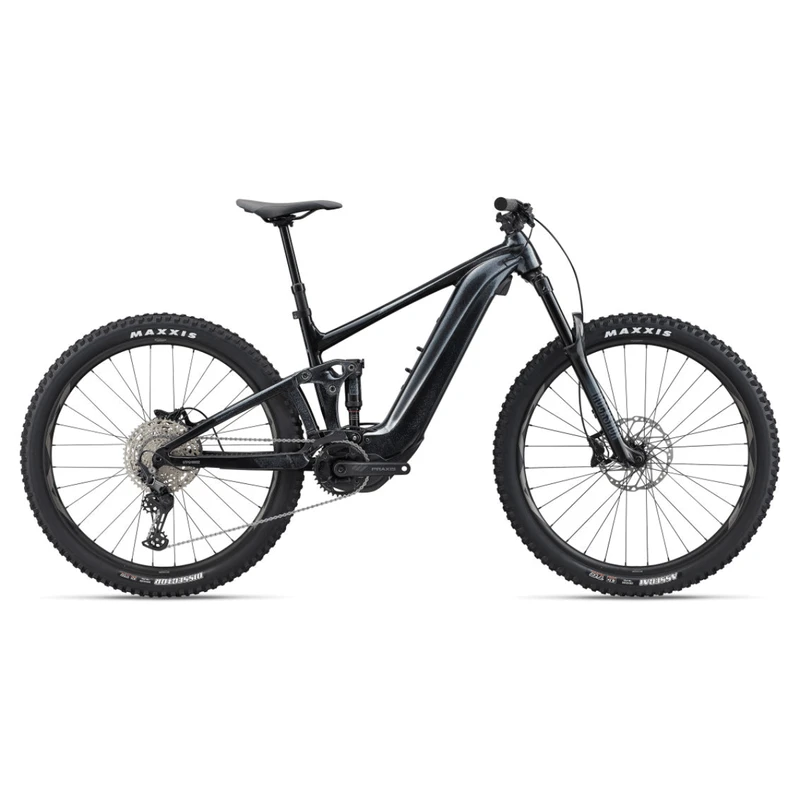

Giant Trance X E+ 3 29 Bike – 2023

GIANT TRANCE X E+ 3 29 BIKE – 2023

Faster up the climbs, longer loops, more singletrack fun on any given day. Free yourself to push your trail riding to the next level with this powerful, fun and smooth-riding e-bike.

Smooth, powerful support
SyncDrive Pro motor delivers 85Nm of torque and tunable support ratios up to 400 percent. Smart Assist technology creates smooth pedal assistance that engages instantly when human power is applied, giving you reliable performance on steep climbs and at low speeds.

Trail-riding control
Optimized Maestro suspension for 29-inch wheels with 140mm rear/ 150mm front travel to roll over rough terrain with balance and stability, giving you more momentum for technical climbs and the confidence to fly on fast, rugged singletrack descents.

Adaptable to the terrain
New flip chip feature lets you change the headtube and seattube angles, along with the bottom bracket height, to fine-tune handling for varying trail conditions and individual riding style. You can choose the low position for fast, aggressive terrain, or high for a more XC-oriented rider position.

FEATURES

• ALUXX SL Aluminum Technology
• Hybrid Cycling Technology
• Maestro Suspension Technology
• SyncDrive Pro
• Smart Assist
• Energypak

TECH SPECS

• Frame: ALUXX SL-Grade Aluminum, Advanced Forged Composite linkage, 140mm Maestro Suspension System, ‘Boost’ 148×12 UDH derrailleur hanger, Giant EnergyPak Plus Range Extender Compatible
• Fork: RockShox 35 Gold RL DebonAir, 150mm travel, 44mm offset, MotionControltm rebound and lockout control, 15×110 Boost, Maxle Stealth, e-MTB optimized
• Shock: Rock Shox Deluxe R, 185×52.5mm Trunnion mount, custom tuned
• Handlebar: Giant Contact 35 Trail, 35x780mm
• Grips: Giant Tactal Pro-E, single lock-on
• Stem: Giant Contact SL 35
• Seatpost: Giant Contact Switch, dropper, 30,9mm (S:125, M: 150, L/XL:170)
• Saddle: Giant Romero Trail
• Pedals: Flat pedal
• Shifters: Shimano Deore
• Front Derailleur: MRP HD2 co-moulded chain guide
• Rear Derailleur: Shimano Deore 12-speed
• Brakes: Shimano BR-M420, 4-piston, hydraulic disc, 203mm
• Brake Levers: Shimano Deore BL-M4100, I-spec EV
• Cassette: Shimano CS-M6100-12, 10-51T, 12-speed
• Chain: KMC e.12 Turbo, EcoProteq, e-bike optimized
• Crankset: Praxis Wavetm 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set (S:160, M/L: 165, XL:170)
• Bottom Bracket-
• Rims: Giant AM 29″, Tubeless ready, 30mm inner width
• Hubs: Shimano MT410 Boost, Center-Lock, [F] 110×15 [R] 148x12mm Micro-Spline Drive Body Thru-axle
• Spokes: Sapim E-Lite [R] Race [F]
• Tires: Maxxis Assegai 29×2.6″ foldable, Tubeless, EXO [F]Maxxis Dissector 29×2.6″ Foldable, Tubeless, EXO+ [R]
• Extras: Tubeless kit (liquid, valves, levers, manual, tool)
• Lighting-
• Weight: The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All the bikes are designed for best-in-class weight and ride quality.
