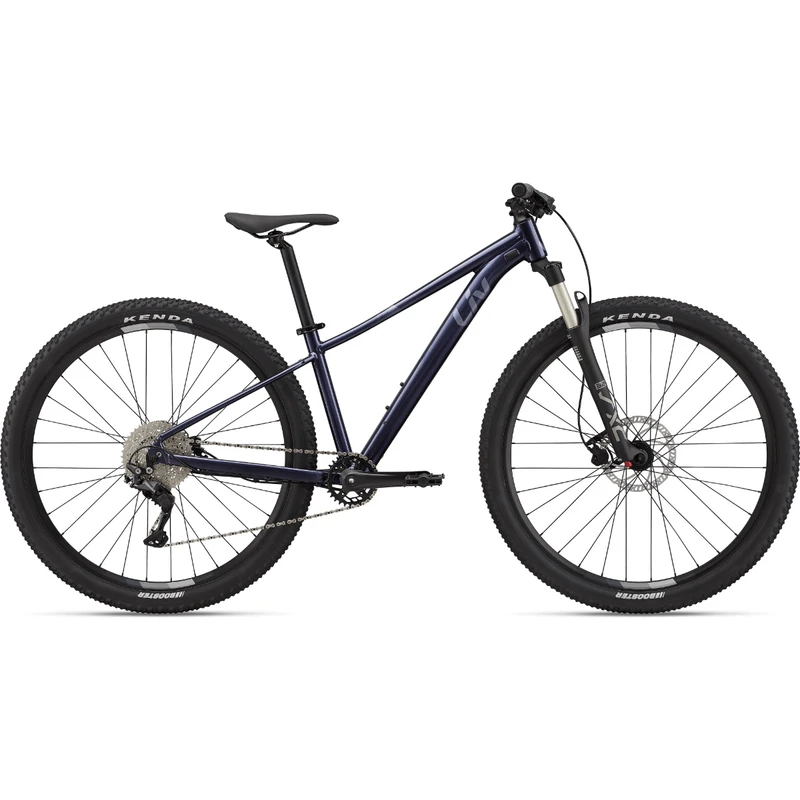

LIV TEMPT 1 BIKE – 2023
Get on the dirt and ride your way to your first singletrack. Tempt is that friend that opens a whole new world to you.
Confidence Inspiring
Perfect as your first mountain bike, the ALUXX-Grade Aluminum frame is lightweight, capable and durable.
Versatile
Tempt’s performance-minded yet comfortable geometry gives it the versatility for both commutes around campus and off-road rides.
XC Control

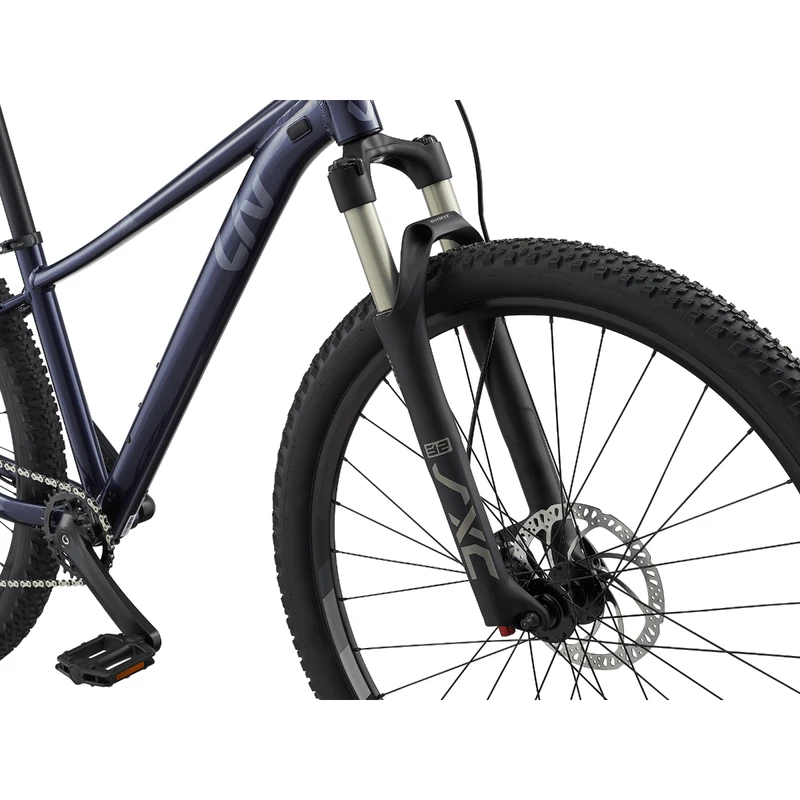

A suspension fork offers control, comfort and stability over bumpy terrain. Depending on frame size, the fork comes with 80mm or 100mm of travel.
FEATURES
- ALUXX Aluminum Technology
TECH SPECS
- Frame: ALUXX-Grade Aluminum, disc
- Fork: SXC32-2 RL, air spring, QR, alloy steerer XS: 80mm travel (27.5) S: 100mm travel (27.5) / 100mm travel (29) M: 100mm travel (27.5) / 100mm travel (29) L: 100mm travel (29)
- Shock: N/A
- Handlebar: Giant Connect Trail, 31.8mm XS: 670mm (27.5) S: 670mm (27.5) / 670mm (29) M: 750mm (27.5) / 750mm travel (29) L: 750mm (29)
- Grips: Giant Sole-O
- Stem: Giant Sport, 7-degree XS: 40mm (27.5) S: 40mm (27.5) / 40mm (29) M: 50mm (27.5) / 50mm travel (29) L: 50mm (29)
- Seatpost: Giant Sport, 30.9 XS: 300mm (27.5) S: 300mm (27.5) / 375mm (29) M: 375mm (27.5) / 375mm travel (29) L: 375mm (29)
- Saddle: Liv Sport
- Pedals: MTB caged
- Shifters: Shimano Deore M4100, 1×10
- Front Derailleur: N/A
- Rear Derailleur: Shimano Deore M5120
- Brakes: Tektro HDC TKD 149, hydraulic, Tektro rotors [F]180mm, [R]160mm
- Brake Levers: Tektro TKD 149
- Cassette: Shimano Deore M4100, 11×42
- Chain: KMC X10
- Crankset: ProWheel Charm, 30t XS: 165mm (27.5) S: 165mm (27.5) / 170mm (29) M: 170mm (27.5) / 170mm travel (29) L: 175mm (29)
- Bottom Bracket: cartridge
- Rims: Giant GX03V 29 or 27.5, alloy, double wall, 21mm inner width
- Hubs: alloy, sealed bearing
- Spokes: stainless, 14g
- Tires: Kenda Booster 27.5 or 29×2.4″, wire bead
- Extras: 2.4″ max tire size
- Weight: The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All Liv’s bikes are designed for best-in-class weight and ride quality.

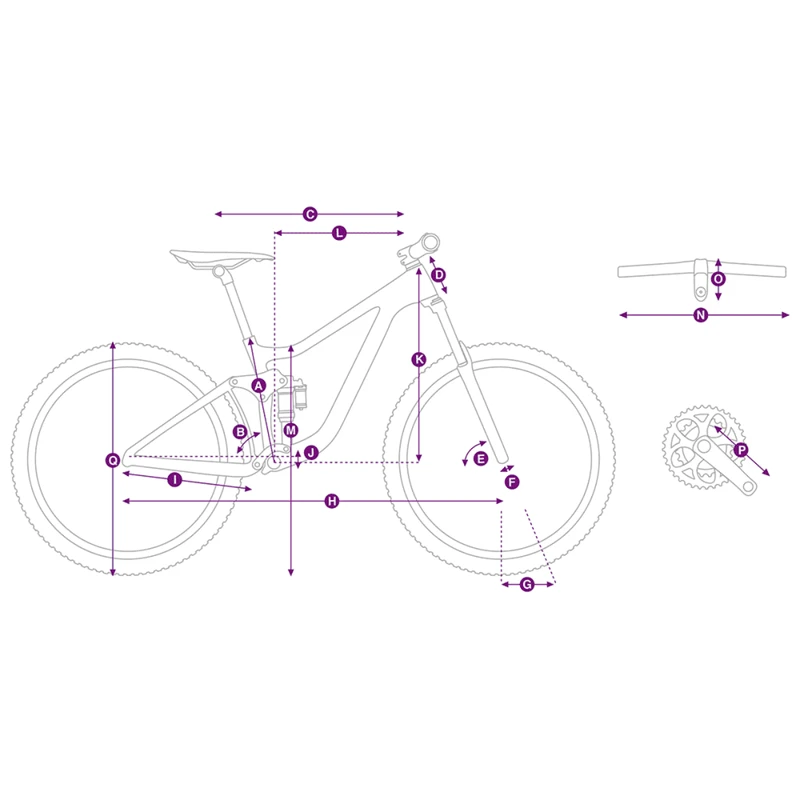

| XS (27.5″) | S (27.5″) | S (29″) | M (27.5″) | M (29″) | L (29″) | ||
|---|---|---|---|---|---|---|---|
| A | SEAT TUBE LENGTH (mm) | 325 | 365 | 370 | 405 | 420 | 450 |
| B | SEAT TUBE ANGLE | 74,0° | 74,0° | 74,0° | 74,0° | 74,0° | 74,0° |
| C | TOP TUBE LENGTH (mm) | 542 | 571 | 570 | 594 | 590 | 610 |
| D | HEAD TUBE LENGTH (mm) | 95 | 100 | 90 | 110 | 95 | 105 |
| E | HEAD TUBE ANGLE | 68,0° | 68,0° | 68,5° | 68,0° | 68,5° | 68,5° |
| F | FORK RAKE (mm) | 40 | 42 | 51 | 42 | 51 | 51 |
| G | TRAIL (mm) | 102 | 98,9 | 94,3 | 98,9 | 94,3 | 94,3 |
| H | WHEELBASE (mm) | 1072 | 1104 | 1119 | 1128 | 1139 | 1160 |
| I | CHAIN STAY LENGTH (mm) | 440 | 440 | 455 | 440 | 455 | 455 |
| J | BOTTOM BRACKET DROP (mm) | 40 | 45 | 55 | 45 | 55 | 55 |
| K | STACK (mm) | 554 | 579 | 596 | 588 | 601 | 610 |
| L | REACH (mm) | 383 | 405 | 399 | 425 | 418 | 435 |
| M | STAND OVER HEIGHT (mm) | 663 | 686 | 705 | 708 | 737 | 757 |
| N | HANDLEBAR WIDTH (mm) | 730 | 750 | 750 | 750 | 750 | 750 |
| O | STEM LENGTH (mm) | 40 | 40 | 40 | 50 | 50 | 50 |
| P | CRANK LENGTH (mm) | 165 | 165 | 170 | 170 | 170 | 175 |
| Q | WHEEL SIZE | 27.5″ | 27.5″ | 29″ | 27.5″ | 29″ | 29″ |
