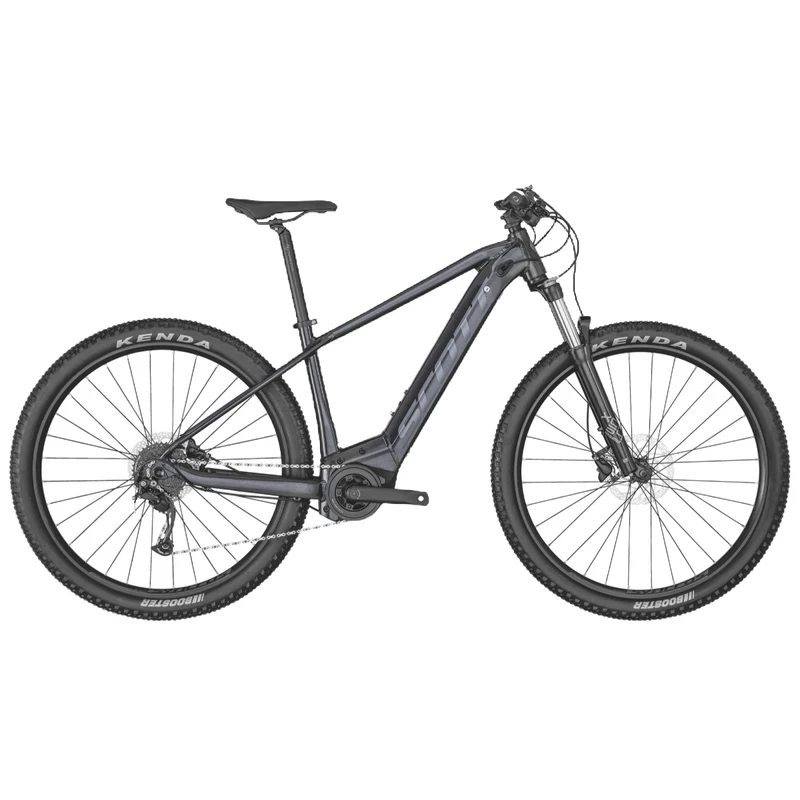

SCOTT ASPECT ERIDE 940 OFF-ROAD EBIKE – 2022
The SCOTT Aspect eRIDE 940 features proven electric assist technology in a comfortable off-road package. With an
integrated battery, and powered by a 500wh Bosch drive system, the Aspect eRIDE will give you hours of trail riding
energy. Rack and fender available.
Light Ready
In order to mount a front or rear light, they have already routed the cables in the
frame, and there is no need for an extra battery – the power comes straight from the drive unit battery. (Light not
included)
eRide Advanced Design
With this new E-Bike generation, the design has been pushed further than ever before.
More than a battery integrated into the frame, Scott sees the bike as a system where every part must be taken
into consideration. Therefore, to improve the integration, they have worked a lot on the line continuity but
also on the design balance from the headtube to the dropouts. Enjoy a bike with a unique character!
Bosch
Power Tube
Thanks to their range, long service life, intelligent battery management system and easy
handling, Bosch Power Tube lithium-ion batteries are among the most modern on the market. All those decades of Bosch
experience has paid off!
Rack & Fenders
Feel free to install a rack and the corresponding fender set. The frame has dedicated
fixation points for a clean and reliable solution. (Accessories not included)
***Please note that bike
specifications are subject to change without prior notice***
- Alloy frame
- Tapered Headtube E2
- Custom butted tubing / internal cable routing
- Bosch Gen3 / Integr. removable Battery / Boost 148x12mm
- DO Kickstand mount / Range Booster Ready
- 120MM
- SR Suntour XCM34 Coil
- 15x110mm QR axle / Tapered Steerer
- Remote Lockout / 120mm travel
- SR Suntour Remote
- Bosch Active Line Plus
- EU: 25kmh / INT: 20mph
- PowerTube 500Wh
- Bosch Purion
- 2A Charger
- Shimano RD-M3100 / 9 Speed
- Shimano SL-M2000
- FSA CK-200 / 165mm
- FSA WB437 32T w/CG
- KMC e9S
- Shimano CS-HG200-9 ACERA 11-36
- Shimano BR-MT200 Disc
- SM-RT30 CL 180mm
- Rear: RT-EM300 CL 180mm
- Syncros 3.0 720mm / 31.8mm / 9° / 12mm rise
- Syncros Comfort lock-on grips
- Syncros 3.0 / 7° / Black
- Syncros 3.0 / 31.6mm
- Syncros ER2.5
- Syncros OE / Tapered 1.5″-1 1/8″
- semi integ. OD 50/62mm / ID 44/56mm
- Shimano HB-MT400-B CL / 15x110mm
- Shimano FH-MT400-B CL / Boost 12x148mm
- Stainless Black
- Syncros X18 / 32H / 30mm / Pin Joint
- Kenda Booster 29×2.6″ / 30TPI
- Kenda Booster 29×2.6″ / 30TPI
- Bosch Light Cable pre-installed F&R
- 128 kg/280 lb
- The overall weight includes the bike, the rider, the equipment, and possible additional luggage.

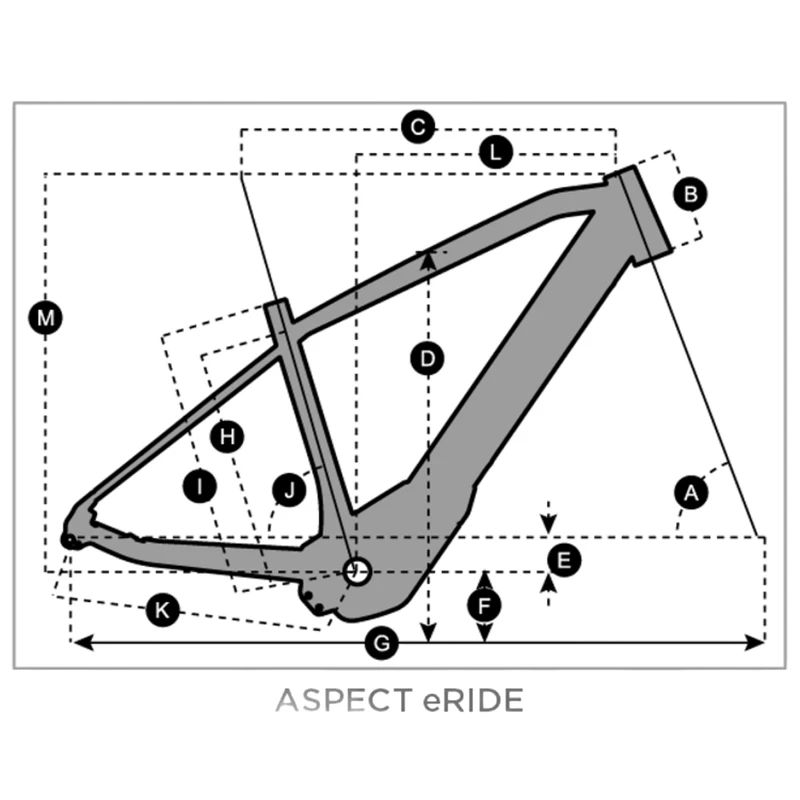

| XS / 900 | S / 900 | M / 900 | L / 900 | ||
|---|---|---|---|---|---|
| A | HEAD TUBE ANGLE | 67.0 ° | 67.0 ° | 67.0 ° | 67.5 ° |
| B | HEAD TUBE LENGTH | 4.3 IN | 4.3 IN | 4.7 IN | 5.1 IN |
| C | TOP TUBE HORIZONTAL | 22.8 IN | 22.8 IN | 23.6 IN | 24.4 IN |
| D | STANDOVER HEIGHT | 29.2 IN | 30.2 IN | 30.4 IN | 31.5 IN |
| E | BB OFFSET | -2.2 IN | -2.2 IN | -2.2 IN | -2.2 IN |
| F | BB HEIGHT | 12.6 IN | 12.6 IN | 12.6 IN | 12.6 IN |
| G | WHEEL BASE | 45.9 IN | 45.9 IN | 46.7 IN | 47.3 IN |
| H | BB CENTER TO TOPTUBE CENTER | ||||
| I | BB CENTER TO TOP OF SEATTUBE | 14.0 IN | 15.7 IN | 17.3 IN | 18.9 IN |
| J | SEAT ANGLE | 74.0 ° | 74.0 ° | 74.0 ° | 74.0 ° |
| K | CHAINSTAY | 18.9 IN | 18.9 IN | 18.9 IN | 18.9 IN |
| L | REACH | 15.7 IN | 15.7 IN | 16.4 IN | 17.0 IN |
| M | STACK | 24.9 IN | 24.9 IN | 25.3 IN | 25.7 IN |
| N | STEM LENGTH | ||||
| 0 | TRAIL | 4.5 IN | 4.5 IN | 4.5 IN | 4.4 IN |
| Size | S, M, L |
|---|---|
| Wheel Size | 29 |
