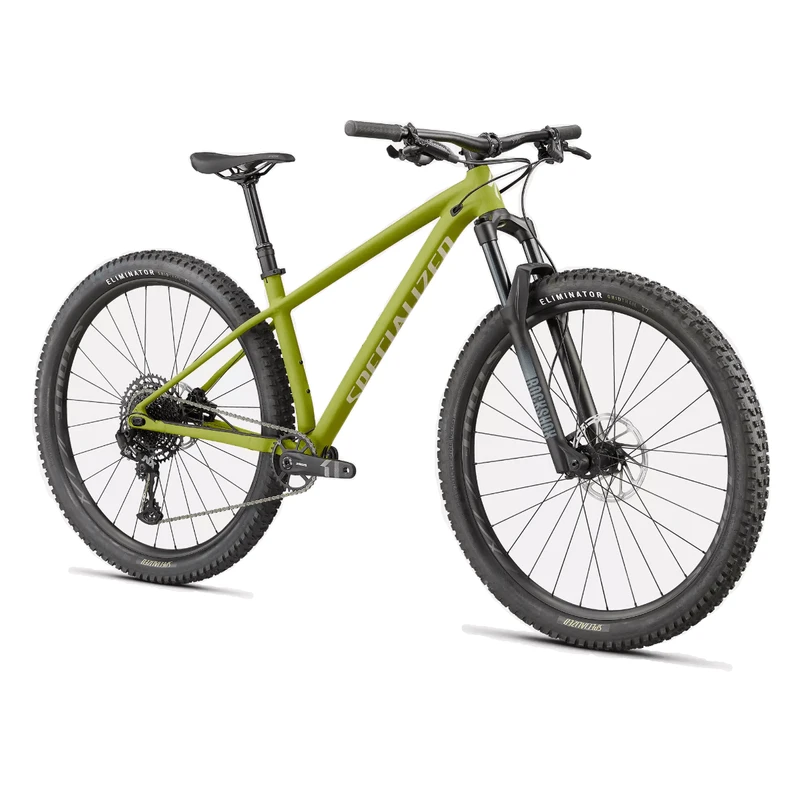

Specialized Fuse Comp Bike – 2023

SPECIALIZED FUSE COMP BIKE – 2023

The Fuse Comp 29 punches way above its weight class thanks to a light-yet-burly M4 aluminum chassis, frame geometry that lends the bike both playfulness and capability, and parts that withstand a serious flogging.

TECH SPECS

Frameset

• Frame: Specialized M4 Premium Aluminum, 148mm thru-axle, adjustable dropout, SS compatible, tapered head tube, internal cable routing
• Seat Binder: Alloy, 38.6mm

Suspension

• Fork: RockShox Recon RL, air spring, 46mm offset, 130mm of travel

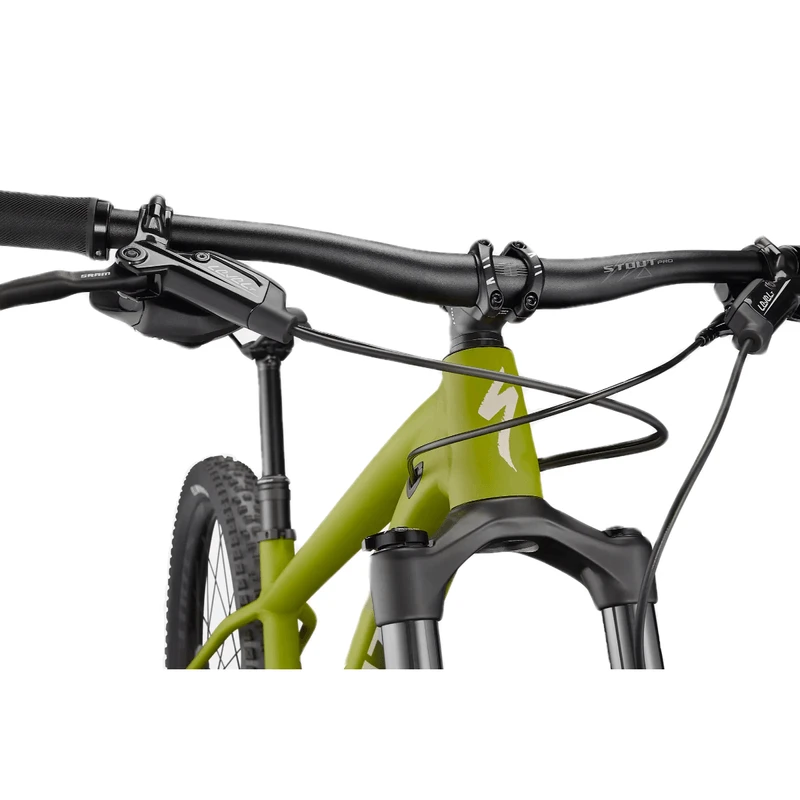

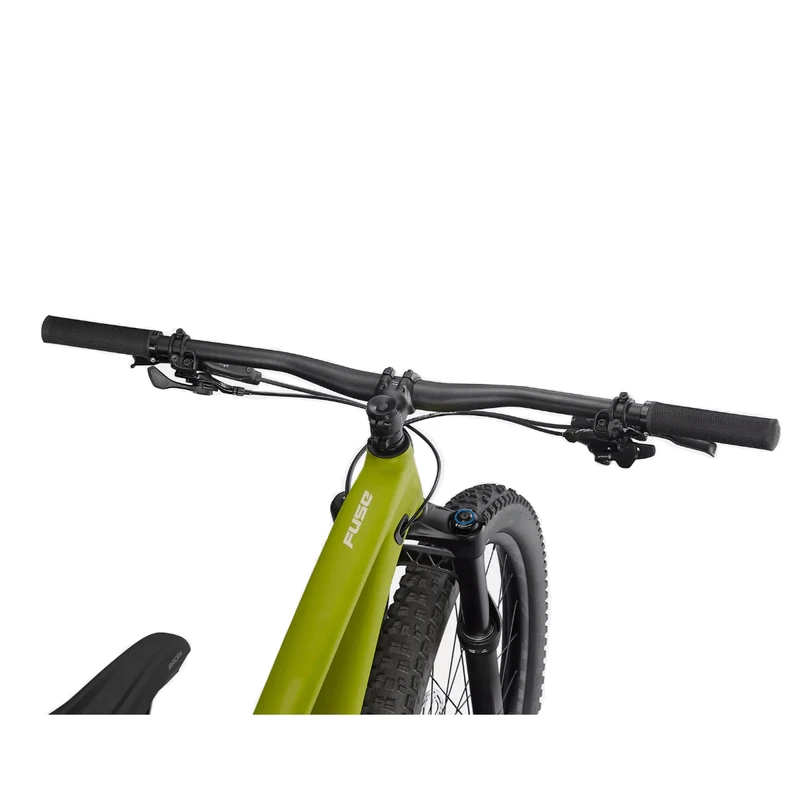

Cockpit

• Stem: Stout 3D-forged alloy, 31.8mm, 6-degree rise
• Handlebars: Stout Riser, double-butted alloy, 9-degree backsweep, 5-degree upsweep, 15mm rise, 750mm / 780mm width, 31.8mm
• Tape: Specialized Trail Grips
• Saddle: Bridge Comp, Hollow Cr-mo rails, 155/143mm
• SeatPost: TranzX Dropper, 34.9mm, XS-S: 100mm, M: 125mm, L-XL: 150mm

Brakes

• Front Brake: SRAM Level TRL, hydraulic disc, 4-piston, 200/180mm
• Rear Brake: SRAM Level TRL, hydraulic disc, 2-piston, 180/160mm

Drivetrain

• Rear Derailleur: SRAM NX Eagle, 12-speed
• Shift Levers: SRAM NX Eagle, trigger, 12-speed
• Cassette: SRAM NX Eagle PG-1230, 12-speed, 11-50t
• Chain: SRAM, SX Eagle, 12-speed
• Crankset: SRAM, X1 Alloy Eagle, 12-speed
• Chainrings: 32T
• Bottom Bracket: SRAM DUB, BSA 73mm, threaded

Wheels

• Rims: Specialized Alloy, Tubeless Ready, 29mm internal width, 28h
• Front Hub: Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
• Rear Hub: Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h
• Spokes: Stainless, 14g
• Front Tire: Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 29×2.6″
• Rear Tire: Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 29×2.6″
• Inner Tubes: Standard, Presta valve
