Specialized Turbo Levo Comp Alloy E-Bike – 2023

SPECIALIZED TURBO LEVO COMP ALLOY E-BIKE – 2023

The all-new Levo delivers the unbelievable power to ride more trails through an unequaled combination of ride quality, usable power, and ride anywhere range. It’s the distillation, application, and amplification of a 40-year obsession with creating the world’s best riding mountain bikes. Since its introduction, Levo has set the bar every other e-MTB aims for, and the new Levo raises that bar again.

It starts with their Turbo Full Power 2.2 motor and Turbo Connect Unit (TCU), which provide Levo with a smooth and seamless amplification of your efforts—4x you power that lets you choose where to ride, and when you want to do it. Levo also shatters limitations when it comes to range, amplifying your effort for up to five hours of trail time. Now you can ride farther, and explore more, than ever before. And the optimized chassis boasts 150mm of custom-tuned rear suspension and adjustable geometry that delivers a stable and natural ride like no other. Because at the end of the day, it’s the ride that matters. Believe it.

Take your trail riding to a whole new level with the Turbo Levo Comp. Featuring their all-new M5 alloy chassis, SRAM’s expansive GX Eagle 12-speed drivetrain, and buttery FOX Performance suspension, it’ll have you riding circles around everyone else.

FEATURES

• Levo’s fully integrated Turbo Full Power 2.2 motor, 700Wh battery, and Turbo Connect Unit deliver category-leading 90 Nm of torque and 565 watts of power for up to five hours of ride time, empowering you to ride farther and faster than ever before.

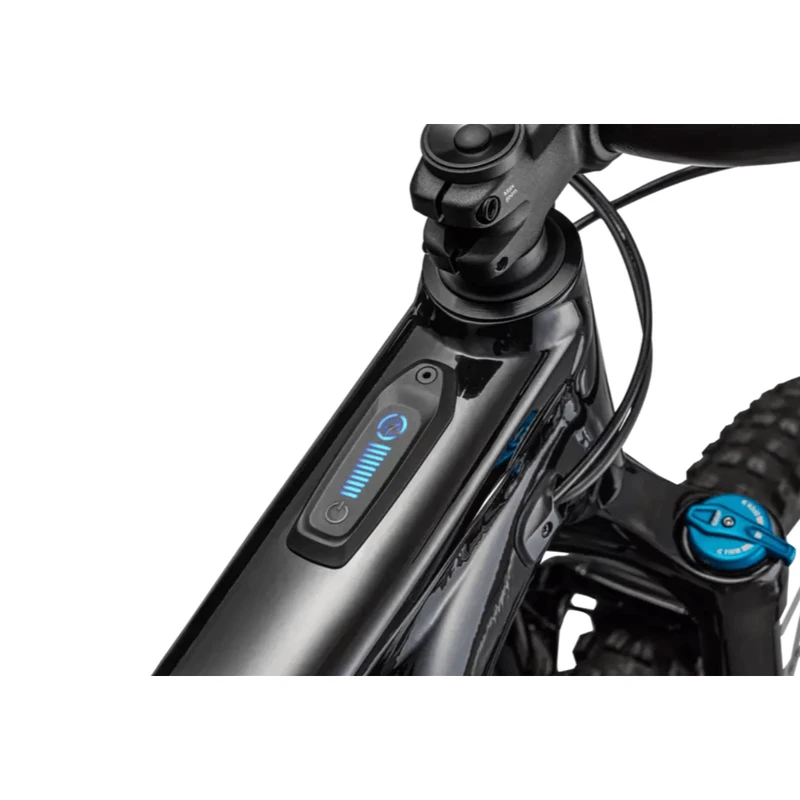

• The Levo’s Turbo Connect Unit (or “TCU”) is more than an “On-Off” button—it’s the brains of the bike. The TCU shows your battery level and power-assist mode. It also communicates, via ANT+/Bluetooth, with our optional handlebar display to display even more information about your day’s ride.
• A dedicated mixed-wheel size design with a 27.5” wheel in the back and 29” up front delivers a nimble ride that carves circles around other full-power e-MTBs. A generous cockpit centers you on the bike, optimizing traction and corner control. The low bottom bracket, slack headtube angle and reduced fork offset keep things stable in the rough.
• Levo offers six distinct geometry settings, allowing you to easily dial-in its performance for any riding style and any terrain. Head tube angle can be adjusted between 63- and 65.5-degrees. Bottom bracket height can be fine-tuned up or down by 7mm.

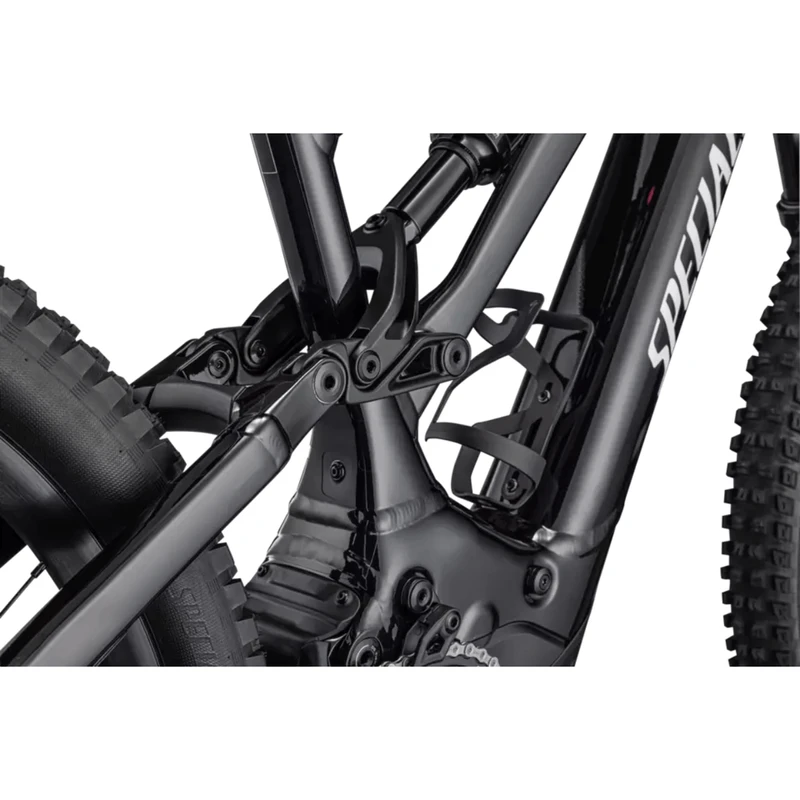

• Levo’s 150mm of rear travel is supple on small bumps, devours square-edged hits without a twitch, eats massive G-outs for breakfast, yet still offers amazing pedal response and delivers your power to the ground with total efficiency.
• The Levo’s S-Sizing is based on what matters—rider size and style, not inseam. Six sizes, all with similar headtube lengths and standover, allow you to choose the size that best suits your individual style. Smaller S-Size numbers are going to be nimble and more flickable, while bigger S-Sizes deliver more stability and a roomier ride.

TECH SPECS

• Seat Binder: Alloy, 38.6
• Frame: Specialized M5 premium alloy, headset adjust, BB height adjust, S-Sizing, internal cable routing, 150mm travel, 148mm spacing
• Fork: Fox Rhythm 36, S1: 150mm travel, S2-S6: 160mm travel

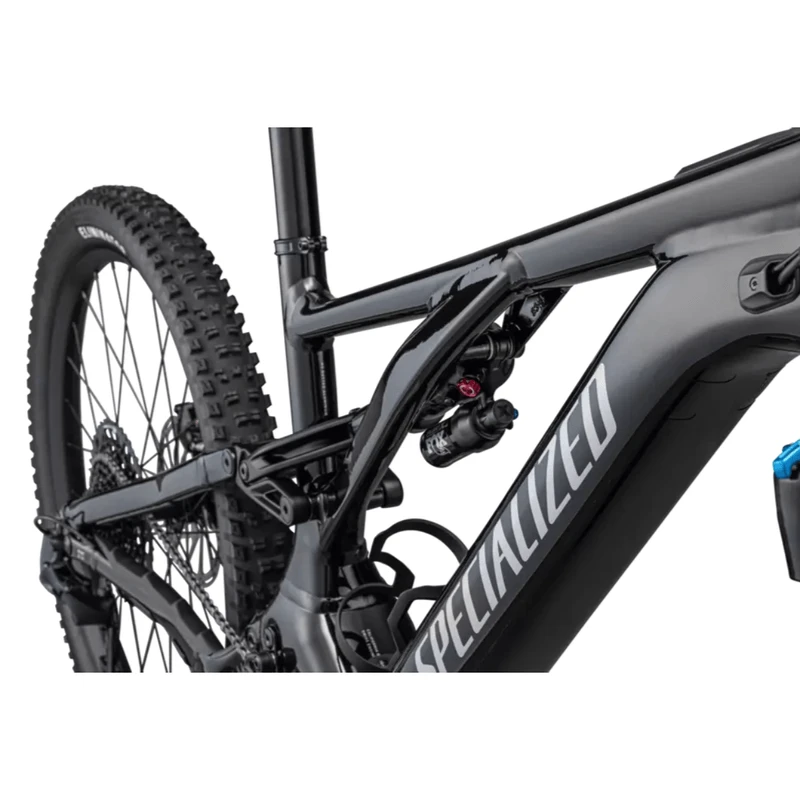

• Rear Shock: FOX FLOAT X Performance, LSR, 2-position lever, 55x210mm
• Stem: Alloy Trail Stem, 35mm bar bore
• Handlebars: Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm width
• Tape: Specialized Trail Grips
• Saddle: Bridge Comp, Hollow Cr-mo rails, 155/143mm
• SeatPost: X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 100mm, S2: 125mm, S3: 150mm, S4/S5: 175mm, S6: 190mm
• Front Brake: SRAM Code R, 4-piston caliper, hydraulic disc, S1-S3: 200mm, S4-S6: 220mm: Rear Brake
• SRAM Code R, 4-piston caliper, hydraulic disc, 200mm
• Rear Derailleur: SRAM GX Eagle, 12-speed
• Shift Levers: SRAM GX Eagle, 12-speed
• Cassette: SRAM XG-1275, 12-speed, 10-52t: Chain
• SRAM NX Eagle, 12-speed
• Crankset: Praxis forged M30, custom offset, 160mm
• Chainrings: SRAM X-Sync Eagle, 104 BCD, 32T, steel
• Rims: Specialized 29, hookless alloy, 30mm inner width, tubeless ready
• Front Hub: Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h: Spokes
• DT Swiss Industry: Inner Tubes
• Standard, Presta Valve
• Rear Hub: Alloy, sealed cartridge bearings, 148mmx12mm thru-axle, 28h
• Front Tire: Butcher, GRID TRAIL casing, GRIPTON T9 compound, 2Bliss Ready, 29×2.6″
• Rear Tire: Eliminator, GRID TRAIL casing, GRIPTON T7 compound, 2Bliss Ready, 27.5×2.6″

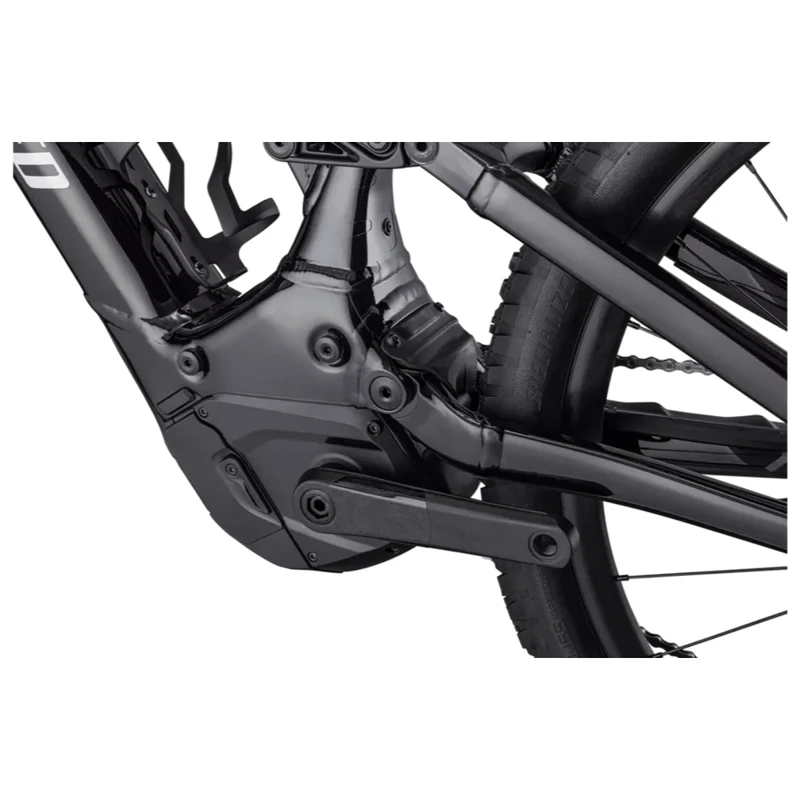

• Motor: Specialized Turbo Full Power System 2.2 Motor
• UI/Remote: Specialized TCU, 10-LED State of charge, 3-LED Ride Mode display, ANT+/Bluetooth, w/Handlebar remote
• Charger: Custom charger, 42V4A w/ Rosenberger plug
• Battery: Specialized M3-700, Integrated battery, 700Wh
• Wiring Harness: Custom Specialized wiring harness
