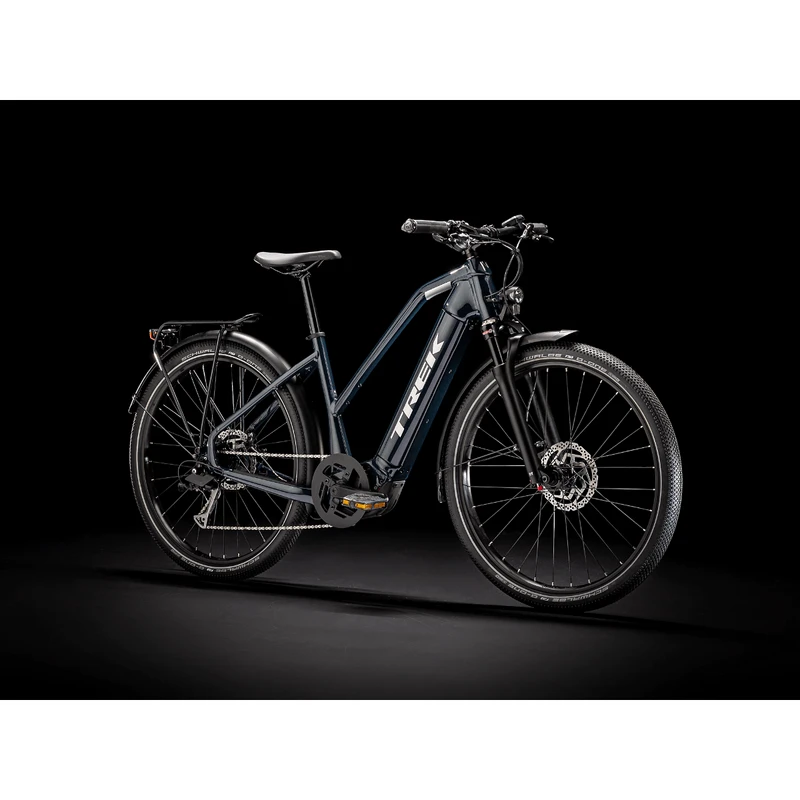

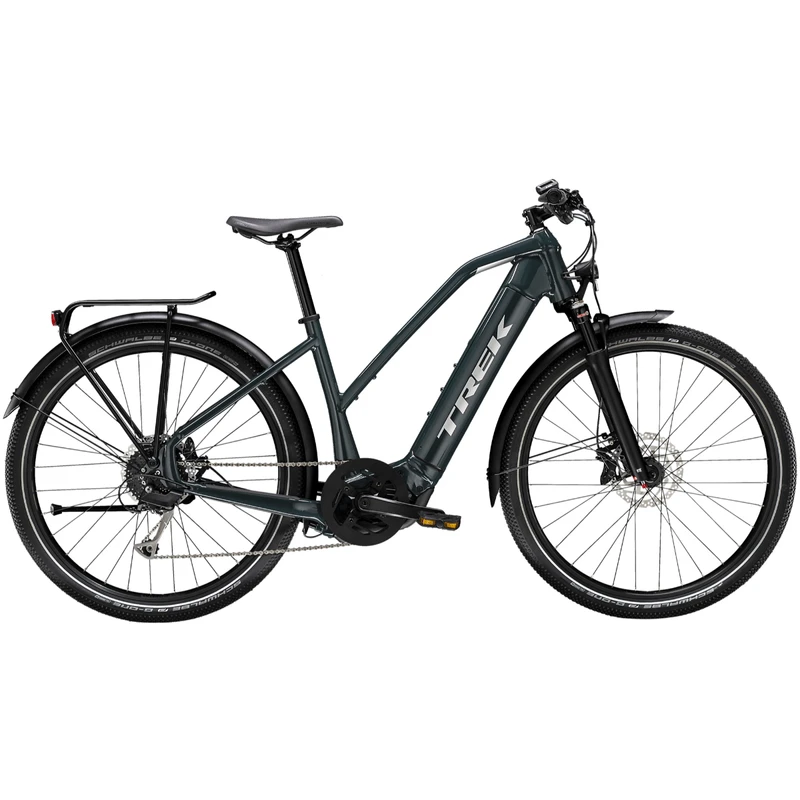

Trek Allant+ 7S Stagger E-Bike – 2023

TREK ALLANT+ 7S STAGGER E-BIKE – 2023

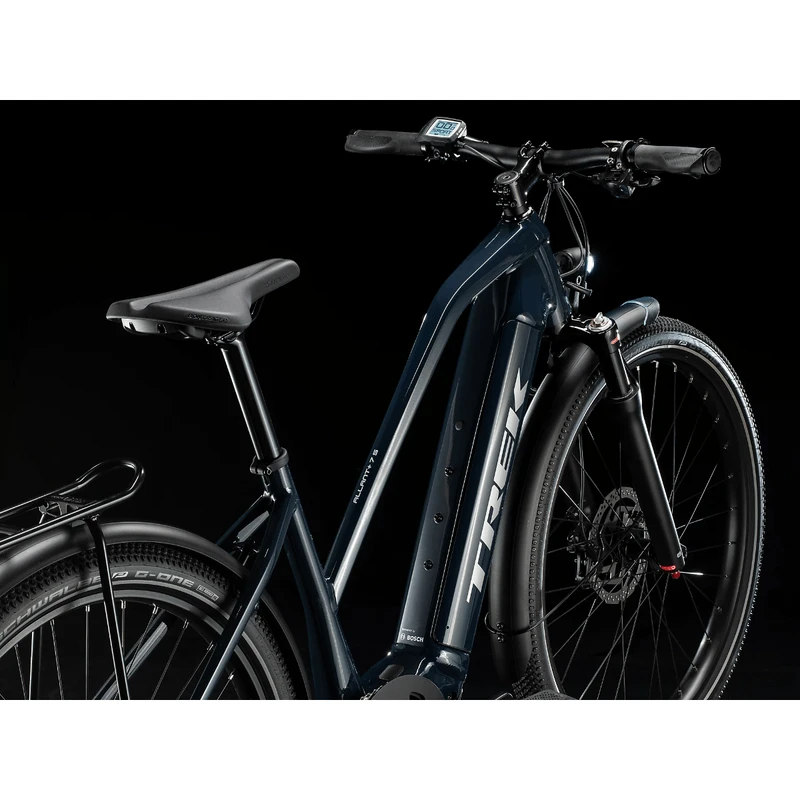

Allant+ 7S Stagger is a performance e-bike built for riders and commuters who want a fast, stylish e-bike with the added road-smoothing benefits of a suspension fork. A super powerful Bosch Performance Speed motor that assists up to 28 mph, quality parts, and a wealth of thoughtful design details make this electric bike a smart solution for getting around town every day.

FEATURES

• A fast, powerful drive system and thoughtful features make it even more feasible and fun to leave your car at home

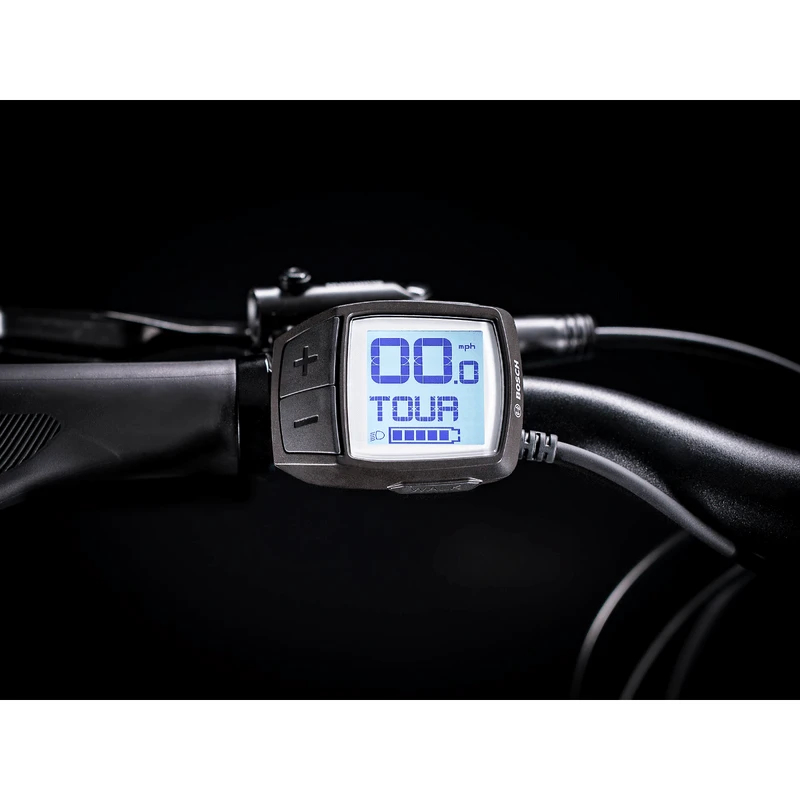

• The elegant and compact Bosch Purion controller lets you check your speed, distance, and battery range
• Trek’s Removable Integrated Battery (RIB) system looks great and is super user-friendly: it fully hides the battery in the frame and makes it easy to remove the battery without tools
• The fork’s lockout feature ensures you’re always riding efficiently: close it for smooth pavement, open it up on rougher roads
• Compatible with Range Boost—an additional battery that can double your e-bike’s range so you can ride longer, commute farther, and take on bigger adventures

TECH SPECS

• Frame: High-performance hydroformed alloy, Removable Integrated Battery, Range Boost-compatible, internal cable routing, Motor Armour, post-mount disc, 135×5 mm QR
• Fork: SR Suntour Mobie25, 45mm travel, preload, rebound and lockout, tapered alloy steerer, post mount disc

• Hub front: Bontrager Disc, 32-hole, 6-bolt disc, 15mm alloy thru-axle
• Hub rear: Bontrager alloy, sealed bearing, 6-bolt, 135x5mm QR
• Skewer rear: 135x5mm bolt-on
• Rim: Alex MD35, tubeless compatible, 32-hole, 35mm width, presta valve
• Spokes: S, M, L – J-Bend, 14g, Steel, Black; S, M, L – ENG SPEC – SPOKE PLACEHOLDER FOR ONE SPOKE MACH1
• Tire: Schwalbe G-One, 650Bx57c

• Shifter: S, M, L – Shimano Alivio M3100, 9 speed; S, M, L – Shimano Alivio M4000, 9 speed
• Rear derailleur: Shimano Alivio T4000, long cage
• Crank: S, M – ProWheel alloy, 170mm; L – ProWheel alloy, 175mm

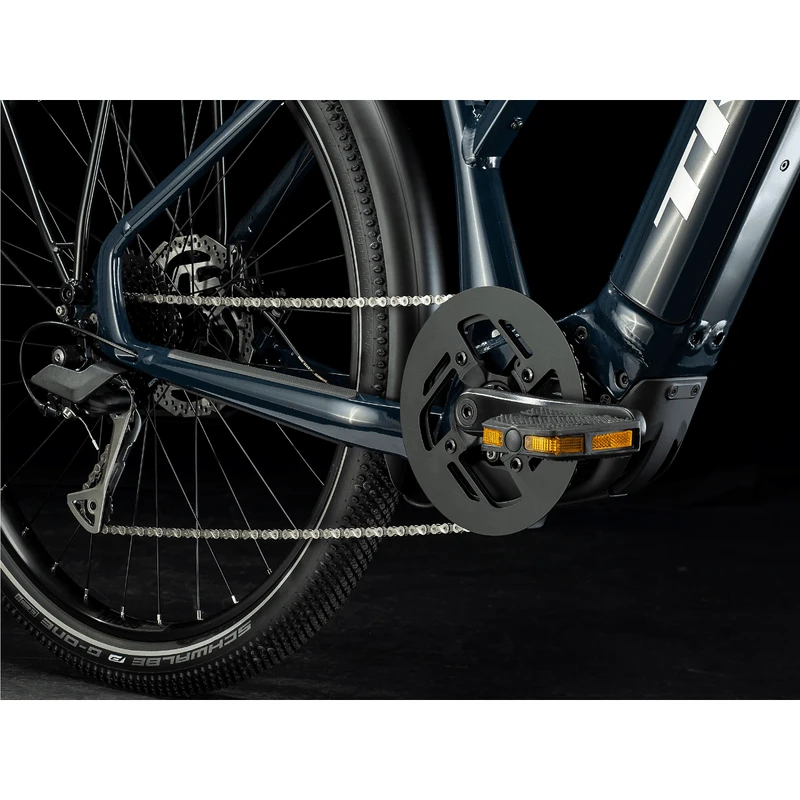

• Chainring: ProWheel 46T narrow/wide alloy, w/alloy guard
• Cassette: Shimano HG200, 11-36, 9 speed
• Chain: KMC X9
• Pedal: S, M, L – Bontrager City pedals; S, M, L: Wellgo C157, boron axle, plastic body; S, M, L – Track-style alloy

• Saddle: Bontrager Commuter Comp
• Seatpost: Bontrager Comp, 6061 alloy, 31.6mm, 8mm offset, 330mm length
• Handlebar: S, M – Bontrager alloy, 31.8mm, 15mm rise, 600mm width; L – Bontrager alloy, 31.8mm, 15mm rise, 660mm width
• Grips: Bontrager Satellite Elite, alloy lock-on
• Stem: S – Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 60mm length; M – Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 70mm length; L – Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 90mm length
• Headset: FSA Integrated, sealed cartridge bearing, 1-1/8” top, 1.5” bottom

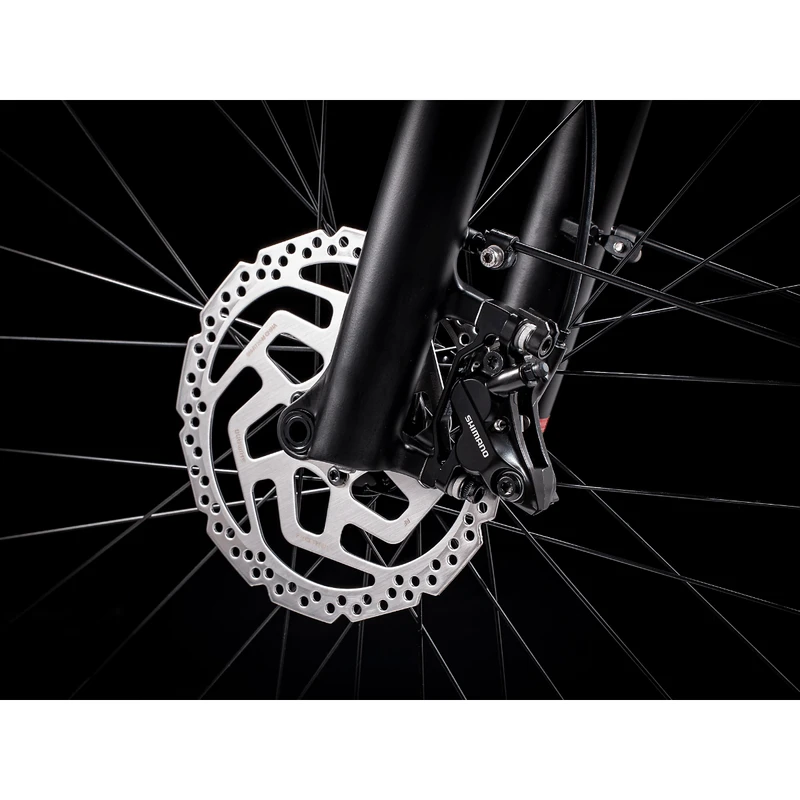

• Brake: Shimano MT520 4-piston hydraulic disc, post-mount 180mm rotor
• Brake rotor: Shimano RT26, 6-bolt,180mm

• Battery: Bosch PowerTube 500
• Charger: Bosch standard 4A (100-240V) charger
• Controller: Bosch Purion

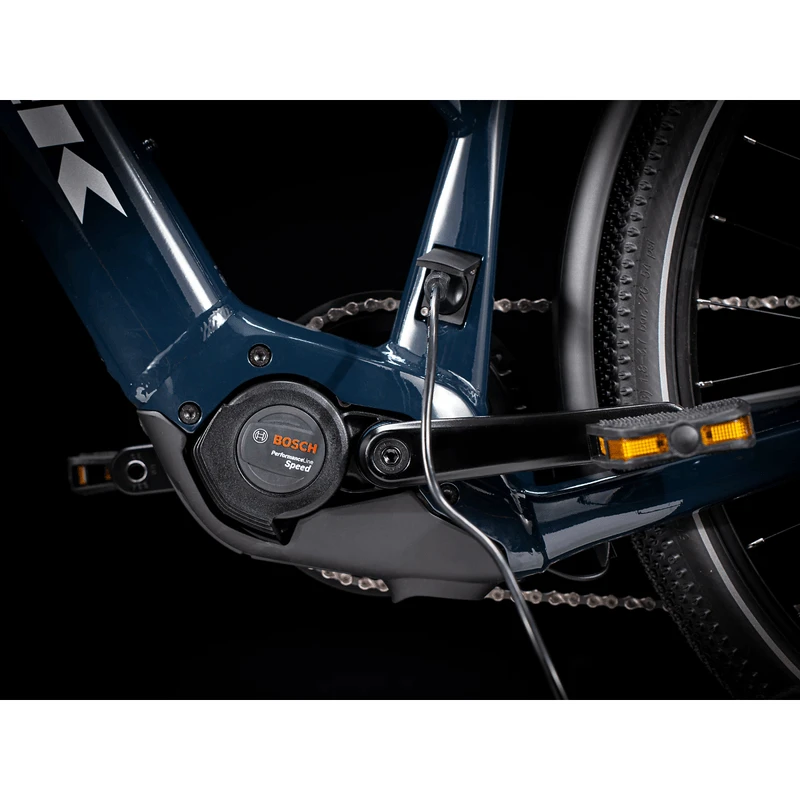

• Motor: Bosch Performance Speed, 75 Nm, 28 mph / 45 kph

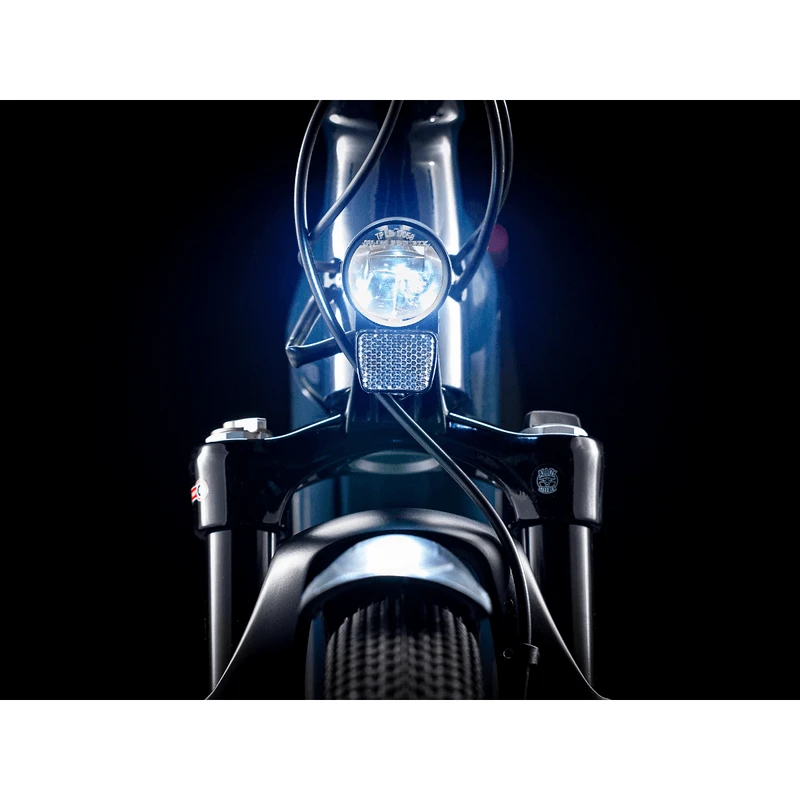

• Light: S, M, L – AXA Blueline taillight; S, M, L – Herrmans MR8e, 180 lumen, 60 lux; S, M, L – Herrmans MR8
• Kickstand: Rear mount, alloy

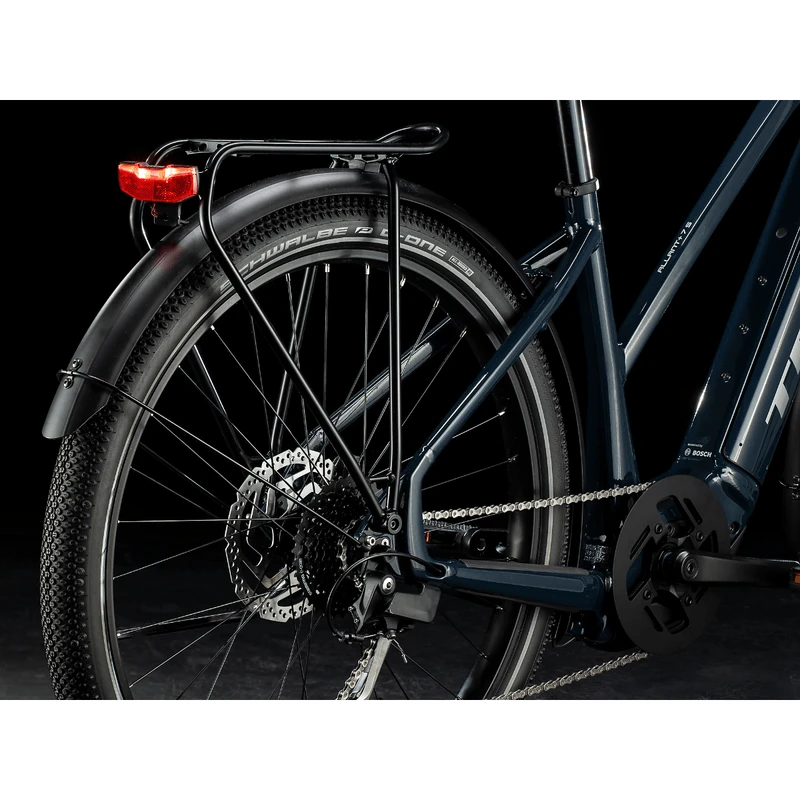

• Cargo rack: Racktime Lightit
• Fender: Eurofender Duo

• Weight: M – 24.50 kg / 54.01 lbs
• Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
