Trek Checkpoint SL 7 ETAP

TREK CHECKPOINT SL 7 ETAP

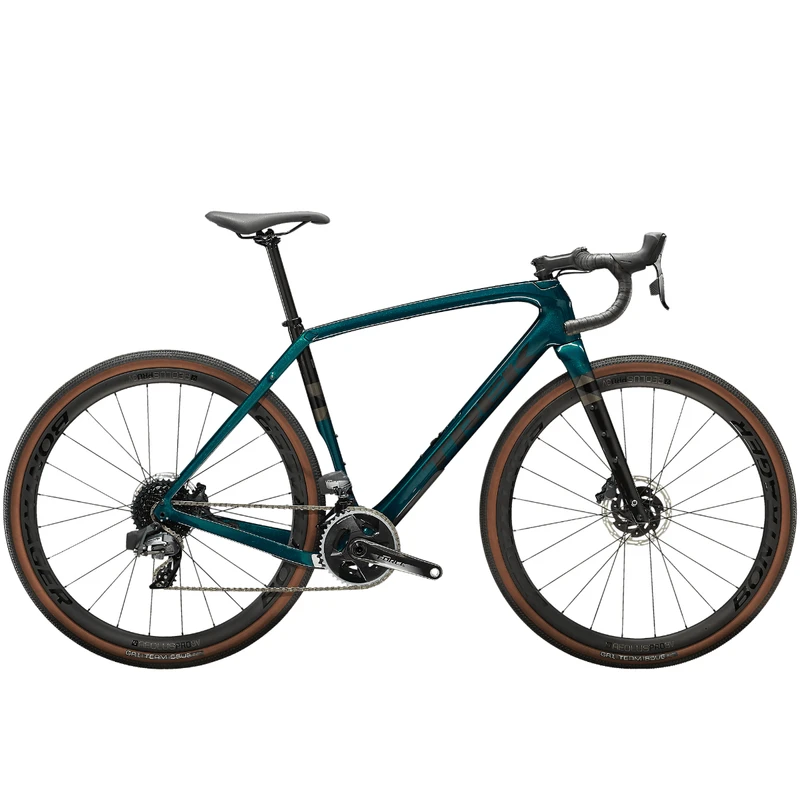

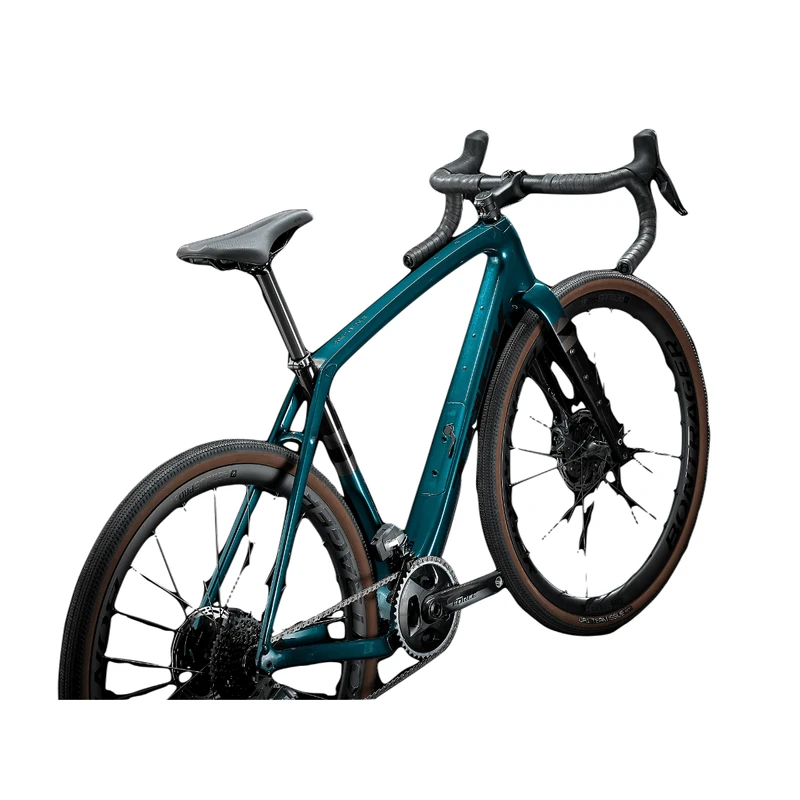

Checkpoint SL 7 eTap pairs a light OCLV Carbon gravel frame with IsoSpeed and high-tech parts picked for performance and incredible ride quality on the toughest and roughest gravel adventures. A nimble-yet-stable progressive geometry, a smart and smooth SRAM wireless electronic drivetrain, carbon wheels, and internal storage give you the comfort and capability you need to tackle your next all-road excursion.

FEATURES

• It’s right for you if…: You want an adventure-hungry carbon gravel bike that can help you crush the toughest, longest rides. You also want the swift, precise, and cable-free shifting of an advanced wireless electronic drivetrain, and carbon wheels for extra comfort on rough terrain.

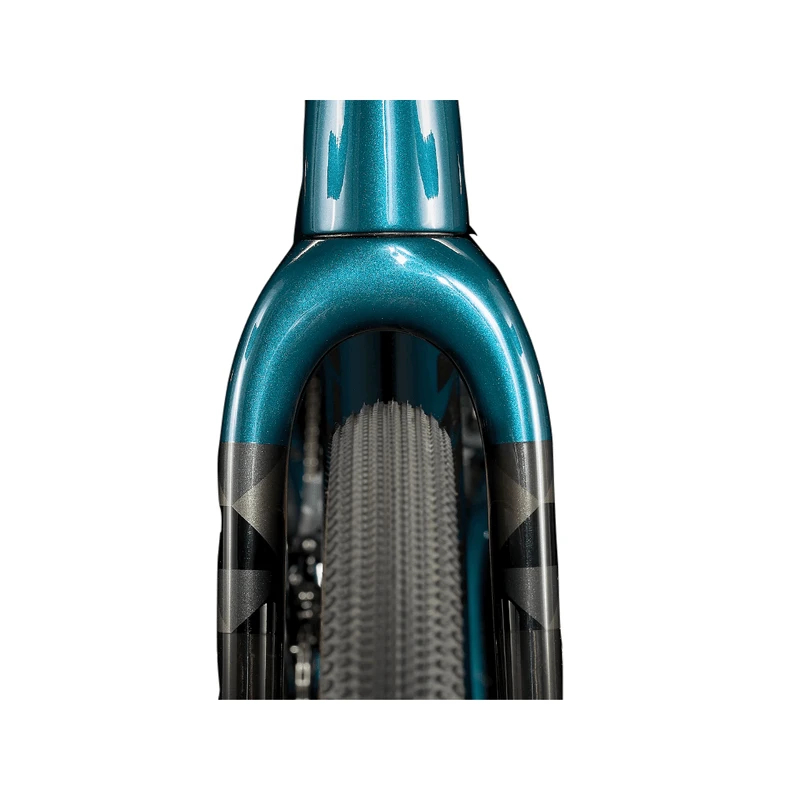

• The tech you get: A 500 Series OCLV Carbon frame with Rear IsoSpeed and carbon armor, a progressive geometry that’s stable at speed and efficient when you’re grinding up a climb, internal storage, hidden cables that won’t interfere with bags, integrated frame bag mounts, and rack and fender mounts. Plus, a carbon fork, 2×12 SRAM Force eTap AXS wireless electronic drivetrain with a wide-range cassette, and Bontrager Aeolus Pro 3V OCLV Carbon wheels. You can even run a dropper post to get low on long descents. Fits up to 45c tires.
• The final word: This bike is built to stand up to the most grueling gravel races and burliest all-road bikepacking adventures. It’s light, fast, comfortable, and fitted with pro-level parts, like an advanced wireless electronic drivetrain and carbon wheels.

TECH SPECS

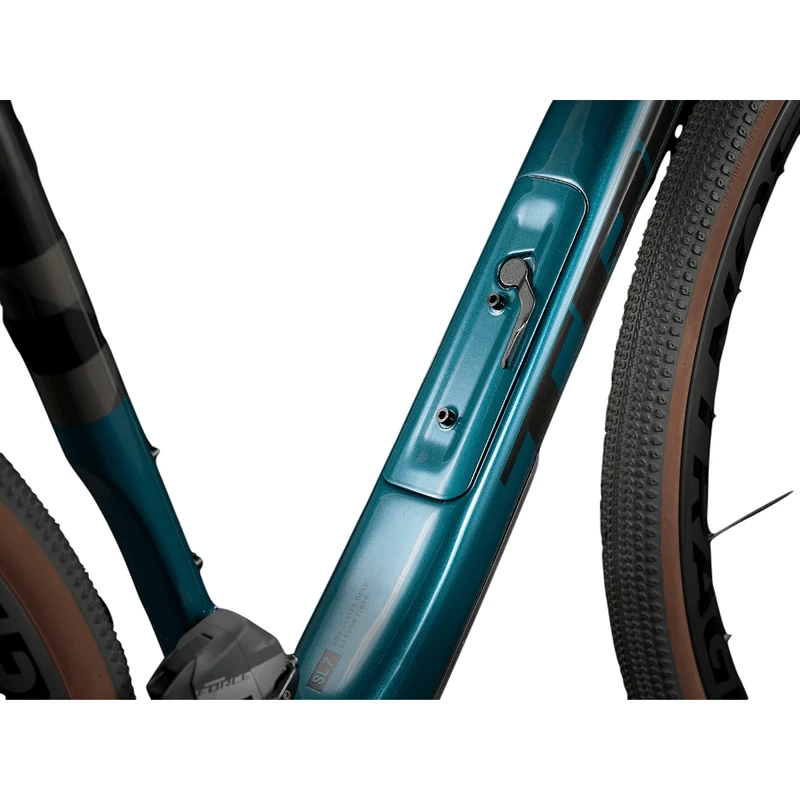

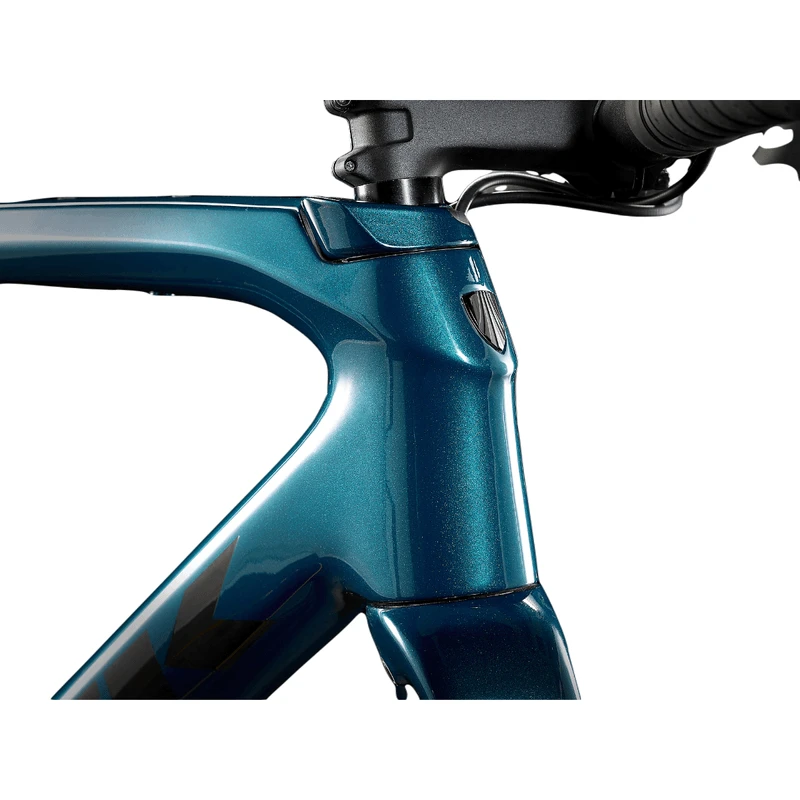

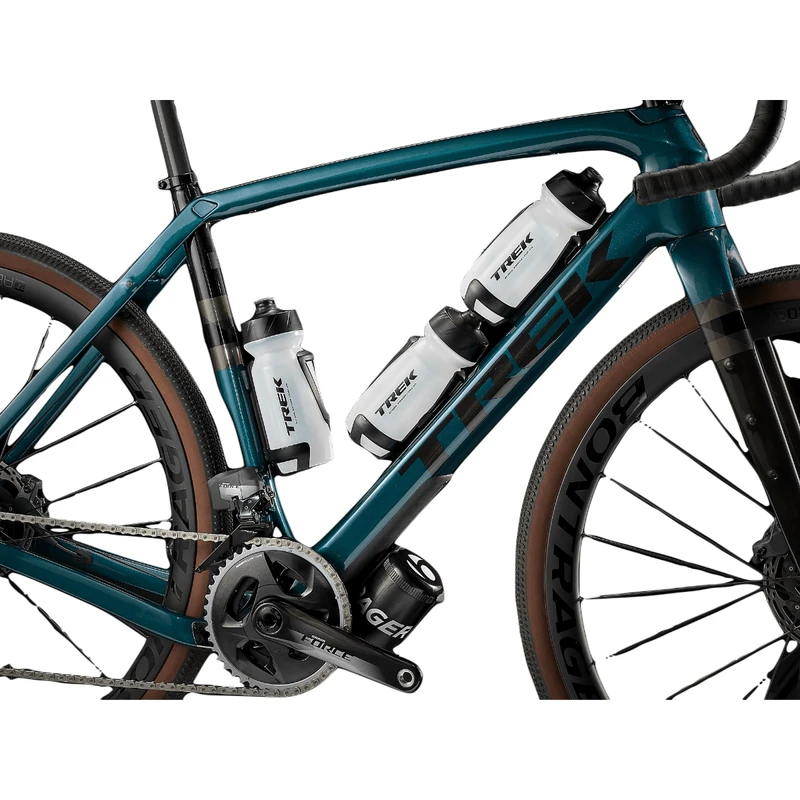

• Frame: 500 Series OCLV Carbon, IsoSpeed, internal cable routing, downtube storage door, 3S chain keeper, T47 BB, rack and fender mounts, integrated frame bag mounts, flat mount disc, dropper post compatible, 142x12mm thru axle
• Frame fit: Gravel
• Wheel front: Bontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25mm rim width, 100x12mm thru axle
• Wheel rear: Bontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25mm rim width, SRAM XD-R driver, 142x12mm thru axle
• Skewer front: Bontrager Switch thru axle, removable lever
• Skewer rear: Bontrager Switch thru axle, removable lever
• Tire: Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700x40c
• Tire part: Bontrager TLR sealant, 6oz
• Rim strip: Bontrager TLR
• Max tire size: 700x45c / 650×2.1″ Bontrager tires
• Shifter: SRAM Force eTap AXS, 12 speed
• Front derailleur: SRAM Force eTap AXS, wide, braze-on
• Rear derailleur: SRAM Force eTap AXS, 36T max cog
• *Crank:
• Size: 49
• SRAM Force, 43/30, DUB Wide, 165mm length
• Size: 52
• SRAM Force, 43/30, DUB Wide, 170mm length
• Size: 54, 56
• SRAM Force, 43/30, DUB Wide, 172.5mm length
• Size: 58, 61
• SRAM Force, 43/30, DUB Wide, 175mm length
• Bottom bracket: SRAM DUB, T47 threaded, internal bearing
• Cassette: SRAM XG-1270, 10-36, 12 speed
• Chain: SRAM Force, 12 speed
• Max chainring size: 1x: 46T, 2x: 50/37 (Shimano: 36)
• *Saddle
• Size: 49, 52
• Bontrager P3 Verse Comp, steel rails, 155mm width
• Size: 54, 56, 58, 61
• Bontrager P3 Verse Comp, steel rails, 145mm width
• Seatpost: Bontrager carbon, 27.2mm, 8mm offset, 330mm length

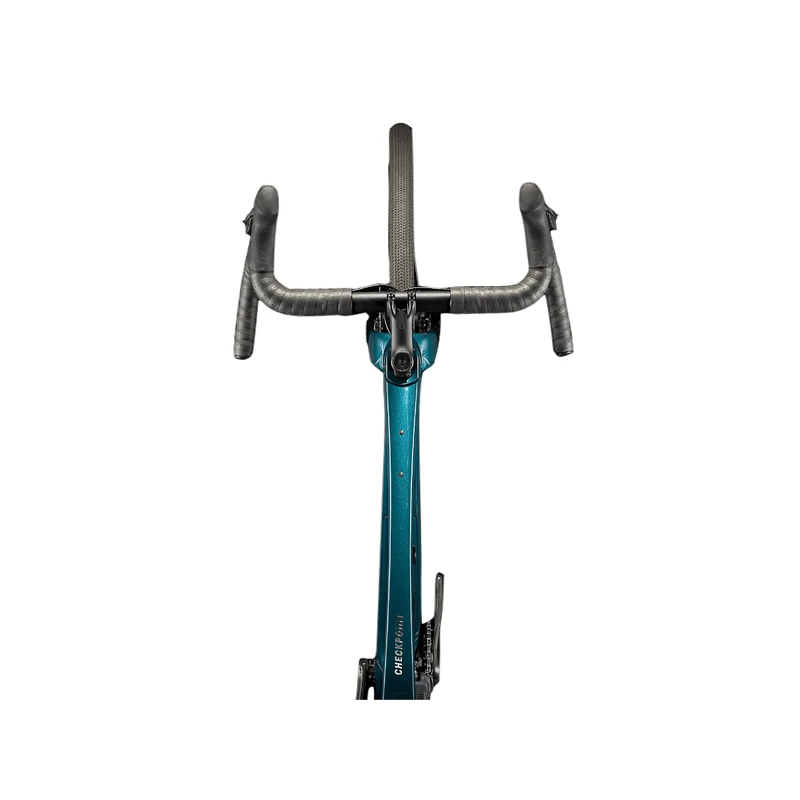

• *Handlebar
• Size: 49
• Bontrager Elite Gravel, 38cm width
• Size: 52
• Bontrager Elite Gravel, 40cm width
• Size: 54, 56
• Bontrager Elite Gravel, 42cm width
• Size: 58, 61
• Bontrager Elite Gravel, 44cm width
• Handlebar tape: Bontrager Supertack Perf tape
• *Stem
• Size: 49
• Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 70mm length
• Size: 52, 54
• Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 80mm length
• Size: 56, 58
• Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 90mm length
• Size: 61
• Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 100mm length
• Brake rotor: SRAM CenterLine X, centerlock, round edge, 160mm
• Rotor size: Max brake rotor sizes: 160mm front & rear
• Bag: Bontrager BITS Internal Frame Storage Bag
• Weight: 56 – 8.90 kg / 19.63 lbs
• Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
