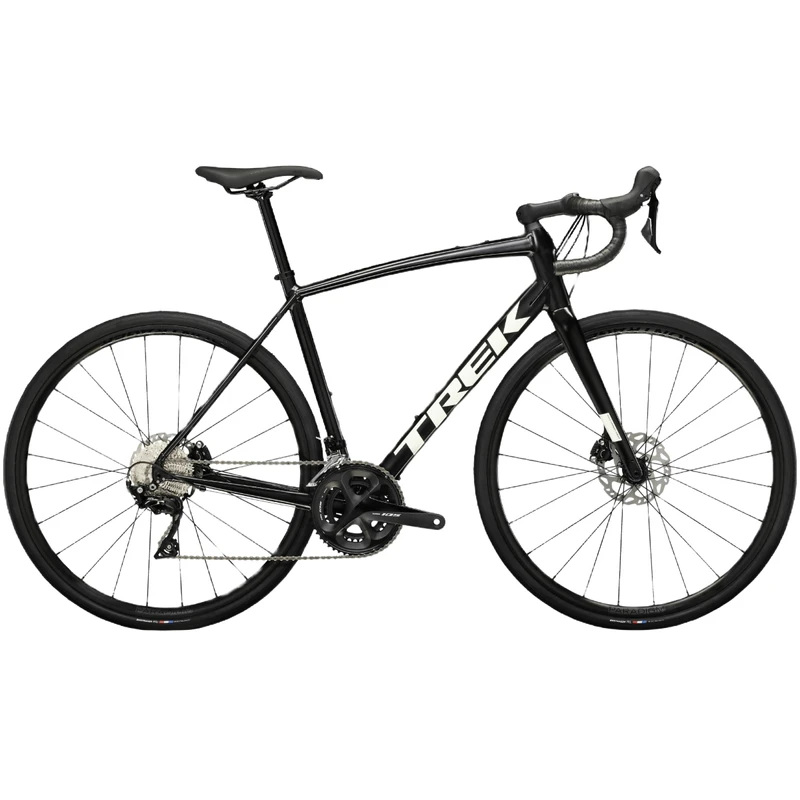

Trek Domane AL 5 Disc Road Bike – 2023

Original price was: $397.00.Current price is: $98.99.

SKU: -7342082437438865443 Categories: Bikes, Endurance Bikes, Road Bikes Tag: Trek

Unbeatable quality, unbeatable prices.
Safe Shopping Guaranteed
The quality you expect, the service you deserve.
Buy with Confidence, Get Quality

TREK DOMANE AL 5 DISC ROAD BIKE – 2023

Domane AL 5 Disc is fast, smooth, and confident. Trek’s best alloy Domane is built with a race-worthy Shimano 105 groupset, powerful hydraulic disc brakes, and a vibration-absorbing fork and handlebar to keep you feeling fresh on long, competitive rides.

FEATURES

Premium alloy frame: Every Domane AL Disc has a lightweight aluminum frame with internal cable routing and smooth welds for race-ready looks and performance.
Long-haul comfort: The endurance geometry, wide tires, and carbon fork keep you comfortable when you’re setting distance records.
High-value performance: Domane AL Disc is built in Trek’s road race heritage, which means it’s a road bike you won’t outgrow as your rides get longer and faster.
Any road, any adventure: Disc brakes, extra tire clearance, and mounts for a rack and fenders give it the versatility for any all-road adventure

TECH SPECS

Frameset

Frame: 100 Series Alpha Aluminum, tapered head tube, internal routing, fender mounts, DuoTrap S compatible, flat mount disc, 142x12mm thru axle
Fork: Domane AL carbon, tapered alloy steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle
Frame fit: Endurance

Weight

Weight: 56 – 10.10 kg / 22.27 lbs
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

Drivetrain

Shifter: Shimano 105 R7020, 11 speed
Front derailleur: Shimano 105 R7000, 31.8mm clamp
Rear derailleur: Shimano 105 R7000, long cage, 34T max cog
Crank Size: 44 (Shimano 105 R7000, 50/34 (compact), 165mm length)
Size: 49, 52 (Shimano 105 R7000, 50/34 (compact), 170mm length)
Size: 54, 56 (Shimano 105 R7000, 50/34 (compact), 172.5mm length)
Size: 58, 61 (Shimano 105 R7000, 50/34 (compact), 175mm length)
Bottom bracket: Shimano RS500, 68mm, threaded external
Cassette: Shimano 105 HG700-11, 11-34, 11 speed
Chain: Shimano HG601, 11 speed
Max chainring size: 1x: 42T, 2x: 50/34

Wheels

Hub front: Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle
Skewer front: Bontrager Switch thru axle, removable lever
Hub rear: Bontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed freehub, 142x12mm thru axle
Skewer rear: Bontrager Switch thru axle, removable lever
*Rim Size: 44, 49, 52, 54, 56, 58, 61 (Bontrager Affinity Disc, Tubeless Ready, 28-hole, 21mm width, Presta valve)
Size: 49, 52, 54, 56, 58, 61 (Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21mm width, Presta valve)
Size: 49, 52, 54, 56, 58, 61 (Bontrager Paradigm, Tubeless Ready, 24-hole, 21mm width, Presta valve)
Spokes: 14g stainless steel, black
Tire: Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32mm
Max tire size: 35mm without fenders, 32mm with fenders

Components

Headset: FSA Integrated, sealed cartridge bearing, 1-1/8” top, 1.5” bottom
Brake: Shimano 105 hydraulic disc, flat mount
Brake rotor: Shimano RT70, centerlock, 160mm
Rotor size: Max brake rotor sizes: 160mm front & rear

Frame size number	49 cm	52 cm	54 cm	56 cm	58 cm	61 cm
Wheel size	700c	700c	700c	700c	700c	700c
A — Seat tube	44.0	47.5	50.0	52.5	54.8	57.6
B — Seat tube angle	74.6°	74.2°	73.7°	73.3°	73.0°	72.7°
C — Head tube length	12.3	14.5	16.0	17.5	19.5	23.5
D — Head angle	70.8	71.3	71.3	71.9	72.0	72.1
E — Effective top tube	51.6	53.0	54.2	55.4	56.7	58.6
G — Bottom bracket drop	8.0	8.0	8.0	7.8	7.8	7.5
H — Chainstay length	42.5	42.0	42.0	42.0	42.5	42.5
I — Offset	5.3	5.3	5.3	4.8	4.8	4.8
J — Trail	6.6	5.9	5.9	6.1	6.0	6.3
K — Wheelbase	100.1	100.3	101.0	101.8	102.2	103.8
L — Standover	71.7	73.5	75.4	77.6	79.6	84.2
M — Frame reach	36.8	37.1	37.4	37.7	38.0	38.5
N — Frame stack	54.0	56.1	57.5	59.1	61.1	64.6
Stem length	80.0	90.0	90.0	100.0	100.0	110.0
