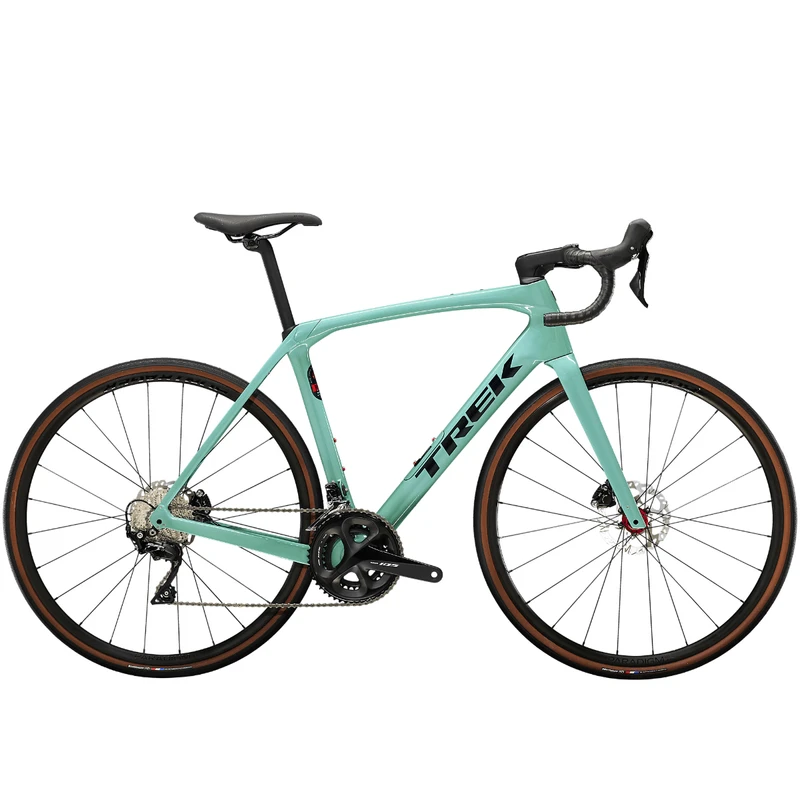

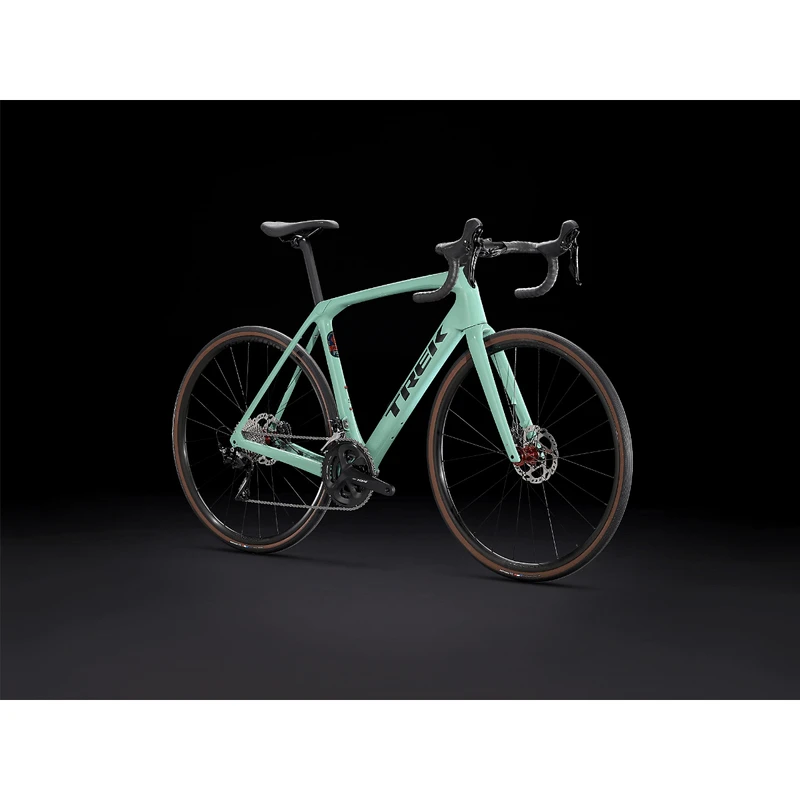

Trek Domane Sl 5 Gen 4 Road Bike – 2023

TREK DOMANE SL 5 GEN 4 ROAD BIKE – 2023

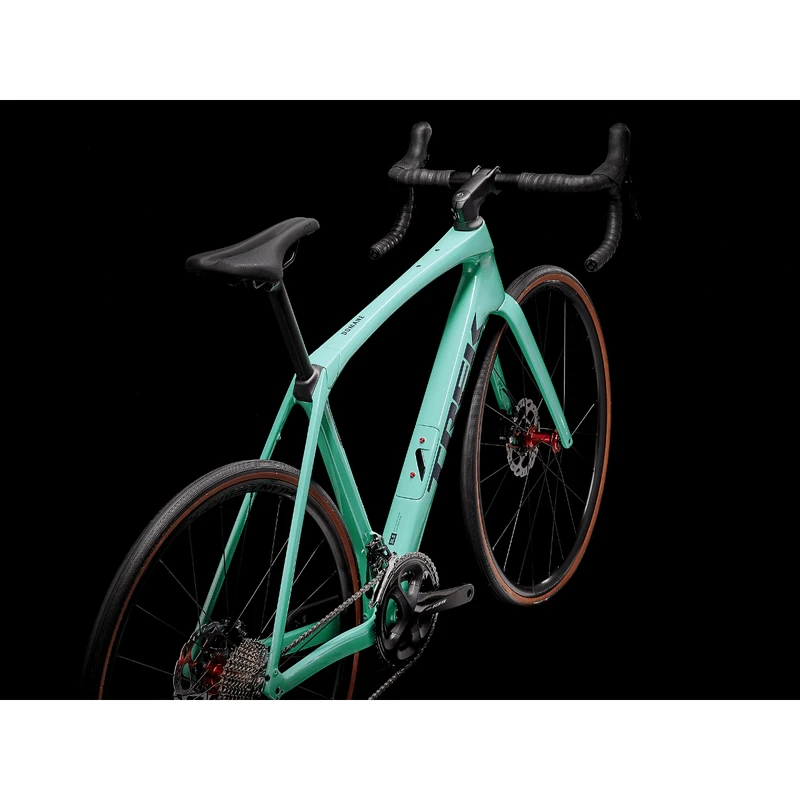

Domane SL 5 is ready to take on rough roads and long miles with a ride that’s smooth, sleek, and aerodynamic. The lightweight 500-series OCLV Carbon frame has rear IsoSpeed to smooth out bumps in the road and reduce fatigue, and an integrated cockpit for a setup that looks as good as it feels. It features a reliable Shimano 105 drivetrain, disc brakes for all-weather stopping power, and an easy-access internal storage compartment for stowing ride essentials. Plus, tire clearance for lofty 38c hoops lets you take on almost any road, from tarmac to light gravel.

It’s right for you if…
You want a fast ride that’s built for the long haul, and you prefer the feel of vibration-damping, lightweight carbon and road-smoothing IsoSpeed. Rides might take you over smooth pavement, rough roads and well beyond, and you want a bike with wide tire clearance and disc brakes to get you through it all.

The tech you get

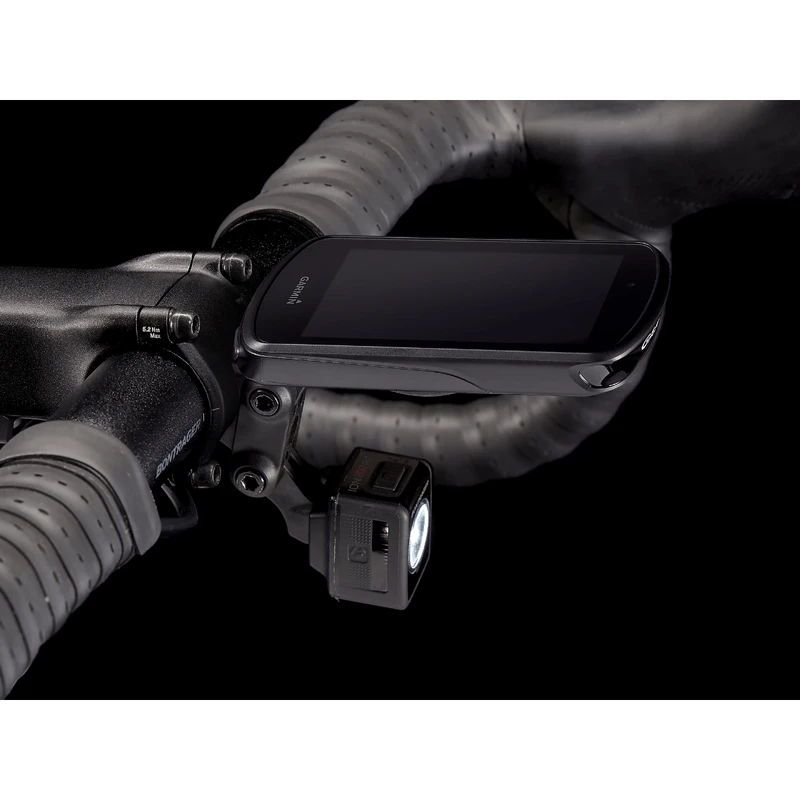

A light and refined 500 Series OCLV Carbon frame and fork with road-smoothing rear IsoSpeed, powerful flat-mount disc brakes, a full 2×11 Shimano 105 groupset, and tubeless ready wheels with wider 700×32 tires. An integrated cockpit, internal storage, top tube mounts, and cable routing add to the bike’s capability and sleek look.

The final word
Carbon, comfort, capability. Domane SL 5 is the dream bike for long rides. Its light and fast carbon frame, stable endurance geometry, and road-smoothing rear IsoSpeed keep you comfortable through long miles. You also get the added advantage of a higher-end Shimano 105 drivetrain and powerful disc brakes that let you run wide tires.

FEATURES

• The sleek all-new frame saves weight and gives you more free speed thanks to updated Kammtail tube shapes
• This bike is super versatile, super smooth, and equally suited to all-day adventures on the open road, club rides, and racing

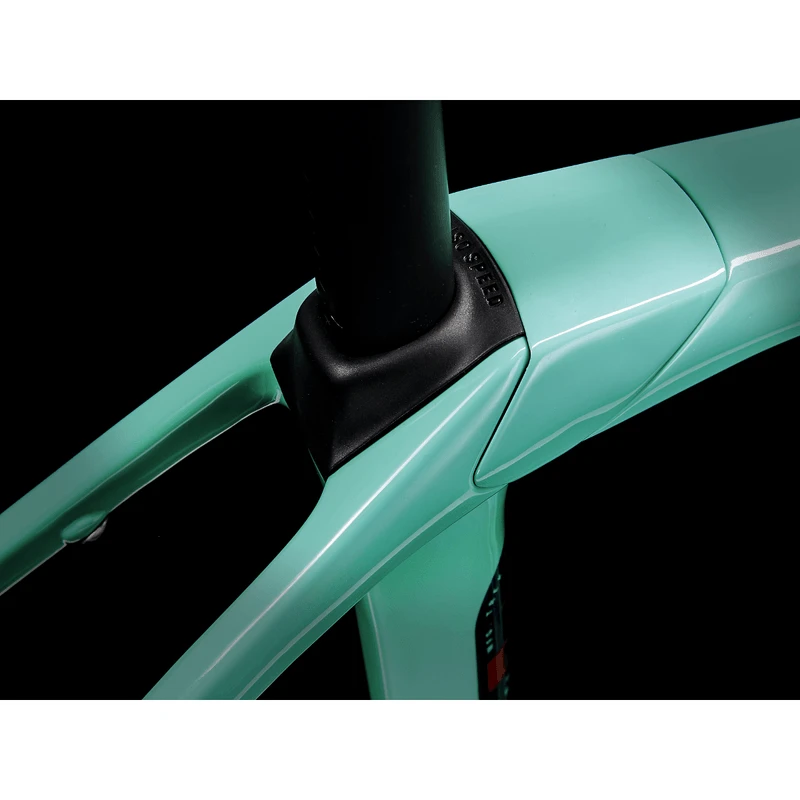

• Road-smoothing rear IsoSpeed absorbs fatiguing bumps in the road for a smoother, more comfortable ride

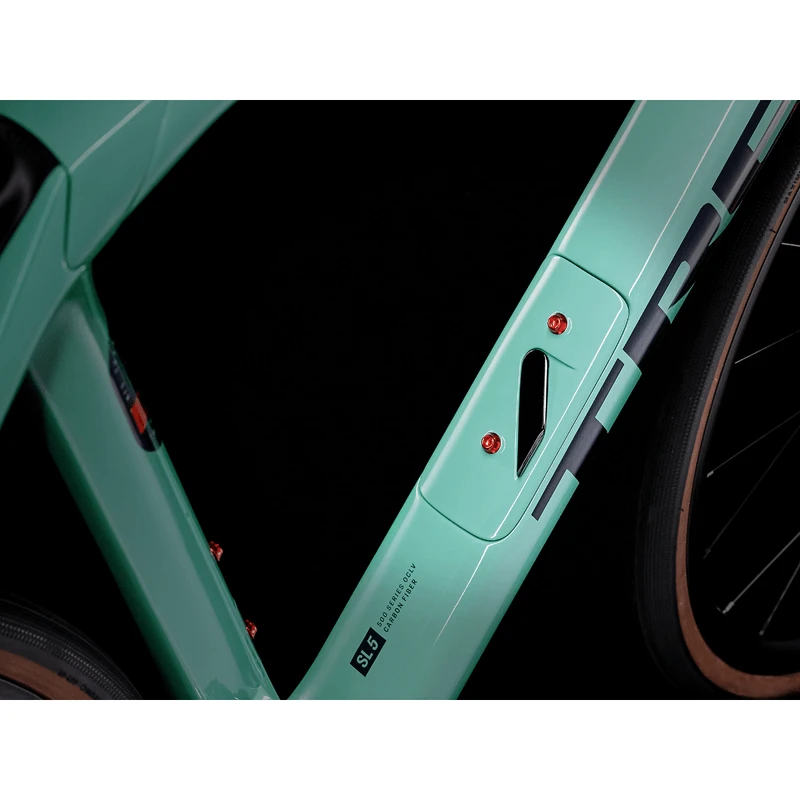

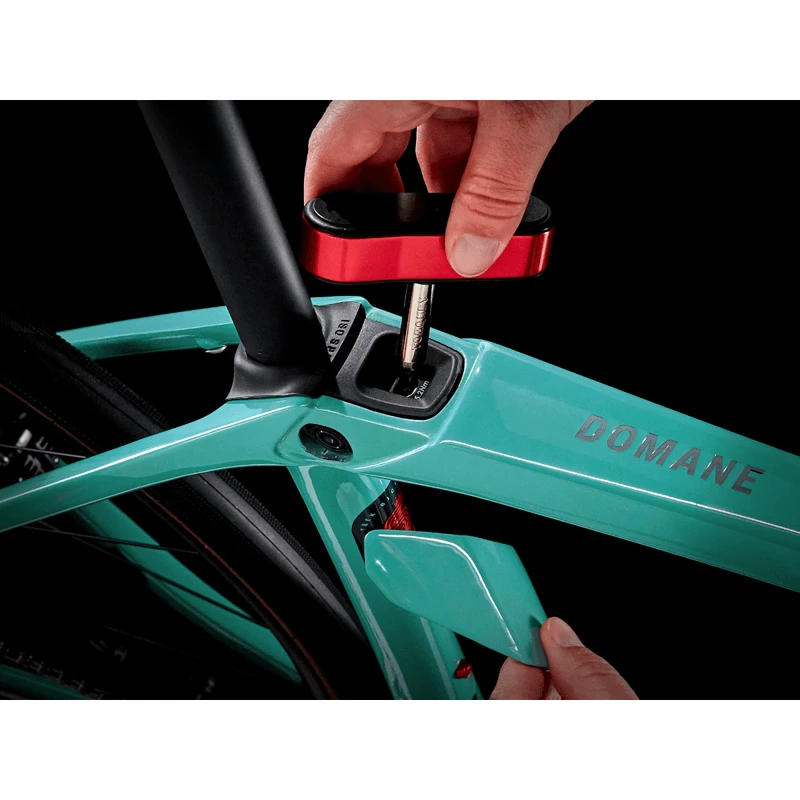

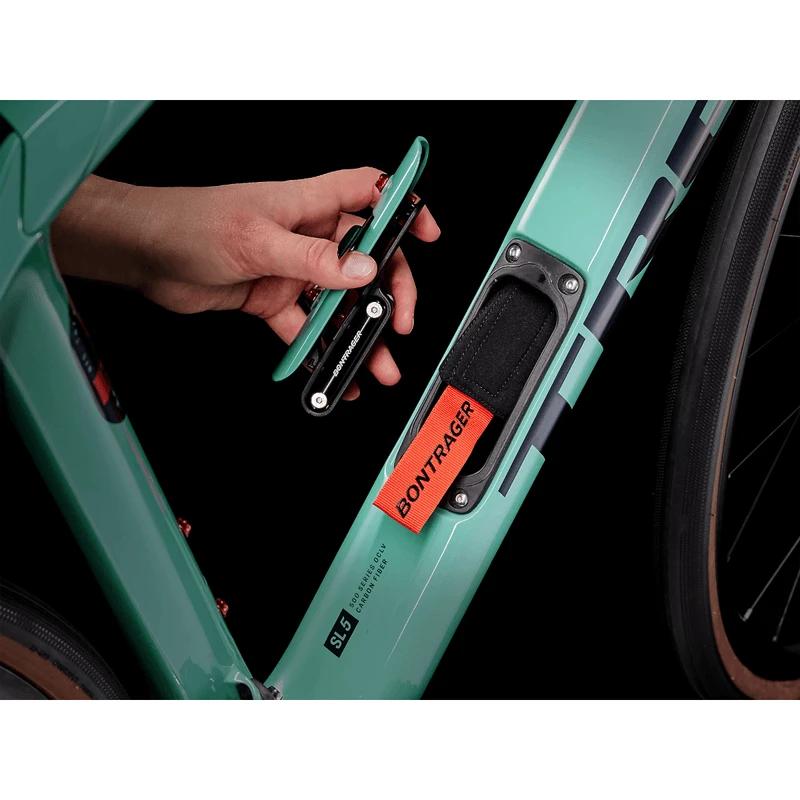

• A sleek internal storage compartment gives you a versatile spot to stow tools and gear, while top tube mounts let you cleanly bolt on a bag for all day adventures

TECH SPECS

Frameset

• Frame: 500 Series OCLV Carbon, IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, fender mounts, flat mount disc, 142x12mm thru axle
• Fork: Domane SL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle
• Frame fit: Endurance

Weight

• Weight: 56 – 8.93 kg / 19.69 lbs
• Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

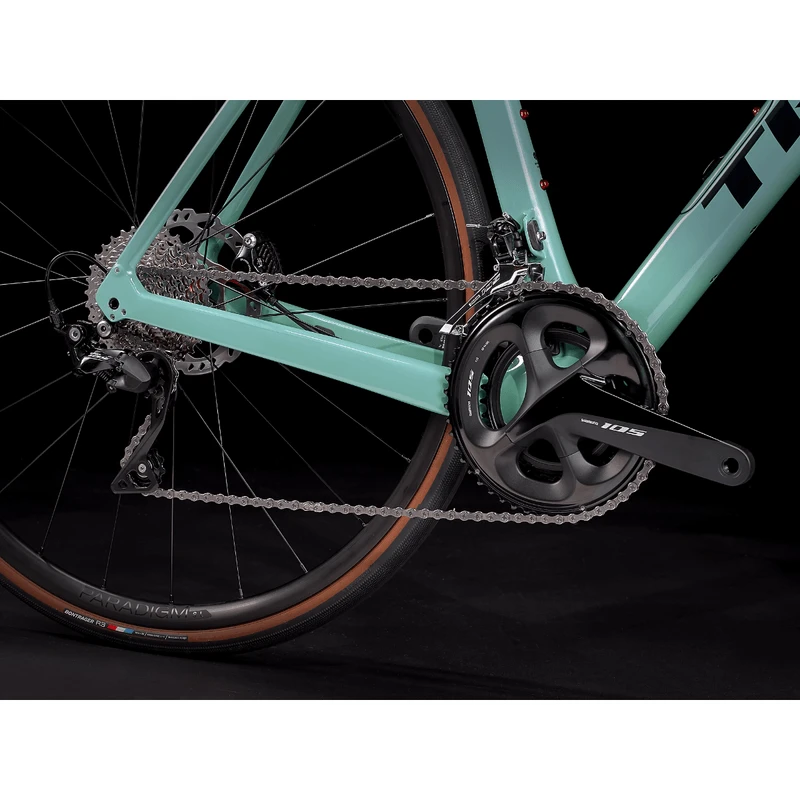

Drivetrain

• Shifter
• Size: 44, 47, 50, 52
• Shimano 105 R7025, short-reach lever, 11 speed
• Size: 54, 56, 58, 60, 62
• Shimano 105 R7020, 11 speed
• Front derailleur: Shimano 105 R7000, braze-on
• Rear derailleur: Shimano 105 R7000, long cage, 34T max cog
• Crank
• Size: 44, 47
• Shimano 105 R7000, 50/34 (compact), 165mm length
• Size: 50, 52
• Shimano 105 R7000, 50/34 (compact), 170mm length
• Size: 54, 56
• Shimano 105 R7000, 50/34 (compact), 172.5mm length
• Size: 58, 60, 62
• Shimano 105 R7000, 50/34 (compact), 175mm length
• Bottom bracket: Praxis, T47 threaded, internal bearing
• Cassette: Shimano 105 HG700-11, 11-34, 11 speed
• Chain: Shimano 105 HG601, 11 speed
• Max chainring size: 1x: 48T, 2x: 52/36

Wheels

• Hub front: Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle
• Skewer front: Bontrager Switch thru axle, removable lever
• Hub rear: Bontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed freehub, 142x12mm thru axle
• Skewer rear: Bontrager Switch thru axle, removable lever
• Rim: Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21mm width, Presta valve
• Tire: Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120 tpi, 700x32mm
• Tire part: Bontrager TLR sealant, 6oz
• Rim strip: Bontrager Aeolus XXX rim strip
• Max tire size: 38mm without fenders, 35mm with fenders

Components

• Saddle
• Size: 44, 47, 50, 52
• Bontrager Verse Short Comp, steel rails, 155mm width
• Size: 54, 56, 58, 60, 62
• Bontrager Verse Short Comp, steel rails, 145mm width
• Seatpost
• Size: 44, 47, 50, 52, 54, 56
• Domane carbon seatpost, KVF shaping, 20mm offset, 280mm length
• Size: 58, 60, 62
• Domane carbon seatpost, KVF shaping, 20mm offset, 320mm length

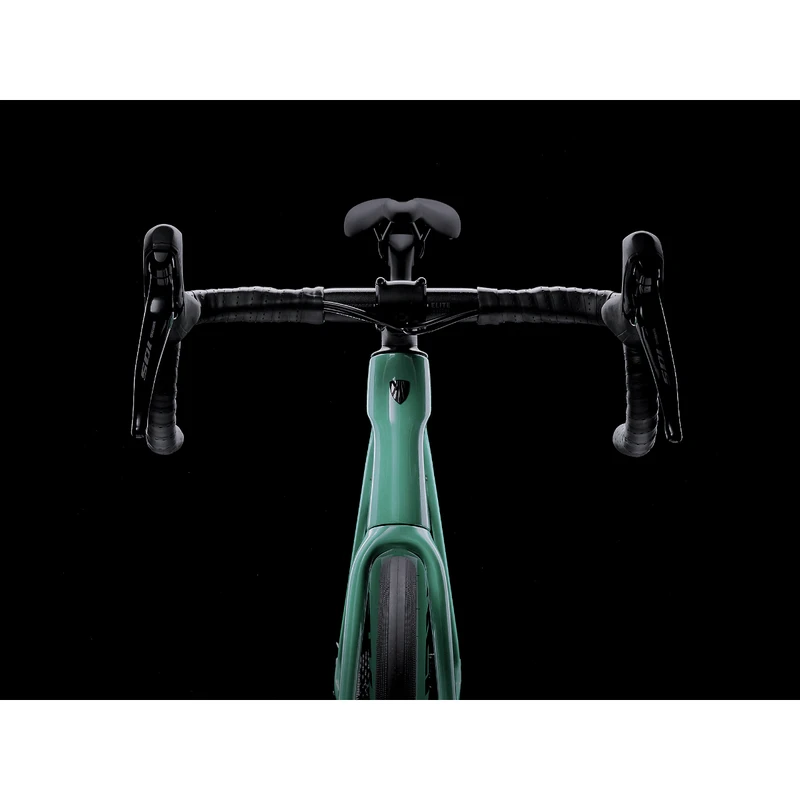

• Handlebar
• Size: 44, 47
• Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 36cm width
• Size: 50
• Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 38cm width
• Size: 52
• Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 40cm width
• Size: 54, 56
• Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 42cm width
• Size: 58, 60, 62
• Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 44cm width
• Handlebar tape: Bontrager Supertack Perf tape

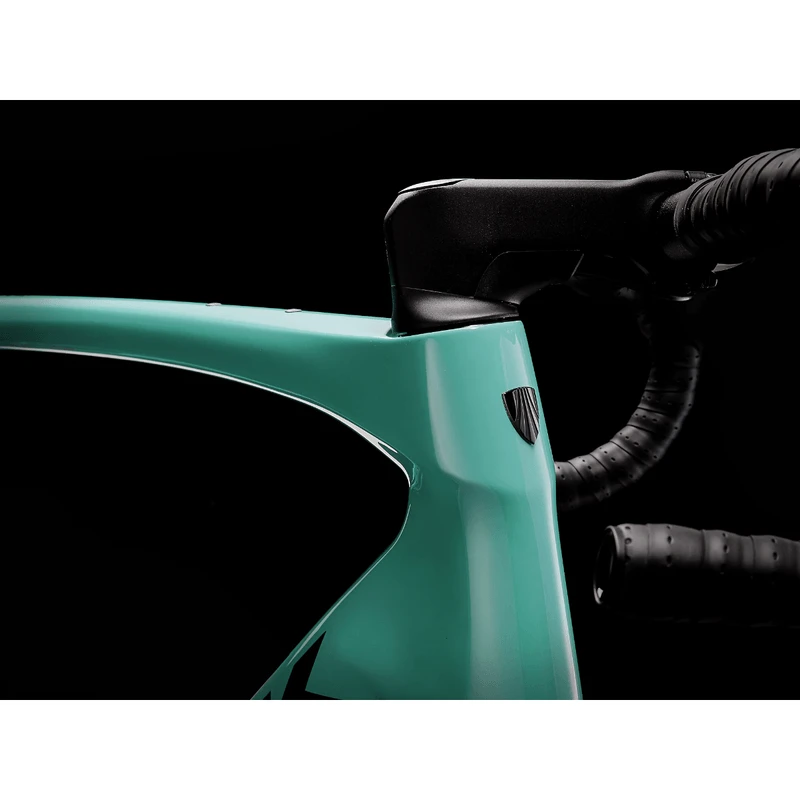

• Stem
• Size: 44
• Trek RCS Pro, -7 degree, 60mm length
• Size: 47
• Trek RCS Pro, -7 degree, 70mm length
• Size: 50
• Trek RCS Pro, -7 degree, 80mm length
• Size: 52, 54
• Trek RCS Pro, -7 degree, 90mm length
• Size: 56, 58
• Trek RCS Pro, -7 degree, 100mm length
• Size: 60, 62
• Trek RCS Pro, -7 degree, 110mm length
• Brake: Shimano 105 hydraulic disc, flat mount
• Brake rotor: Shimano RT70, centerlock, 160mm
• Rotor size: Max brake rotor sizes: 160mm front & rear

Accessories

• Bag Bontrager BITS Internal Frame Storage Bag
