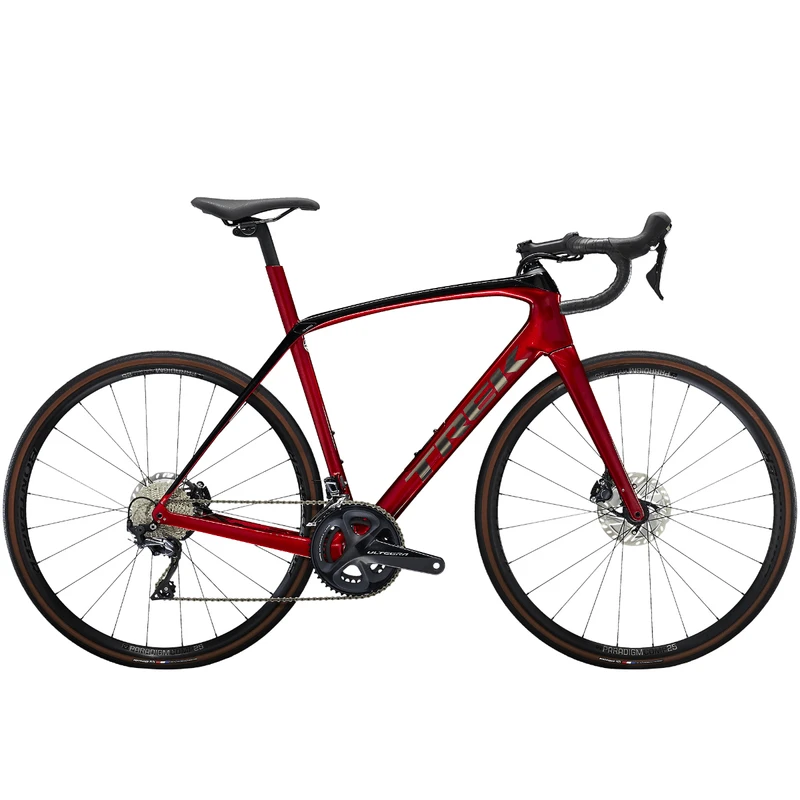

Trek Domane SL 6 Bike – 2023

TREK DOMANE SL 6 BIKE – 2023

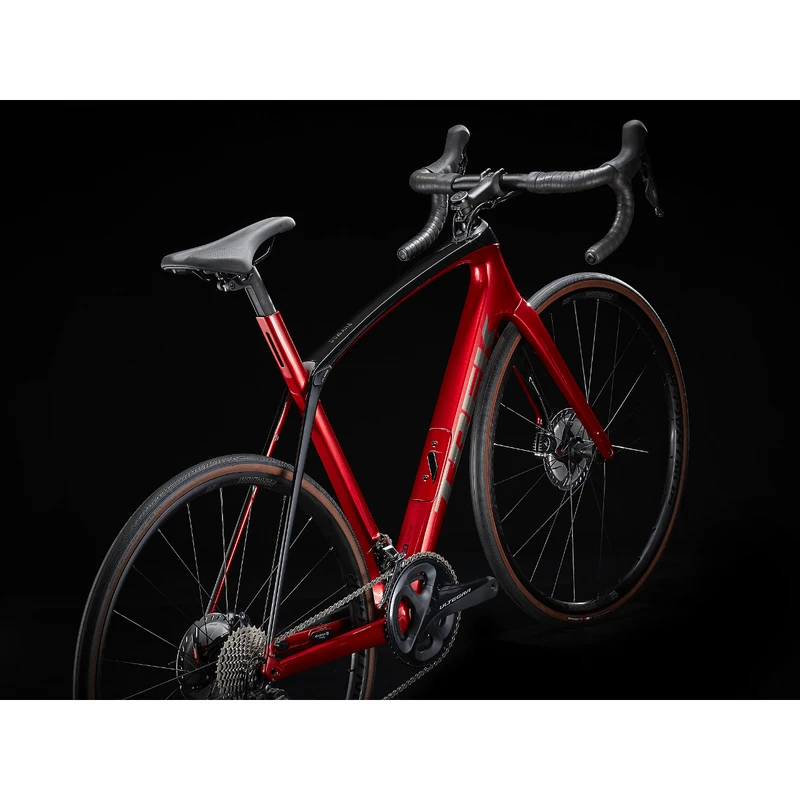

Domane SL 6 is a performance road bike that’s both fast and comfortable. It has all the road-smoothing advantages of a lightweight OCLV Carbon frame with Front and Rear IsoSpeed, an entire Shimano Ultegra drivetrain, high-quality wheels, and hydraulic disc brakes for confidence and braking power in any conditions. Plus, it has an easy-access storage compartment for stowing ride essentials.

It’s right for you if…

Quality, comfort, and speed are your primary considerations. You want a lightweight carbon bike that will stand up to the rigors of all-day rides and races, with the road-smoothing benefit of Front and Rear IsoSpeed, plus the all-weather stopping power of hydraulic disc brakes.

The tech you get

A 500 Series OCLV Carbon frame with road-smoothing Front and Rear IsoSpeed, powerful flat-mount disc brakes, and a full 2×11 Shimano Ultegra groupset. Plus, Bontrager Paradigm Comp tubeless-ready wheels, a fatigue-reducing Bontrager Elite IsoZone handlebar, and internal storage and cable routing add to the bike’s capability and sleek look.

The final word

All the road-smoothing benefits of a carbon Domane, with a more performance-oriented Shimano Ultegra groupset and the extra stopping power of hydraulic disc brakes. This bike is fast, light, smooth and ready for adventure.

FEATURES

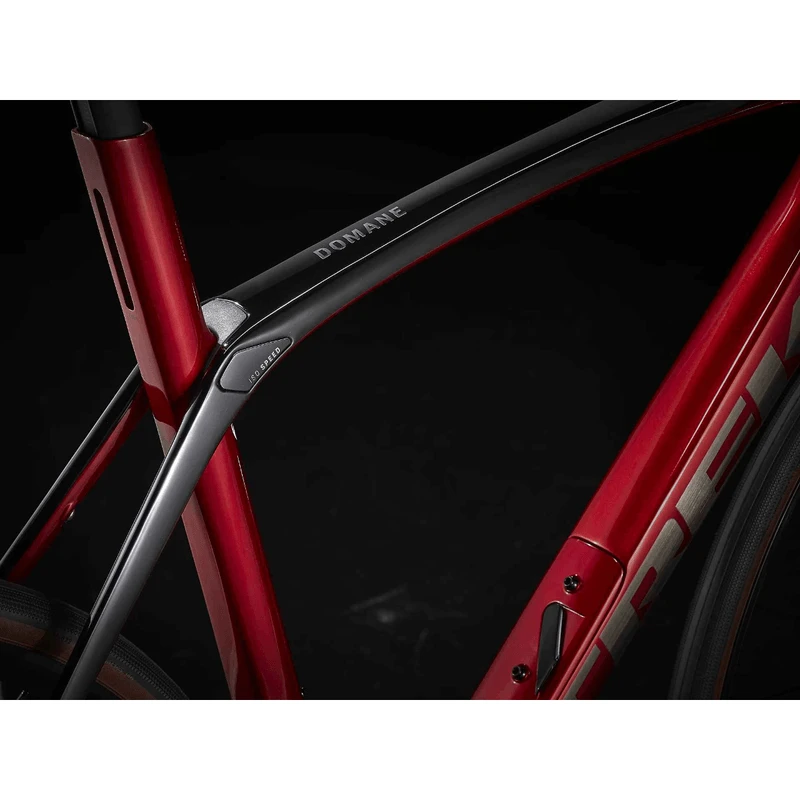

• Domane SL 6 is an outstanding all-around road bike: race-worthy spec, a lightweight carbon frame, and Front and Rear IsoSpeed that soaks up fatiguing bumps so you can stay stronger longer

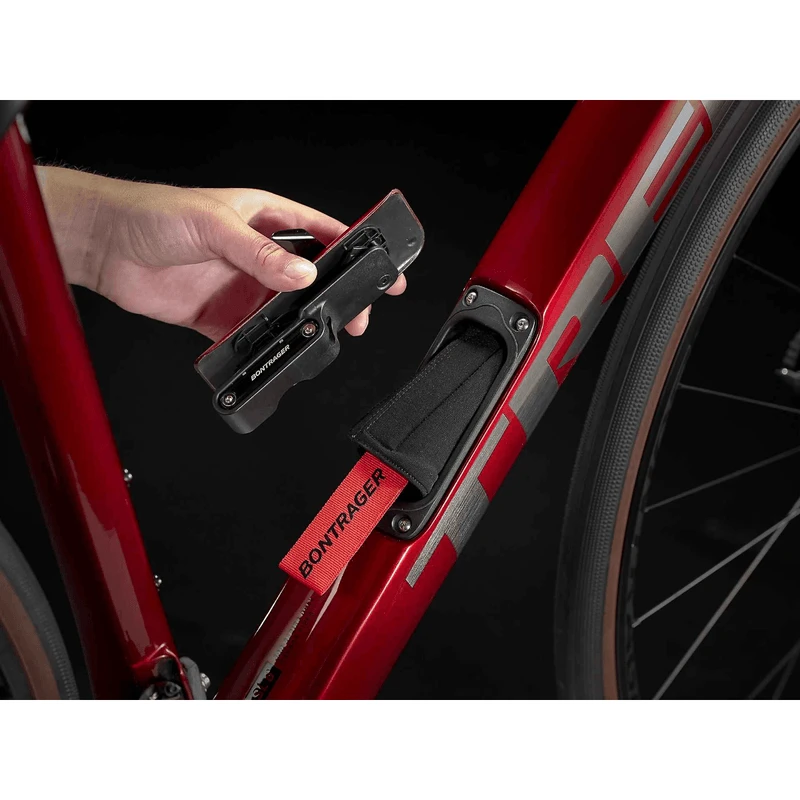

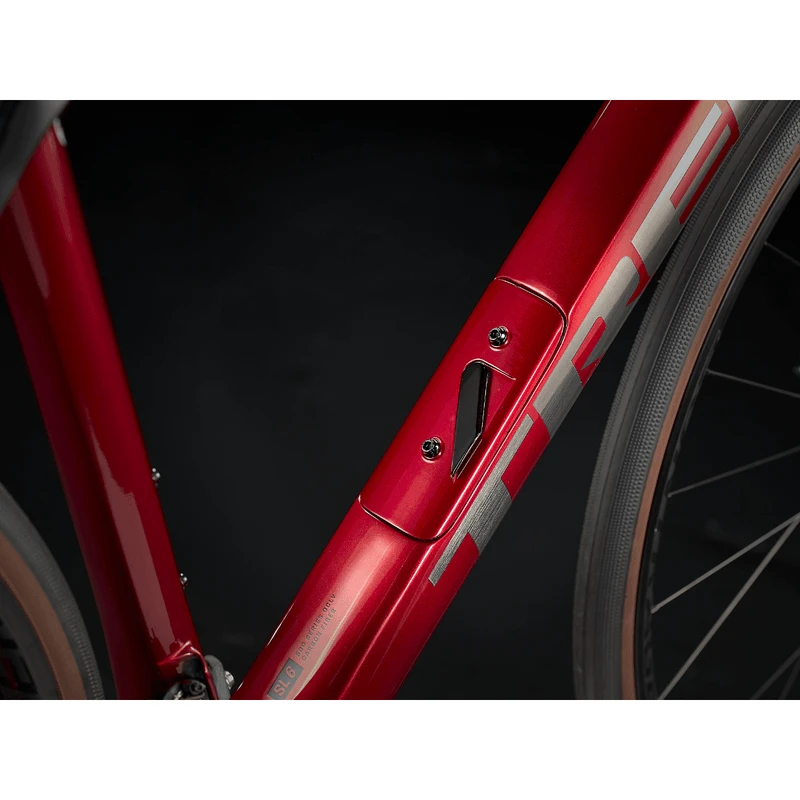

• A sleek internal storage compartment gives you a versatile spot to stow tools and gear
• Tubeless Ready Bontrager Paradigm wheels deliver extra confidence and comfort on long, fast rides
• The stable Endurance Geometry is comfortable over long distances, but this is still a quick race bike

TECH SPECS

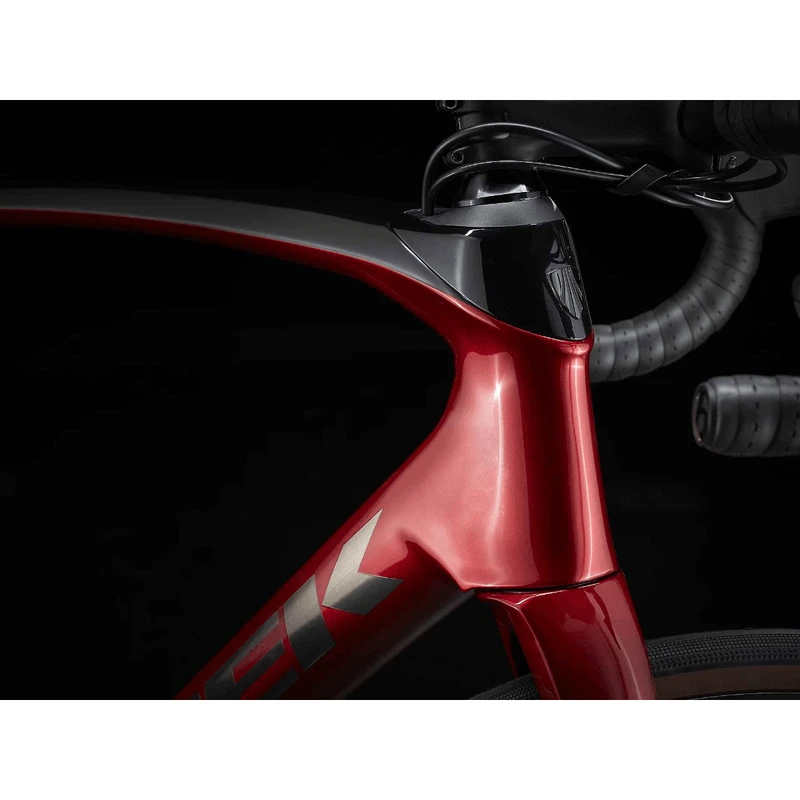

• Frame: 500 Series OCLV Carbon, front & rear IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, DuoTrap S compatible, fender mounts, flat mount disc, 142x12mm thru-axle
• Domane SL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru-axle
• Frame fit: Endurance
• Wheel front: Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, 100x12mm thru-axle
• Wheel rear: Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, Shimano 11/12-speed freehub, 142×12 thru-axle
• Skewer front: Bontrager Switch thru-axle, removable lever
• Skewer rear: Bontrager Switch thru-axle, removable lever
• Rim: Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, 100x12mm thru-axle
• Tire: Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120 TPI, 700x32c
• Tire part: Bontrager TLR sealant, 6oz
• Rim strip: Bontrager TLR
• Max tire size: 38c
• Bag: Bontrager BITS Internal Frame Storage Bag
• Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

Fork

Size: 47:

• Domane SLR carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, carbon dropouts, 12x100mm thru-axle

Size: 47, 50, 52, 54, 56, 58, 60, 62:

Shifter

Size: 47, 50, 52

• Shimano Ultegra R8025, short-reach lever, 11 speed

Size: 54, 56, 58, 60, 62

• Shimano Ultegra R8020, 11-speed
• Front derailleur: Shimano Ultegra R8000, braze-on
• Rear derailleur: Shimano Ultegra R8000, long cage, 34T max cog

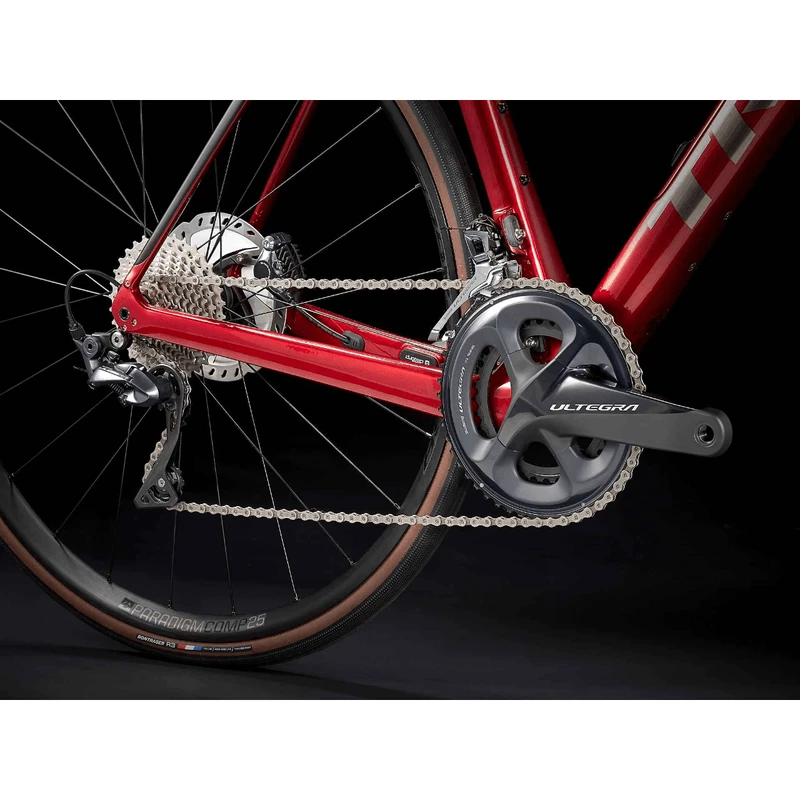

Crank

Size: 47

• Shimano Ultegra R8000, 50/34 (compact), 165mm length

Size: 50, 52

• Shimano Ultegra R8000, 50/34 (compact), 170mm length

Size: 54, 56

• Shimano Ultegra R8000, 50/34 (compact), 172.5mm length

Size: 58, 60, 62

• Shimano Ultegra R8000, 50/34 (compact), 175mm length
• Bottom bracket: Praxis, T47 threaded, internal bearing
• Cassette: Shimano Ultegra HG800, 11-34, 11 speed
• Chain: Shimano Ultegra HG701, 11-speed

Saddle

Size: 47, 50, 52

• Bontrager P3 Verse Comp, steel rails, 155mm width

Size: 54, 56, 58, 60, 62

• Bontrager P3 Verse Comp, steel rails, 145mm width

Seatpost

Size: 47, 50, 52, 54, 56

• Bontrager carbon internal seatmast cap, integrated light mount, 20mm offset, short length

Size: 58, 60, 62

• Bontrager carbon internal seatmast cap, integrated light mount, 20mm offset, tall length

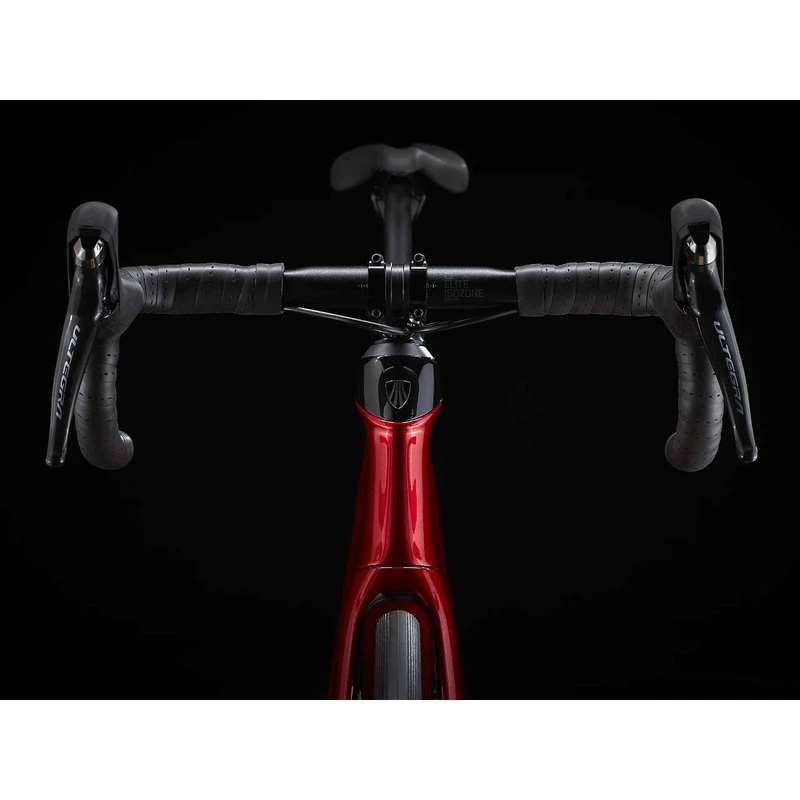

Handlebar

Size: 47

• Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 36cm width

Size: 50

• Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 38cm width

Size: 52

• Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 40cm width

Size: 54, 56

• Bontrager Elite IsoZone VR-CF, alloy, 31.8mm, internal Di2 routing, 93mm reach, 123mm drop, 42cm width

Size: 58, 60, 62

• Bontrager Elite IsoZone VR-CF, alloy, 31.8mm, internal Di2 routing, 93mm reach, 123mm drop, 44cm width
• Handlebar tape: Bontrager Supertack Perf tape

Stem

Size: 47

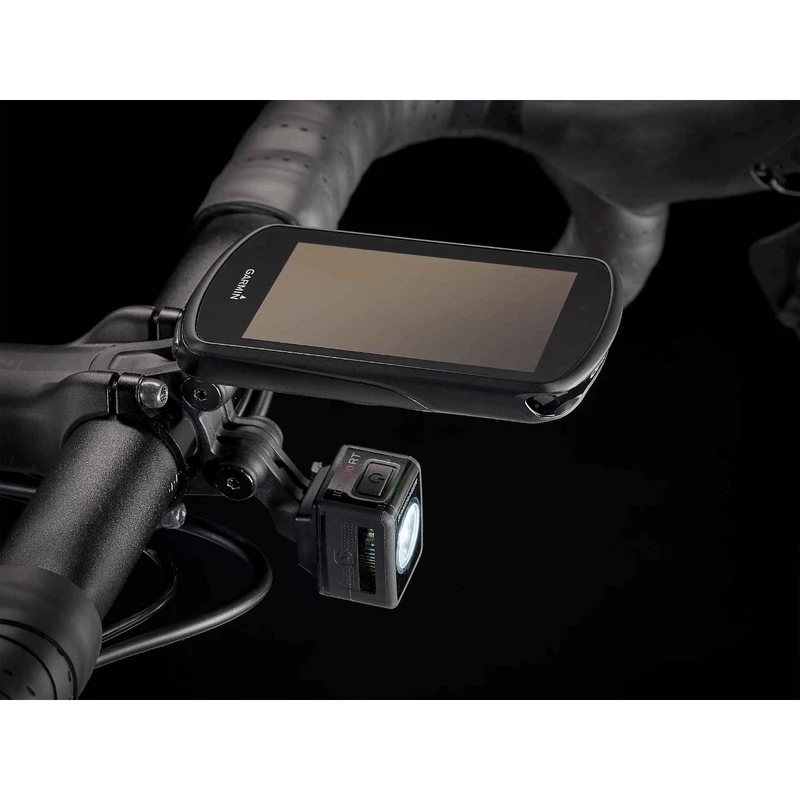

• Bontrager Pro, 31.8mm, Blendr compatible, 7 degrees, 70mm length

Size: 50

• Bontrager Pro, 31.8mm, Blendr compatible, 7 degrees, 80mm length

Size: 52, 54

• Bontrager Pro, 31.8mm, Blendr compatible, 7 degrees, 90mm length

Size: 56, 58

• Bontrager Pro, 31.8mm, Blendr compatible, 7 degrees, 100mm length

Size: 60, 62

• Bontrager Pro, 31.8mm, Blendr compatible, 7 degrees, 110mm length

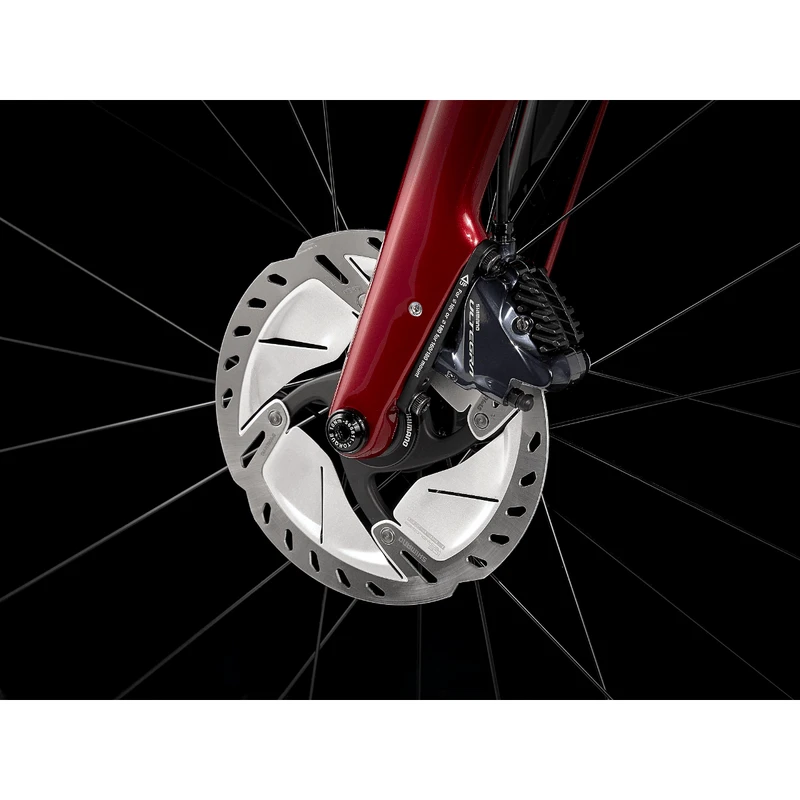

Brake Rotor

Size: 47, 50, 52, 54, 56, 58, 60, 62

• Shimano MT800, center lock, 160mm

Size: 62

• Shimano RT800, center lock, 160mm
