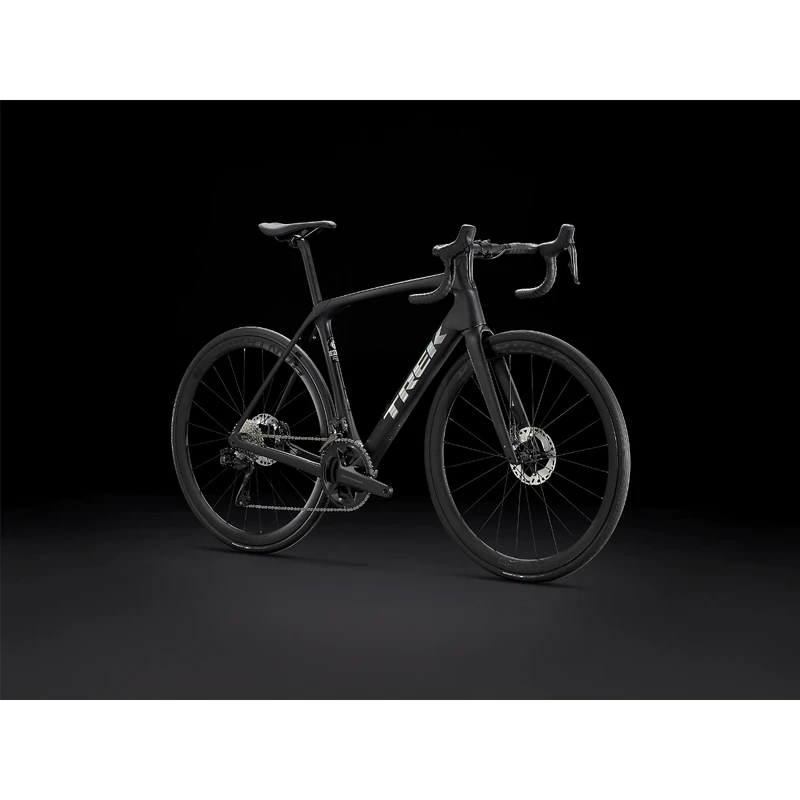

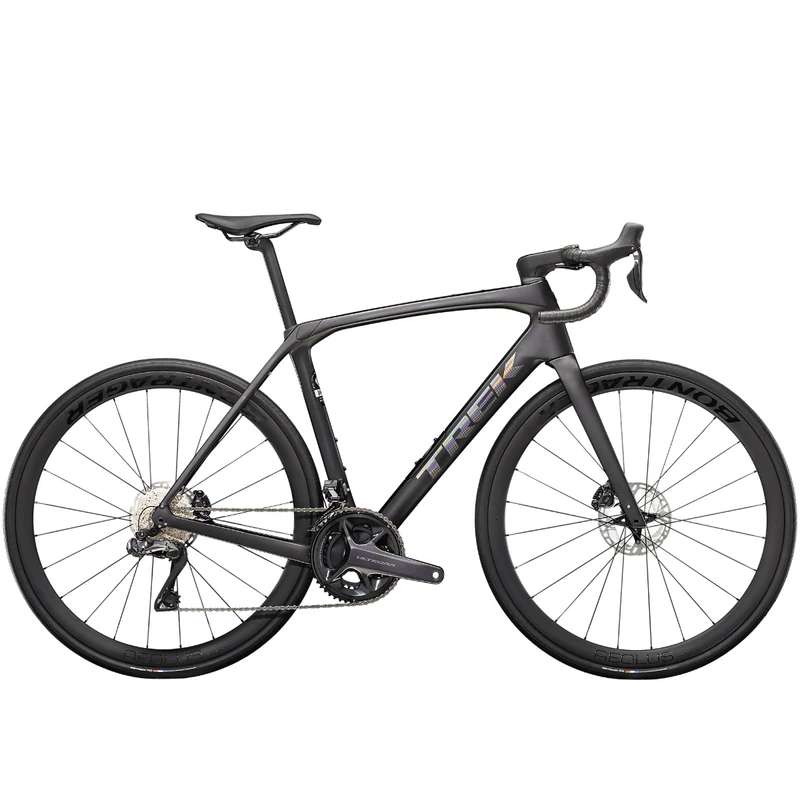

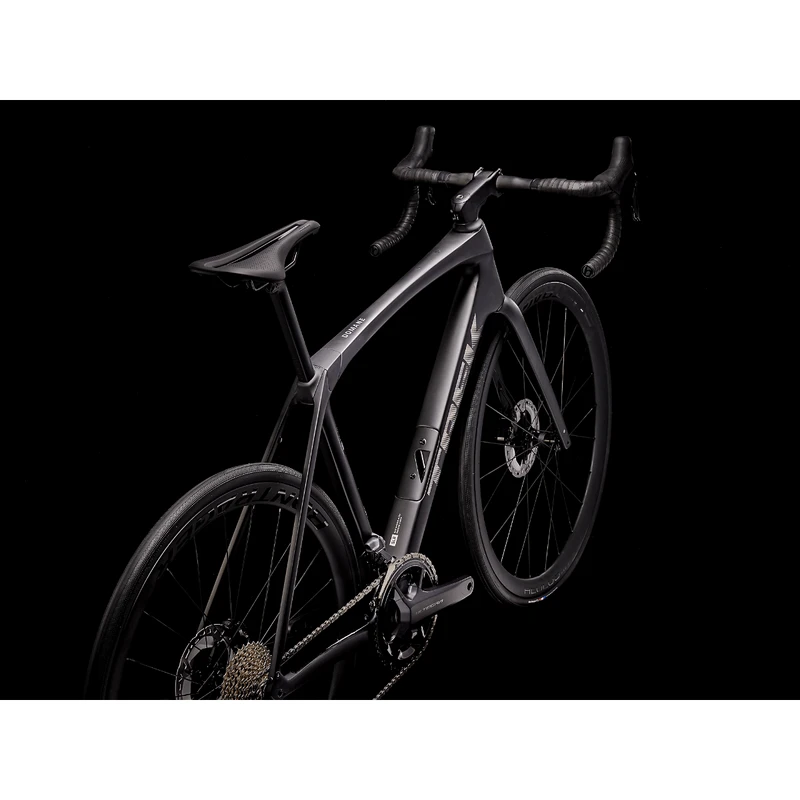

Trek Domane SLR 7 Gen 4 Road E-Bike – 2023

TREK DOMANE SLR 7 GEN 4 ROAD E-BIKE – 2023

Domane SLR 7 is an ultralight carbon endurance road bike with high-end parts made for a fast, high-performance ride. You get Trek’s highest level OCLV Carbon frame with rear IsoSpeed, an all-new wireless electronic Shimano Ultegra Di2 drivetrain for precision shifting, and OCLV Carbon wheels. Plus, it has an easy-access storage compartment for stowing ride essentials and versatile 38c tire clearance to keep you floating on rough roads and light gravel.

FEATURES

It’s right for you if

• You’re looking for the real advantage of a bike that can soar on group rides, ride fast on long race days, and keep going when the road turns to gravel.
• You want the most advanced endurance road bike frame Trek offers, with the added benefit of a wireless electronic Di2 drivetrain for fast, reliable shifting in any condition.

The tech you get

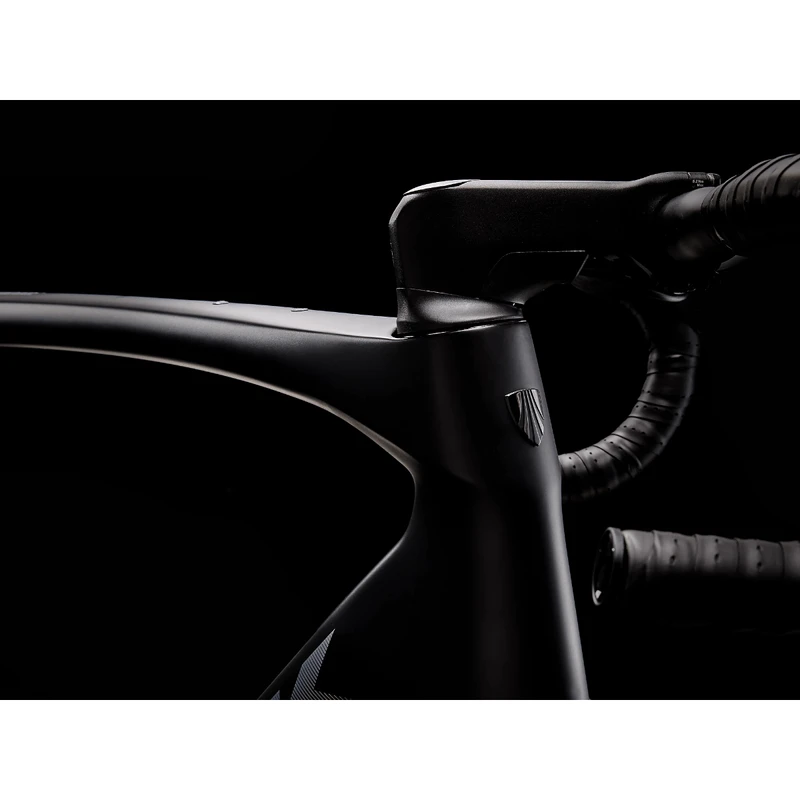

• An ultralight and refined 800 Series OCLV Carbon frame and fork
• Rear IsoSpeed

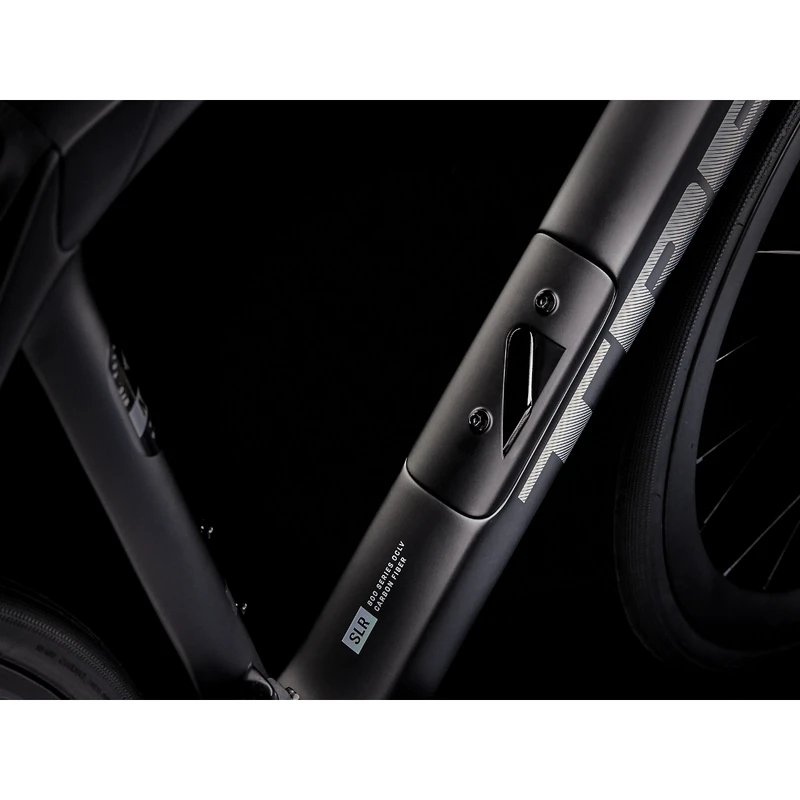

• Integrated internal storage
• Top tube mounts
• Wireless Shimano 2×12 Ultegra Di2 electronic drivetrain
• Powerful flat-mount disc brakes
• Aeolus Pro 37 carbon wheels
• Bontrager Pro IsoCore handlebar that reduces vibrations from the road by 20% over a standard carbon bar

The final word

• Trek’s highest-end Domane carbon frame, with the precision shifting that comes only from wireless Shimano Di2. You’re getting tech that provides a real advantage in comfort, reliability, and speed during all-day adventures, competitive group rides, or long races.

Why you’ll love it

• The sleek all-new 800 Series OCLV Carbon frame saves weight and gives you more free speed thanks to updated Kammtail tube shapes
• Wireless Ultegra Di2 delivers ever faster, smoother, and more responsive shifts than ever

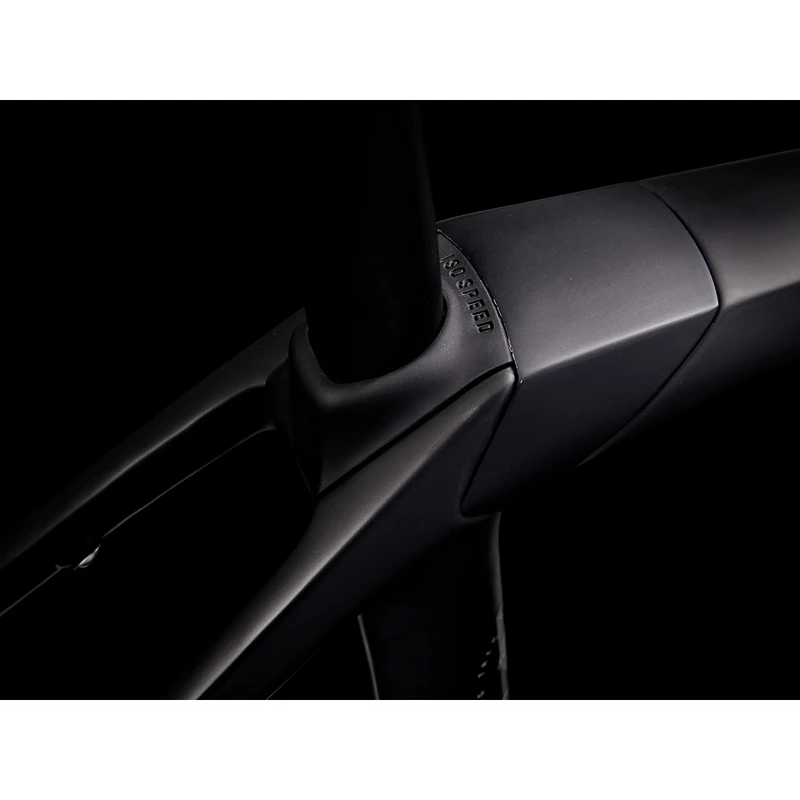

• Road-smoothing rear IsoSpeed absorbs fatiguing bumps in the road to keep you comfortable through the longest miles and hardest race days

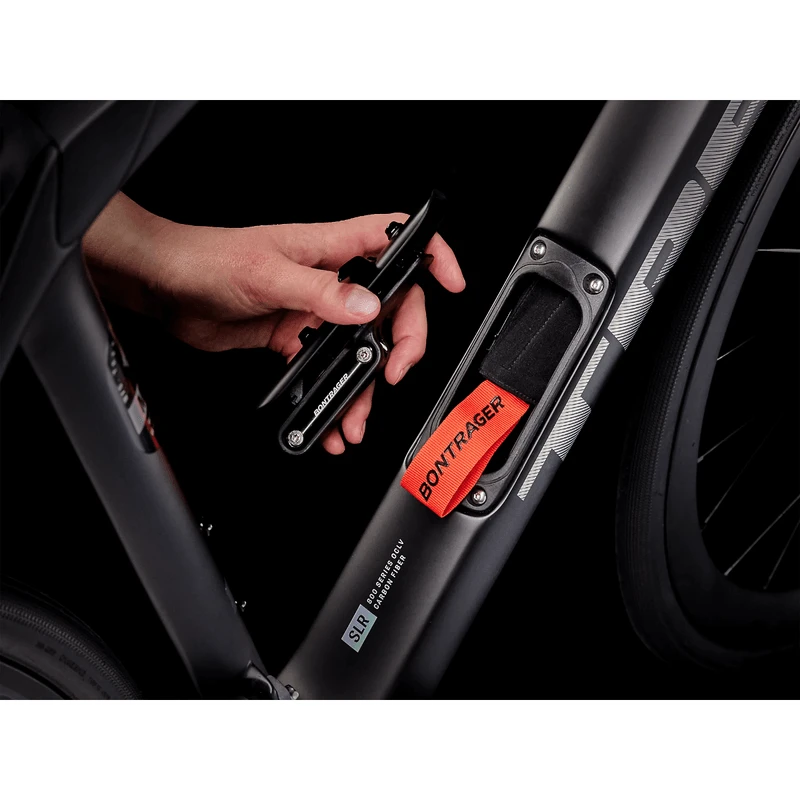

• A sleek internal storage compartment gives you a versatile spot to stow tools and gear, while top tube mounts let you cleanly bolt on a bag for all day adventures

TECH SPECS

Frameset

• Frame: 800 Series OCLV Carbon, IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, fender mounts, flat mount disc, 142x12mm thru axle
• Fork: Domane SLR carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, carbon dropouts, 12x100mm thru axle
• Frame fit: Endurance

Wheels

• Wheel front: Bontrager Aeolus RSL 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, 100x12mm thru axle
• Wheel rear: Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, Shimano 11/12-speed freehub, 142x12mm thru axle
• Skewer rear: Bontrager Switch thru axle, removable lever
• Tire: Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120 tpi, 700x32c
• Tire part: Bontrager TLR sealant, 6oz
• Rim strip: Bontrager Aeolus XXX rim strip
• Max tire size: 38c without fenders, 35c with fenders

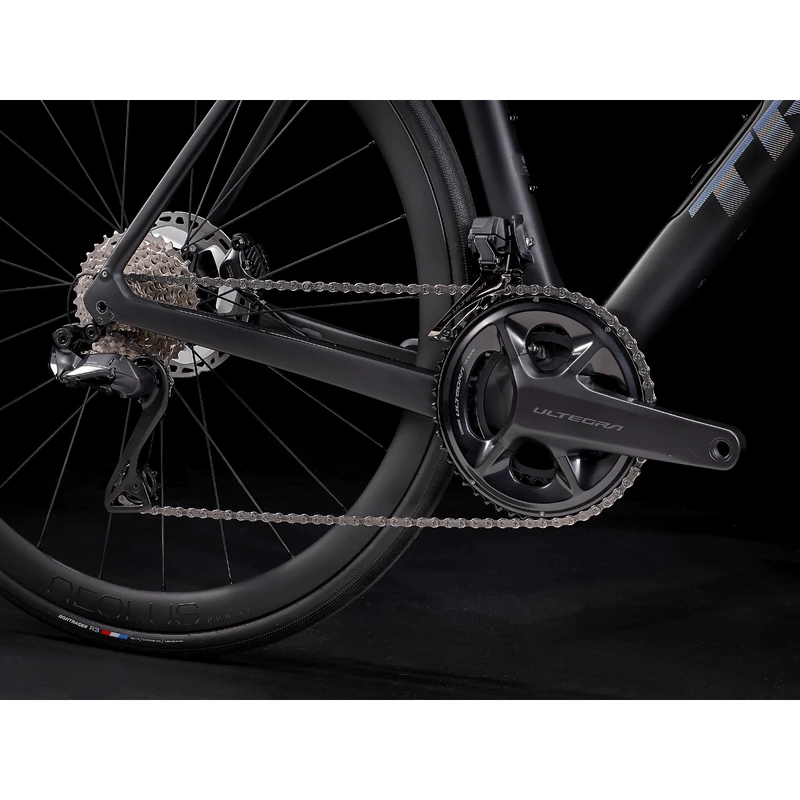

Drivetrain

• Shifter: Shimano Ultegra R8170 Di2, 12 speed
• Front derailleur: Shimano Ultegra R8150 Di2, braze-on, down swing
• Rear derailleur: Shimano Ultegra R8150 Di2, 34T max cog
• Crank: Shimano Ultegra R8100, 50/34
• Size 47: 165mm
• Size 50, 52: 170mm
• Size 54, 56: 172.5mm
• Size 58, 60: 175mm
• Bottom bracket: Praxis, T47 threaded, internal bearing
• Cassette: Shimano Ultegra R8100, 11-34, 12 speed
• Chain: Shimano Ultegra/XT M8100, 12 speed
• Max chainring size: 2x: 52/36

Components

• Saddle: Bontrager P3 Elite, short nose
• Size 47, 50, 52: 155mm width
• Size 54, 56, 58, 60: 145mm width
• Seatpost: Domane carbon seatpost, KVF2 shaping, 20mm offset
• Size 47, 50, 52, 54, 56: 280mm length
• Size 58, 60: 320mm length
• Handlebar: Bontrager Pro IsoCore VR-SF
• Size 52: 40cm
• Size 54, 56: 42cm
• Size 58: 44cm
• Handlebar tape: Bontrager Supertack Perf tape
• Stem: Bontrager RCS Pro, 7 degree
• Size 47: 70mm length
• Size 50: 80mm length
• Size 52, 54: 90mm length
• Size 56, 58: 100mm length
• Size 60: 110mm length

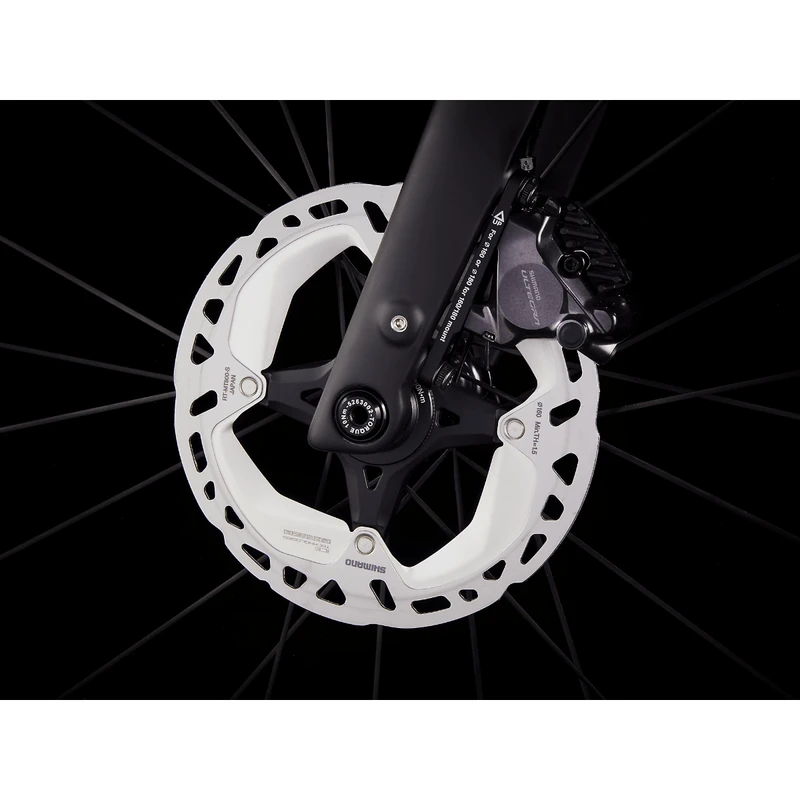

• Brake rotor: Shimano MT800, centerlock, 160mm
• Max brake rotor size: 160mm front & rear

Weight

• Weight: 56 – 7.89 kg / 17.41 lbs
• Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg)

Accessories

• Bontrager BITS Internal Frame Storage Bag
• Charging cable included
