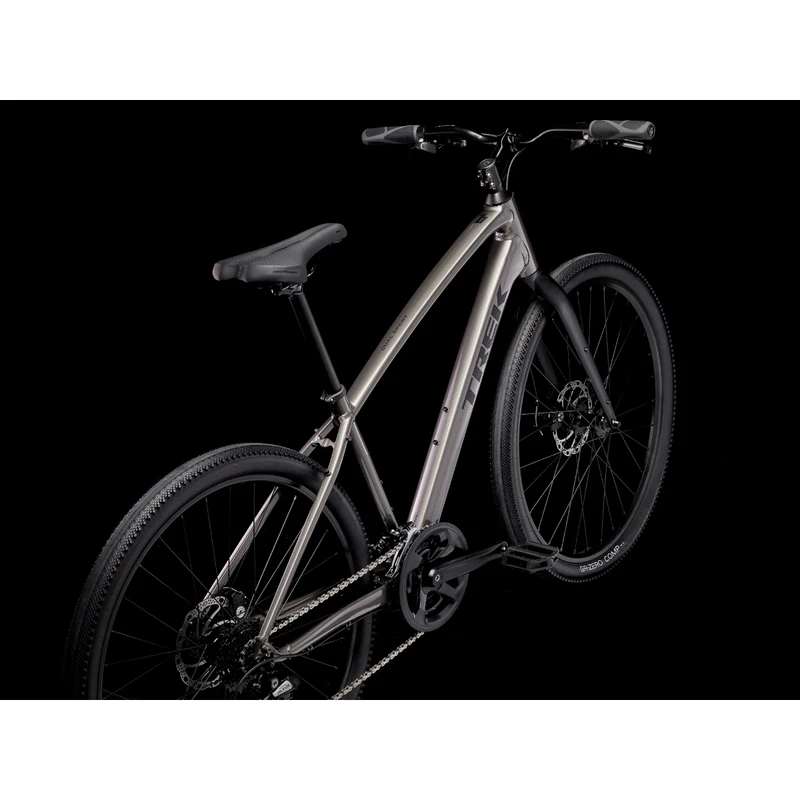

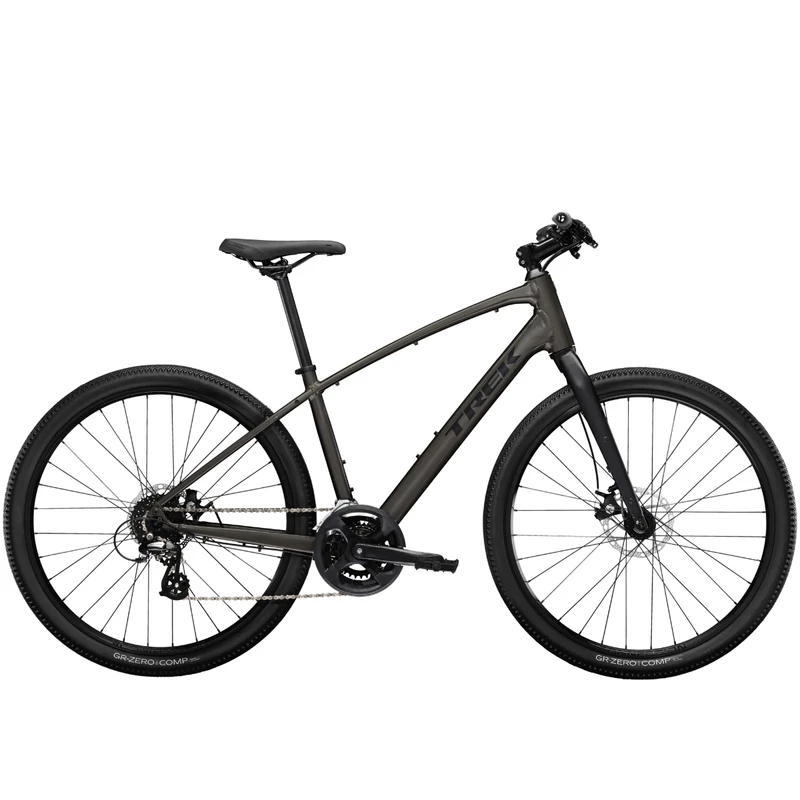

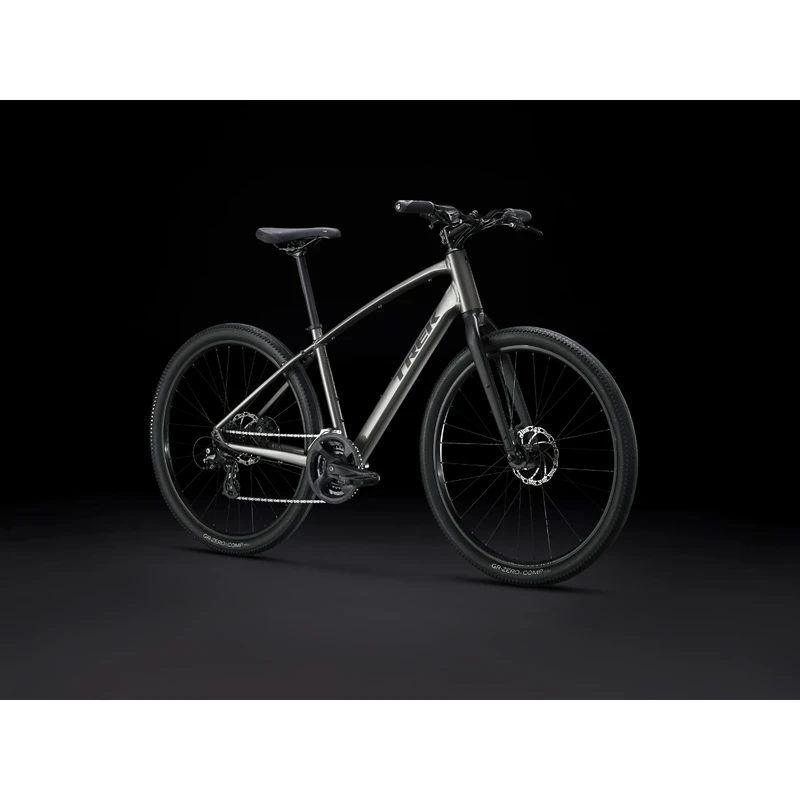

Trek Dual Sport 1 Gen 5 Bike

TREK DUAL SPORT 1 GEN 5 BIKE

Dual Sport 1 is a go-anywhere hybrid bike that’s fun to ride on a variety of surfaces. It has a light frame, a sturdy drivetrain, and powerful brakes. Wide wheels and lofty tires soak up bumps and rough terrain for a comfortable, confident ride on pavement, light gravel trails, bike paths, and more.

FEATURES

• Weighing in lighter than ever before, Dual Sport is easy to maneuver

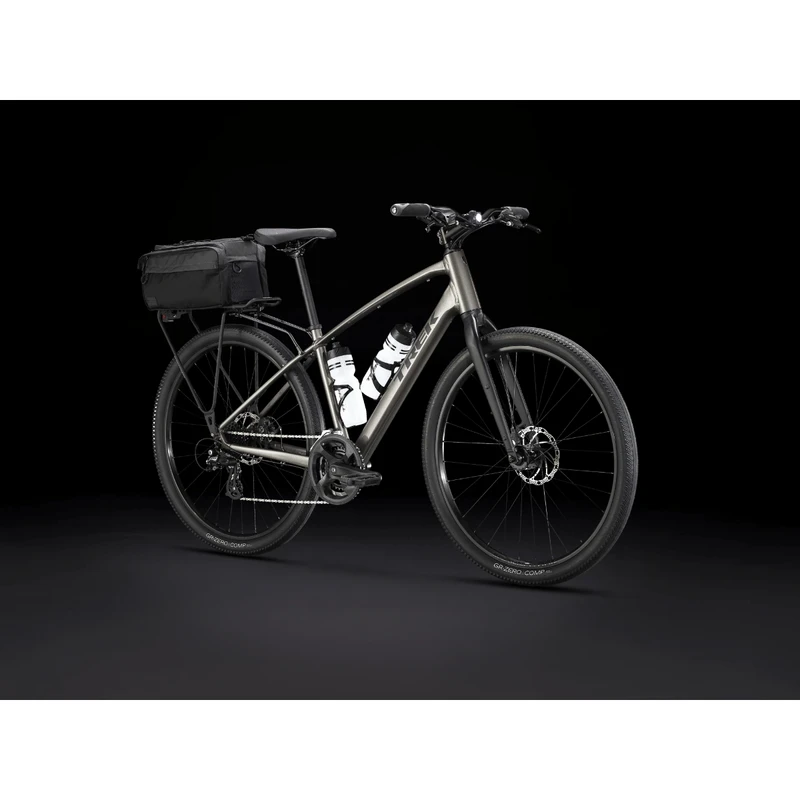

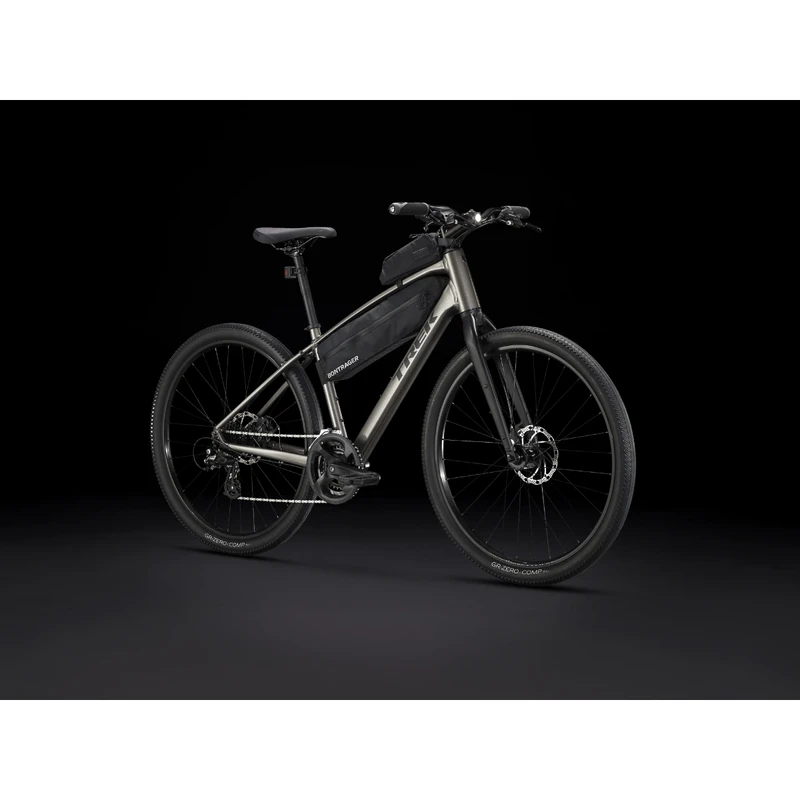

• New mounting points pair with Bontrager Advanture Bags
• Tons of mounts on the frame and fork make Dual Sport perfect for any kind of ride
• Alpha Gold Aluminum frame

TECH SPECS

Frameset

• Frame: Alpha Gold Aluminum, internal cable routing, rack & fender mounts, post mount disc, kickstand mount. 135x5mm QR

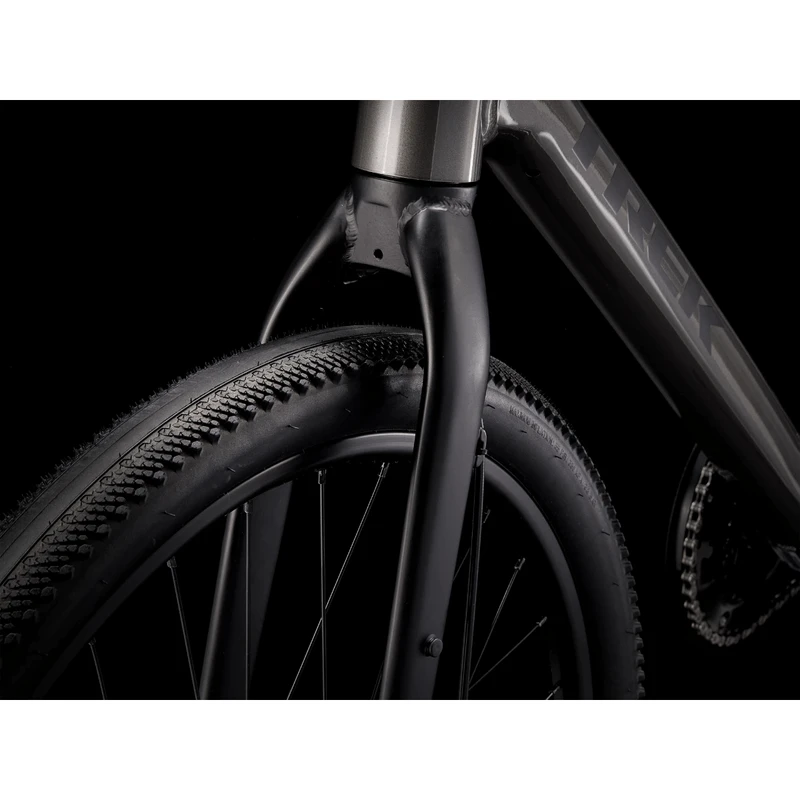

• Fork: Dual Sport steel, internal brake routing, fender mounts, rack mounts, ThruSkew 5mm QR

Wheels

• Hub front: Formula DC-20, alloy, 6-bolt, 5x100mm QR
• Skewer front: 139x5mm bolt-on
• Hub rear: Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR
• Skewer rear: 152x5mm QR
• Rim: Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve, Black
• Tire: Bontrager GR0 Comp, wire bead, 60 tpi, 650x50c
• Max tire size: 27.5×2.0″

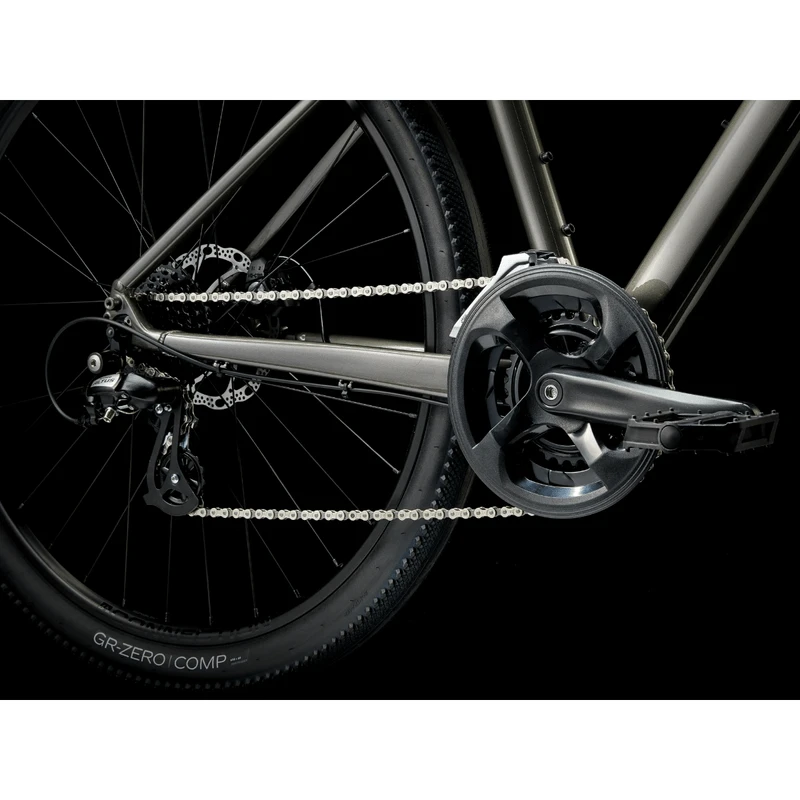

Drivetrain

• Shifter: Shimano EF500, 8 speed
• Front derailleur: Shimano Tourney TY710, 34.9mm clamp, top swing, dual pull
• Rear derailleur: Shimano Altus M310
• Crank: Forged alloy, 46/30, chainguard, 170mm length
• Bottom bracket: Sealed cartridge, 68mm
• Cassette: Shimano HG31, CS-HG31, 11-32, 8 speed
• Chain: KMC Z8.3
• Pedal: Wellgo nylon platform
• Max chainring size: 1x: 42T, 2x/3x: 48T

Components

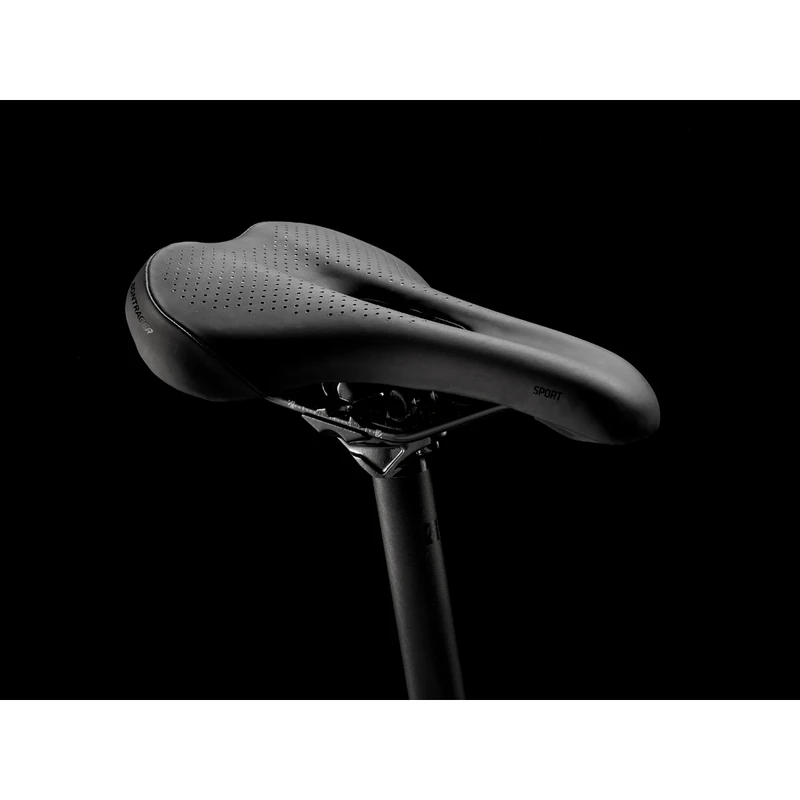

• Saddle: Bontrager Sport
• Seatpost: Bontrager alloy, 27.2mm, 12mm offset, 330mm length

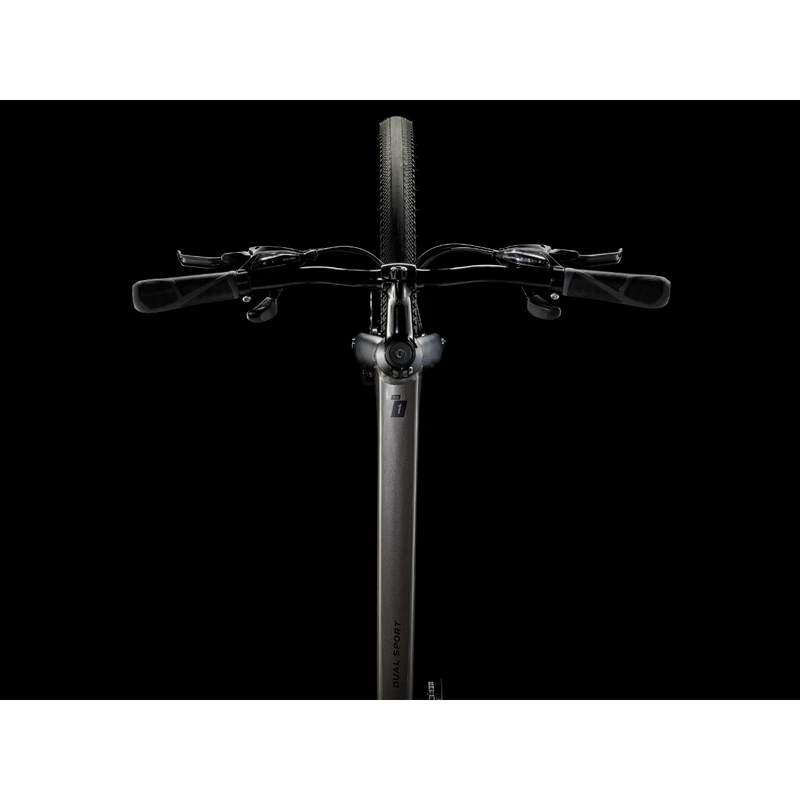

• *Handlebar:
• Size: S, M; Bontrager Riser, steel, 25.4mm, 30mm rise, 600mm width
• Size: L, XL; Bontrager Riser, steel, 25.4mm, 30mm rise, 620mm width

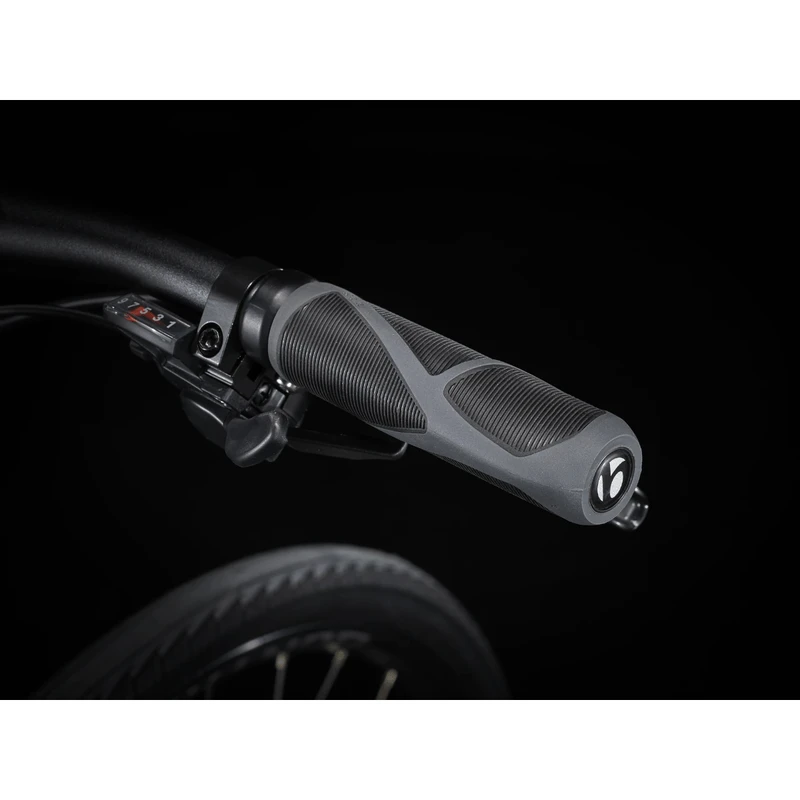

• Grips: Bontrager Satellite

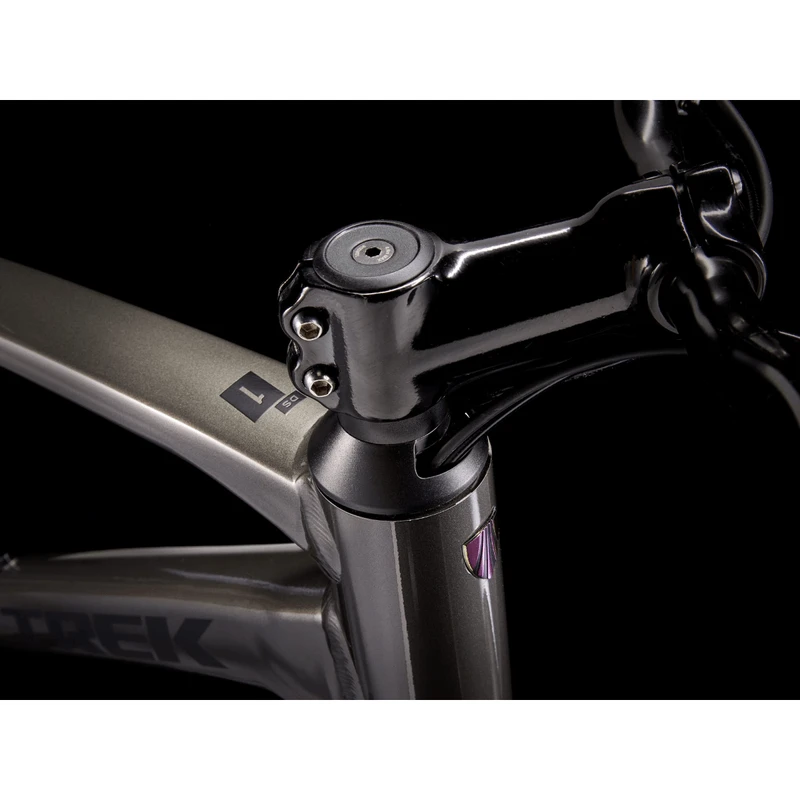

• *Stem:
• Size: S, M; Bontrager alloy, 25.4mm clamp, 10 degree, 90mm length
• Size: L, XL; Bontrager alloy, 25.4mm clamp, 10 degree, 110mm length

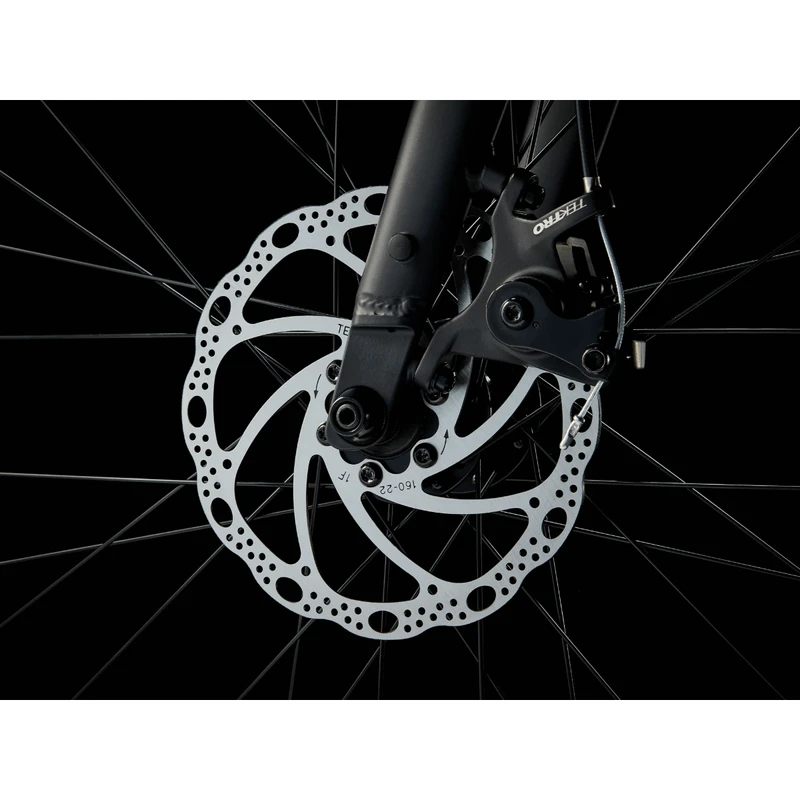

• Brake: Tektro MD-U310 mechanical disc, flat mount, 160mm rotor
• Rotor size: Max brake rotor size: 160mm

Weight

• Weight: M – 13.88 kg / 30.61 lbs
• Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg)
