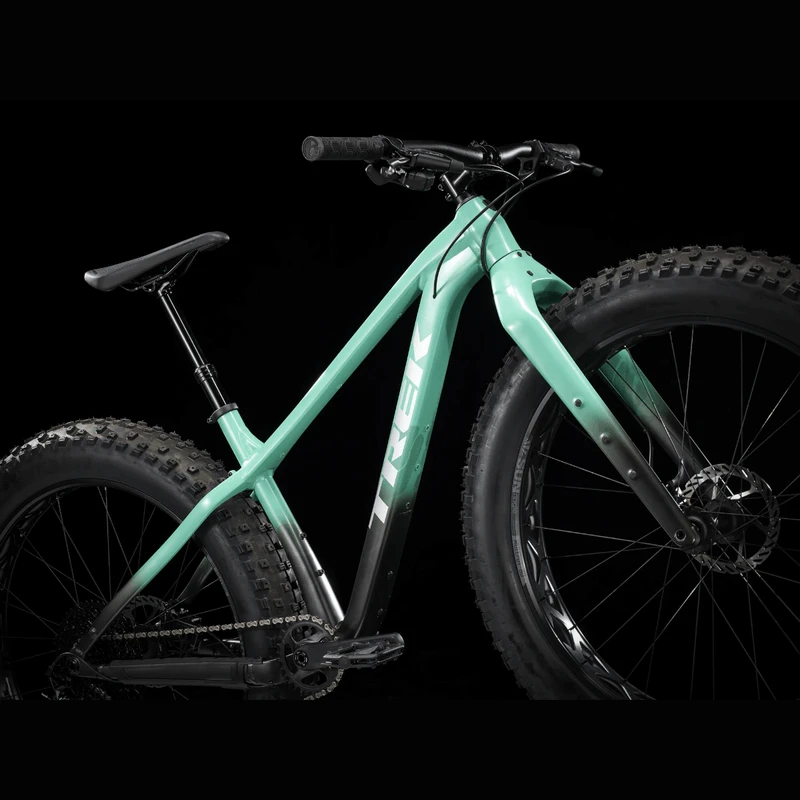

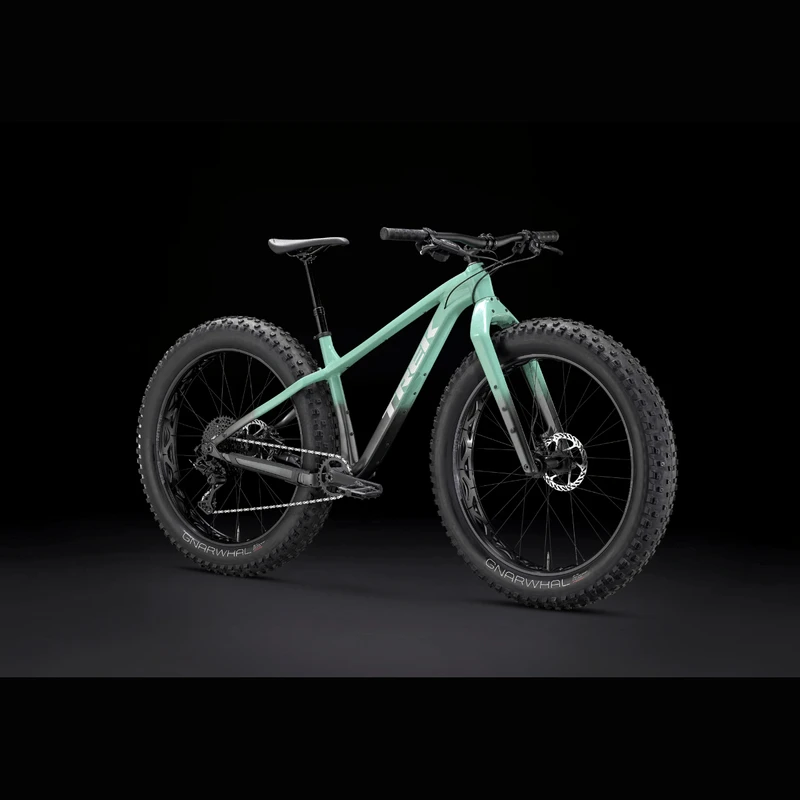

Trek Farley 5 Fat Bike – 2023

TREK FARLEY 5 FAT BIKE – 2023

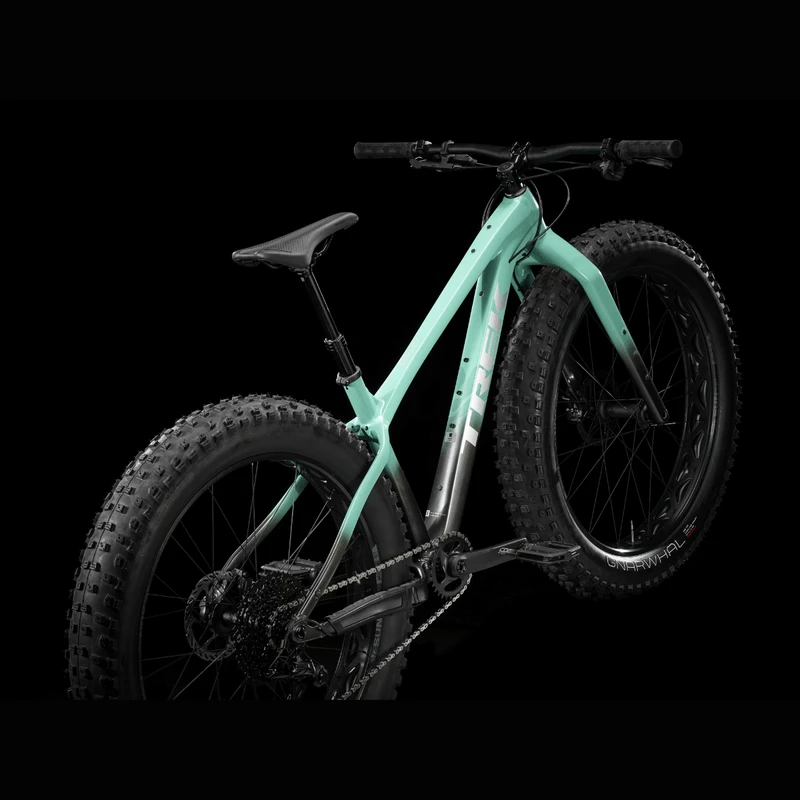

Farley 5 is the ultimate go-anywhere fat bike. Arctic tundra? Farley’s game. Sandy desert singletrack? Farley’s lofty tires will keep you afloat. A winter bikepacking mission through rugged terrain? Sounds like a walk in the park. Farley’s geometry is more capable than ever with a slacker head tube angle for more stability and a steeper seat tube angle for pedaling efficiency and comfortable reach. Up front, its carbon fork is loaded with tons of mounts, so you’ll be able to load up gear for the adventure of your dreams.

FEATURES

• Fat and fast
• 27.5 fat tires give you the best combo of all-terrain grip, stability, flotation, and fast-rolling speed
• Farley’s new, short-offset OCLV carbon fork puts you in an optimal position over the front wheel, upping traction over sketchy terrain while allowing for a shorter stem.

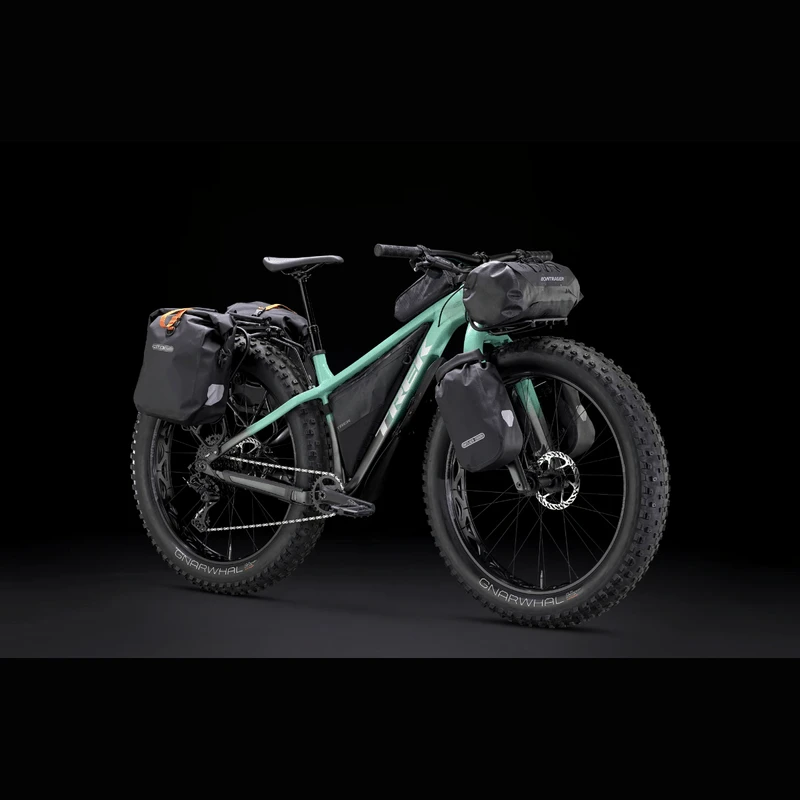

• Mounts all over the frame let you carry a wide variety of gear with endless customization options. Gummy bears? Extra layers? Camping gear? Haul it all.
• Internal routing helps to protect Farley’s components from the elements and makes it easy to mount gear
• Rapid Drive 108 rear hub

TECH SPECS

• Pedals: VP-536 nylon platform
• Fork: Farley carbon, tapered alloy steerer, crown rack mounts, lower leg cage mounts, 150x15mm thru axle
• Hubs: Bontrager alloy, sealed bearing, 6-bolt, 15x150mm thru axle
• Rims: SUNRingle Mulefut 80 SL, 32-hole cutout
• Stem Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 70mm length
• Chain: KMC X10, 10 speed

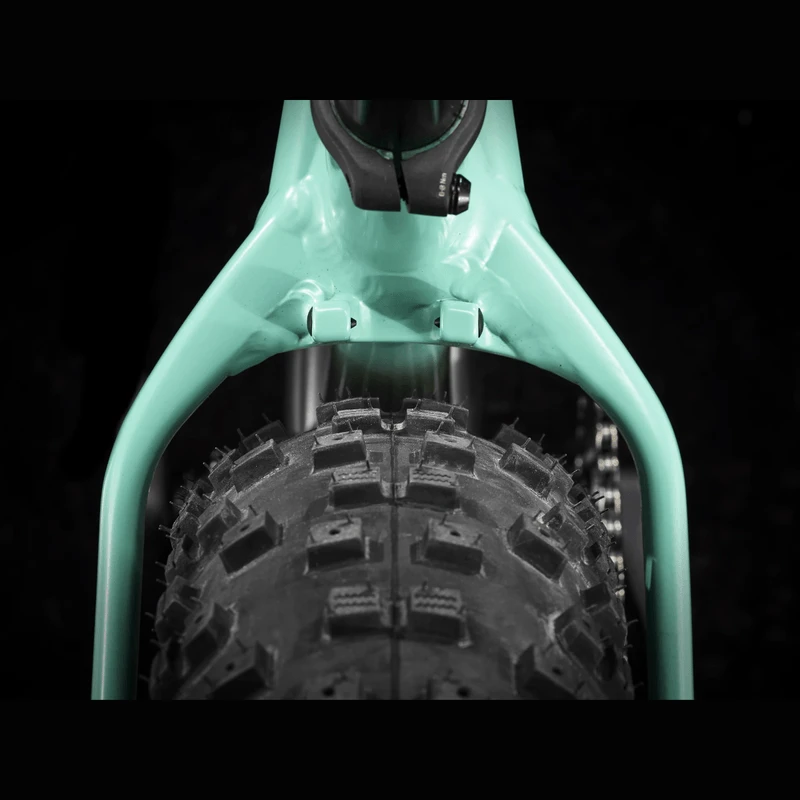

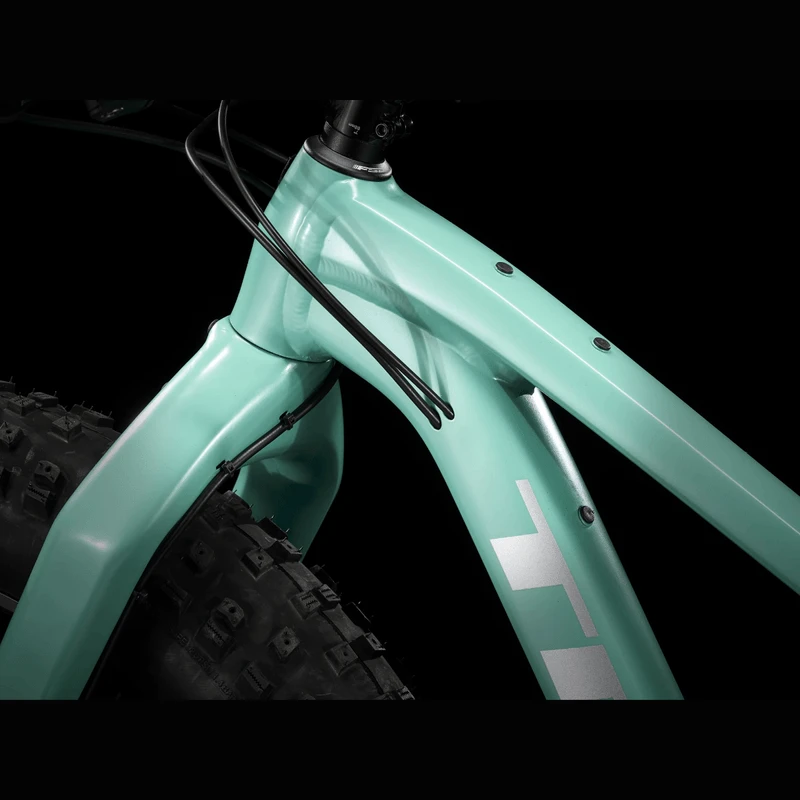

• Frame: Alpha Platinum Aluminum, tapered head tube, top tube bag mounts, strapless full frame bag mounts, downtube fender mount, lower downtube accessory mount, seat stay rear rack mounts, internal rear derailleur & dropper post routing, threaded BB, UDH, 197x12mm

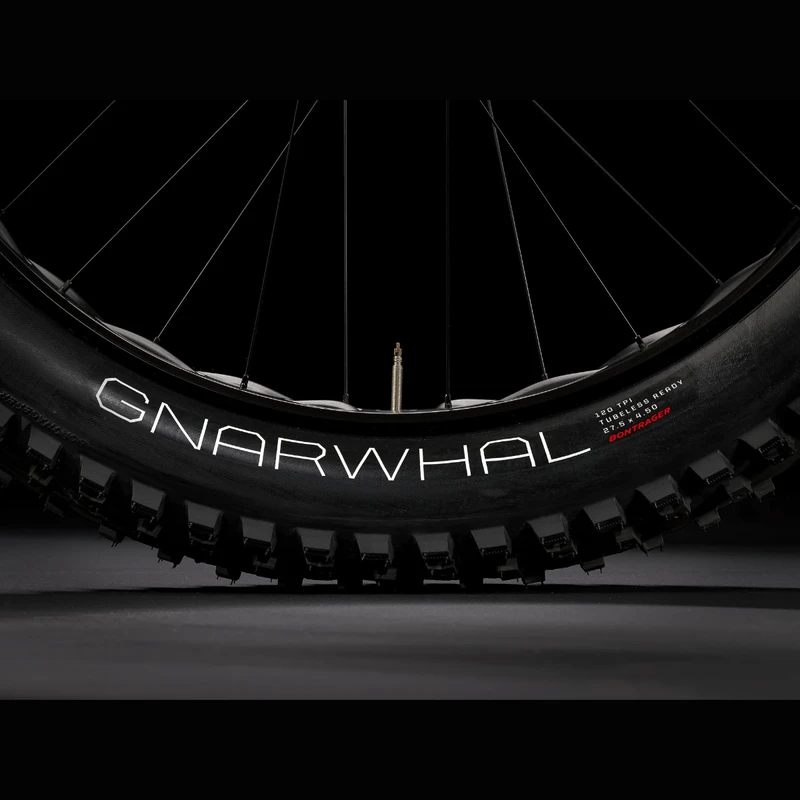

• Tires: Bontrager Gnarwhal Team Issue, Tubeless Ready, Inner Strength sidewalls, studdable, aramid bead, 120 tpi, 27.5×4.50”
• Brakes: SRAM Level hydraulic disc

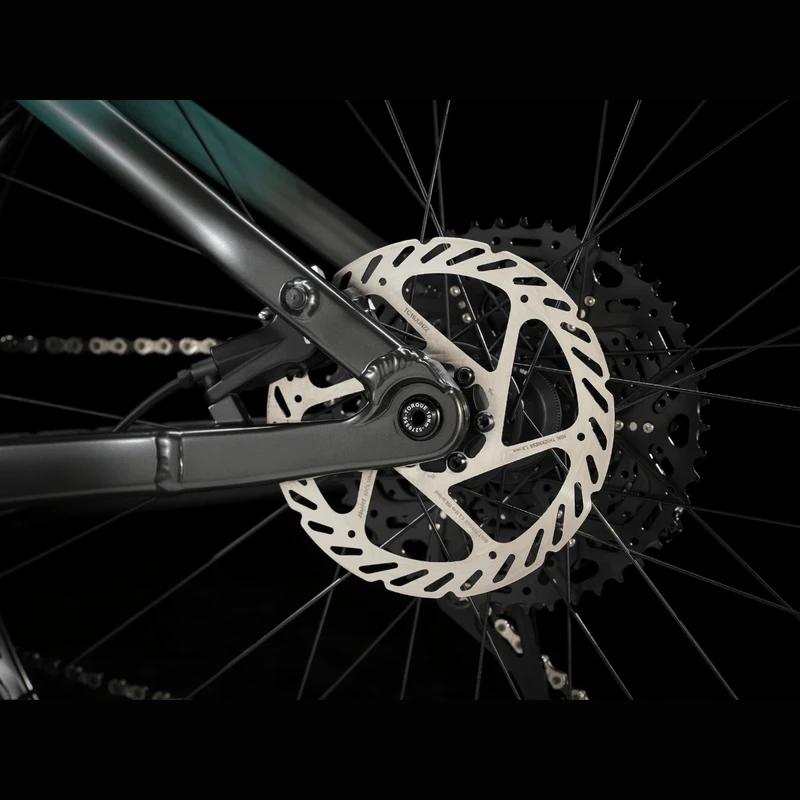

• Rotors Avid G2 CleanSweep, 6-bolt, 160mm
• Saddle: Bontrager Verse P3, steel rails
• Headset: FSA IS-2, 1-1/8” top, 1.5” bottom

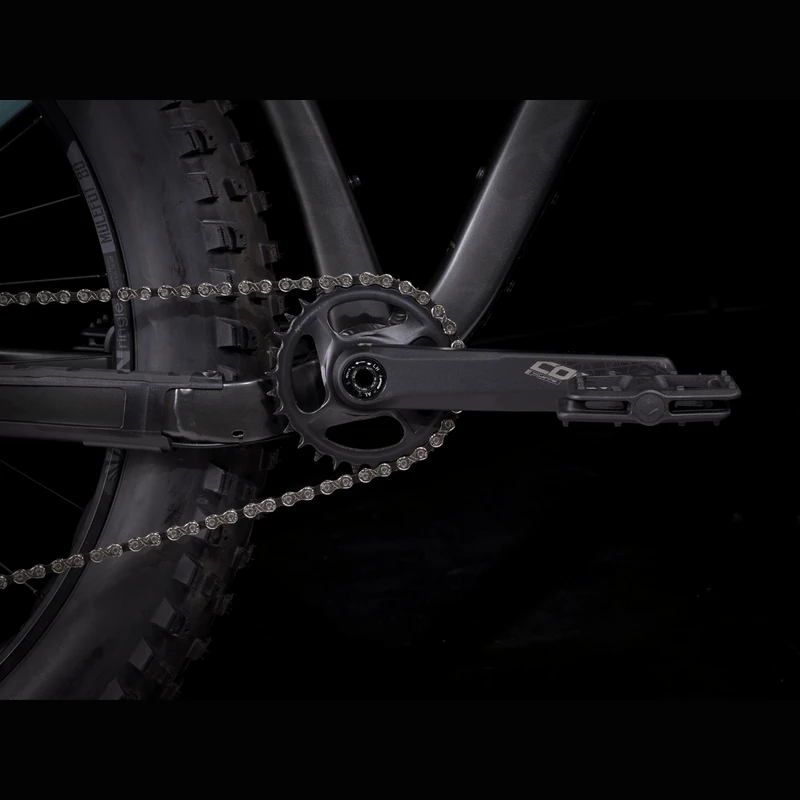

• Crankset: FSA Comet, 30T, 170mm length
• Seatpost TranzX JD-YSP18, 150mm travel, internal routing, 31.6mm, 470mm length
• Shifters: microSHIFT Advent X SL-M9605, 10 speed

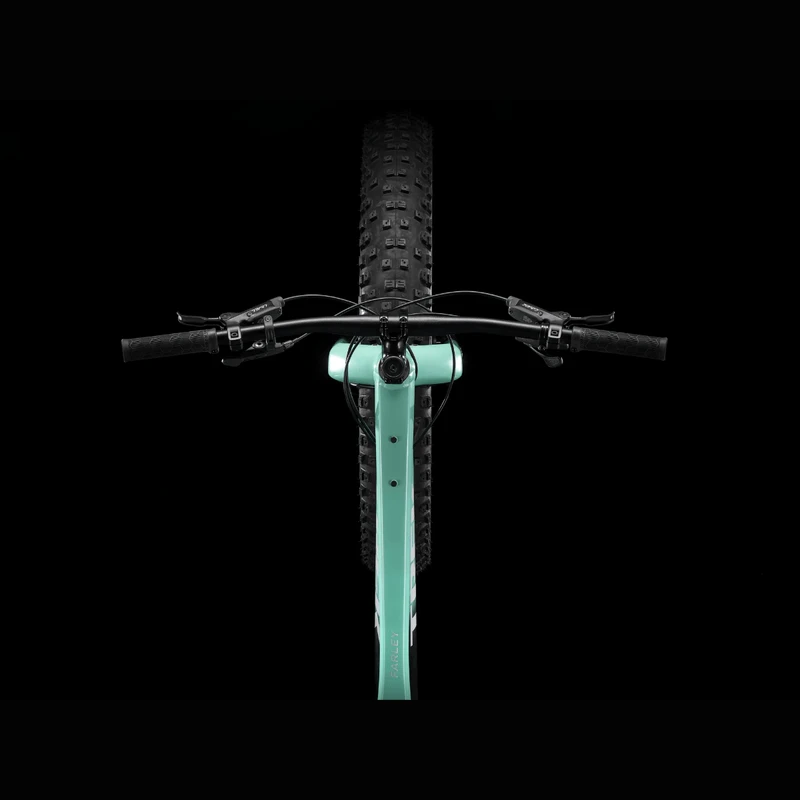

• Handlebars: Bontrager alloy, 31.8mm, 15mm rise, 750mm width
• Tape/Grips: Bontrager XR Trail Comp, nylon lock-on
• Bottom Bracket: FSA BB-7100, 100mm, BSA threaded

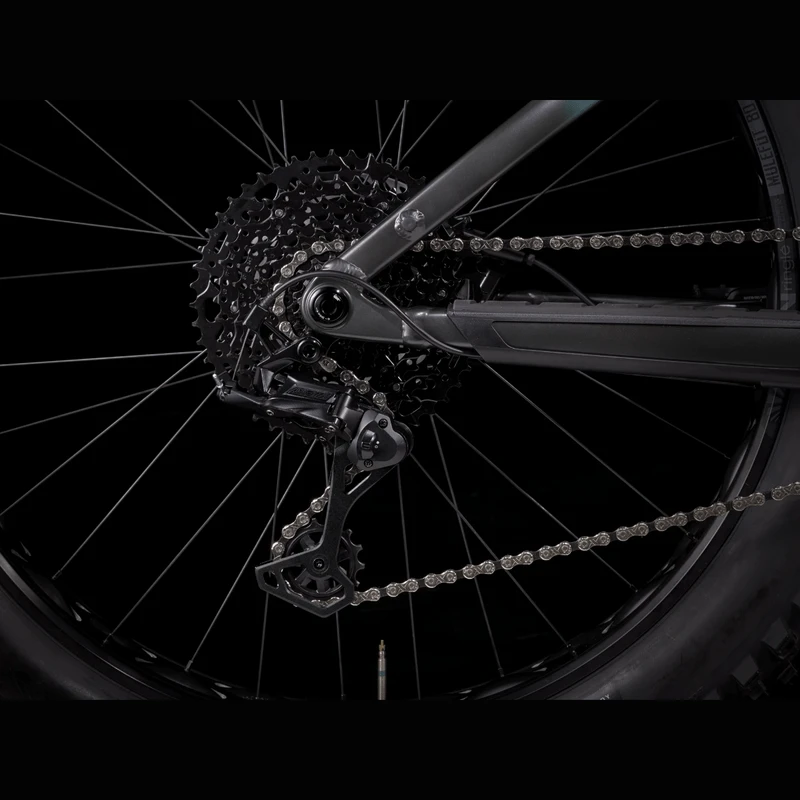

• Rear: Derailleur microSHIFT Advent X RD-M6205AM, 48T max cog
• Cassette/Freewheel: microSHIFT Advent X, 11-48, 10 speed
