Trek Fuel EX 7 Gen 6 Trail Bike – 2023
Original price was: $377.00.$95.99Current price is: $95.99.
- Unbeatable quality, unbeatable prices.
- Safe Shopping Guaranteed
- The quality you expect, the service you deserve.
- Buy with Confidence, Get Quality
TREK FUEL EX 7 GEN 6 TRAIL BIKE – 2023

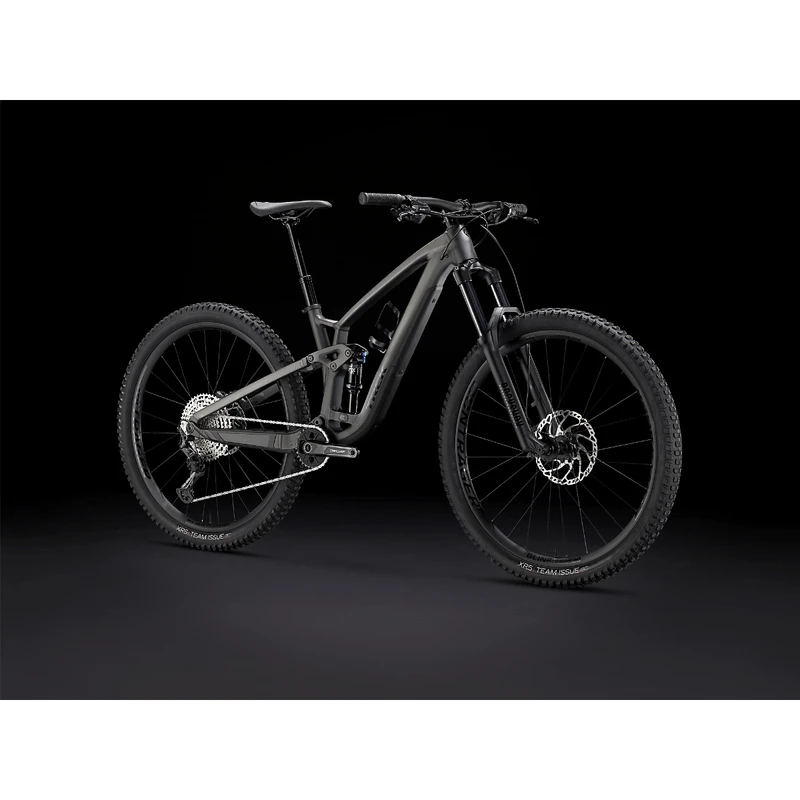

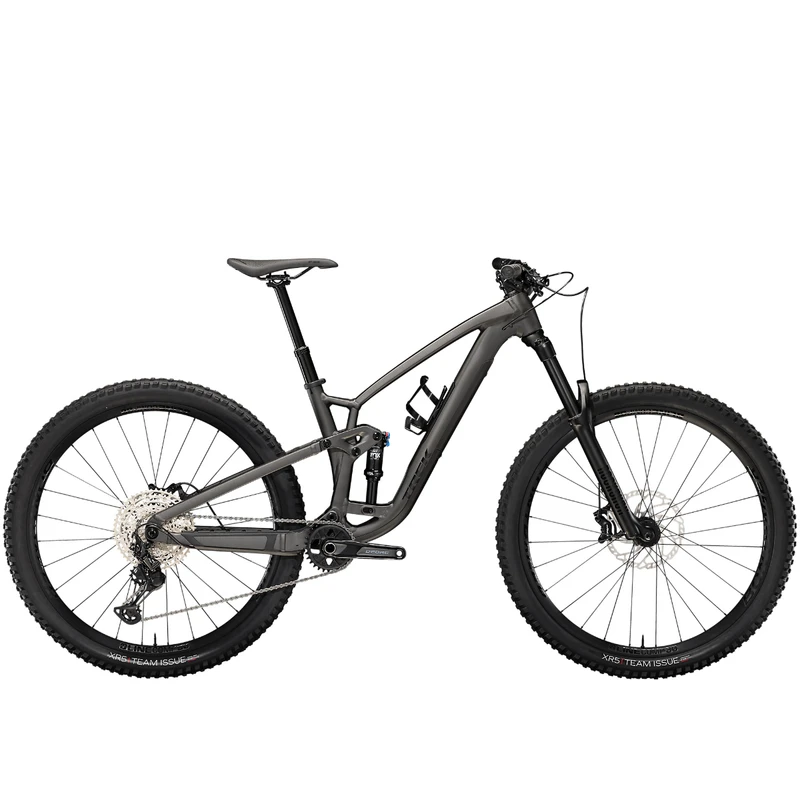

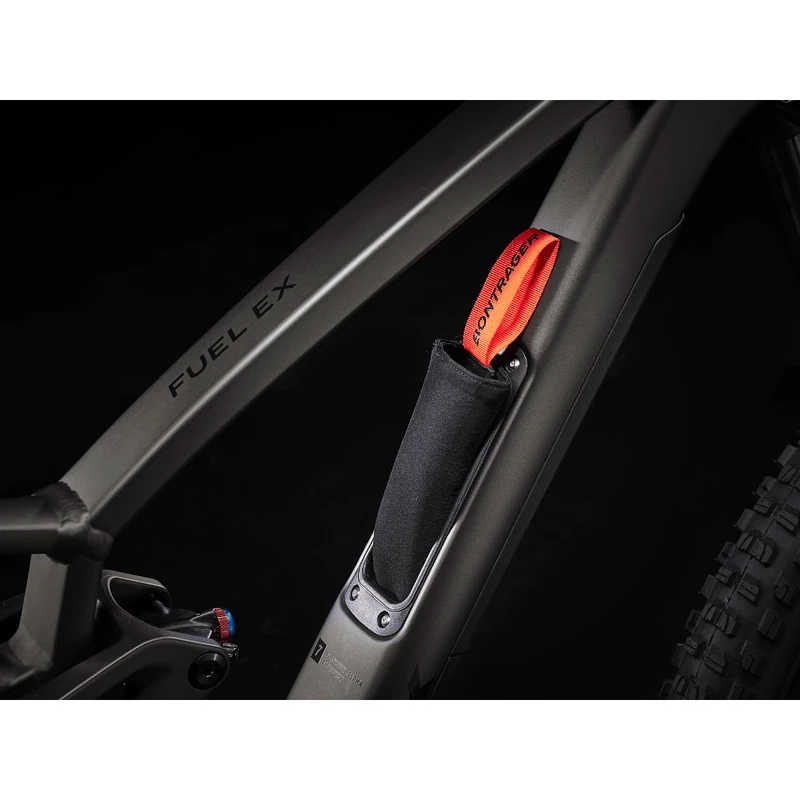

Fuel EX 7 is a do-anything trail machine evolved to eat up singletrack. Upgraded 150mm front and 140mm rear suspension smooth out rough and technical descents, while a lightweight aluminum frame keeps things lively on the climbs. New in-frame storage and adjustable geometry give you all the perks that come with the carbon model, without the price tag. Tubeless wheels, and reliable Shimano SLX 1×12 drivetrain round-out this build for ultimate trail fun.
FEATURES
It’s right for you if
- You’re looking for a ride-anything full-suspension with stepped-up components, like a supple RockShox Gold RL fork that gobbles up rock gardens for fun and flowy descents
The tech you get
- A lightweight alloy full-suspension frame with 150mm RockShox Gold RL fork with DebonAir spring for small bump compliance
- FOX Performance rear shock
- 1×12 Shimano SLX drivetrain
- Wide Bontrager wheels with tubeless tires and a dropper post
- New adjustable geometry that lets you take control of your setup
The final word
- For the all-mountain rider, Fuel EX 7 takes the cake. Its capable geometry is ready to rally the mountain, and upgraded suspension and drivetrain keep you riding all day.
Why you’ll love it
- 1: You get all-mountain power with upgraded components that are ready to progress with you on the trail
- 2: Trek expanded their size range to ensure a better fit for all riders, and use the best-fitting wheels for each frame size: XS frames get 27.5? wheels, S frames get to choose between 27.5? or 29?, and sizes M and up get 29? wheels
- 3: The dropper post gets your saddle out of the way when you’re ripping corners and smashing descents

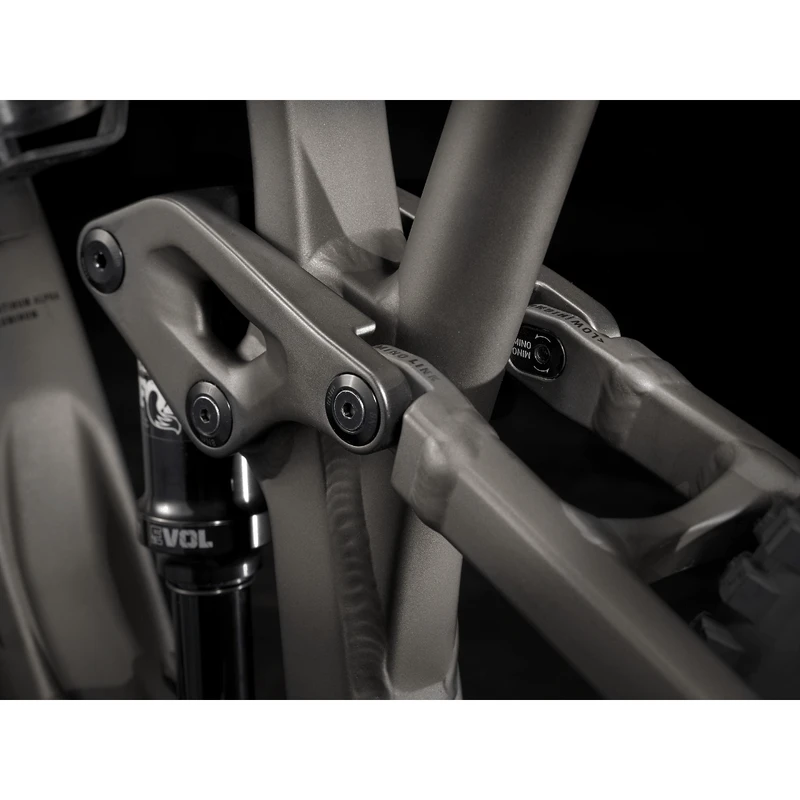

- 4: With the adjustable angle headset (angled cups sold separately) and Mino Link, you can choose from six different geometry configurations
- 5: Guided internal routing, universal derailleur hanger, improved hardware, and a threaded BB make maintenance a breeze
TECH SPECS
Frameset

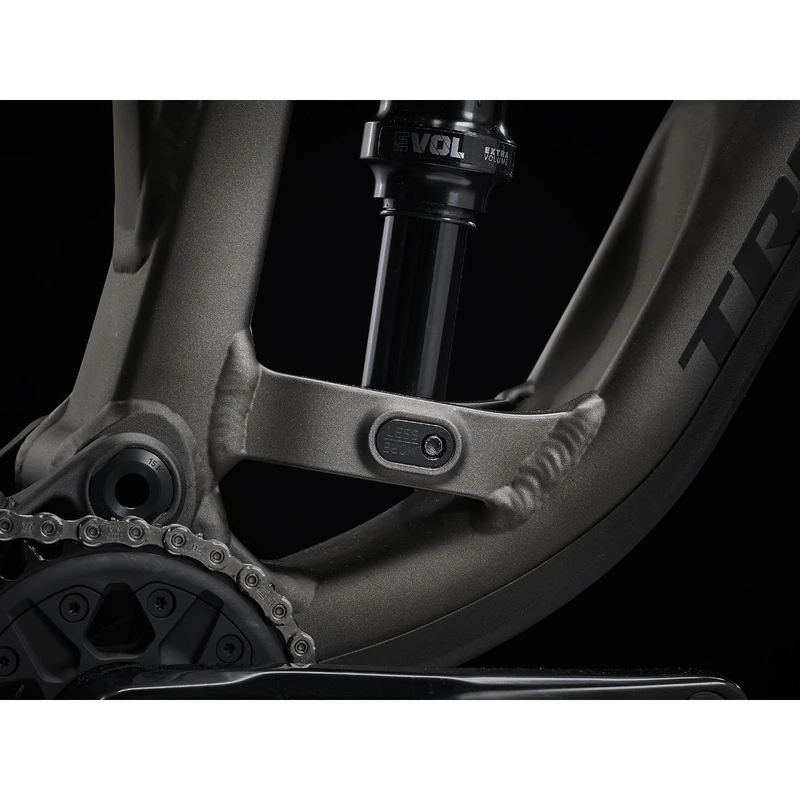

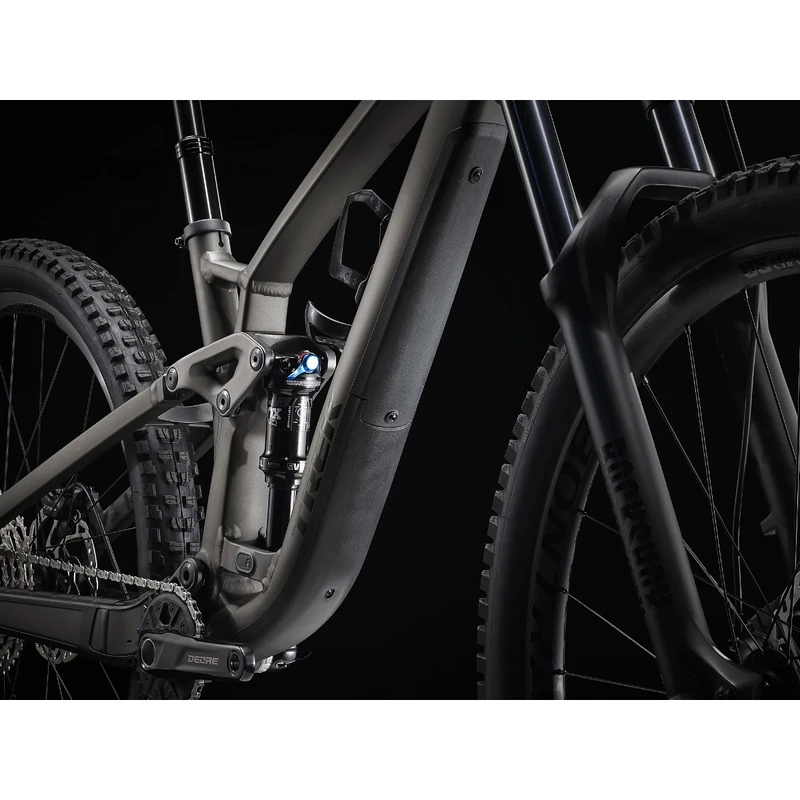

- Frame: Alpha Platinum Aluminum, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9mm seat tube, ISCG 05, 55mm chainline, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140mm travel
- Fork: RockShox 35 Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 150mm travel

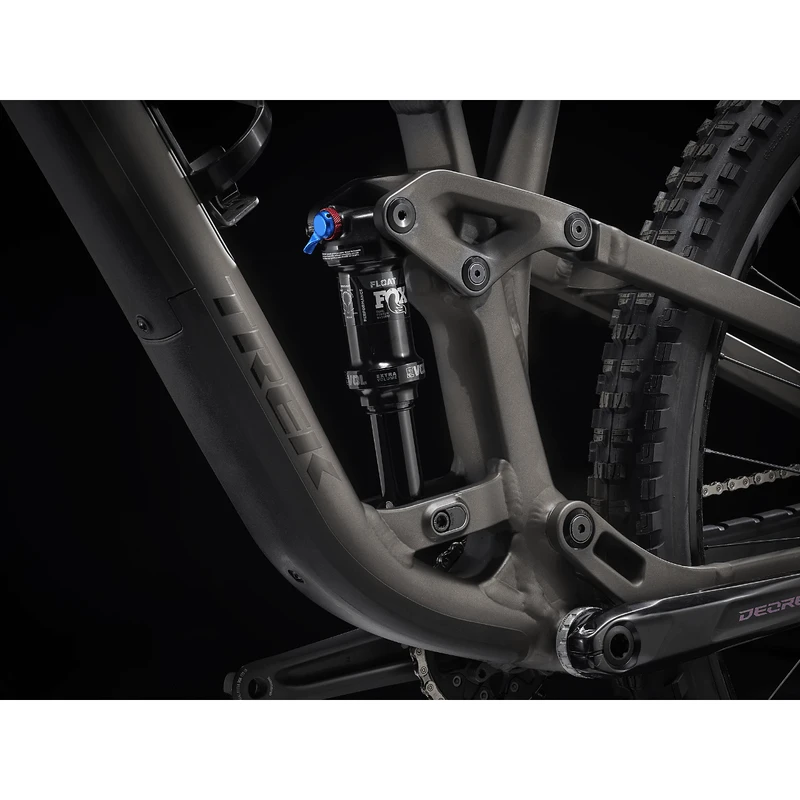

- Shock: Fox Performance Float EVOL, 3-position DPS damper, tuned by Trek Suspension Lab, 185mm x 55mm
Wheels
- Wheel front: Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle
- Wheel rear: Bontrager Line Comp 30, Tubeless Ready
- Size XS, S: Rapid Drive 54, 6-bolt, Boost148, 12mm thru axle
- Size S, M, ML, L, XL: Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle
- Hub front: Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15mm thru axle
- Hub rear: Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano MicroSpline freehub, Boost148, 12mm thru axle
- Skewer rear: Bontrager Switch thru axle, removable lever
- Rim: Bontrager Line Elite 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle

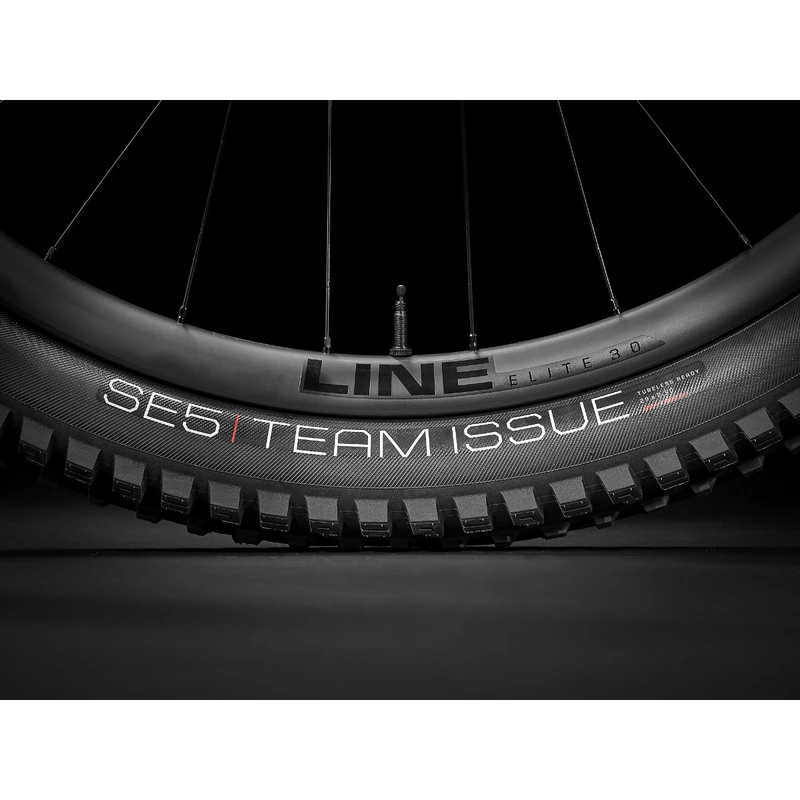

- Tire: Bontrager XR5 Team Issue, Tubeless Ready, aramid bead
- Size XS, S: Inner Strength casing, 60 tpi, 27.5×2.50”
- Size S, M, ML, L, XL: 120 tpi, 29×2.50”
- Tire part: Bontrager TLR sealant, 6oz
- Rim strip: Bontrager TLR
Drivetrain
- Shifter: Shimano SLX M7100, 12 speed

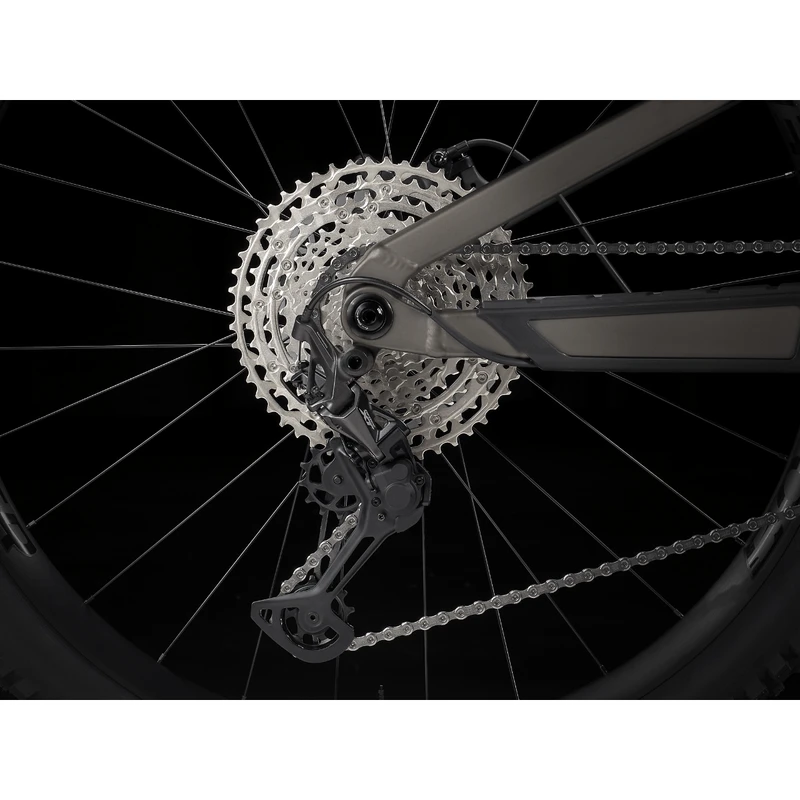

- Rear derailleur: Shimano XT M8100, long cage
- Crank: Shimano Deore M6120, 30T ring, 55mm chainline, 170mm length
- Bottom bracket: Shimano BB-MT501 BSA
- Cassette: Shimano Deore M6100, 10-51, 12 speed
- Chain: Shimano Deore M6100, 12 speed
Components
- Saddle: Bontrager Arvada, steel rails, 138mm width
- Seatpost: TranzX JD-YSI-22PLQ, internal routing
- Size XS, S: 100mm travel, 34.9mm, 346mm length
- Size M, ML: 150mm travel, 34.9mm, 454mm length
- Size L, XL, XXL: 170mm travel, 34.9mm, 497mm length
- Handlebar: Bontrager Rhythm Comp, alloy, 31.8mm, 15mm rise, 750mm width
- Grips: Bontrager XR Trail Comp, nylon lock-on
- Stem: Bontrager alloy, Blendr compatible
- Size XS, S: 31.8mm, 7 degree, 35mm length
- Size M, M/L, L, XL, XXL: 31.8mm, 7 degree, 50mm length

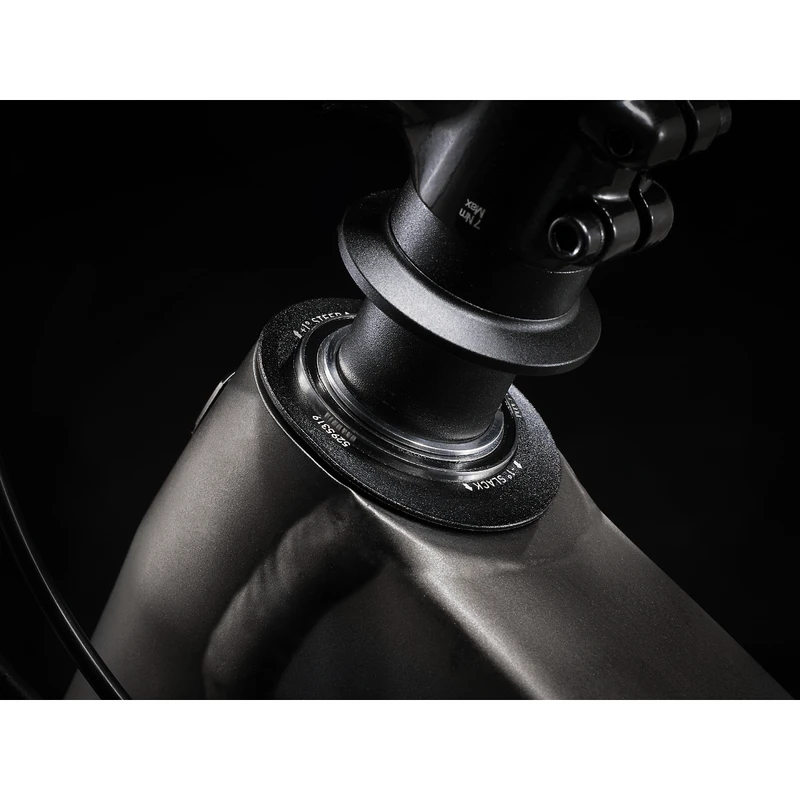

- Headset: Integrated cartridge bearing, 1-1/8” top, 1.5” bottom, angle adjust cup compatible

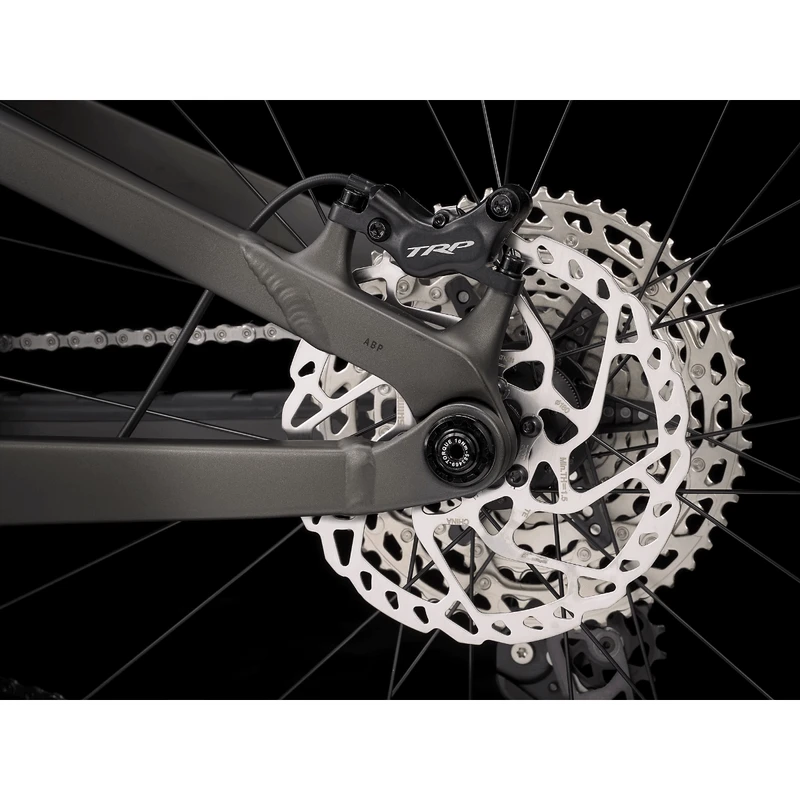

- Brake: Shimano 4-piston hydraulic disc, MT4100 lever, MT420 caliper
- Brake rotor:
- Size XS, S, M, ML, L, XL: Shimano RT66, 6-bolt, 180mm
- Size: M, ML, L, XL: Shimano RT66, 6-bolt, 203mm
Weight
- Weight: M – 15.97 kg / 35.21 lbs (with TLR sealant, no tubes)
- Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg)
| Size | Rider Height | Inseam |
|---|---|---|
| XS | 4’6″ – 5’1″ | 25″ – 29″ |
| S | 5’0″ – 5’6″ | 28″ – 31″ |
| M | 5’3″ – 5’8″ | 30″ – 32″ |
| M/L | 5’5″ – 5’10” | 30″- 33″ |
| L | 5’10” – 6’2″ | 33″ – 35″ |
| XL | 6’1″ – 6’5″ | 34″ – 36″ |
| Size | XS, S, M, M/L, L, XL |
|---|---|
| Wheel Size | 27.5, 29 |
