Trek Fuel EX 8 Gen 6 Trail Bike – 2023

• You want a full suspension trail bike that prioritizes suspension and shifting performance over a more expensive carbon frame.

• A light and stiff alloy frame with 150mm FOX Rhythm fork
• Float EVOL air spring and GRIP damper for small bump compliance
• FOX Performance Float X rear shock
• Shimano XT 12-speed drivetrain for snappy shifting
• Tubeless-ready Bontrager wheels
• Adjustable geometry that lets you take control of your setup

• For the rider who doesn’t want to be limited on the trail, Fuel EX 8 is ready to handle everything. Its progressive trail geometry is built to keep you charging, and upgraded components are they cherry on top.

• 1: This bike is built to take on the singletrack, with modern geometry that’s evolved to handle the rough and rowdy
• 2: You’ll get upgraded components where it matters most, with 12-speed XT shifting, and a rock-gobbling FOX Rhythm 36 fork
• 3: With the adjustable angle headset (angled cups sold separately) and Mino Link, you can choose from six different geometry configurations
• 4: Trek expanded their size range to ensure a better fit for all riders, and use the best-fitting wheels for each frame size: XS frames get 27.5? wheels, S frames get to choose between 27.5? or 29?, and sizes M and up get 29? wheels
• 5: Guided internal routing, universal derailleur hanger, improved hardware, and a threaded BB make maintenance a breeze

TECH SPECS

Frameset

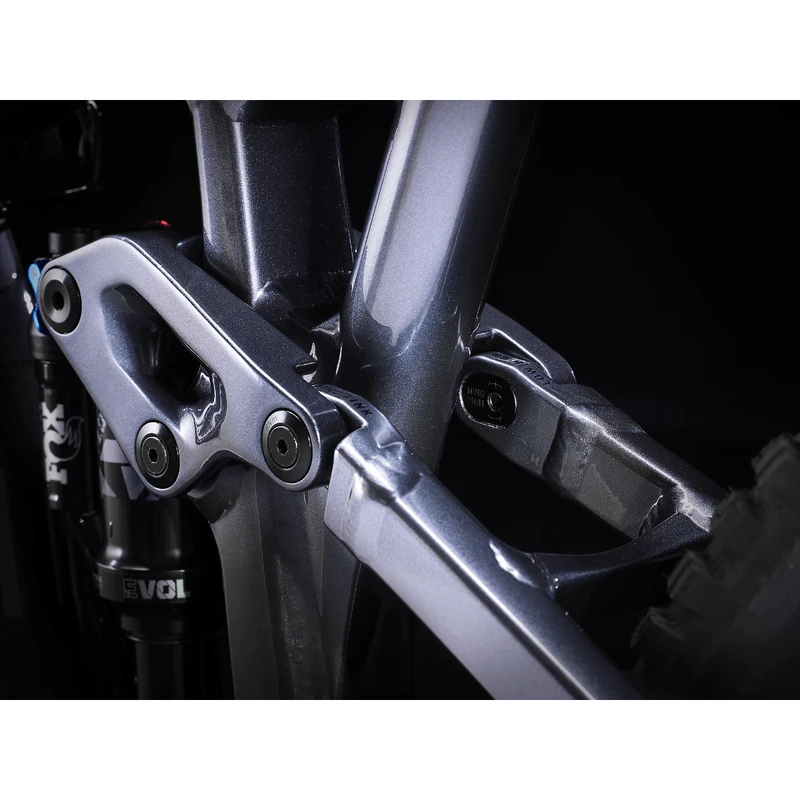

• Frame: Alpha Platinum Aluminum, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9mm seat tube, ISCG 05, 55mm chainline, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140mm travel
• Fork: Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt axle
• Size XS, S: 140mm travel
• Size S, M, M/L, L, XL, XXL: 150mm travel

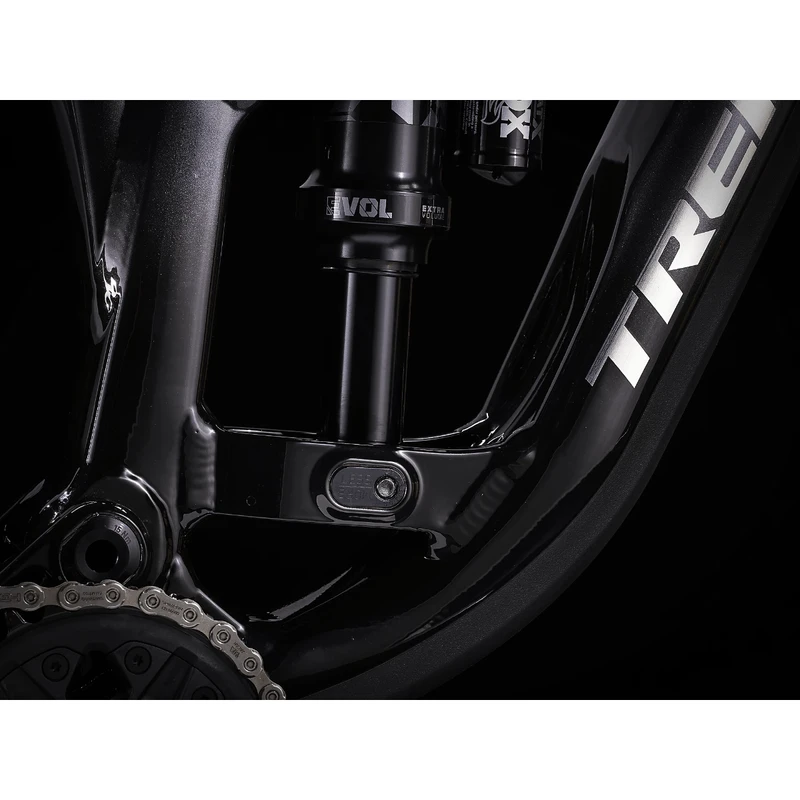

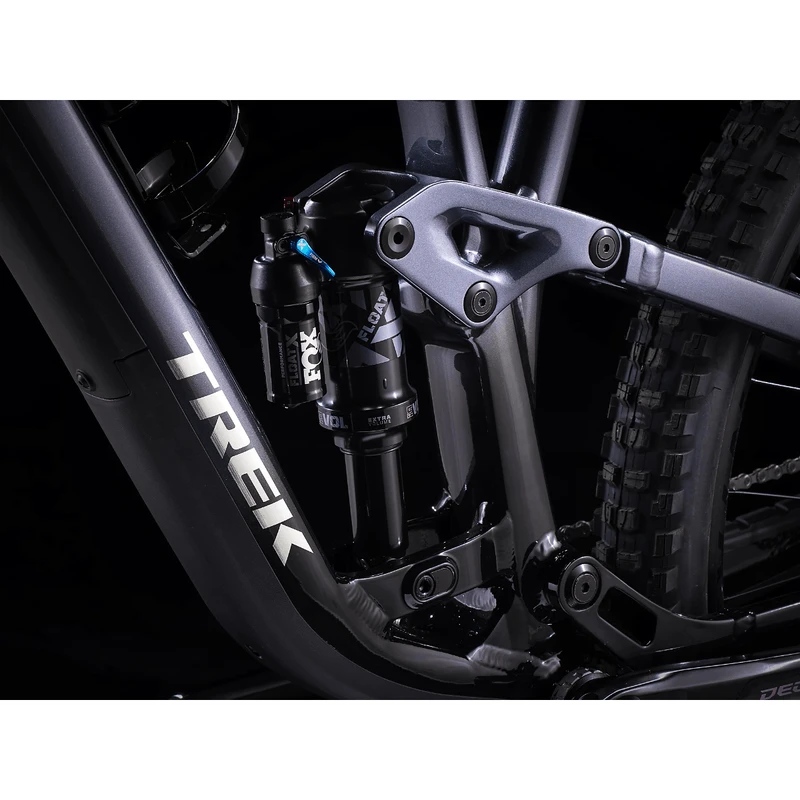

• Shock: Fox Performance Float X, 2-position damper, 185mm x 55mm

Wheels

• Wheel front: Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle
• Wheel rear: Bontrager Line Comp 30, Tubeless Ready
• Size XS, S: Rapid Drive 54, 6-bolt, Boost148, 12mm thru axle
• Size S, M, M/L, L, XL, XXL: Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle
• Hub front: Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15mm thru axle
• Hub rear: Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano MicroSpline freehub, Boost148, 12mm thru axle
• Skewer rear: Bontrager Switch thru axle, removable lever
• Rim: Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle

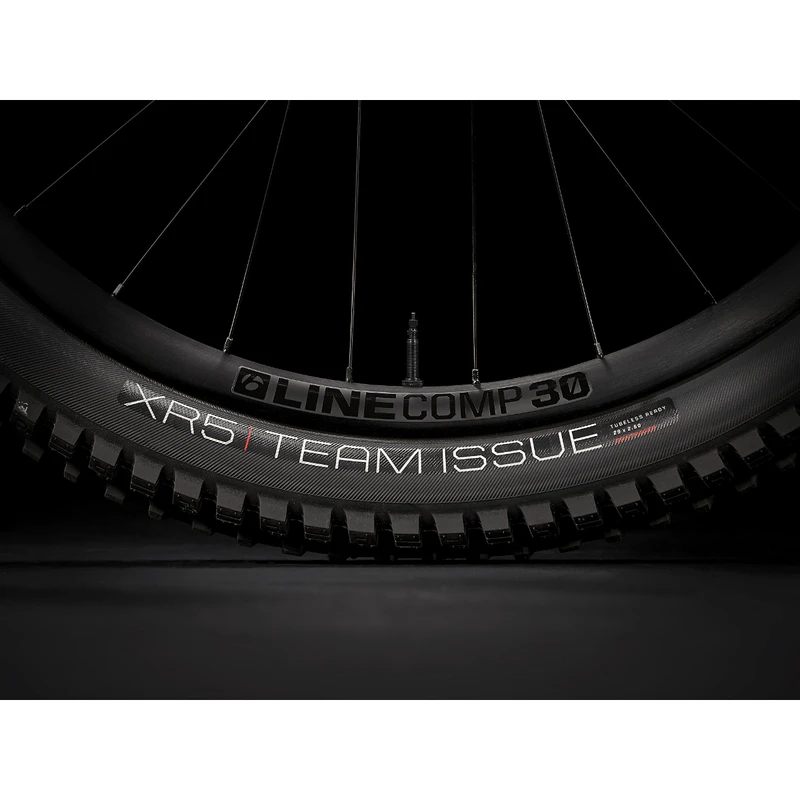

• Tire: Bontrager XR5 Team Issue, Tubeless Ready, aramid bead
• Size XS, S: Inner Strength casing, 60 tpi, 27.5×2.50”
• Size S, M, M/L, L, XL, XXL: 120 tpi, 29×2.50”
• Tire part: Bontrager TLR sealant, 6oz
• Rim strip: Bontrager TLR

Drivetrain

• Shifter: Shimano XT M8100, 12 speed

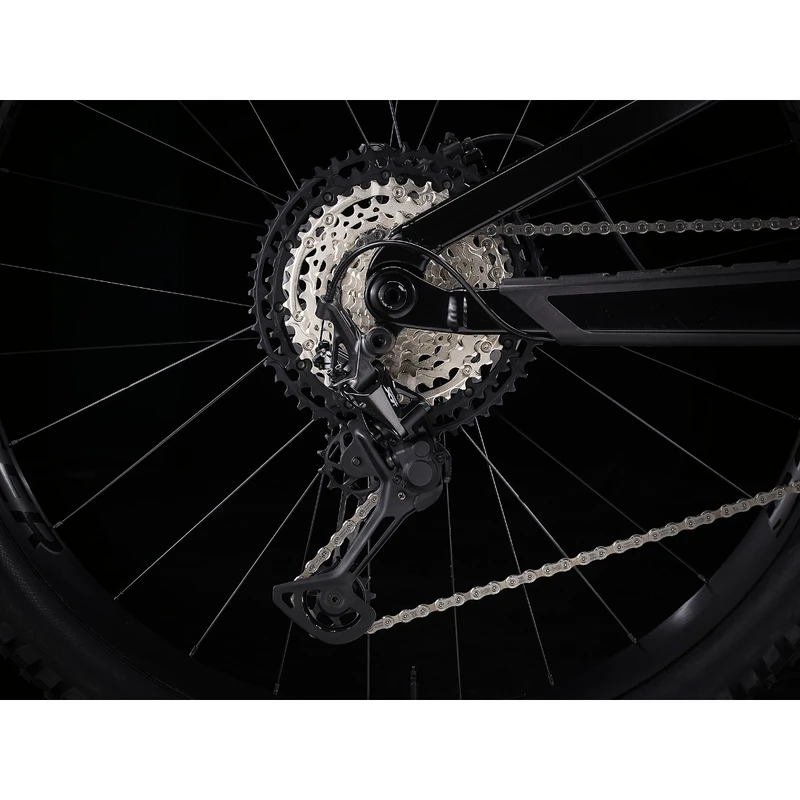

• Rear derailleur: Shimano XT M8100, long cage
• Chain: Shimano SLX M7100, 12 speed

Components

• Saddle: Bontrager Arvada, hollow chromoly rails, 138mm width
• Seatpost: TranzX JD-YSP39, internal routing
• Size XS, S: 100mm travel, 34.9mm
• Size M, ML: 150mm travel, 34.9mm
• Size L, XL, XXL: 170mm travel, 34.9mm
• Handlebar: Bontrager Line, alloy
• Size XS, S: 35mm, 27.5mm rise, 750mm width
• Size M, M/L, L, XL, XXL: 35mm, 27.5mm rise, 780mm width
• Grips: Bontrager XR Trail Elite, nylon lock-on
• Stem: Bontrager Elite
• Size XS, S: 35mm, 0 degree, 35mm length
• Size M, M/L, L, XL, XXL: 35mm, 0 degree, 45mm length

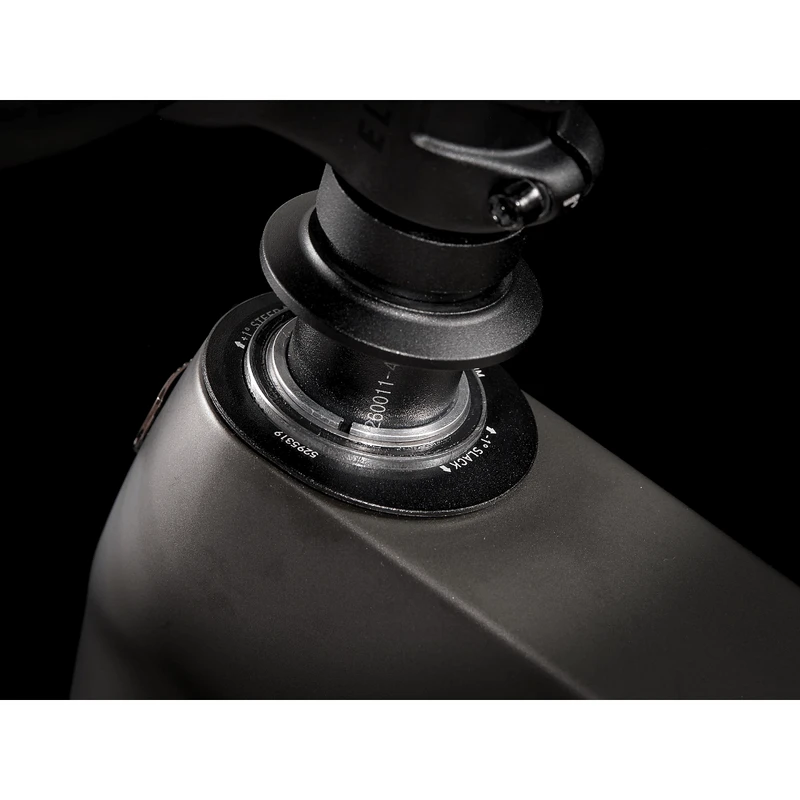

• Headset: Integrated cartridge bearing, 1-1/8” top, 1.5” bottom, angle adjust cup compatible
• Brake: Shimano 4-piston hydraulic disc, M6100 lever, M6120 caliper
• Brake Rotor: Shimano RT66, 6-bolt, 180mm/203mm

Weight

• Weight: M – 15.65 kg / 34.51 lbs (with TLR sealant, no tubes)
• Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg)

Accessories

• Bontrager BITS Internal Frame Storage Bag

Size	Rider Height	Inseam
44	4’11” – 5’0″	28″ – 29″
47	5’0″ – 5’2″	28″ – 30″
50	5’2″ – 5’4″	29″ – 30″
52	5’4″ – 5’6″	30″- 31″
54	5’6″ – 5’9″	31″ – 32″
56	5’9″ – 5’11”	32″ – 33″
58	5’11” – 6’1″	33″ – 34″
60	6’1″ – 6’3″	34″ – 35″
62	6’3″ – 6’5″	35″ – 36″
