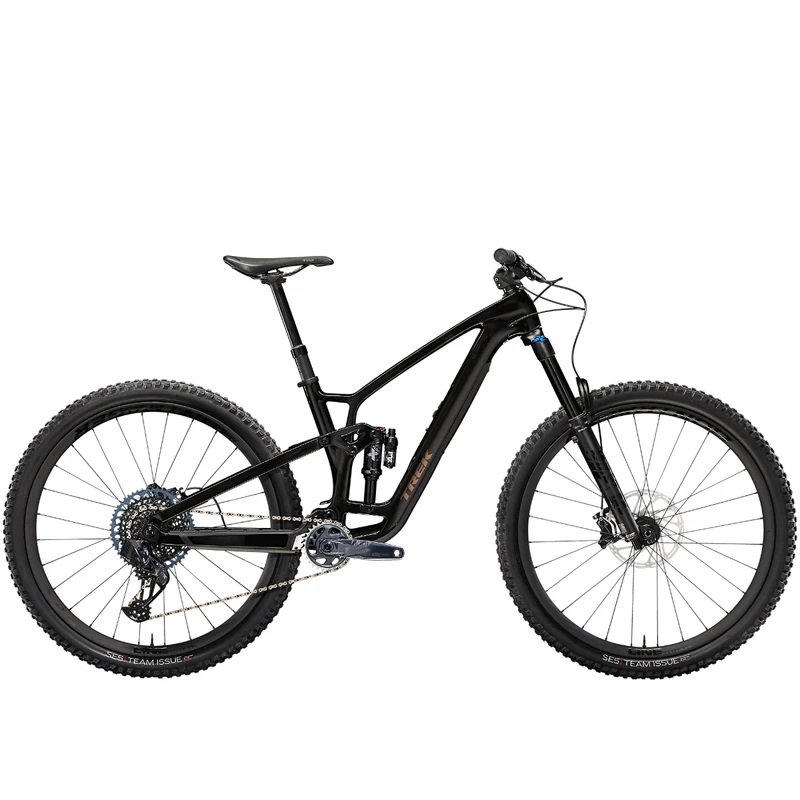

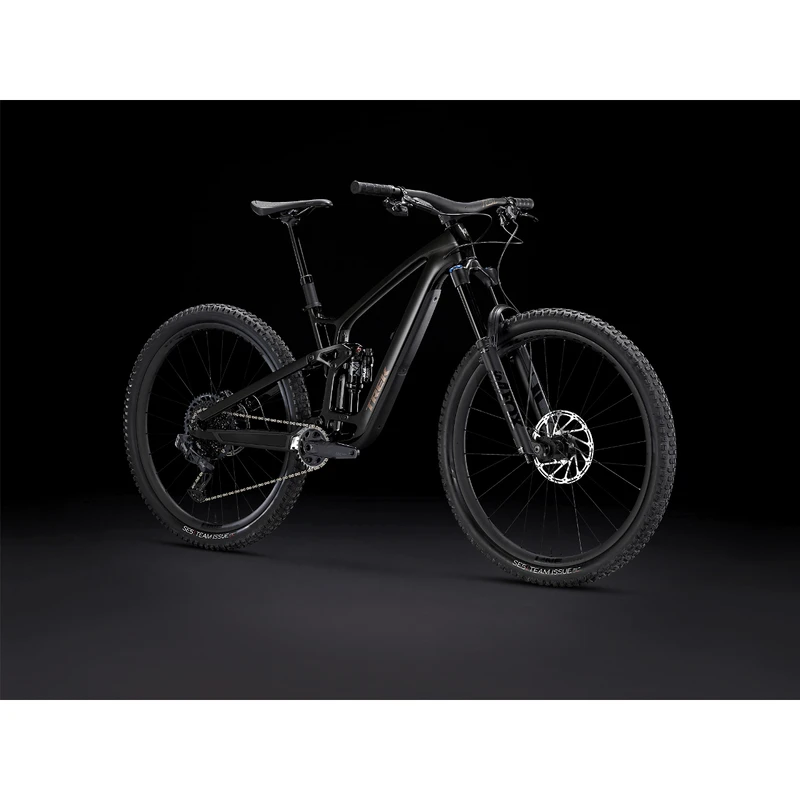

Trek Fuel EX 9.8 GX AXS Gen 6 Trail Bike – 2023

• You want a full suspension ride that can handle anything you throw its way.
• You want the vibration damping benefits of a carbon frame and wheels, rock-gobbling premium suspension, and appreciate when you can keep your setup clean and minimalist with wireless 12-speed shifting.

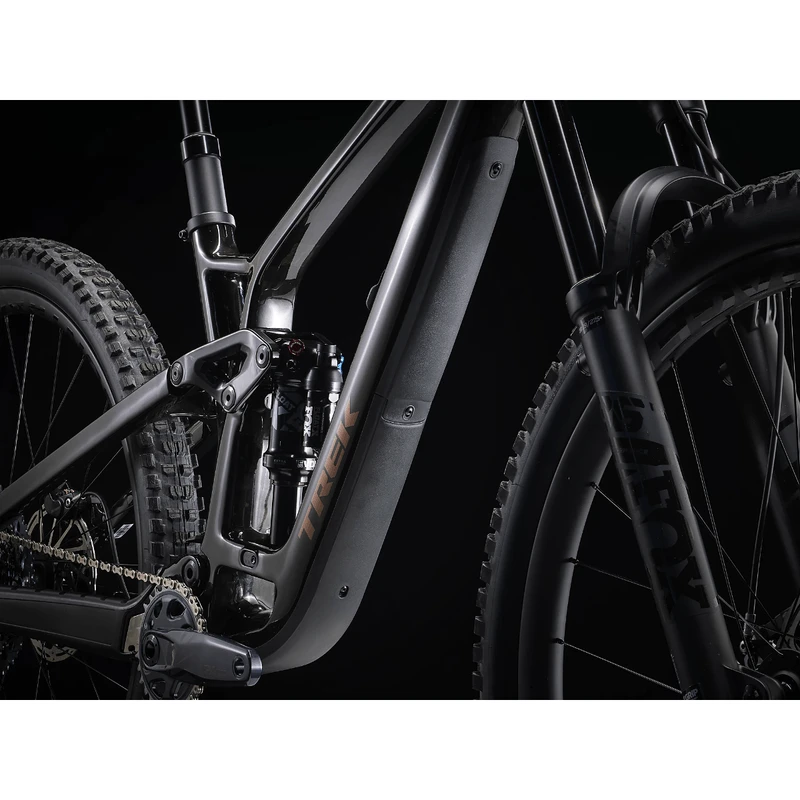

• A light and stiff carbon frame with a full FOX Performance suspension package that turns chunky rock gardens into smooth sailing
• Carbon wheels that keep weight down while offering stiff and reliable tracking
• Wireless shifting of SRAM GX AXS
• Tubeless hoops and tires so you can spend less time fixing flats
• Adjustable geometry and in-frame storage for keeping your setup dialed just for you

• Fuel EX 9.8 is the evolution of years of trail riding, with longer front geometry for taking on steep descents, and a steeper seat tube for hammering back up to do it again. Its carbon frame keeps things light, and SRAM GX AXS shifting takes things up a notch for those who want the latest tech.

• 1: Its lightweight carbon frame and progressive geometry are built to tackle steep and gnarly descents and punchy climbs alike
• 2: It comes with light and stiff carbon wheels that make quick work of technical terrain and keep you on your line, even when things get hairy
• 3: You get the latest technology in SRAM’s workhorse GX groupset, with wireless AXS shifting

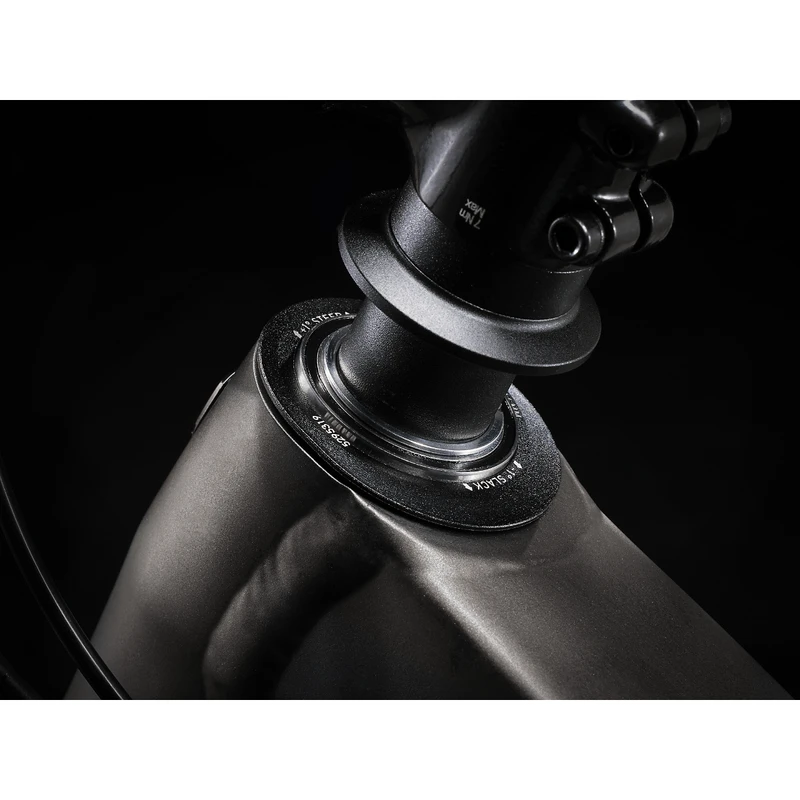

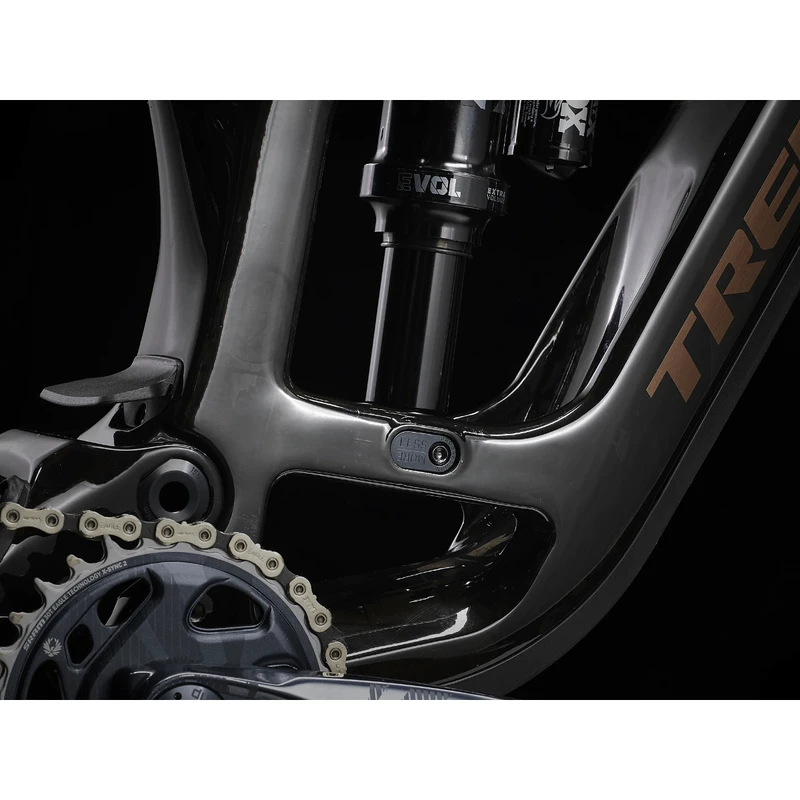

• 4: With the adjustable angle headset (angled cups sold separately) and Mino Link, you can choose from six different geometry configurations
• 5: Trek expanded their size range to ensure a better fit for all riders, and use the best-fitting wheels for each frame size: XS frames get 27.5? wheels, S frames get to choose between 27.5? or 29?, and sizes M and up get 29? wheels

TECH SPECS

Frameset

• Frame: OCLV Mountain Carbon, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9mm seat tube, ISCG 05, 55mm chainline, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140mm travel
• Fork: Fox Performance 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt axle, 150mm travel

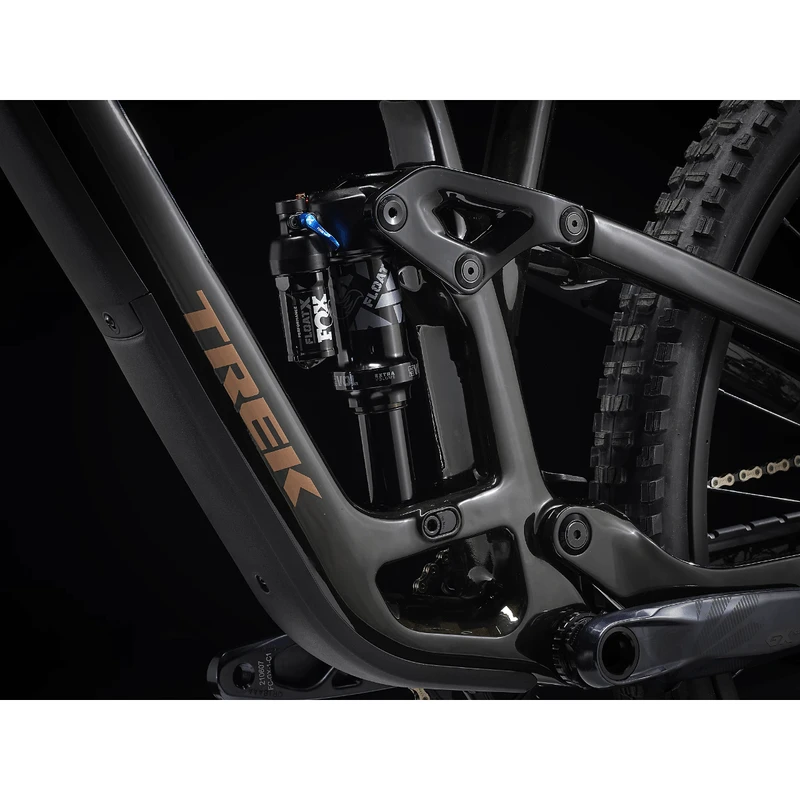

• Shock: Fox Performance Float X, 2-position damper, 185mm x 55mm

Wheels

• Wheel front: Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle
• Wheel rear: Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12mm thru axle
• Hub front: Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15mm thru axle
• Hub rear: Bontrager alloy, sealed bearing, 6-bolt, 108T Rapid Drive, SRAM XD driver, Boost148, 12mm thru axle
• Skewer rear: Bontrager Switch thru axle, removable lever
• Rim: Bontrager Line Elite 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle

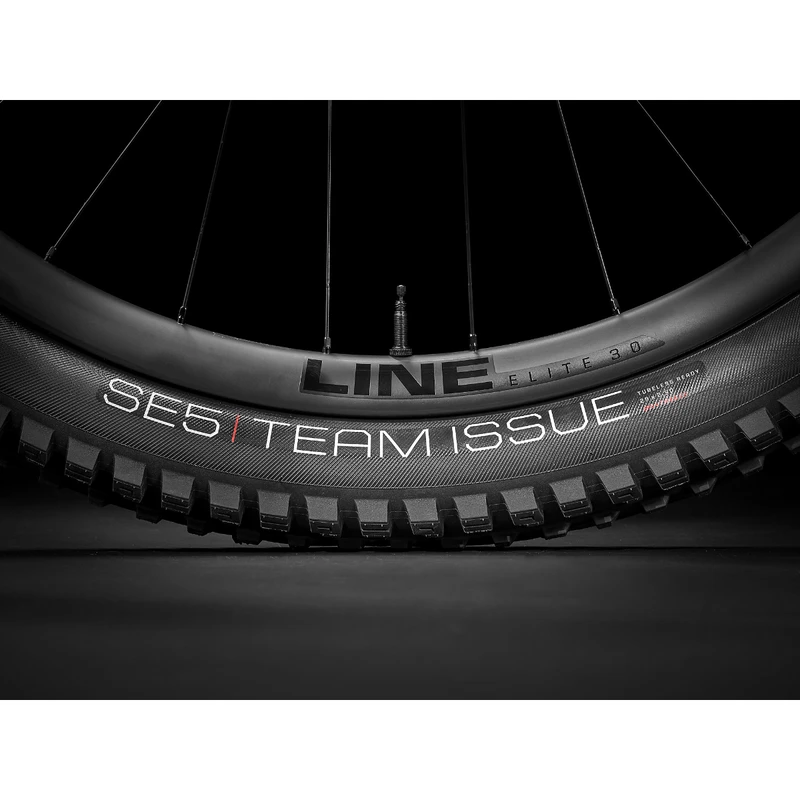

• Tire: Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead
• Size XS, S: 120 tpi, 27.5×2.50”
• Size S, M, M/L, L, XL: 120 tpi, 29×2.50”
• Tire part: Bontrager TLR sealant, 6oz
• Rim strip: Bontrager TLR

Drivetrain

• Shifter: SRAM GX Eagle AXS, 12 speed

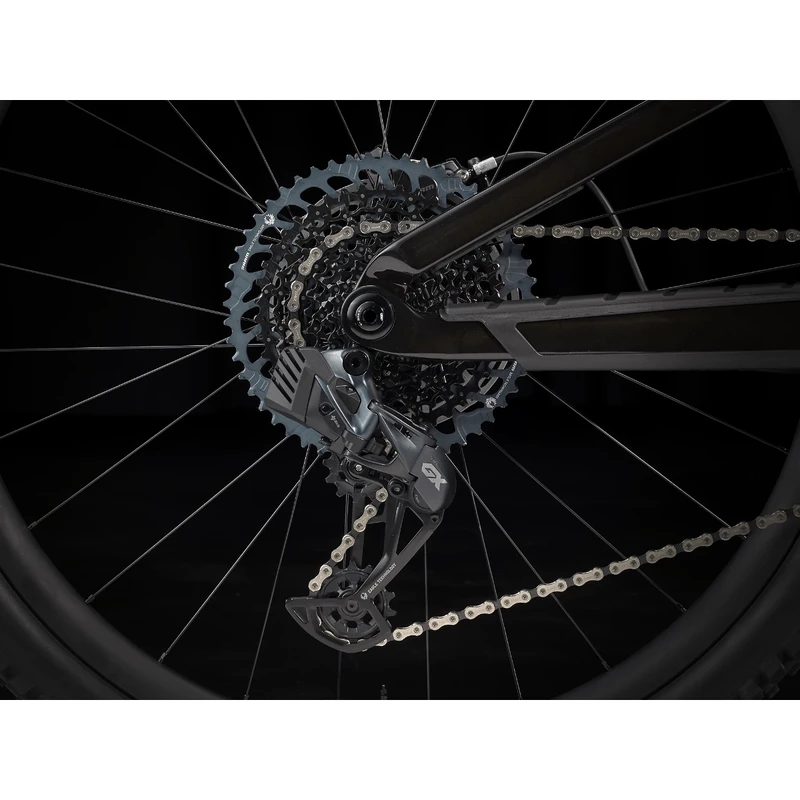

• Rear derailleur: SRAM GX Eagle AXS
• Crank: SRAM GX Eagle, DUB MTB Wide, 30T, 55mm chainline, 170 length
• Bottom bracket: SRAM DUB MTB Wide, 73mm, BSA threaded
• Cassette: SRAM Eagle XG-1275, 10-52, 12 speed
• Chain: SRAM GX Eagle, 12 speed

Components

• Seatpost: Bontrager Line Elite Dropper, MaxFlow, internal routing
• Size XS, S: 100mm travel, 34.9mm, 345mm length
• Size M, M/L: 150mm travel, 34.9mm, 440mm length
• Size L: 170mm travel, 34.9mm, 485mm length
• Size XL: 200mm travel, 34.9mm, 550mm length
• Integrated Bar Stem: Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5mm handlebar rise, 820mm width, 0 degree stem rise
• Size XS, S: 35mm stem length
• Size M, M/L, L, XL: 45mm stem length
• Grips: Bontrager XR Trail Elite, nylon lock-on
• Headset: Integrated cartridge bearing, 1-1/8” top, 1.5” bottom, angle adjust cup compatible
• Brake: SRAM Code R 4-piston hydraulic disc
• Brake Rotor: SRAM CenterLine, 6-bolt, round edge
• Size XS, S, M, M/L, L, XL: 180mm
• Size M, M/L, L, XL: 200mm

Weight

• Weight: M – 14.15 kg / 31.21 lbs (with TLR sealant, no tubes)
• Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg)

Accessories

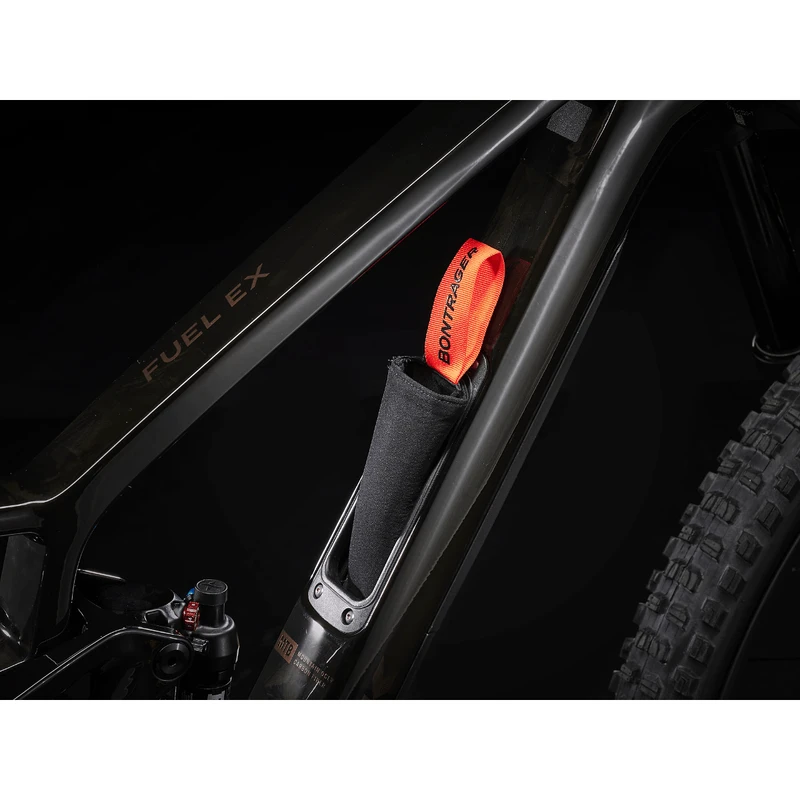

• Bontrager BITS Internal Frame Storage Bag

Size	Rider Height	Inseam
44	4’11” – 5’0″	28″ – 29″
47	5’0″ – 5’2″	28″ – 30″
50	5’2″ – 5’4″	29″ – 30″
52	5’4″ – 5’6″	30″- 31″
54	5’6″ – 5’9″	31″ – 32″
56	5’9″ – 5’11”	32″ – 33″
58	5’11” – 6’1″	33″ – 34″
60	6’1″ – 6’3″	34″ – 35″
62	6’3″ – 6’5″	35″ – 36″
