Trek Fuel EXe 9.5 E-Bike – 2023

TREK FUEL EXE 9.5 E-BIKE – 2023

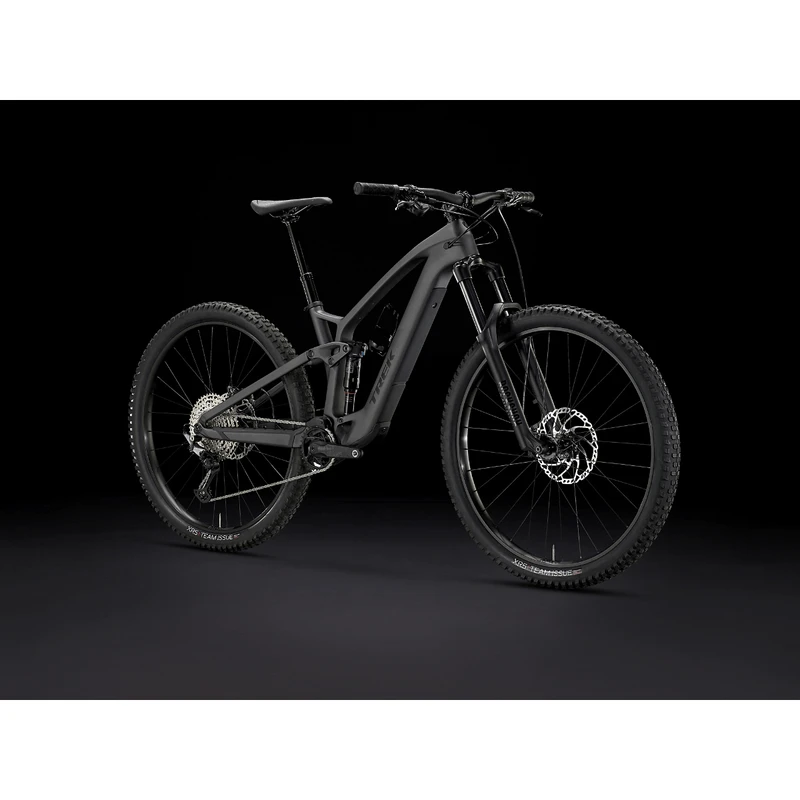

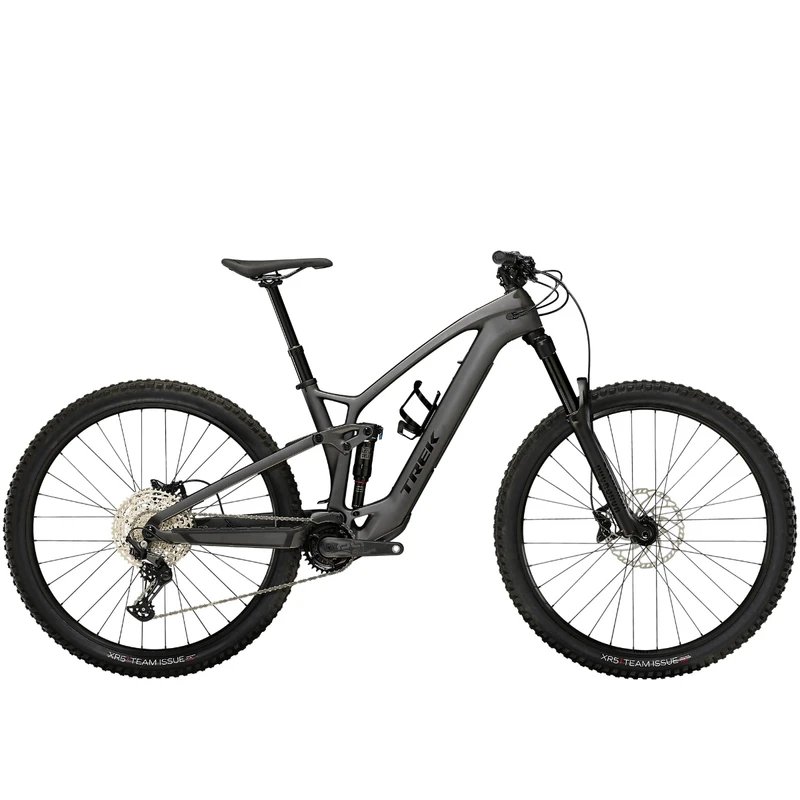

Fuel EXe 9.5 Deore is a new kind of e-mountain bike that bridges the divide between pedal assist and traditional bikes. It features a carbon frame and a compact motor that keeps the ride light, lively and quiet. Get the benefit of pedal assist on long climbs, and the playful feel of a traditional mountain bike on descents. It’s built up with a 150mm RockShox Gold RL fork that makes quick work of rock gardens, and 140mm of plush RockShox Deluxe Select+ rear suspension for a smooth ride and small bump compliance.

It’s right for you if…
You want a trail bike that’s ready to ride everywhere, and gives you a little extra fuel on the ascents. You don’t want to sacrifice the nimble feel of a traditional trail bike for a beefy motor, and prefer a refined assist that feels—and sounds— natural underneath you.

The tech you get
An OCLV Mountain Carbon frame with a fully-encased 360Wh battery, and TQ harmonic pin ring transmission with a smart charging port, integrated LED display and discreet handlebar remote. 150mm RockShox 35 Gold RL fork with DebonAir spring and Motion Control damper, and 140mm RockShox Deluxe Select+ rear suspension. Plus, tubeless-ready wheels and tires, and 12-speed Shimano Deore drivetrain.

The final word
Fuel EXe 9.5 is a lively trail bike that gives you extra boost on the climbs, and feels like a traditional bike on descents. It’s packed with space-age technology of a TQ harmonig pin ring transmission, plenty of buttery-smooth suspension to gobble up rocks and roots, and a workhorse drivetrain that won’t quit on you.

FEATURES

TQ-HPR50 – small, quiet, mighty

• TQ-HPR50 motor is super-efficient with an amazing power-to-weight ratio. Most motors use gears and belts that take up space and can make noise or break. The TQ-HPR50 uses a harmonic pin-ring drive transmission that’s small, ultra-quiet, and unbelievably natural feeling.

Range Extender

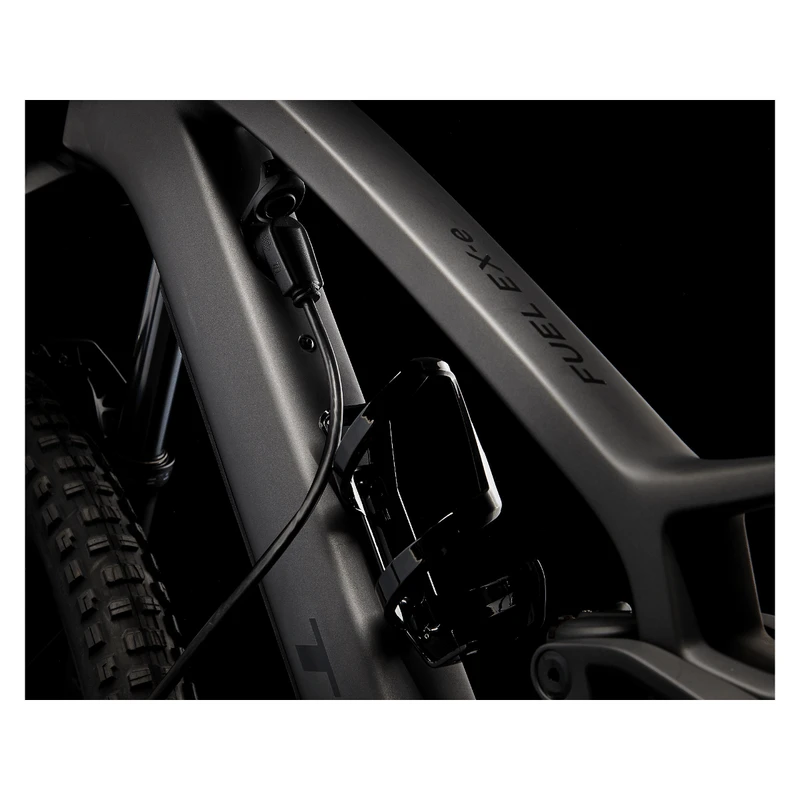

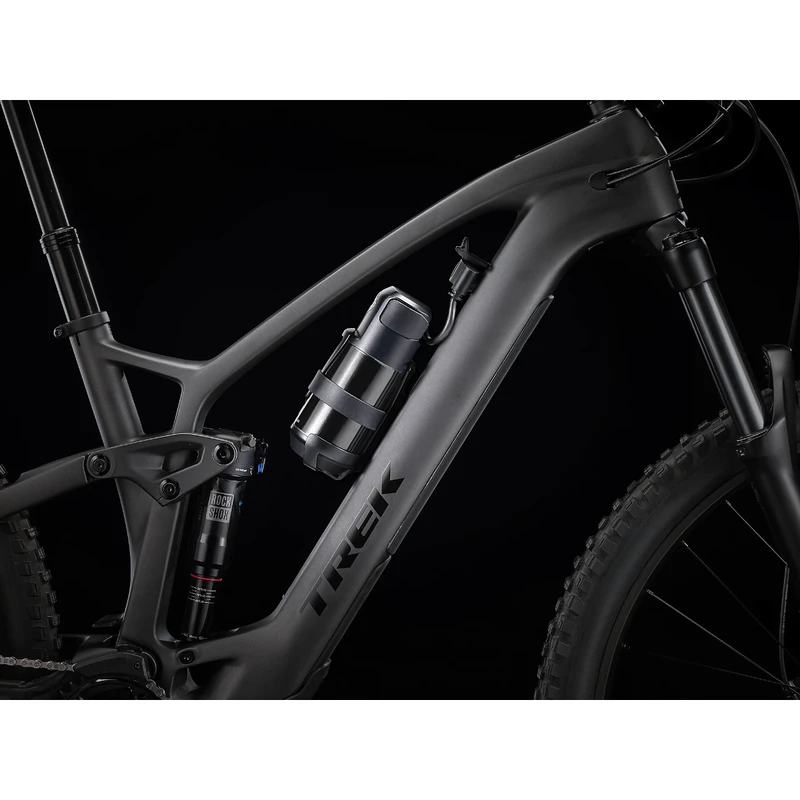

• Give yourself 40% more range with an optional 160wh external battery. It fits in a standard bottle cage and doesn’t require any complicated wiring or special mounts.

Removable battery

• The 360 Wh battery gives you power for 2-5 hours. It’s concealed in the downtube, but it’s still easy to remove for more convenient charging.

Active Braking Pivot

• Active Braking Pivot allows Trek engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most.

TECH SPECS

Frameset

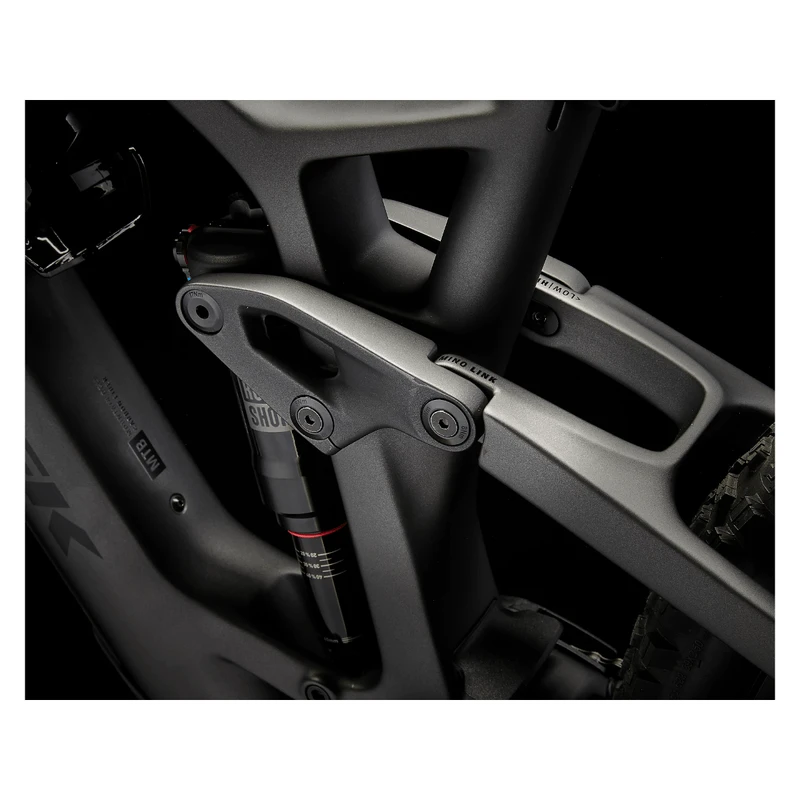

• Frame: OCLV Mountain Carbon, removable battery, internal routing, alloy rocker link, 34.9mm seat tube, upper chain guide mount, 55mm chainline, Mino Link, ABP, Boost148, UDH, 140mm travel
• Fork: RockShox 35 Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 150mm travel

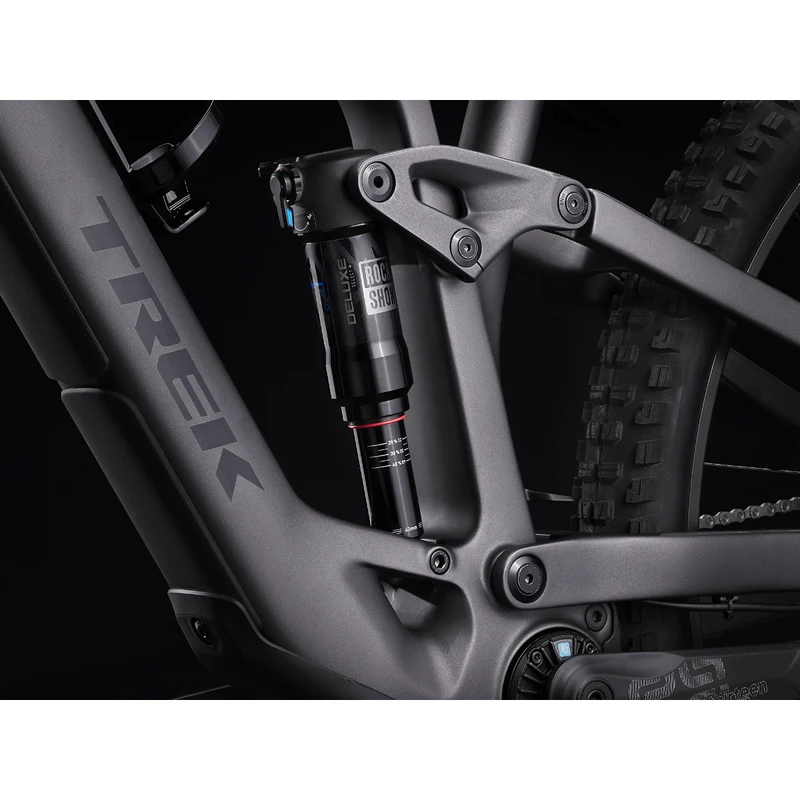

• Shock: RockShox Deluxe Select+ RT, 205mm x 60mm

Wheels

• Hub front: Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15mm thru axle
• Hub rear: Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle
• Skewer rear: Bontrager Switch thru axle, removable lever
• Rim: Alex MD35, tubeless compatible, 32-hole, 35mm width, presta valve
• Tire: Bontrager XR5 Team Issue, Tubeless Ready, aramid bead, 120 tpi, 29×2.50”
• Tire part: Bontrager TLR sealant, 6oz

Drivetrain

• Shifter: Shimano Deore M6100, 12 speed
• Rear derailleur: Shimano Deore M6100, long cage
• Crank: E*thirteen E*spec Plus, 34T, 165mm length
• Chainring: E*thirteen E*spec, 32T alloy ring, 55mm chainline
• Cassette: Shimano Deore M6100, 10-51, 12 speed
• Chain: Shimano Deore M6100, 12 speed

Components

• Saddle: Bontrager Arvada, steel rails, 138mm width
• Seatpost
• Size S: TranzX JD-YSI-22PLQ, 100mm travel, internal routing, 34.9mm, 346mm length
• Size M: TranzX JD-YSI-22PLQ, 150mm travel, internal routing, 34.9mm, 454mm length
• Size L, XL: TranzX JD-YSI-22PLQ, 170mm travel, internal routing, 34.9mm, 497mm length
• Handlebar: Bontrager Rhythm Comp, alloy, 31.8mm, 15mm rise, 750mm width
• Grips: Bontrager XR Trail Comp, nylon lock-on
• Stem: Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 50mm length

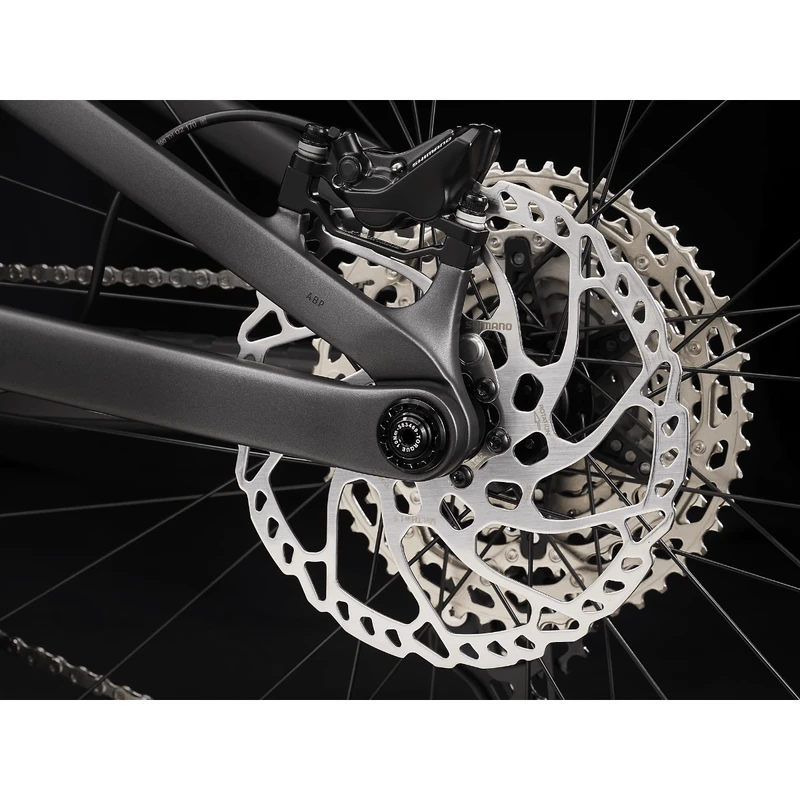

• Brake: Shimano 4-piston hydraulic disc, MT4100 lever, MT420 caliper
• Brake rotor: Shimano RT66, 6-bolt, 203mm

Accessories

• Battery: TQ 360Wh
• Controller

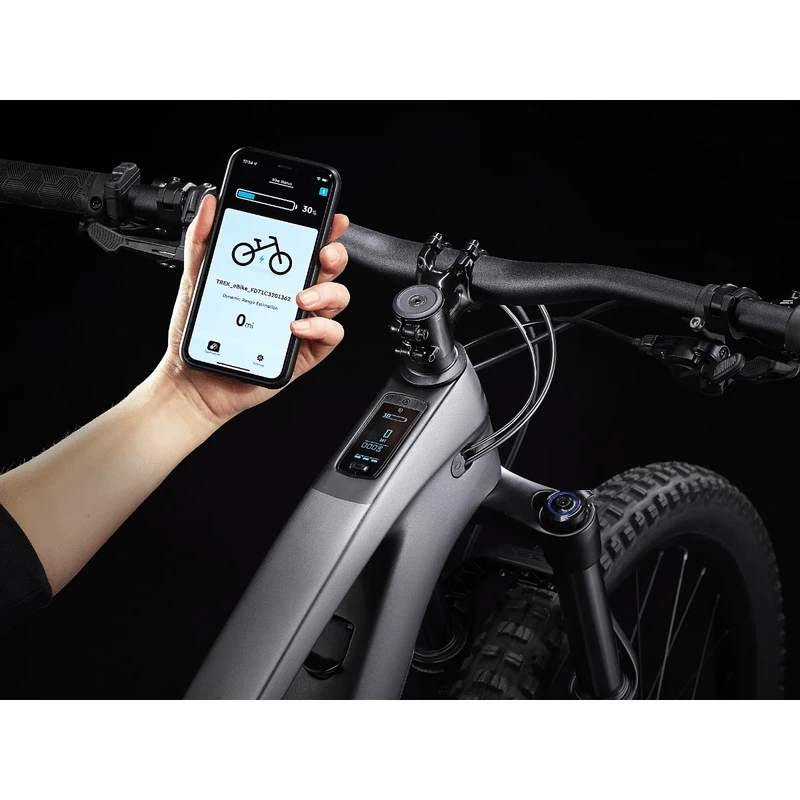

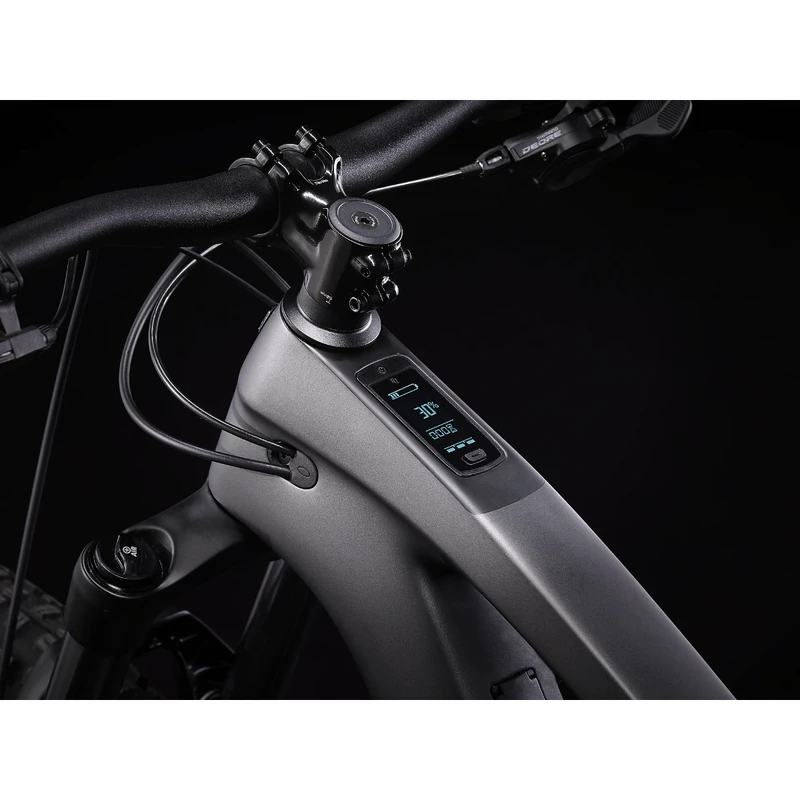

• Size S, M, L, XL: TQ LED display with Bluetooth & ANT+ connectivity
• Size S, M, L, XL: TQ handlebar mounted
• Motor: TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power
• Electronics: TQ 4A charger

Weight

• Weight: M – 19.93 kg / 43.94 lbs (with TLR sealant, no tubes)
• Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
