Trek FX+ 2 Stagger E-Bike – 2023

TREK FX+ 2 STAGGER E-BIKE – 2023

FX+ 2 Stagger is a lightweight city electric bike that’s designed to make everyday excursions faster and more fun. It has an intuitive and natural feeling pedal assist system that makes exploring your city extra exciting and cruising up hills a breeze. Useful accessories like a rack and fenders add even more versatility to this bike.

It’s right for you if…
You want a lightweight, simple to use city e-bike that brings a capable boost to daily errands, commutes, and joyrides around your city.

The tech you get
A lightweight aluminum frame with a stagger design that makes it easier to hop on and off, Trek’s proprietary pedal assist system with a hub motor (250W, 40Nm) that assists up to 20 mph and a 250Wh battery for a range of up to 35 miles per charge. Plus, fast 700c wheels, fast-rolling yet stable 40c tires with reflective sidewalls, a reliable 9-speed Shimano drivetrain, hydraulic disc brakes, integrated lights powered by the battery, a MIK-compatible rear rack, fenders, and a kickstand.

The final word
All the versatility and confidence of FX, with an electric boost that helps you do more and go farther! FX+ also comes with ride-ready accessories like a rack and fenders that make it easier to commute and run errands.

FEATURES

• This is their lightest city e-bike, making it easier to maneuver while parking and less of a pain to carry up stairs
• The pedal assist system has a hub motor for a more natural ride feel and a simple LED remote that indicates your assist setting
• It really is ready to roll, with included accessories like fenders, lights, and a MIK-compatible rear rack
• Double your range with a 250Wh plug-and-play Range Extender battery that uses water bottle mounts to attach to your frame
• A lightweight and powerful 40Nm rear hub drive offers confident handling and uninterrupted power.
• Weighing in at just 40 pounds, FX+ is one of their lightest e-bikes ever.
• Integrated lights, fenders, and a rear rack mean you’re always ready to ride and run errands.

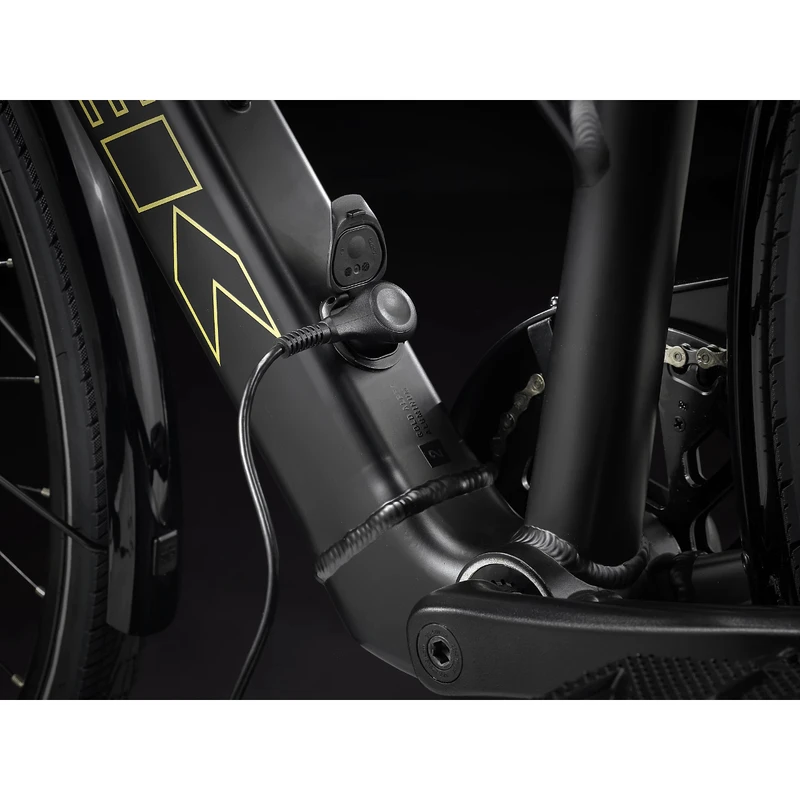

• A reliable 250Wh internal battery system assists up to 35 miles with an easily accessible charging port right on the downtube.
• 700 x 40c tires get you to your destination quickly and efficiently.
• A simple three-button layout and easy-to-read LED indicators put a faster ride right at your fingertips.
• Double your distance and explore up to 70 miles with a supplementary 25Wh plug-and-play battery.
• Hydraulic disc brakes offer the absolute strongest stopping power in all conditions, including wet and muddy.
• Easy-on, easy-off step-through frame is perfect for anybody not interested in slinging a leg over the top tube.

TECH SPECS

• Frame: Alpha Gold Aluminum, internal cable routing, internal battery, rack & fender mounts, post mount disc, kickstand mount, 144.5mm OLD hub motor spacing
• Fork: FX+ alloy, internal brake routing, fender mounts, rack mounts, ThruSkew 5mm bolt-on skewer
• Hub front: Formula DC-20, alloy, 6-bolt, 5x100mm QR
• Hub rear: G2 hub drive
• Rim: Bontrager Connection, alloy, double-wall, 32-hole, schrader valve
• Spokes: 14g stainless steel
• Tire: Bontrager H2 Comp, reflective strip, wire bead, 30tpi, 700x40c
• Max tire size: 50c without fenders, 45c with fenders
• Shifter: Shimano Altus M2010, 9 speed
• Rear derailleur: Shimano Altus M2000, long cage
• Crank: S, M – ProWheel Pro alloy, 42T narrow-wide steel ring, 170mm length; L – ProWheel Pro alloy, 42T narrow-wide steel ring, 175mm length
• Bottom bracket: Torque sensor, T47 threaded, 122.5mm spindle

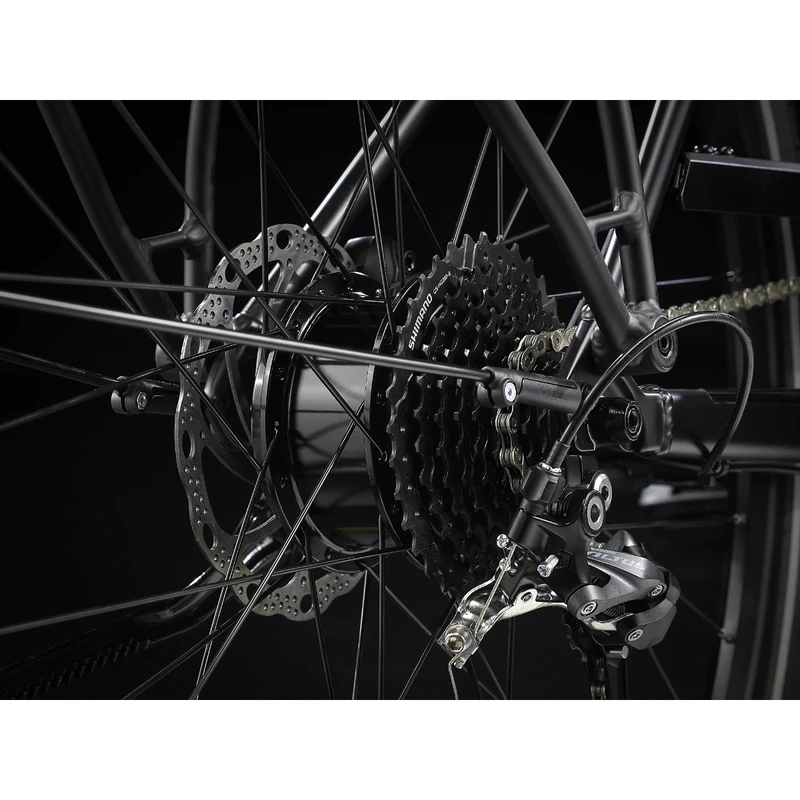

• Cassette: Shimano HG200, 11-36, 9 speed
• Chain: KMC X9
• Pedal: Bontrager City pedals
• Max chainring size: 42T
• Saddle: Bontrager Sport Women’s
• Seatpost: S, M – Bontrager alloy, 31.6mm, 12mm offset, 330mm length; L – Bontrager alloy, 31.6mm, 12mm offset, 400mm length

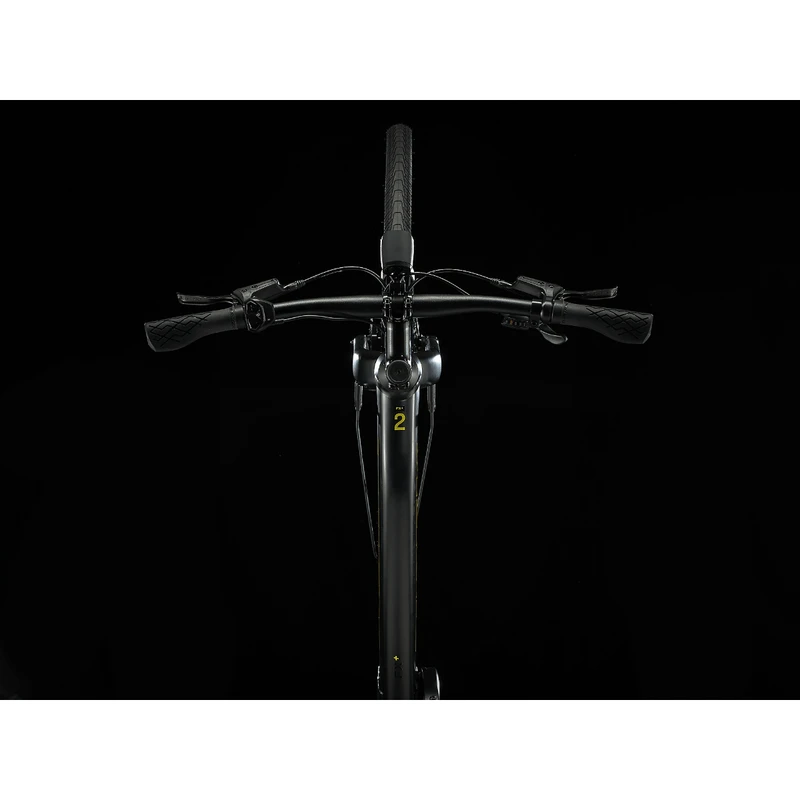

• Handlebar: S, M – Bontrager alloy, 31.8mm, 15mm rise, 660mm width; L – Bontrager alloy, 31.8mm, 15mm rise, 690mm width
• Grips: Bontrager XR Endurance Comp, lock-on
• Stem: S, M – Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 90mm length; L – Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 100mm length
• Brake: Shimano hydraulic disc, MT200 lever, UR300 caliper
• Brake rotor: Shimano RT26, 6-bolt,160mm
• Rotor size: Max brake rotor size: 160mm
• Battery: 250Wh
• Charger: 2A, 42V output, 100V-240V AC input
• Controller: Bluetooth display

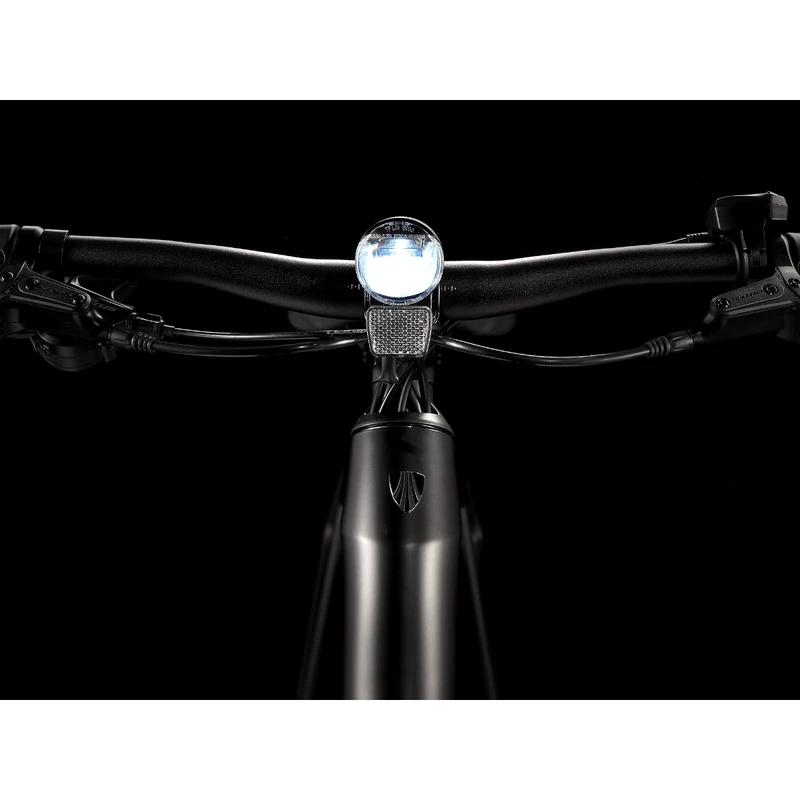

• Light: S, M, L – Herrmans MR4-E Frontlight, 40LUX, 120 lumen LED. 6-12 VDC. Without Bracket. With 50mm Power-in cable. Without Power-out cable. With Reflector (white); S, M, L – Spanninga Solo
• Kickstand: Rear mount, alloy
• Cargo rack: MIK Compatible alloy rear rack
• Fender: SKS plastic
• Weight: M – 18.20 kg / 40.13 lbs
• Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
