Trek FX 3 Disc – 2023

TREK FX 3 DISC – 2023

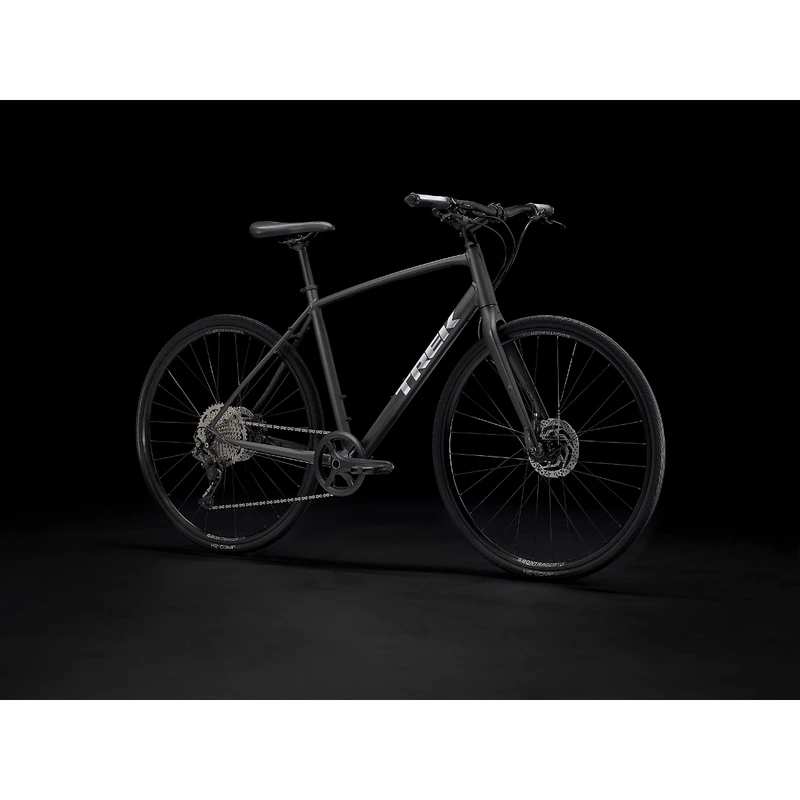

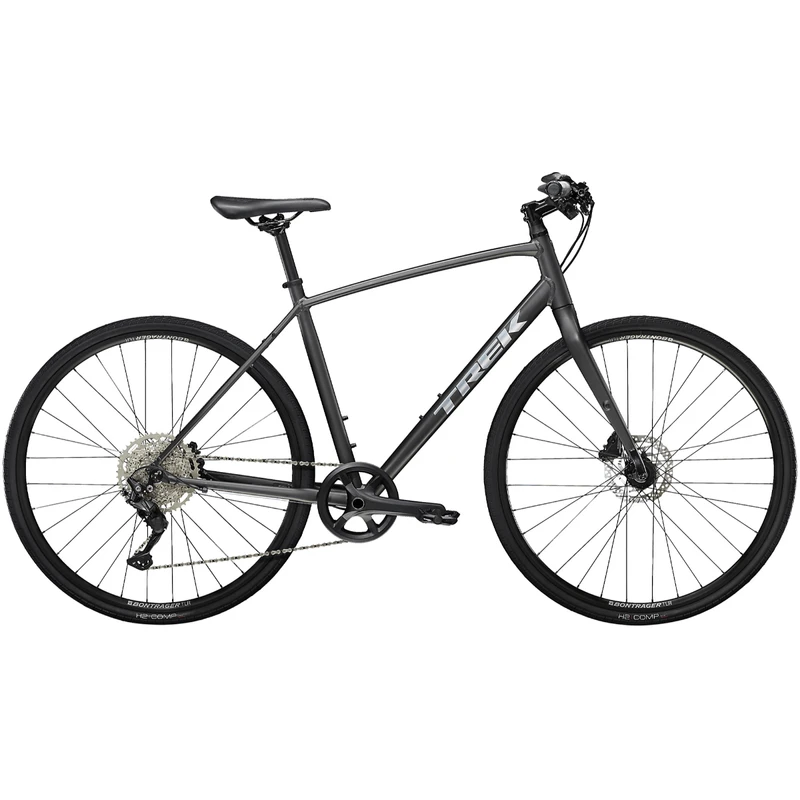

FX 3 Disc is a versatile hybrid bike that’s primed for performance, comfort, and utility. It has features like a lightweight aluminum frame, a carbon fork, a 1x drivetrain, and powerful disc brakes that stop in any weather. It’s a commuting pro if you want it to be, or the perfect fitness companion on pavement and rail trails.

It’s right for you if…
You’re a commuter or fitness rider who’s having fun spending more time in the saddle. You want a great-looking bike that’s versatile, comfortable, and built with quality parts that will perform on longer rides.

The tech you get
A lightweight aluminum frame, a carbon fork, hydraulic disc brakes for all-weather stopping power, a simple 1x drivetrain that ditches the front derailleur for less clutter and easier operation. Don’t worry, with the wide-range 11-46 cassette still gives you all the gears you need to conquer hills and crush flats. Plus, a vibration-absorbing handlebar and ergonomic grips for more comfort on every ride.

The final word
FX 3 Disc is a lightweight and fast fitness bike, commuter, and neighborhood cruiser all in one. For all the great things about this bike, the best tech upgrade is the simple-yet-capable 1×10 drivetrain.

FEATURES

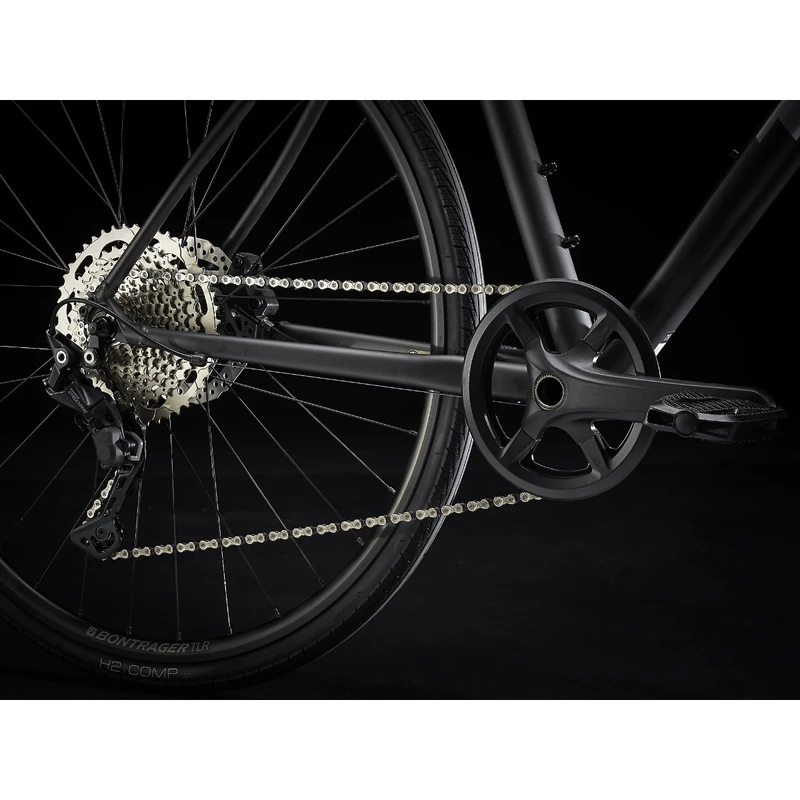

• The 1x drivetrain gives you all the gears you need and none you don’t
• It’s easy to accessorize with a MIK rear rack, a kickstand, fenders, lights, and more!
• It’s versatile and does whatever you want it to do, whether that’s riding for fitness, commuting, or cruising to the farmer’s market to pick up groceries
• The cables are routed internally, which protects them from the elements and adds to the bike’s sleek look
• You can pair FX with your smartphone and send your ride data to your favorite fitness app when you add DuoTrap S
• Built-in mounts make it easy to add racks and fenders for added versatility.

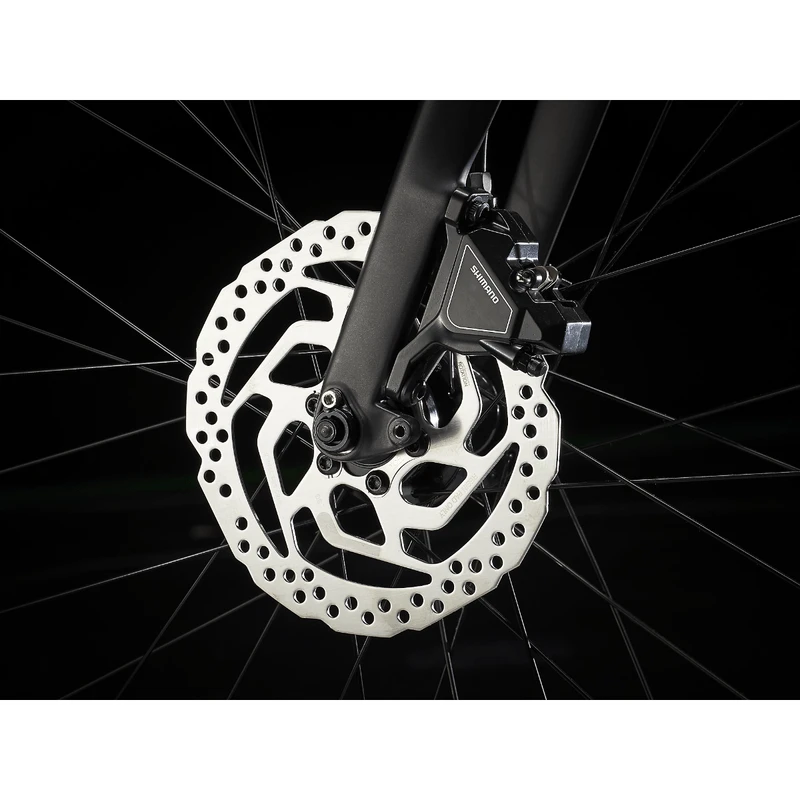

• Hydraulic disc brakes offer the absolute strongest stopping power in all conditions, including wet and muddy.
• Blendr stem: Bontrager stem technology lets you clip your gear directly to the stem for clean looks, maximum user friendliness.

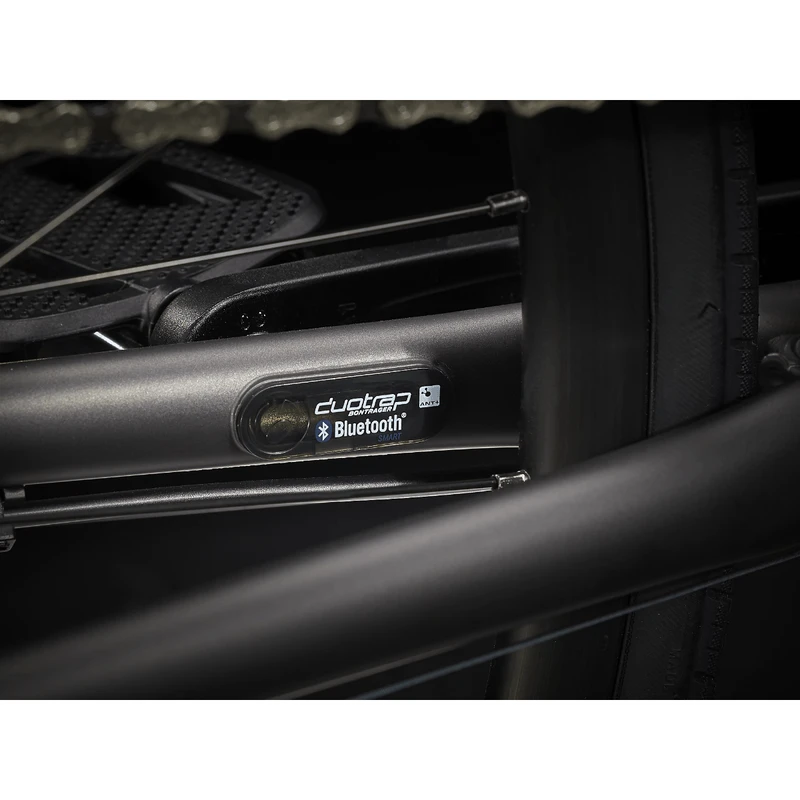

• DuoTrap S compatible: DuoTrap S (Sold separately) integrates a Bluetooth/ANT+ sensor into the frame. Log routes and track fitness progress on your computer or smart phone with no external sensor. Works with all major ANT+ wireless players, including Bontrager, Garmin, PowerTap, and SRM.

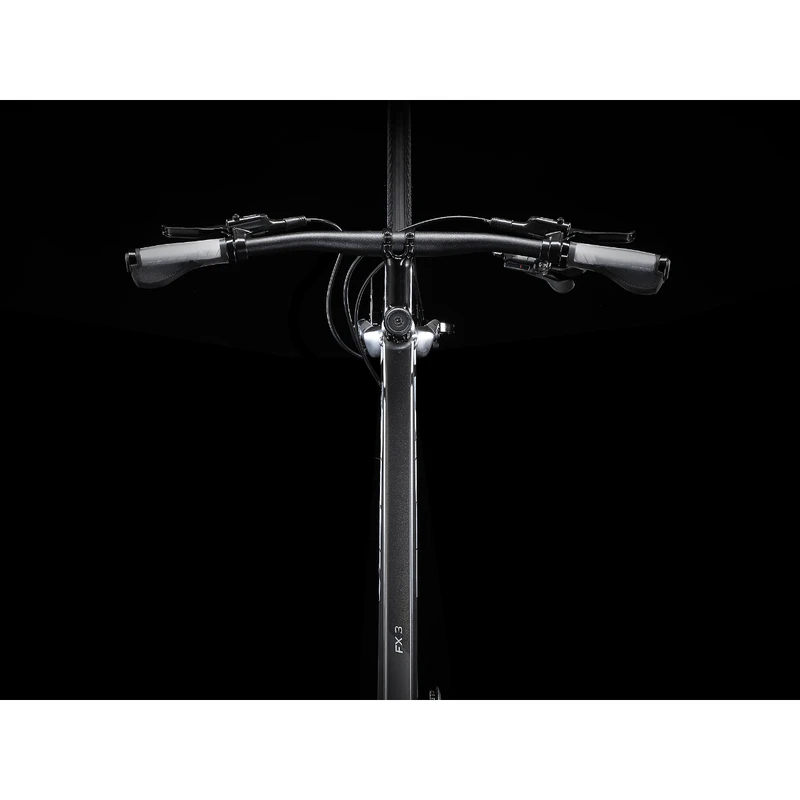

• IsoZone handlebar and grips: Suspension for your hands. Their exclusive vibration-damping IsoZone material absorbs road bumps and buzz, giving you more control and an incredibly comfortable ride.

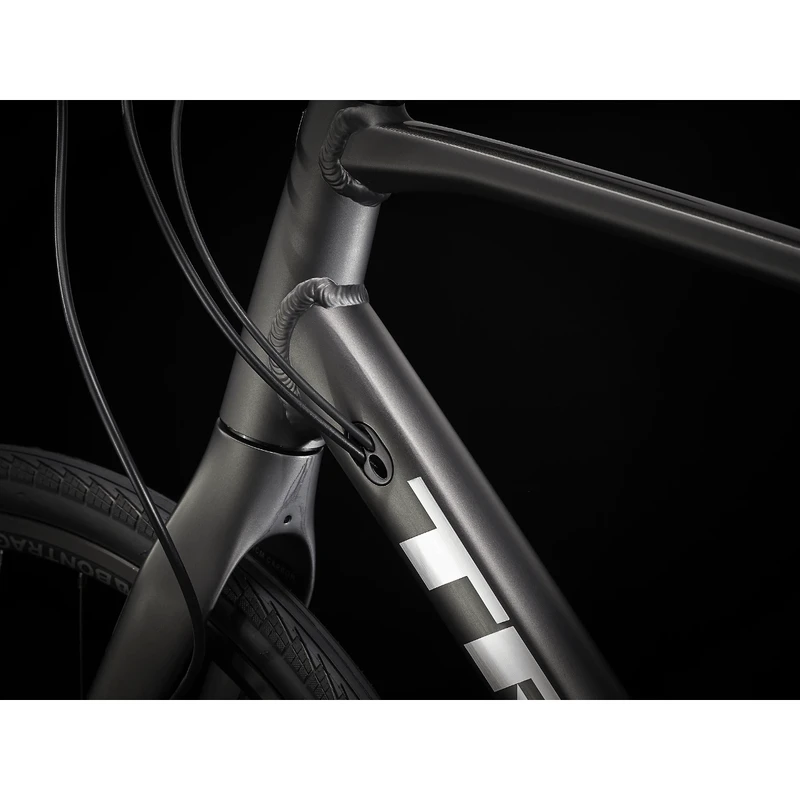

• Internal cable routing: THey route shift and brake cables through the frame to keep things clean and simple. And it looks great, too.

TECH SPECS

• Frameset
• Frame: Alpha Gold Aluminum, DuoTrap S compatible, internal cable routing, flat mount disc, rack & fender mounts, 135x5mm QR
• Fork: FX Carbon, rack and fender mounts, flat mount disc, 405mm axle-to-crown, ThruSkew 5mm QR
• Wheels
• Hub front: Formula DC-20, alloy, 6-bolt, 5x100mm QR
• Hub rear: Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR

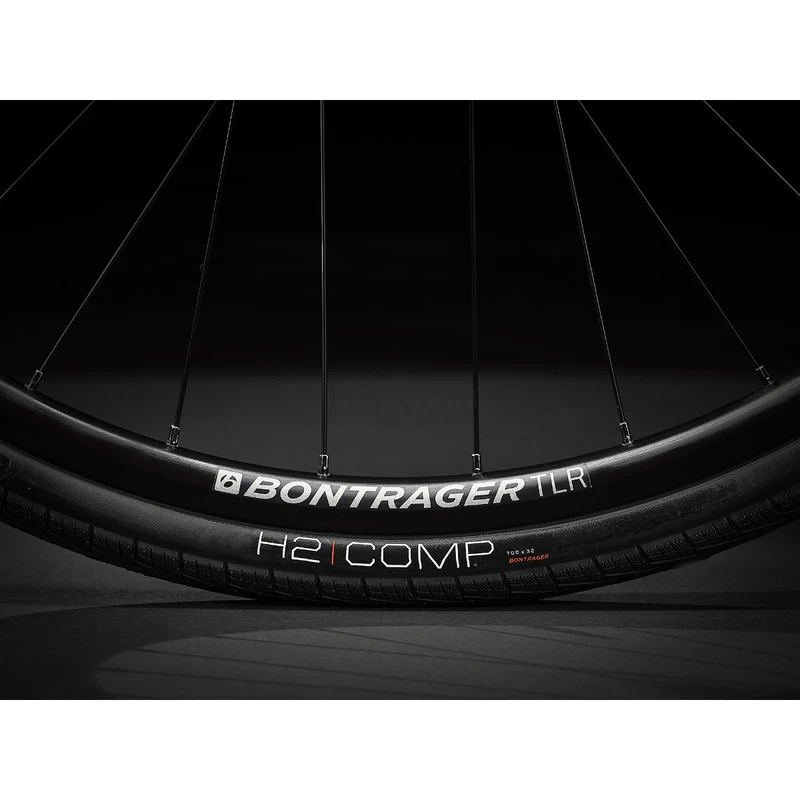

• Rim: Bontrager Tubeless Ready Disc, 32-hole, presta valve
• Tire: Bontrager H2 Comp, wire bead, 30tpi, 700x32c
• Max tire size: 38c without fenders, 35c with fenders
• Drivetrain
• Shifter: Shimano Deore M4100, 10 speed
• Rear derailleur: Shimano Deore M5120, long cage
• Crank:
• Size XS, S, M: Prowheel alloy, 40T narrow-wide ring, 170mm length
• Size L, XL, XXL: Prowheel alloy, 40T narrow-wide ring, 175mm length
• Cassette:  Shimano Deore M4100, 11-46, 10 speed
• Chain:  KMC X10, 10 speed
• Pedal:  Bontrager City pedals
• Max chainring size:  1x: 42T, 2x/3x: 48T
• Components
• Saddle: Bontrager H1
• Seatpost: Bontrager alloy, 27.2mm, 12mm offset, 330mm length
• Handlebar
• Size XS, S, M: Bontrager Satellite Plus IsoZone, alloy, 31.8mm, 15mm rise, 600mm width
• Size L, XL, XXL: Bontrager Satellite Plus IsoZone, alloy, 31.8mm, 15mm rise, 660mm width

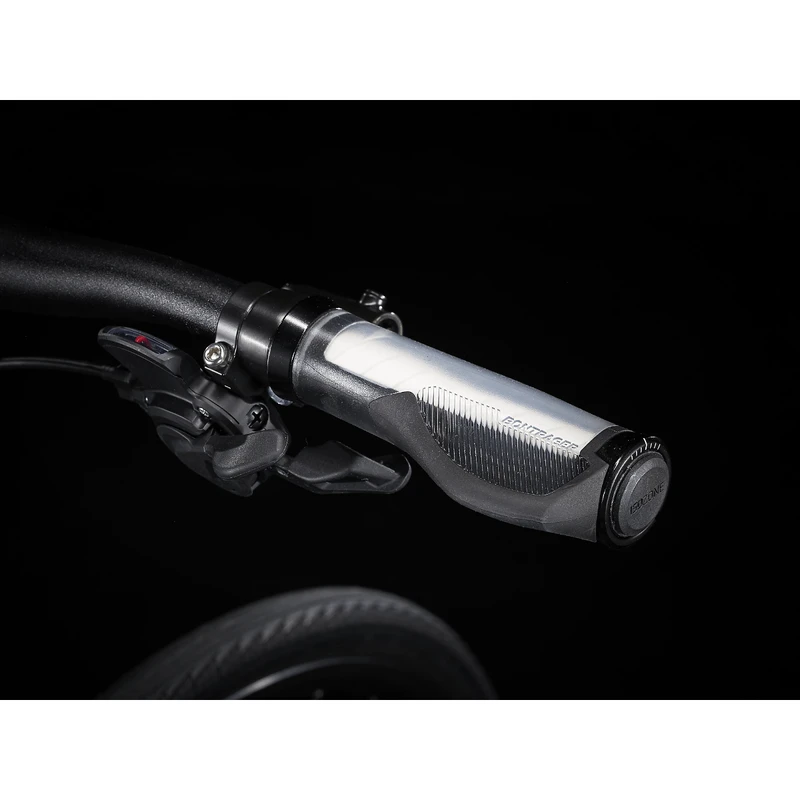

• Grips: Bontrager Satellite IsoZone Plus, lock-on, ergonomic
• Stem
• Size XS, S: Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 90mm length
• Size M, L, XL, XXL: Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 100mm length
• Headset: 1-1/8” threadless, sealed cartridge bearings
• Brake
• Size XS, S, M, L, XL, XXL: Shimano hydraulic disc, MT201 lever, UR300 caliper
• Size XS, S, M, L, XL, XXL: Shimano MT201 hydraulic disc, flat mount, 160mm rotor
• Brake rotor: Shimano RT26, 6-bolt,160mm
• Rotor size: Max brake rotor size: 160mm
• Weight
• Weight: M – 11.38 kg / 25.09 lbs
• Weight limit~ This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
