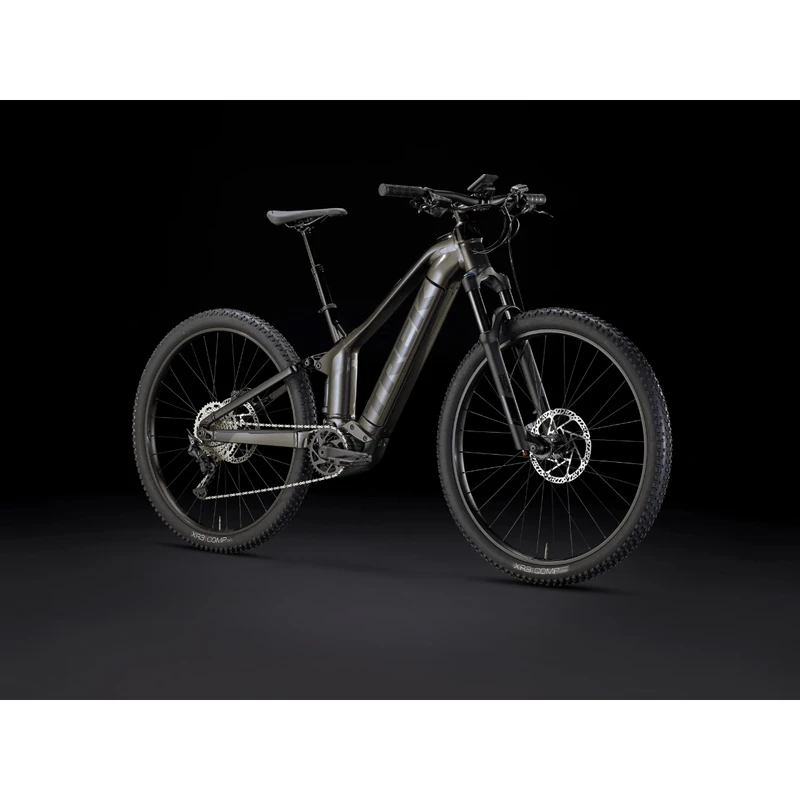

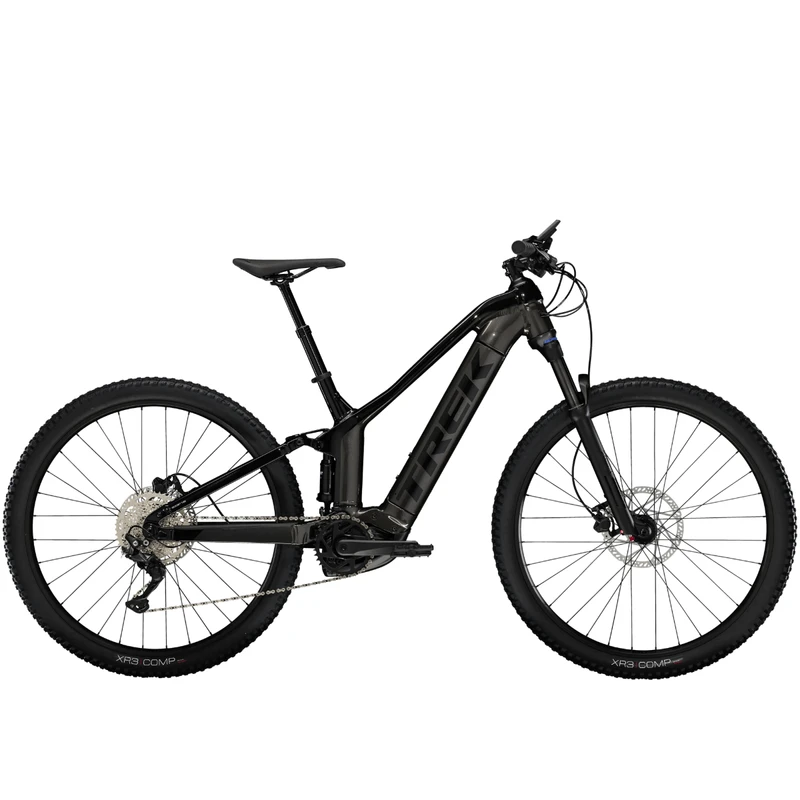

Trek Powerfly FS 4 Gen 3 Mountain E-Bike

TREK POWERFLY FS 4 GEN 3 MOUNTAIN E-BIKE

Powerfly FS 4 is a full suspension electric mountain bike built to tackle rugged trail adventures. The plush suspension setup soaks up rough terrain, and the powerful Bosch electric drive system boosts your capacity to crush climbs and mile after mile of singletrack.

FEATURES

Frameset

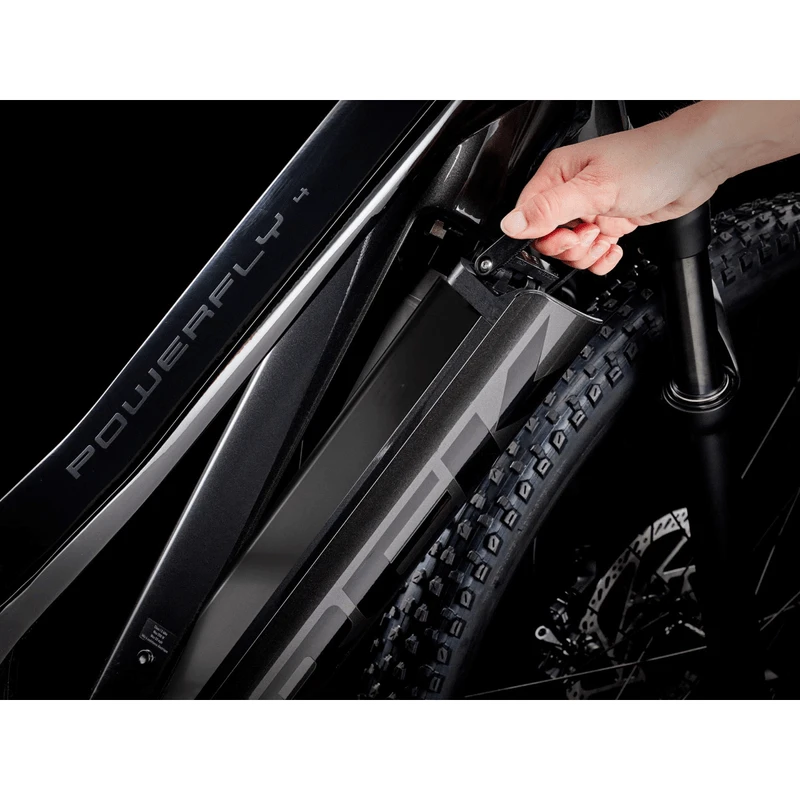

• Frame: Alpha Platinum Aluminum, Removable Integrated Battery (RIB), tapered head tube, internal routing, Motor Armor, rocker link, rack and fender mount, ABP, Boost148, 100mm travel
• Fork Size: XS , S
• SR Suntour XCR 34, air spring, LO R damper, hydraulic lockout, tapered steerer, 41mm offset, oversized crown for eMTB, Boost110, 15mm bolt-on thru axle, 100mm travel
• Size: M , L , XL
• SR Suntour XCR 34, air spring, LO R damper, hydraulic lockout, tapered steerer, 44mm offset, oversized crown for eMTB, Boost110, 15mm bolt-on thru axle, 120mm travel

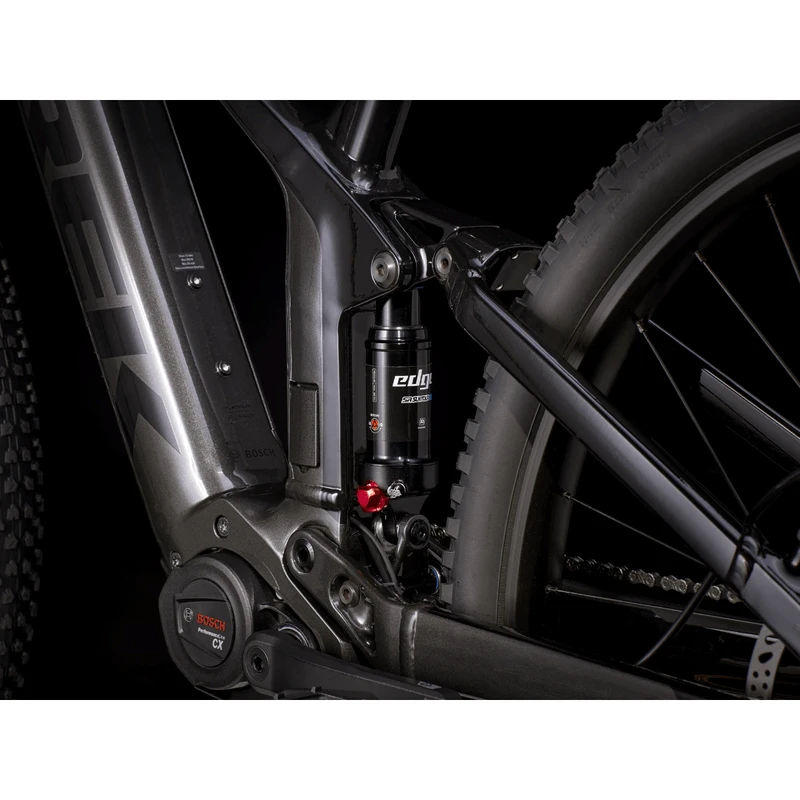

• Shock: SR Suntour Edge R, 190mm x 45mm
• Max compatible fork travel: 120mm (XS & S: 520mm axle-to-crown, M & up: 545mm axle-to-crown)

Wheels

• Hub front: Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15mm thru axle
• Hub rear: Bontrager Approved DC-3248, sealed bearing, alloy axle, 6-bolt, Shimano 8/9/10 freehub, Boost148, 12mm thru axle
• Skewer rear: Bontrager Switch thru axle, removable lever
• Rim: Alex MD35, tubeless compatible, 32-hole, 35mm width, Presta valve
• Tire Size: XS , S

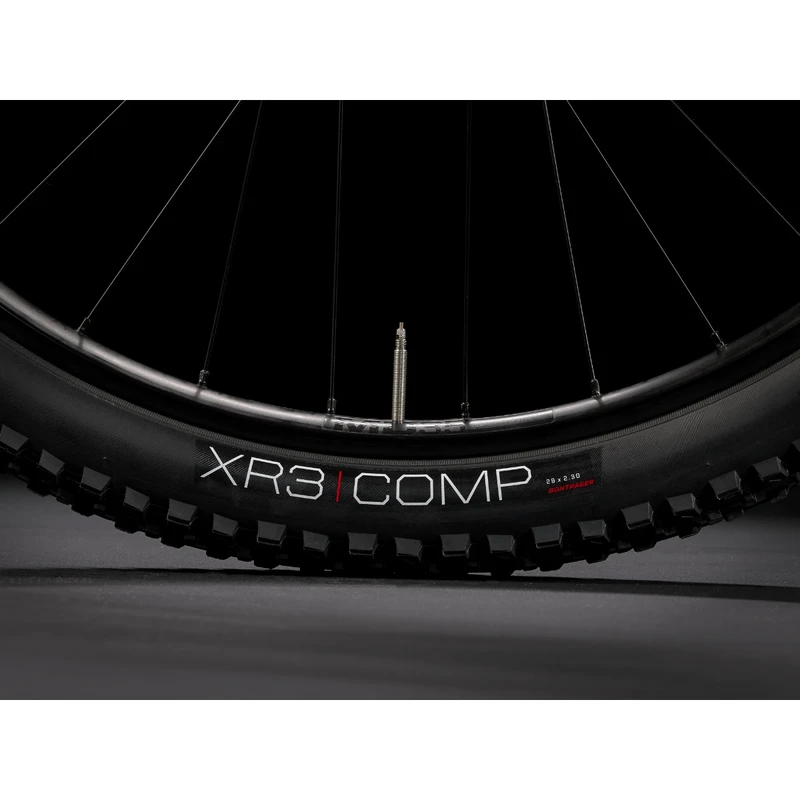

• Bontrager XR3 Comp, wire bead, 30tpi, 27.5×2.35”
• Size: M , L , XL
• Bontrager XR3 Comp, wire bead, 30tpi, 29×2.30”
• Max tire size: Frame: 29×2.40″ (XS & S: 27.5×2.60″) Fork: See manufacturer

Drivetrain

• Shifter: Shimano Deore M4100, 10 speed

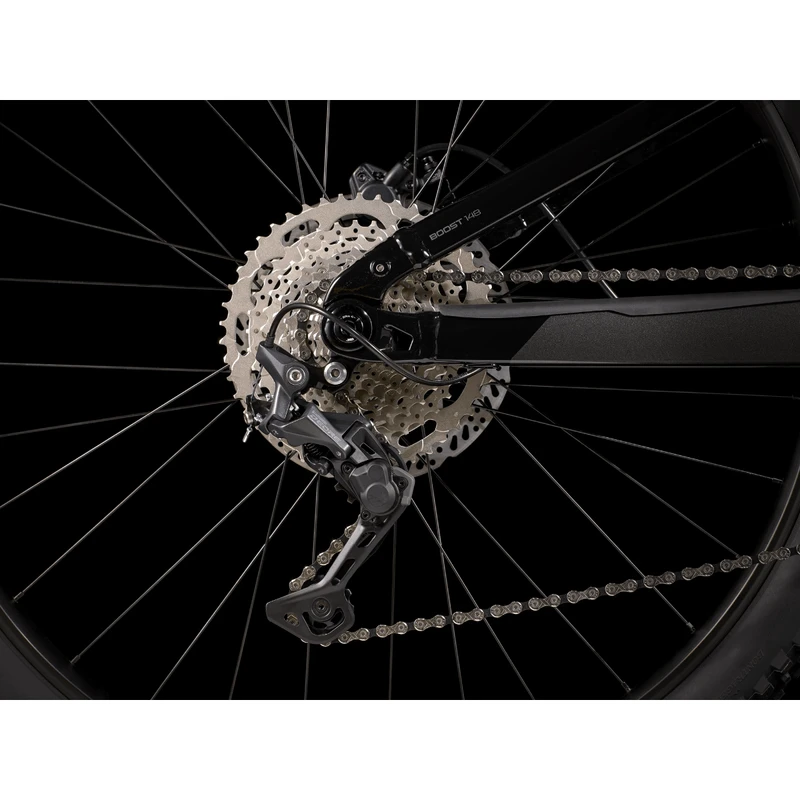

• Rear derailleur: Shimano Deore M5120, long cage
• Crank: FSA Bosch CK-220, 36T ring, 165mm length
• Chainring:FSA, 36T, steel
• Cassette: Shimano Deore M4100, 11-46, 10 speed
• Chain: KMC X10, 10 speed
• Pedal: VP-536 nylon platform
• Max chainring size: Max: 46T, Min 34T

Components

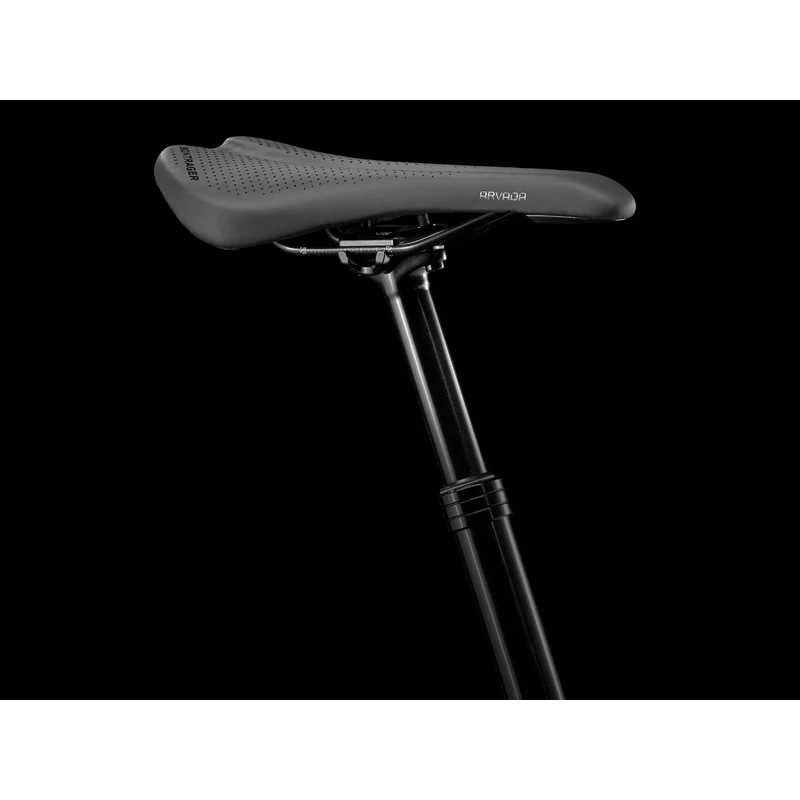

• Saddle: Bontrager Arvada, steel rails, 138mm width
• Seatpost Size: XS , S , M
• TranzX JD-YSP18, 100mm travel, internal routing, 31.6mm, 361mm length
• Size: L , XL
• TranzX JD-YSP18, 130mm travel, internal routing, 31.6mm, 425mm length
• Handlebar: Bontrager alloy, 31.8mm, 15mm rise, 720mm width
• Grips: Bontrager XR Trail Comp, nylon lock-on
• Stem Size: XS , S
• Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 60mm length
• Size: M , L , XL
• Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 70mm length
• Headset: FSA IS-2

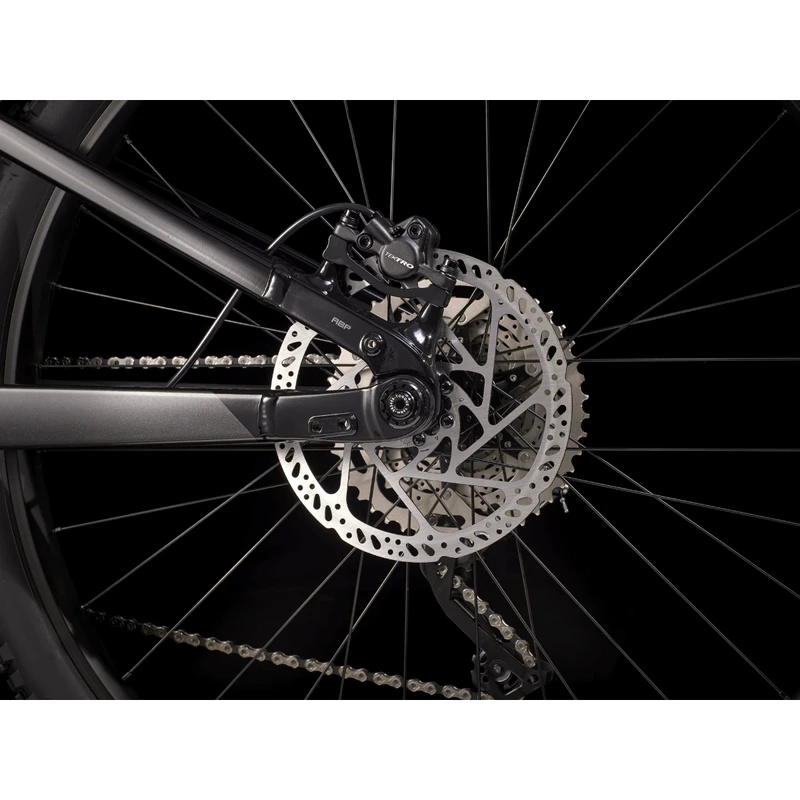

• Brake rotor: Tektro, 6-bolt, 203mm
• Brake Set: Tektro HD-M275 hydraulic disc
• Rotor size: Max brake rotor sizes: Front see fork manufacturer, rear 203mm

Accessories

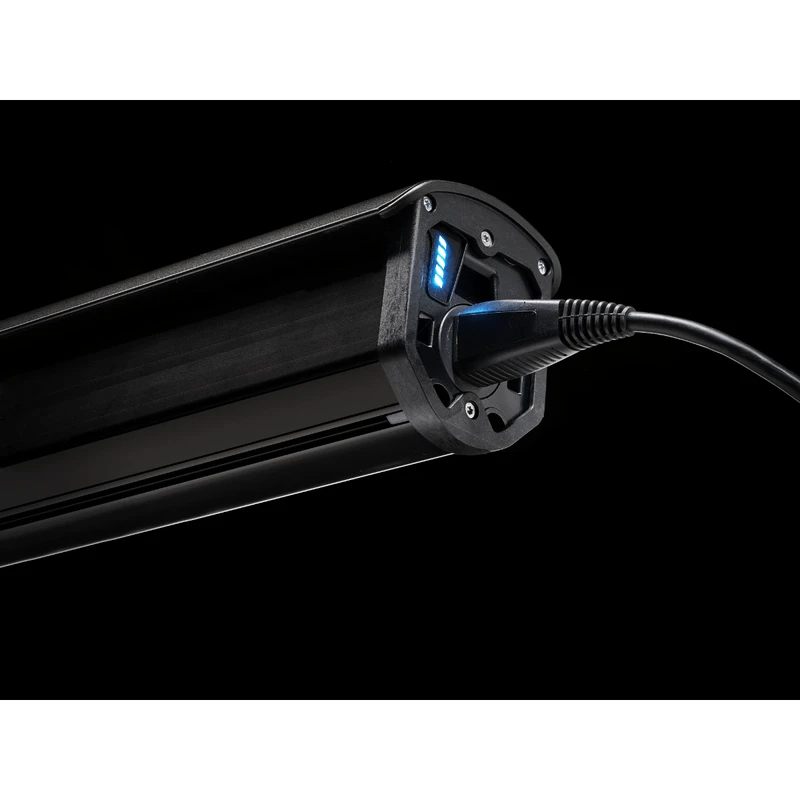

• Battery: Bosch PowerTube 500Wh, smart system
• Charger: Bosch standard 4A, 110V, smart system
• Controller: Bosch Intuvia 100, smart system

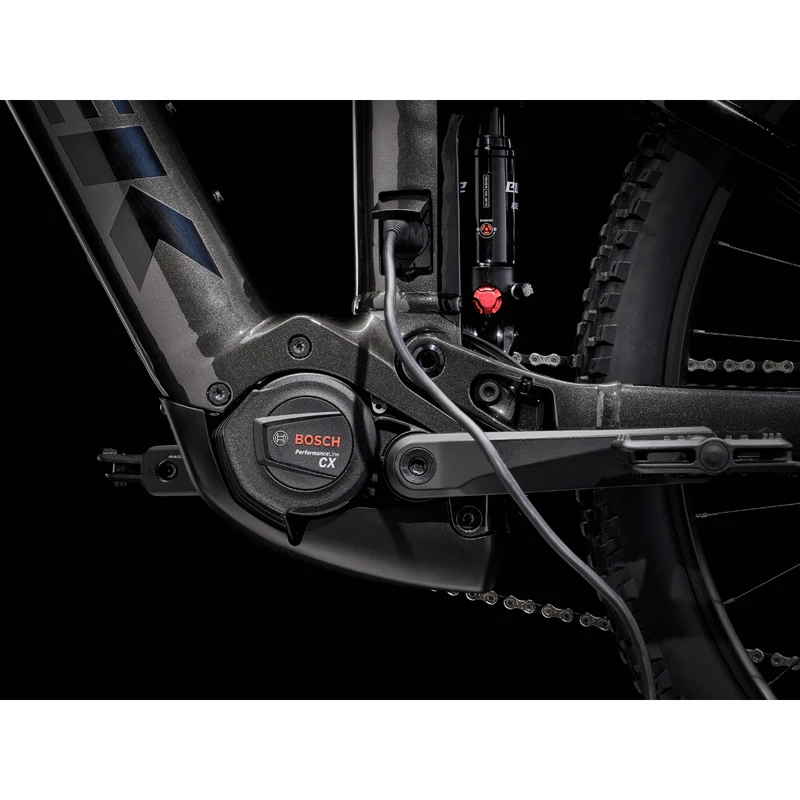

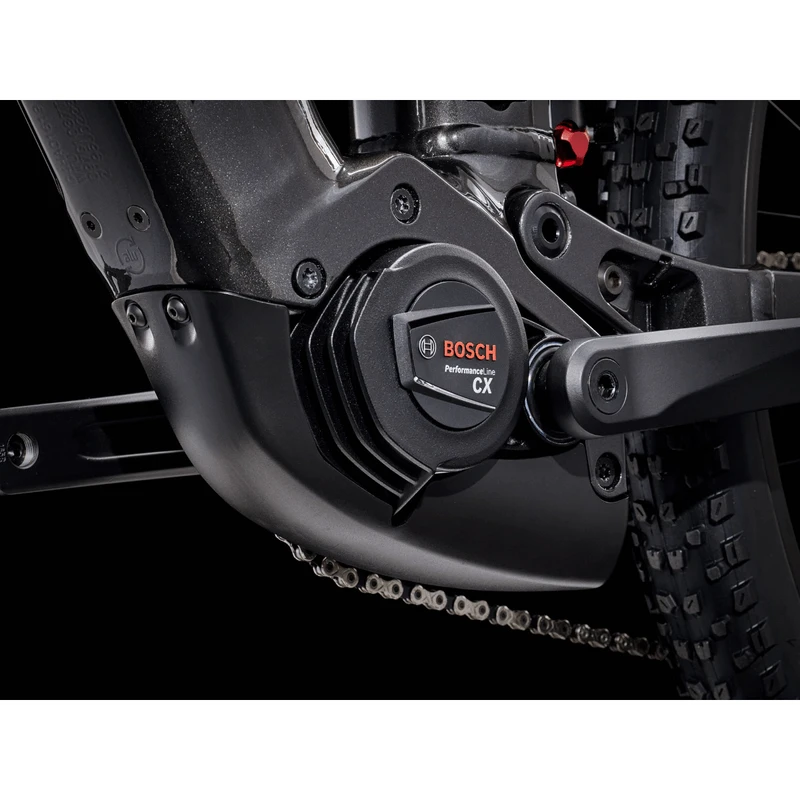

• Motor: Bosch Performance Line CX, smart system, magnesium motor body, 85 Nm

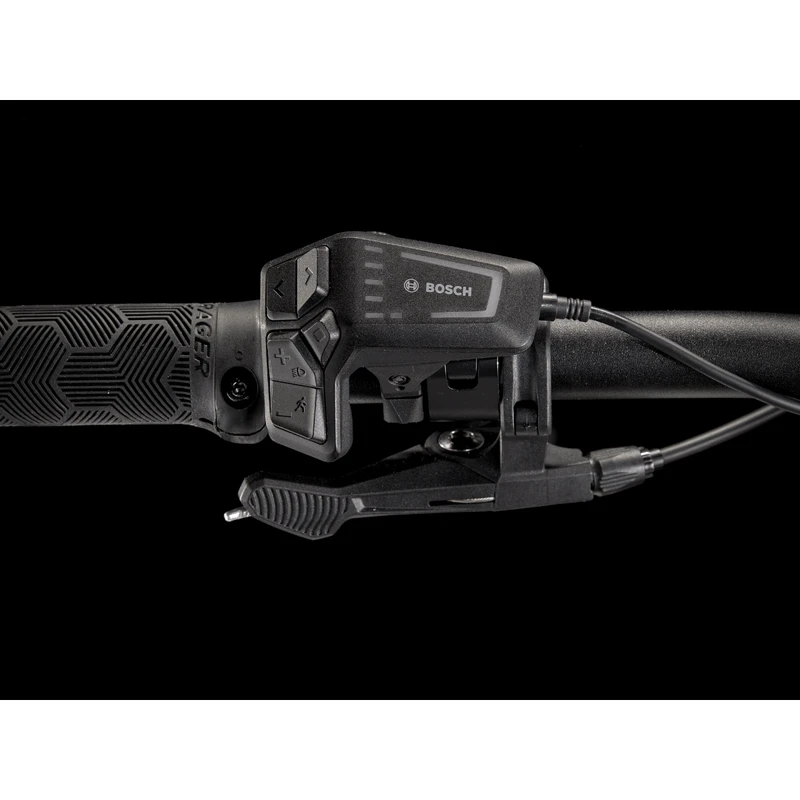

• Computer: Bosch LED remote, smart system

TECH SPECS

• Weight 24.64 kg / 54.33 lbs
