Trek Rail 5 Gen 3 E-Bike

Original price was: $385.00.Current price is: $99.99.

SKU: -130177855868868433 Categories: Bikes, E-Bikes Tag: Trek

Unbeatable quality, unbeatable prices.
Safe Shopping Guaranteed
The quality you expect, the service you deserve.
Buy with Confidence, Get Quality

TREK RAIL 5 GEN 3 E-BIKE

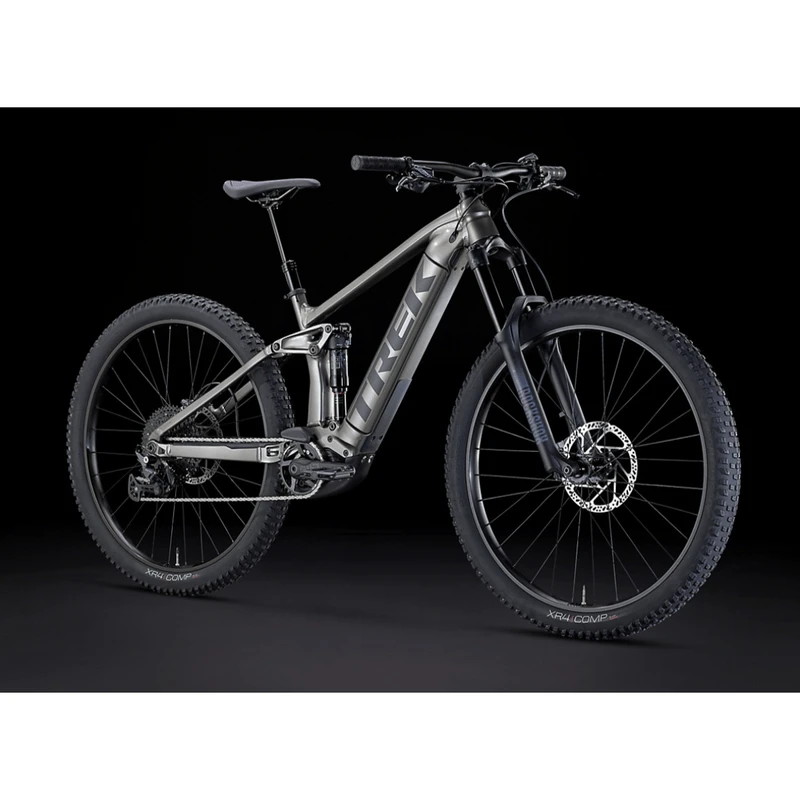

Rail 5 is a full-suspension electric mountain bike built for ripping the big stuff. It features the same high-end trail tech as Trek’s analog trail bikes, plus a powerful Bosch drive system that’s basically like having your own shuttle.

FEATURES

Removable Integrated Battery: RIB is a one-piece battery and cover with a built-in handle that can easily be removed and re-installed in the frame with no tools and no hassle. It’s the most convenient way to remove your battery for transport, security, or just easier charging.

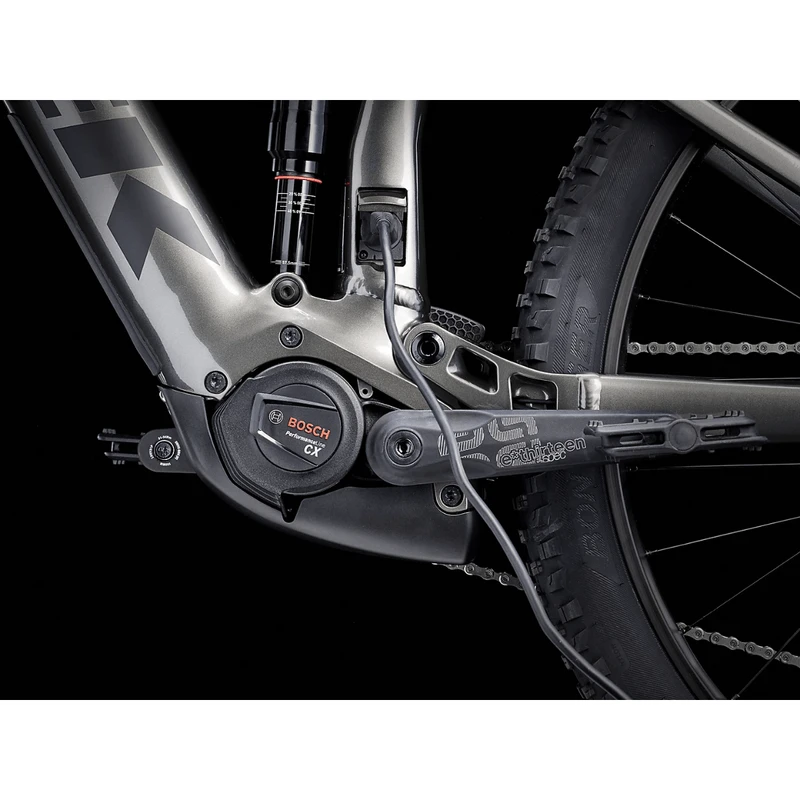

Bosch Performance Line CX motor: Sets the standard for eMTB performance with up to 85Nm of torque and an intelligent eMTB mode with Extended Boost that automatically adjusts the amount of assist based on the terrain.

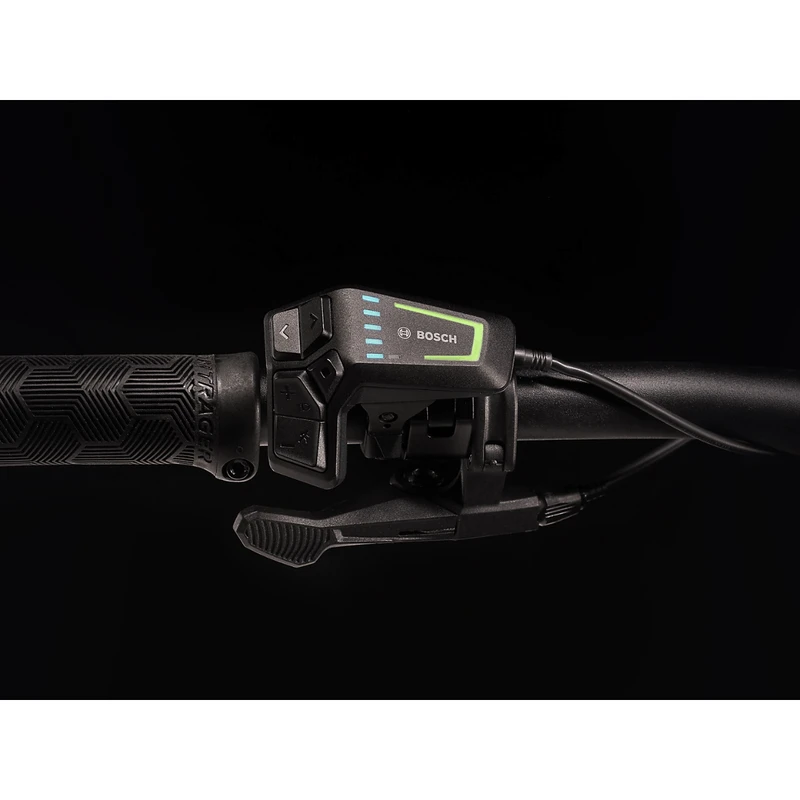

Bosch LED Remote: Lets you easily change assist modes, activate walk mode, or turn on optional lights. The bright LEDs are easy to see in any light, and show you your battery level and assist mode at a glance.
Bosch Smart System: Gives you an eMTB that’s more connected than ever. The LED remote connects with Bosch eBike Flow app so you can get ride stats, adjust settings, and perform system updates. Plus, Bluetooth connectivity makes it easy to add a display if you want to make it easier to see your ride data.

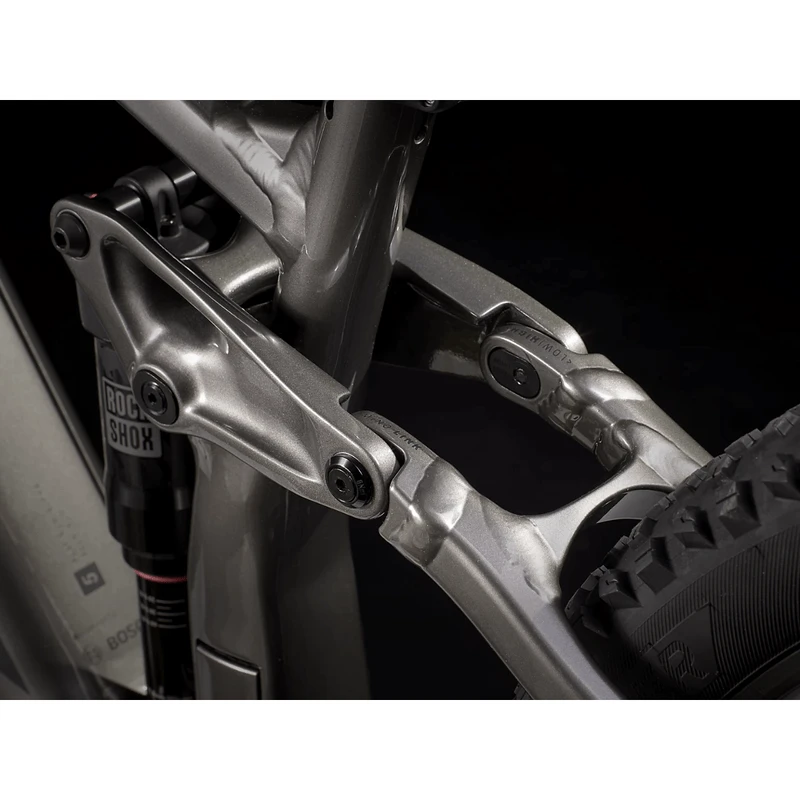

Active Braking Pivot: Allows Trek’s engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most.
Bosch eBike Flow app: Turns your ride into a personalized experience. Use it to customize your motor’s assist behavior, track your ride stats, and integrate your data with apps like Strava and Apple Health. There’s even handy features like navigation and service reminders.
Shimano Deore: Brings even more adventure with a wider range of gear choices for the steep stuff, the fast stuff, and the fun. With smooth riding, improved chain stability, and sharp shifting, Deore heightens your mountain biking confidence and control so you can focus on the trail and enjoy the ride.

TECH SPECS

Frameset

Frame: Alpha Platinum Aluminum, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, magnesium rocker link, Motor Armor, Mino Link, ABP, Boost148, 12mm thru axle, 150mm travel
Fork: RockShox 35 Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44mm offset, oversized crown for eMTB, Boost110, 15mm Maxle Stealth, 160mm travel
Shock: RockShox Deluxe Select+ RT, 230mm x 57.5mm
Max compatible fork travel: 170mm (580mm axle-to-crown)

Wheels

Hub front: Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15mm thru axle
Hub rear: Bontrager alloy, loose ball bearing, alloy axle, 6-bolt, Shimano Micro Spline freehub, Boost148, 12mm thru axle
Skewer rear: Bontrager Switch thru axle, removable lever
Rim: Alex MD35, tubeless compatible, 32-hole, 35mm width, Presta valve

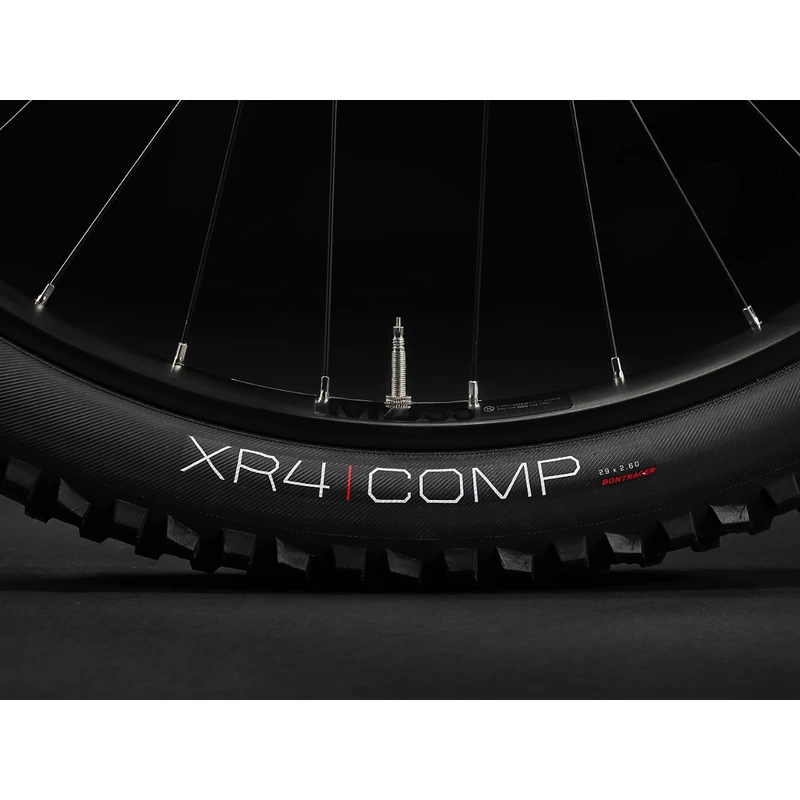

Tire: Bontrager XR4 Comp, wire bead, 30 tpi, 29×2.60”
Max tire size: Frame: 29×2.60″ Fork: See manufacturer

Drivetrain

Shifter: Shimano Deore M6100, 12 speed

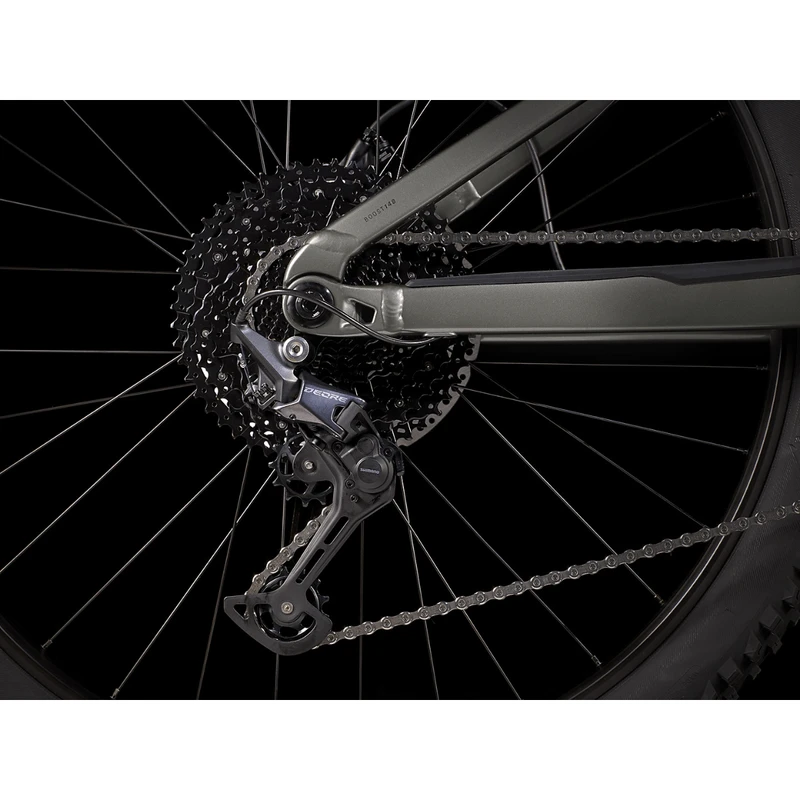

Rear derailleur: Shimano Deore M6100, long cage
Crank arm: E*thirteen E*spec Plus, 165mm length
Chainring: E*thirteen, 34T, steel
Cassette: Shimano Deore M6100, 10-51, 12 speed
Chain: Shimano Deore M6100, 12 speed
Pedal: Wellgo VPE-536
Max chainring size: 34T

Components

Saddle: Bontrager Arvada, steel rails, 138mm width
Seatpost:

Size: S TranzX JD-YSP18, 100mm travel, internal routing, 31.6mm, 361mm length
Size: M, L, XL TranzX JD-YSP18, 130mm travel, internal routing, 31.6mm, 425mm length

Handlebar: Bontrager alloy, 31.8mm, 15mm rise, 750mm width
Grips: Bontrager XR Trail Comp, nylon lock-on

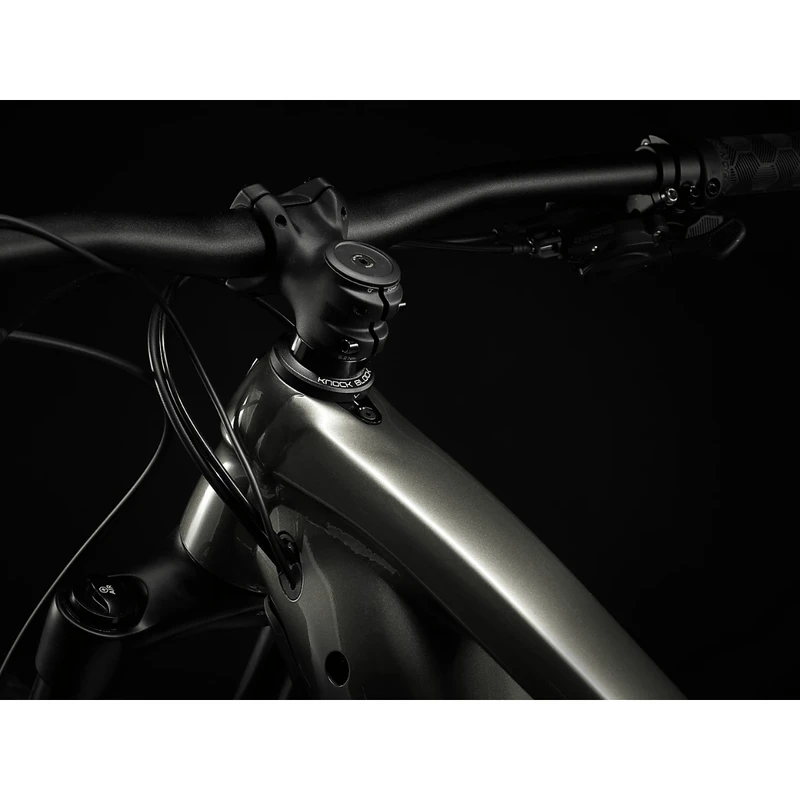

Stem: Bontrager Rhythm Comp, 31.8mm, Knock Block, 0 degree, 50mm length
Brake: Shimano 4-piston hydraulic disc, MT4100 lever, MT420 caliper
Brake rotor: Shimano RT76, 6-bolt, 203mm
Rotor size: Max brake rotor sizes: Front see fork manufacturer, rear 200mm

Accessories

Battery: Bosch PowerTube 500Wh, smart system
Charger: Bosch standard 4A, 110V, smart system
Controller: Bosch Intuvia 100, smart system

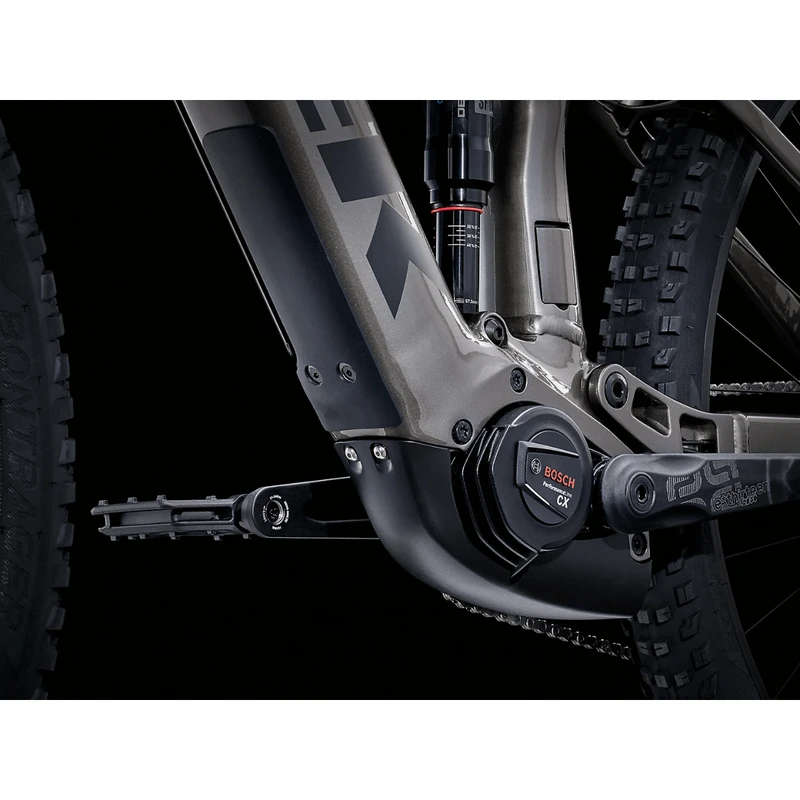

Motor: Bosch Performance Line CX, smart system, magnesium motor body, 85 Nm, 20 mph or 32 km/h max assist (25 km/h max assist in EU and APAC)
Computer: Bosch LED remote, smart system

Weight

Weight: M – 24.29 kg / 53.56 lbs
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).

Sizing Table
Frame size number	15.5″	15.5″	17.5″	17.5″	19.5″	19.5″	21.5″	21.5″
Frame size letter	S	S	M	M	L	L	XL	XL
Geometry position	High	Low	High	Low	High	Low	High	Low
Wheel size	29″	29″	29″	29″	29″	29″	29″	29″
A — Seat tube	41.0	41.0	42.0	42.0	45.0	45.0	50.0	50.0
B — Seat tube angle	68.0°	67.6°	68.0°	67.6°	68.0°	67.6°	68.0°	67.6°
Effective seat tube angle	75.4°	75.0°	75.4°	75.0°	75.4°	75.0°	75.4°	75.0°
C — Head tube length	10.5	10.5	10.5	10.5	11.0	11.0	12.0	12.0
D — Head angle	64.9°	64.5°	64.9°	64.5°	64.9°	64.5°	64.9°	64.5°
E — Effective top tube	58.7	58.8	61.1	61.3	63.3	63.4	66.5	66.6
F — Bottom bracket height	34.4	33.9	34.4	33.9	34.4	33.9	34.4	33.9
G — Bottom bracket drop	2.9	3.5	2.9	3.5	2.9	3.5	2.9	3.5
H — Chainstay length	44.7	44.8	44.7	44.8	44.7	44.8	44.7	44.8
I — Offset	4.3	4.3	4.3	4.3	4.3	4.3	4.3	4.3
J — Trail	12.7	13.1	12.7	13.1	12.7	13.1	12.7	13.1
K — Wheelbase	119.5	119.6	122.0	122.1	124.3	124.3	127.7	127.8
L — Standover	74.8	74.3	77.8	77.3	76.7	76.2	78.0	77.5
M — Frame reach	42.5	42.0	45.0	44.5	47.0	46.5	49.9	49.5
N — Frame stack	62.3	62.6	62.2	62.6	62.7	63.0	63.6	63.9
