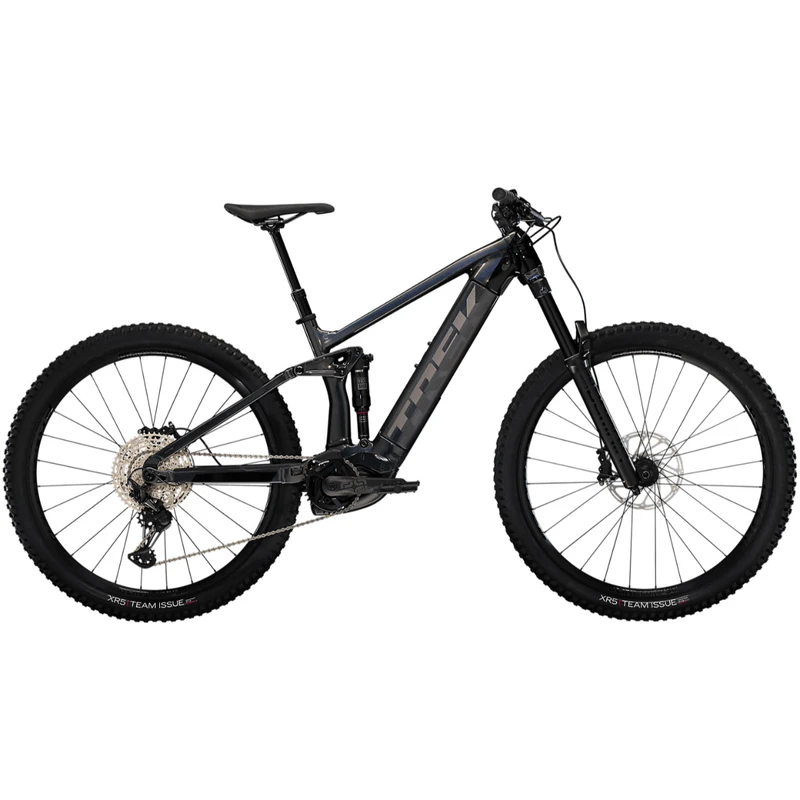

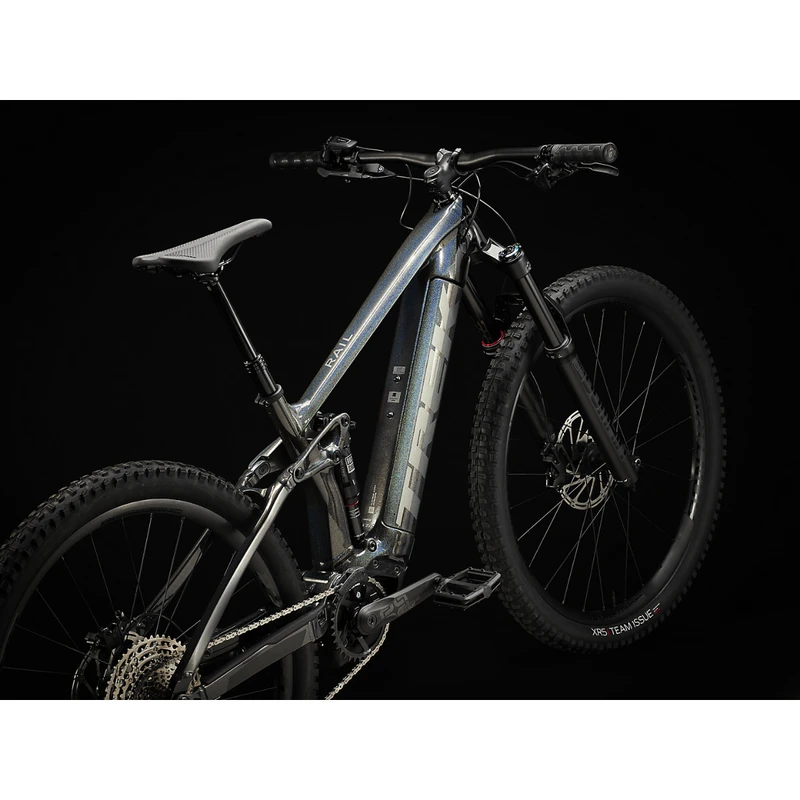

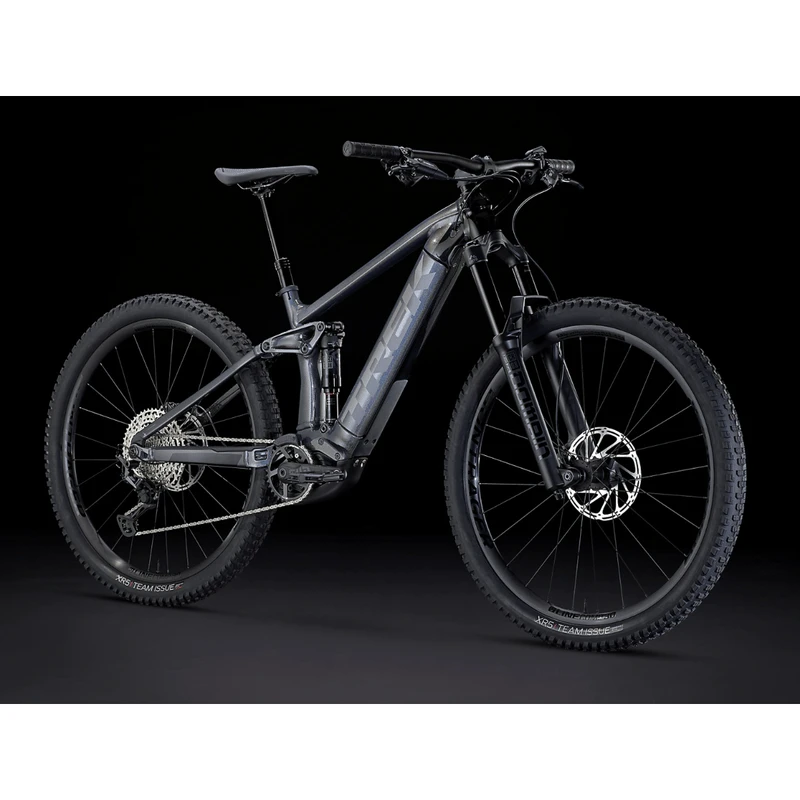

Trek Rail 7 Gen 3 E-Bike

TREK RAIL 7 GEN 3 E-BIKE

Rail 7 is a long-travel electric mountain bike built for ripping the big stuff. It features the same high-end trail tech as Trek’s analog trail bikes, an upgraded fork, drivetrain, battery, and more, plus a powerful Bosch drive system that’s basically like having your own shuttle.

FEATURES

• Removable Integrated Battery: RIB is a one-piece battery and cover with a built-in handle that can easily be removed and re-installed in the frame with no tools and no hassle. It’s the most convenient way to remove your battery for transport, security, or just easier charging.

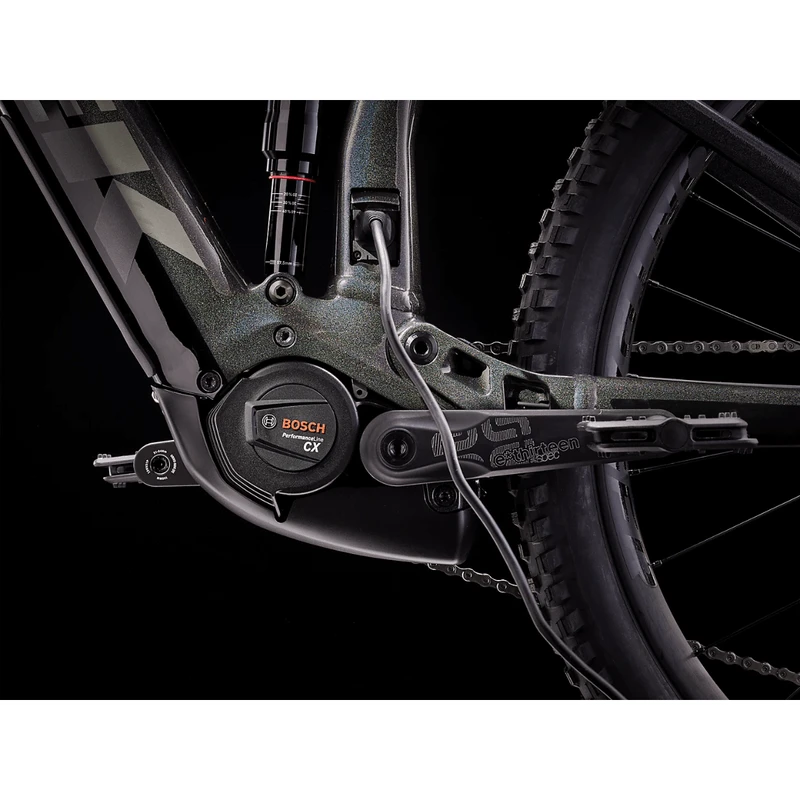

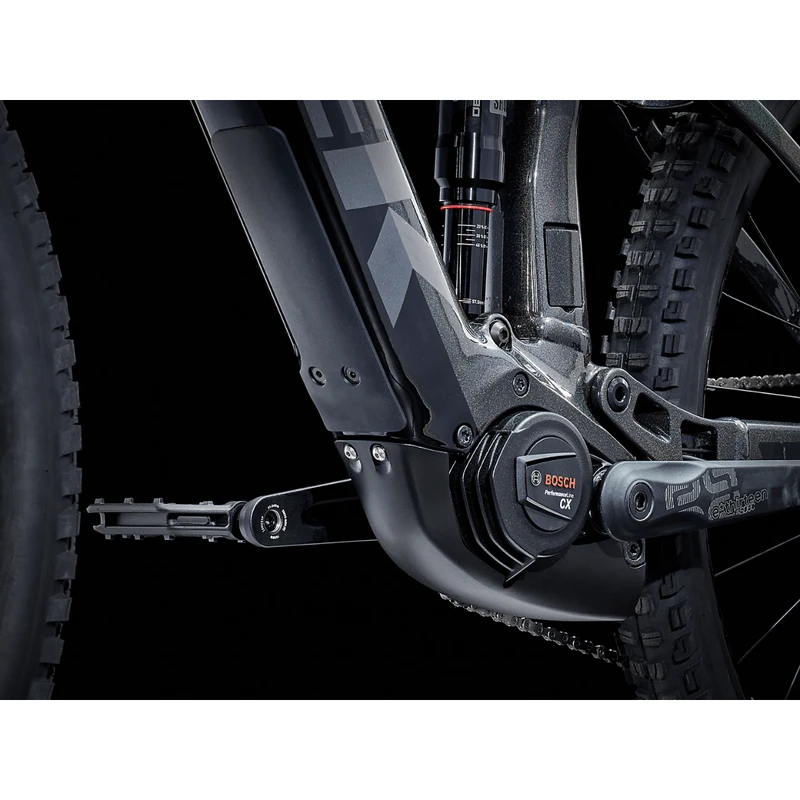

• Bosch Performance Line CX motor: Bosch Performance Line CX sets the standard for eMTB performance with up to 85Nm of torque and an intelligent eMTB mode with Extended Boost that automatically adjusts the amount of assist based on the terrain.

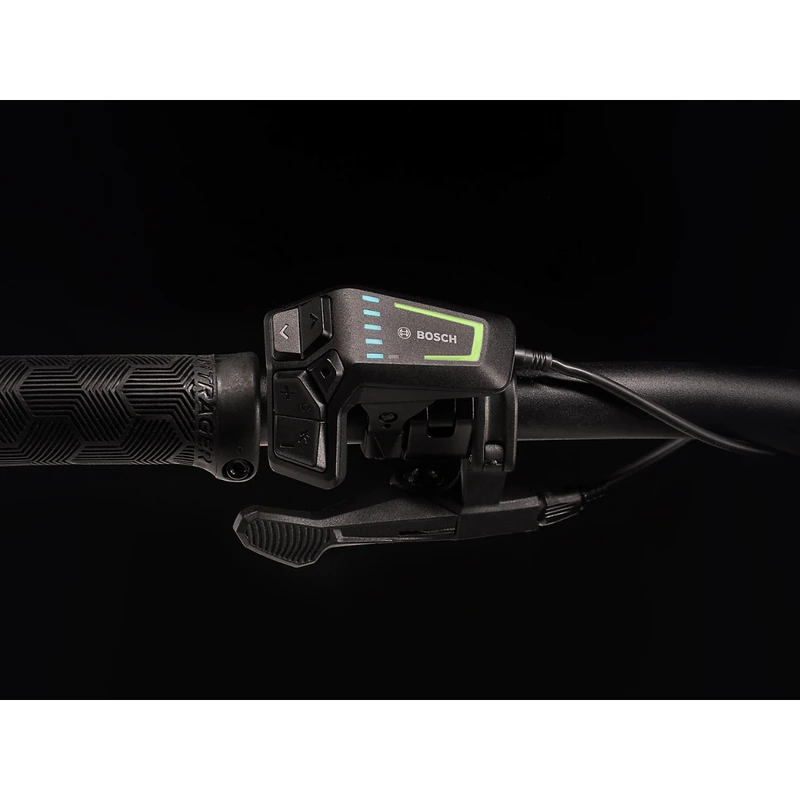

• Bosch LED Remote: The Bosch smart system LED remote lets you easily change assist modes, activate walk mode, or turn on optional lights. The bright LEDs are easy to see in any light, and show you your battery level and assist mode at a glance.
• Bosch Smart System: Bosch smart system gives you an eMTB that’s more connected than ever. The LED remote connects with Bosch eBike Flow app so you can get ride stats, adjust settings, and perform system updates. Plus, Bluetooth connectivity makes it easy to add a display if you want to make it easier to see your ride data.

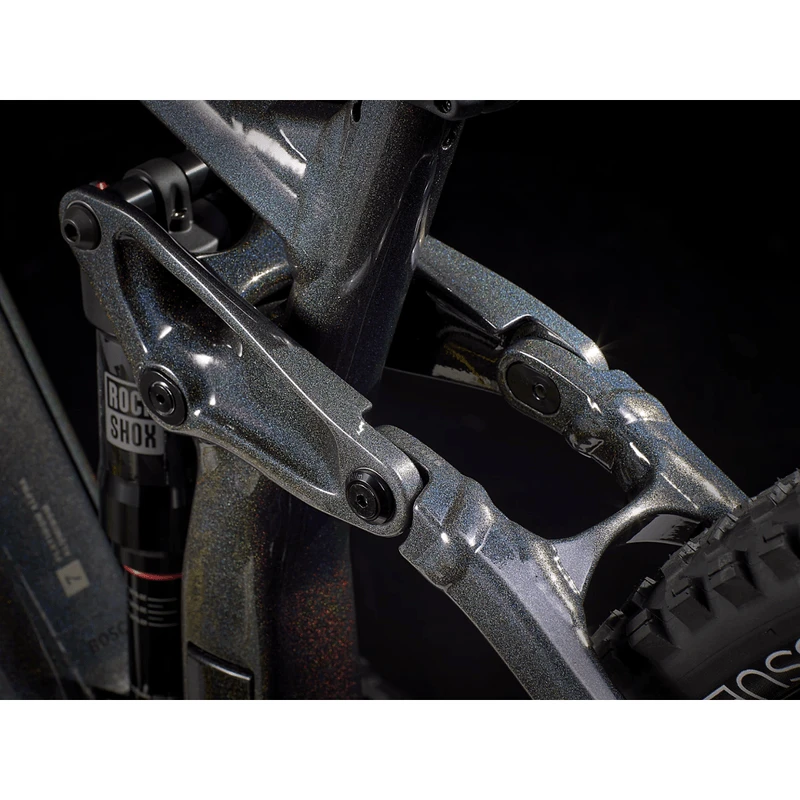

• Active Braking Pivot: Active Braking Pivot allows Trek’s engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most.
• Bosch eBike Flow app: The new eBike Flow app turns your ride into a personalized experience. Use it to customize your motor’s assist behavior, track your ride stats, and integrate your data with apps like Strava and Apple Health. There’s even handy features like navigation and service reminders.
• Shimano XT: Shimano XT is the original mountain bike groupset and trusted by generations of mountain bikers around the world. Whatever the trail, wherever you ride, XT is your solution for mountain biking today. Reliable shifting. Superior braking. Intuitive maintenance. XT is the high performance workhorse you can count on.

TECH SPECS

Frameset

• Frame: Alpha Platinum Aluminum, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, magnesium rocker link, Motor Armor, Mino Link, ABP, Boost148, 12mm thru axle, 150mm travel
• Fork: RockShox Domain RC, DebonAir, Motion Control damper, lockout, tapered steerer, 44mm offset, oversized crown for eMTB, Boost110, 15mm Maxle Stealth, 160mm travel

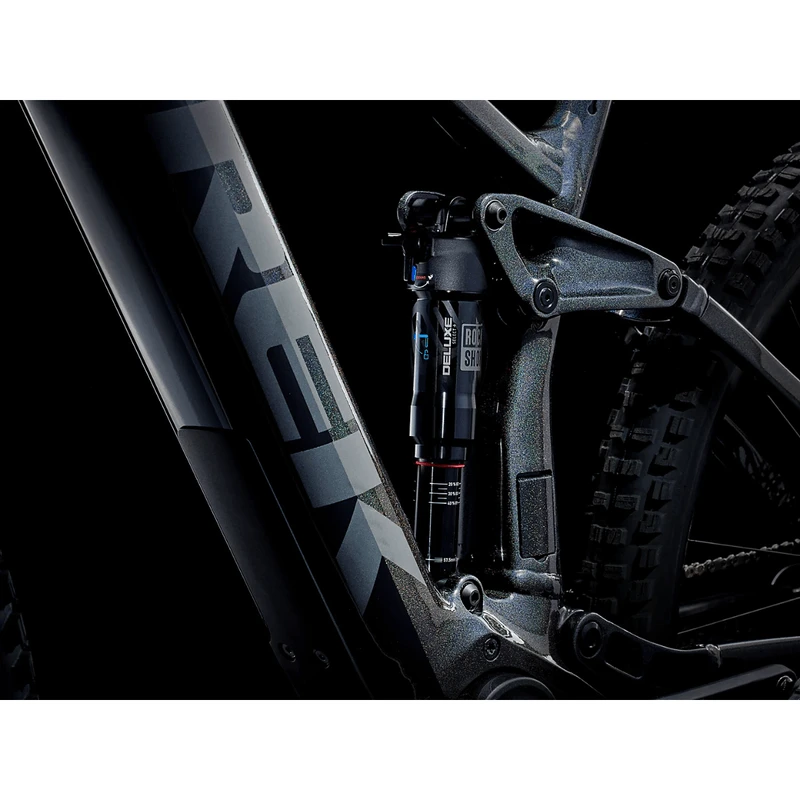

• Shock: RockShox Deluxe Select+ RT, 230mm x 57.5mm
• Max compatible fork travel: 170mm (580mm axle-to-crown)

Wheels

• Wheel front: Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle
• Wheel rear: Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle
• Skewer rear: Bontrager Switch thru axle, removable lever
• Tire:

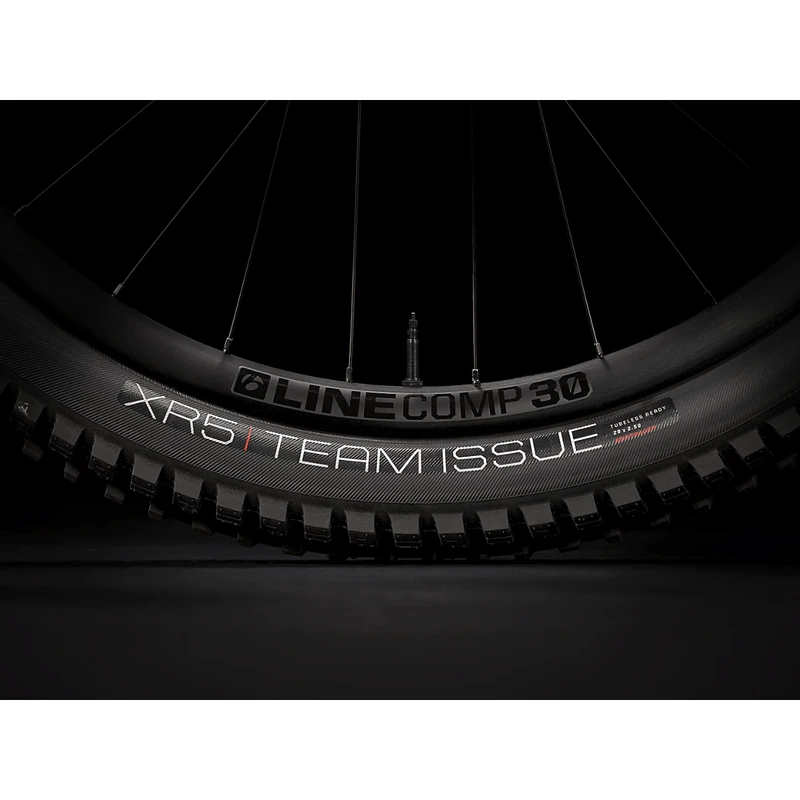

• Size: S, M, L, XL Bontrager XR5 Team Issue, Tubeless Ready, aramid bead, 120 tpi, 29×2.50”
• Size: S, M, L Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 29×2.50”
• Rim strip: Bontrager TLR
• Max tire size: Frame: 29×2.60″ Fork: See manufacturer

Drivetrain

• Shifter: Shimano SLX M7100, 12 speed

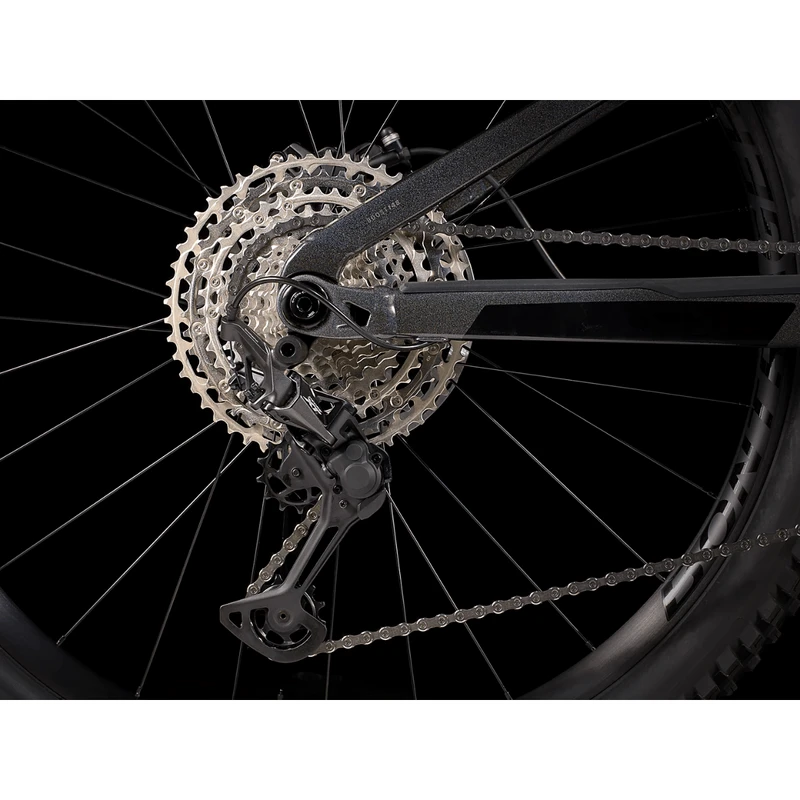

• Rear derailleur: Shimano XT M8100, long cage
• Crank arm:
• Size: S, M, L, XL E*thirteen E*spec Plus, 34T, 160mm length
• Size: S, M, L E*thirteen E*spec Plus, 165mm length
• Chainring:
• Size: S, M, L, XL E*thirteen E*spec, 34T alloy, 55mm chainline
• Size: S, M, L E*thirteen, 34T, steel
• Cassette: Shimano Deore M6100, 10-51, 12 speed
• Chain: Shimano Deore M6100, 12 speed
• Pedal: Wellgo VPE-536
• Max chainring size: 34T

Components

• Saddle: Bontrager Arvada, steel rails, 138mm width
• Seatpost:
• Size: S TranzX JD-YSP18, 100mm travel, internal routing, 31.6mm, 361mm length
• Size: M, L, XL TranzX JD-YSP18, 150mm travel, internal routing, 31.6mm, 470mm length
• Handlebar: Bontrager Rhythm Comp, alloy, 31.8mm, 15mm rise, 780mm width
• Grips: Bontrager XR Trail Comp, nylon lock-on
• Stem: Bontrager Rhythm Comp, 31.8mm, Knock Block, 0 degree, 50mm length
• Brake: Shimano 4-piston hydraulic disc, M6100 lever, M6120 caliper
• Brake rotor: Shimano RT76, 6-bolt, 203mm
• Rotor size: Max brake rotor sizes: Front see fork manufacturer, rear 200mm

Accessories

• Battery: Bosch PowerTube 625Wh, smart system
• Charger:
• Size: S, M, L, XL Bosch standard 2A, 110V, smart system
• Size: S, M, L Bosch standard 4A, 110V, smart system
• Motor: Bosch Performance Line CX, smart system, magnesium motor body, 85 Nm, 20 mph or 32 km/h max assist (25 km/h max assist in EU and APAC)
• Computer:
• Size: S, M, L, XL Bosch Kiox 300, smart system
• Size: S, M, L, XL Bosch LED remote, smart system

Weight

• Weight: M – 24.73 kg / 54.53 lbs
• Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
