Trek Rail 9.8 XT E-Bike

TREK RAIL 9.8 XT E-BIKE

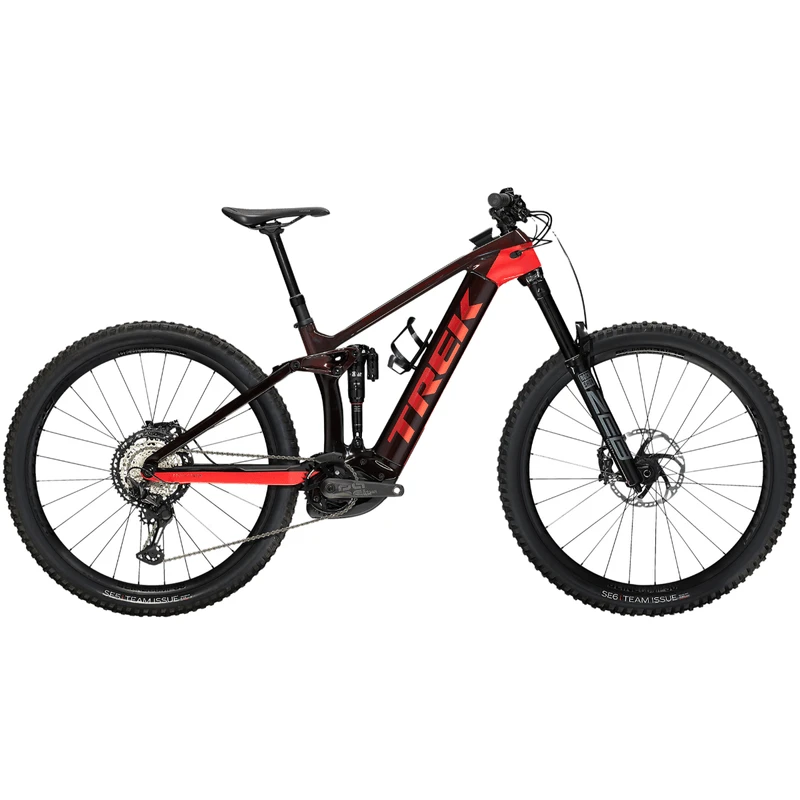

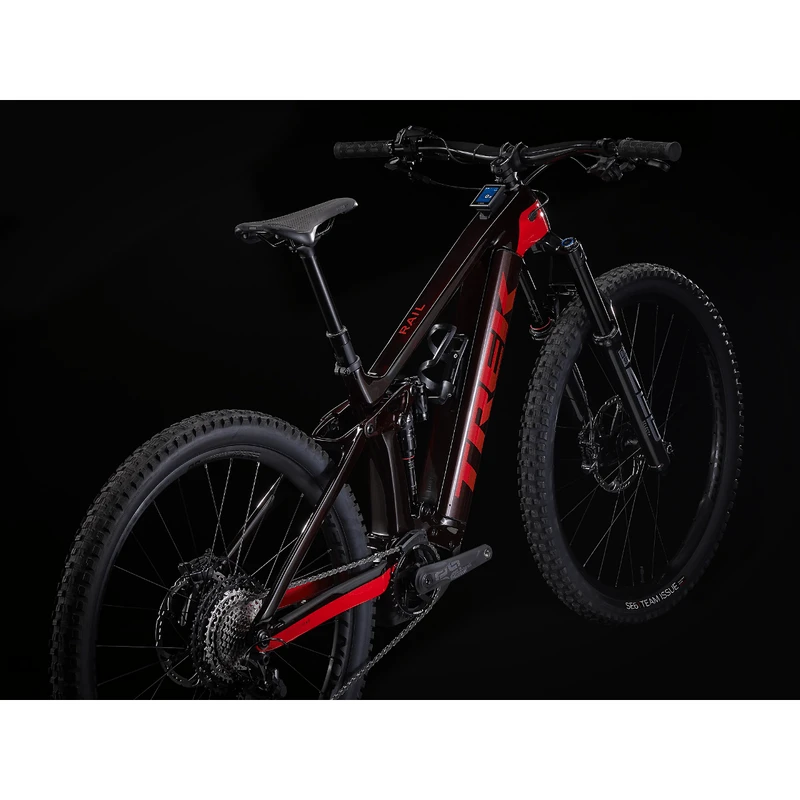

Rail 9.8 is a long-travel carbon electric mountain bike that rips just as hard as our beefiest trail rigs and powers you right back up the mountain. It features awesome upgrades to the suspension, drivetrain, and brakes for exceptional performance on the gnarliest runs.

FEATURES

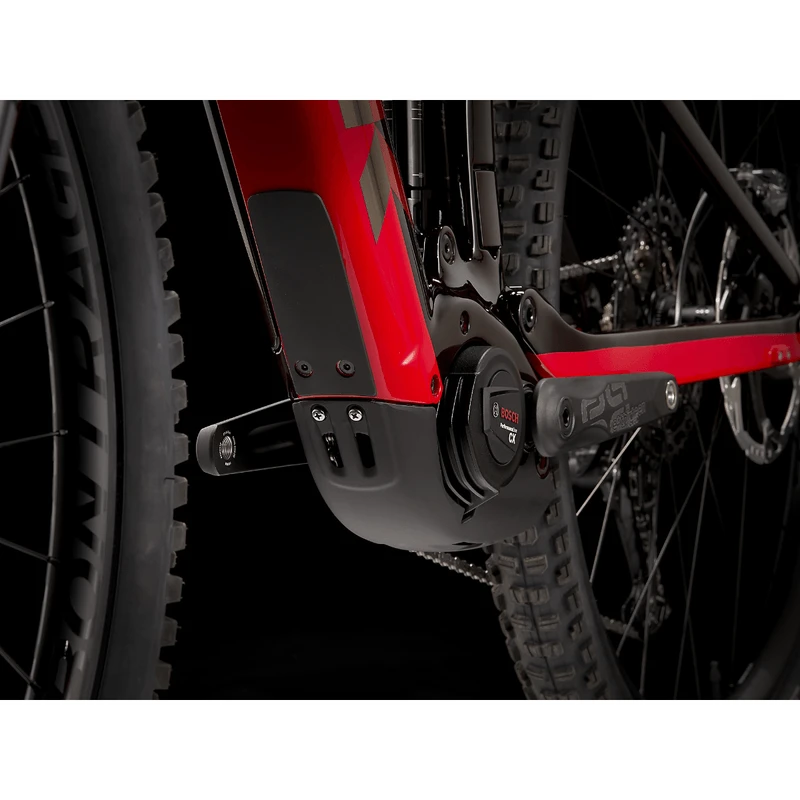

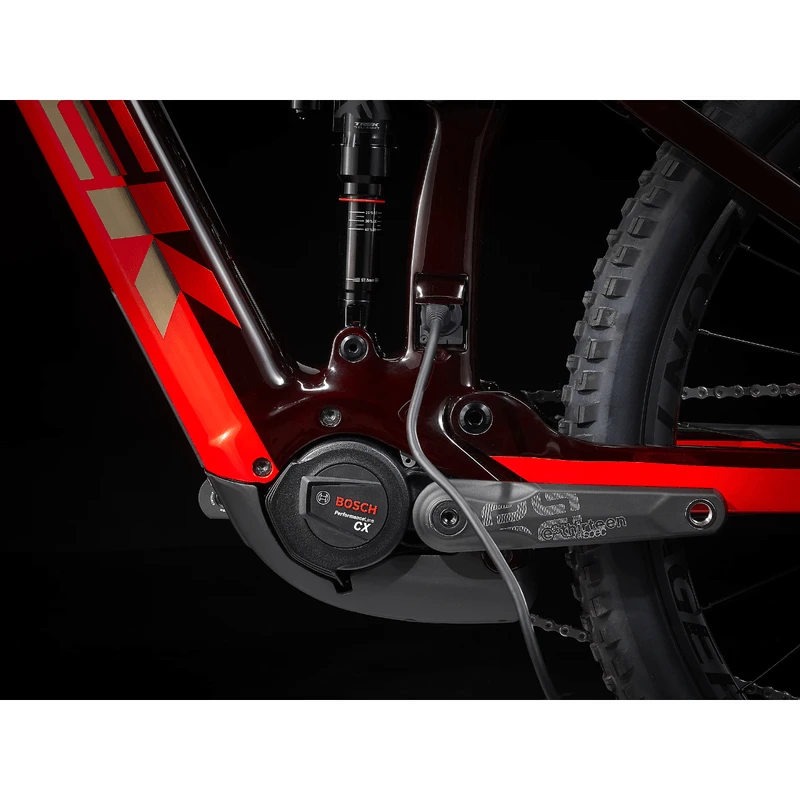

• The new, better-than-ever Bosch motor is smaller, lighter, and more efficient. It feels more natural while you’re pedaling, and has less drag when you’re not

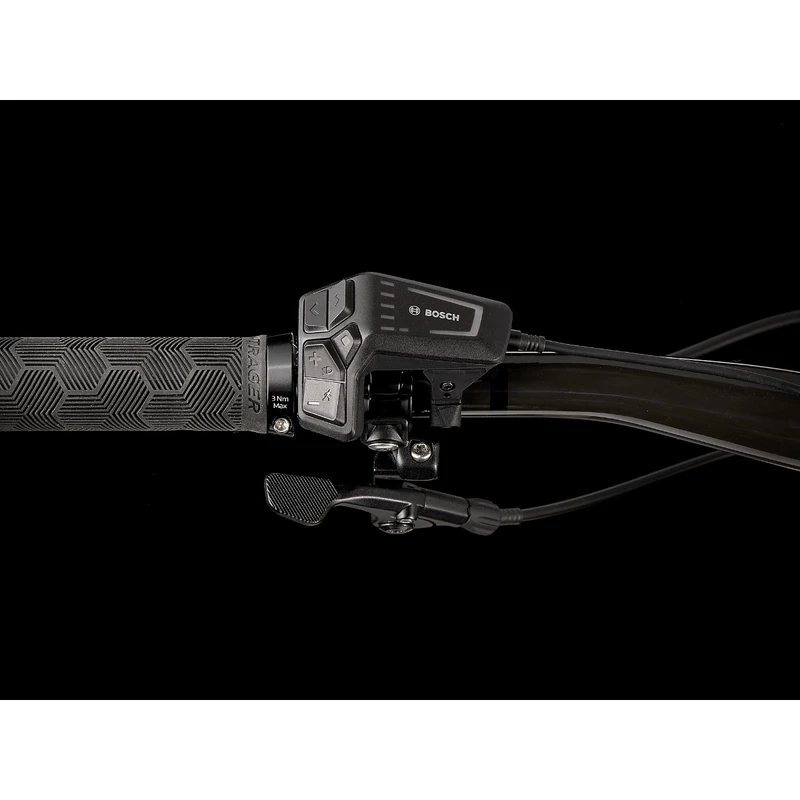

• The full-color Kiox controller displays ride info, connects with your Bluetooth® enabled devices, and has a built-in theft prevention feature
• RE:aktiv with Thru Shaft works faster than a normal shock, so it tracks the ground better and keeps you in control

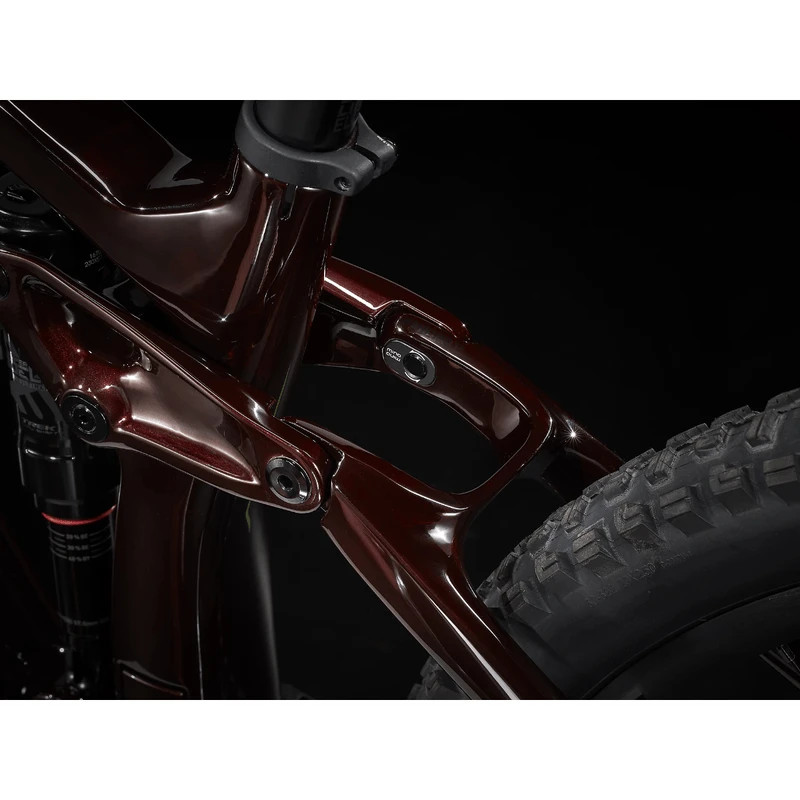

• Made with the same exclusive frame tech as Remedy and Slash, like Mino Link adjustable geometry, a Straight Shot down tube for extra stiffness, and Active Braking Pivot (ABP)

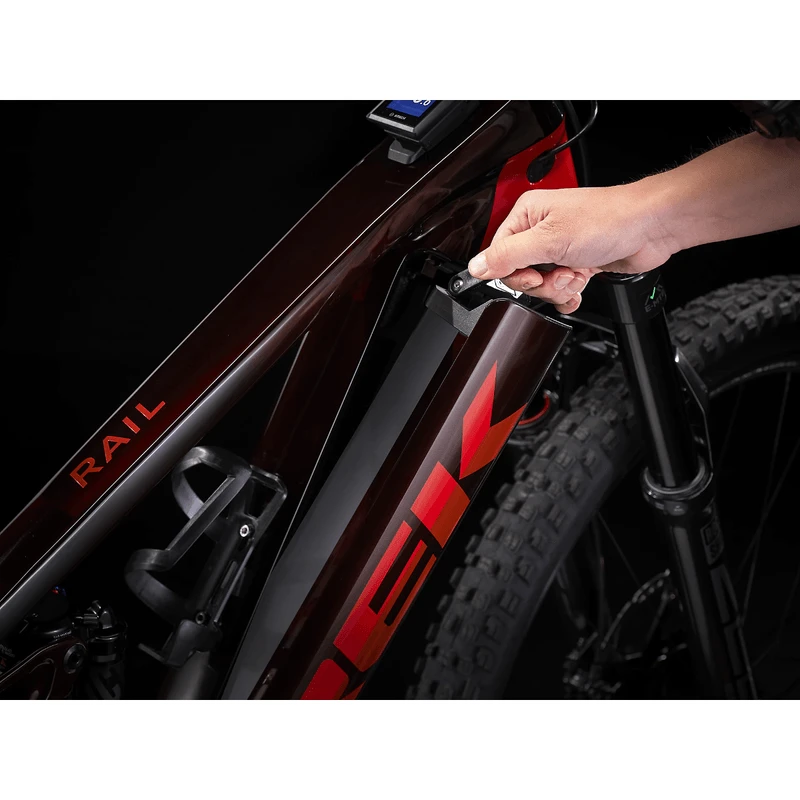

• Trek’s Removable Integrated Battery (RIB) system looks great and is super user-friendly: it fully hides the battery in the frame for protection, makes it easy remove the battery without tools and lets you mount a water bottle cage
• Smaller frames (S) have a top tube that dips down as it approaches the seat tube

TECH SPECS

• FRAMESET:
• Frame OCLV Mountain Carbon main frame, Removable Integrated Battery (RIB), tapered head tube, Knock Block, Control Freak internal routing, magnesium rocker link, Motor Armor, Mino Link, ABP, Boost148, 12mm thru axle, 150mm travel
• Fork RockShox ZEB Select+, DebonAir spring, Charger 2.1 RC damper, eMTB optimized crown, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 160mm travel

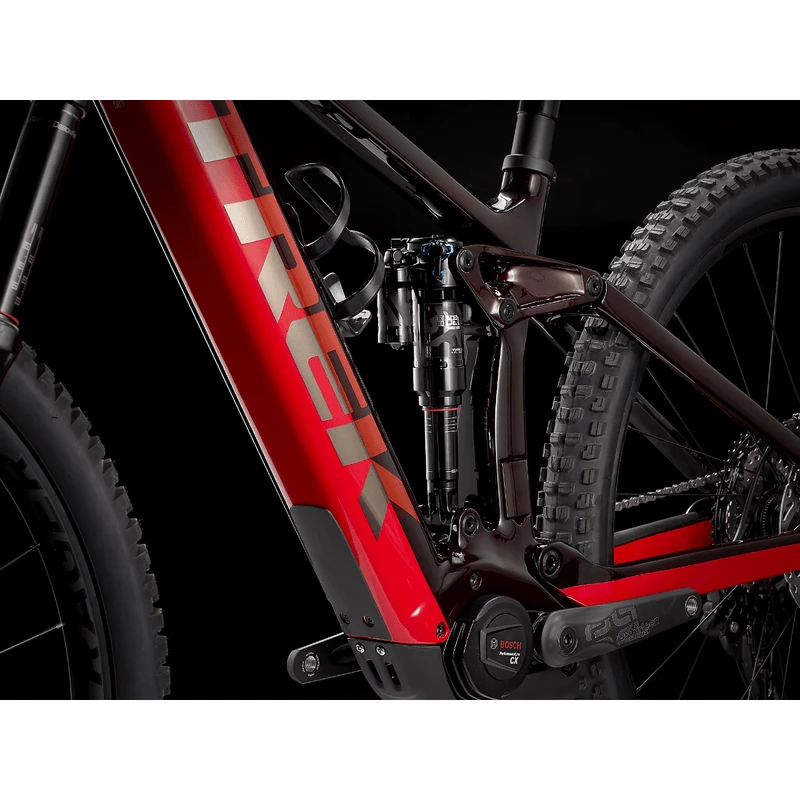

• Shock NEW RockShox Super Deluxe Ultimate RT3, DebonAir spring, Thru Shaft 3-position damper, 230×57.5mm
• WHEELS:

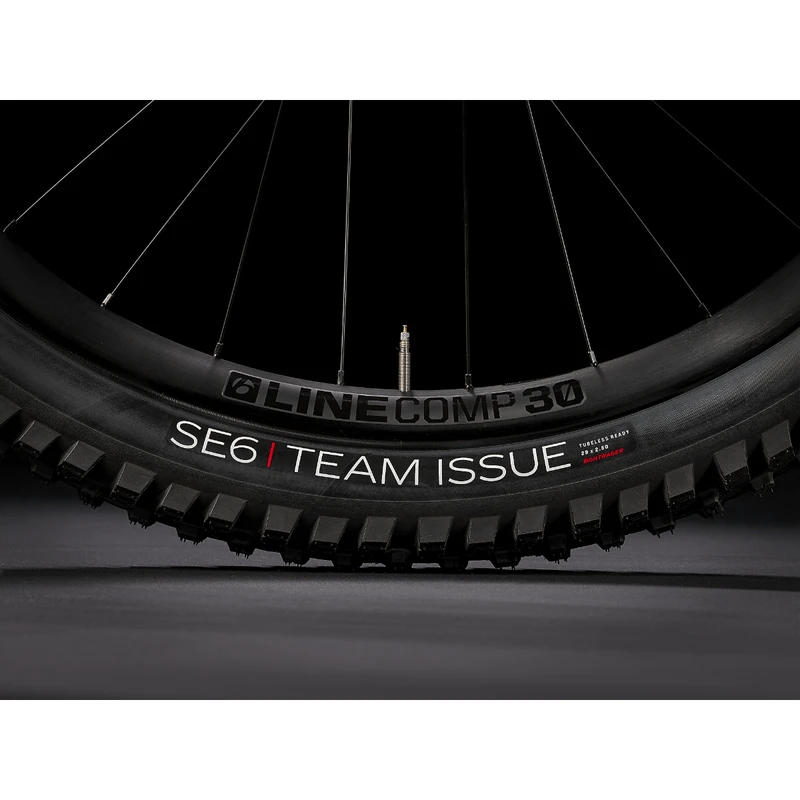

• Wheel front Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle
• Wheel rear Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 54, 6-bolt, Boost148, 12mm thru axle
• Skewer rear Bontrager Switch thru axle, removable lever
• Tire Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewall, aramid bead, 60 tpi, 29×2.60”
• *Tire part Size: S, M, L, XL
• Bontrager TLR valve, 50mm
• Size: S, M, L, XL
• Bontrager TLR sealant, 6oz
• Rim strip Bontrager TLR
• DRIVETRAIN:
• Shifter Shimano XT M8100, 12 speed

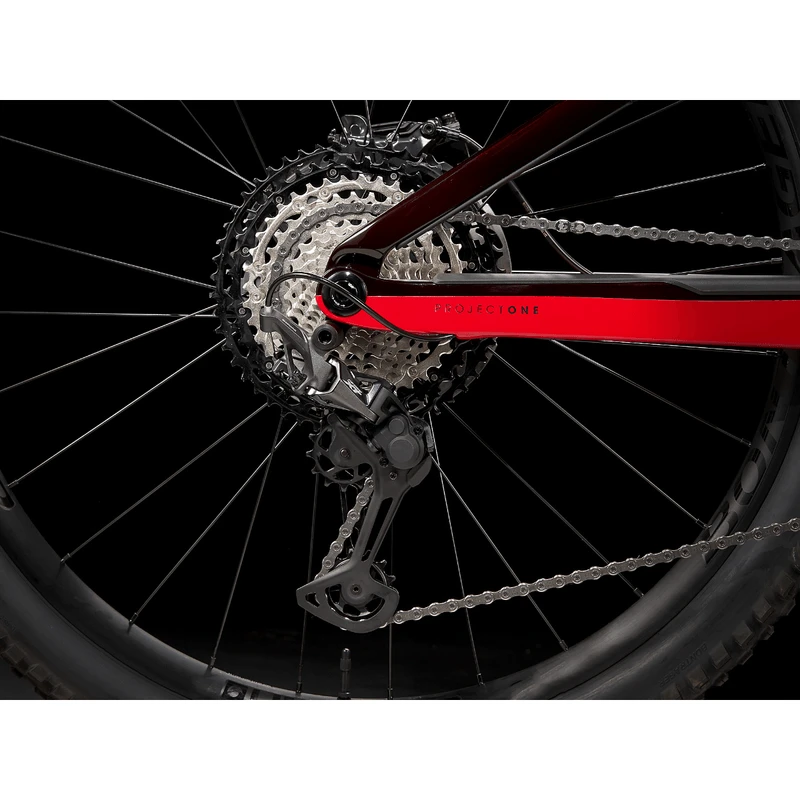

• Rear derailleur Shimano XT M8100, long cage, 51T max cog
• Crank arm E*thirteen E*spec Plus, 34T, 165mm length
• Cassette Shimano XT M8100, 10-51, 12 speed
• Chain Shimano XT M8100, 12 speed
• Pedal VP-536 nylon platform
• COMPONENTS:
• Saddle Bontrager Arvada, austenite rails, 138mm width
• *Seatpost Size: S
• Bontrager Line Elite Dropper, 100mm travel, internal routing, 31.6mm, 340mm length
• Size: M
• Bontrager Line Elite Dropper, 150mm travel, internal routing, 31.6mm, 440mm length
• Size: L, XL
• Bontrager Line Elite Dropper, 170mm travel, internal routing, 31.6mm, 480mm length
• Handlebar Bontrager Line Pro, OCLV Carbon, 35mm, 27.5mm rise, 780mm width
• Grips Bontrager XR Trail Comp, nylon lock-on
• Stem Bontrager Line Pro, 35mm, Knock Block, Blendr compatible, 0 degree, 45mm length
• Headset Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8” top, 1.5” bottom
• Brake Shimano SLX M7120 4-piston hydraulic disc
• Brake rotor Shimano RT76, 6-bolt, 203mm
