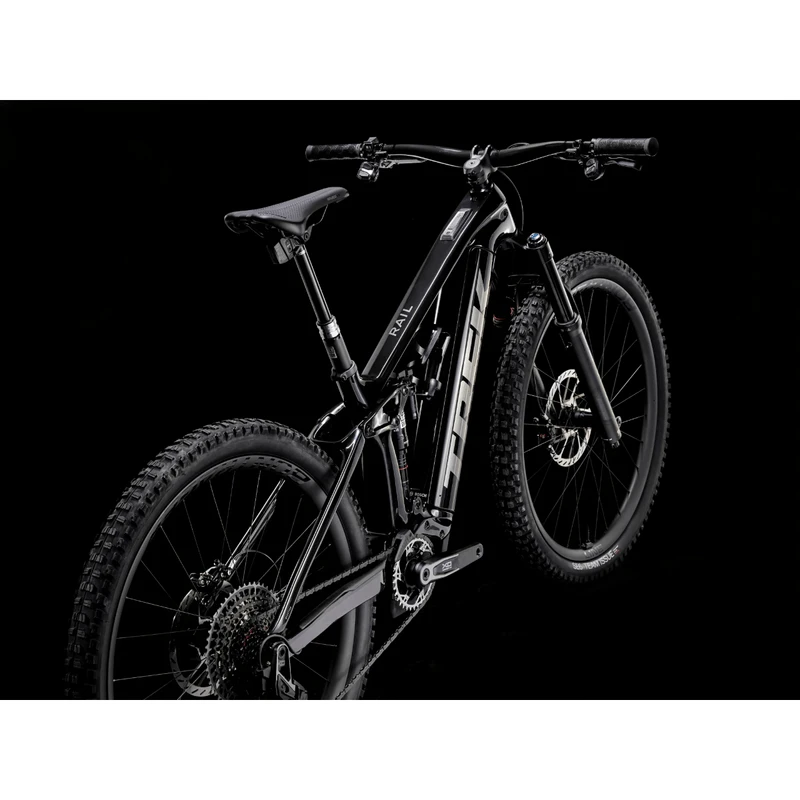

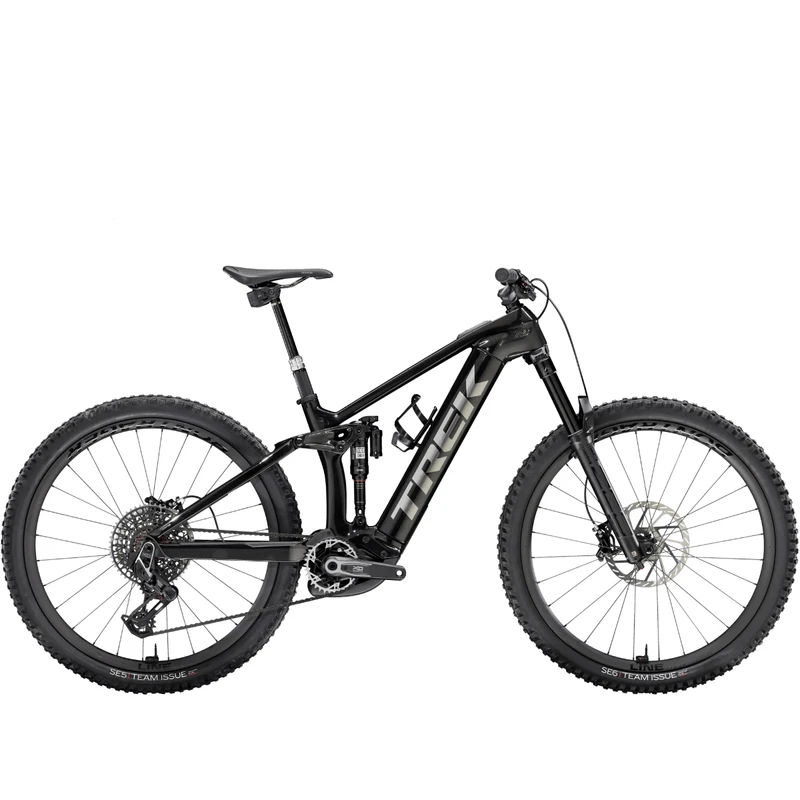

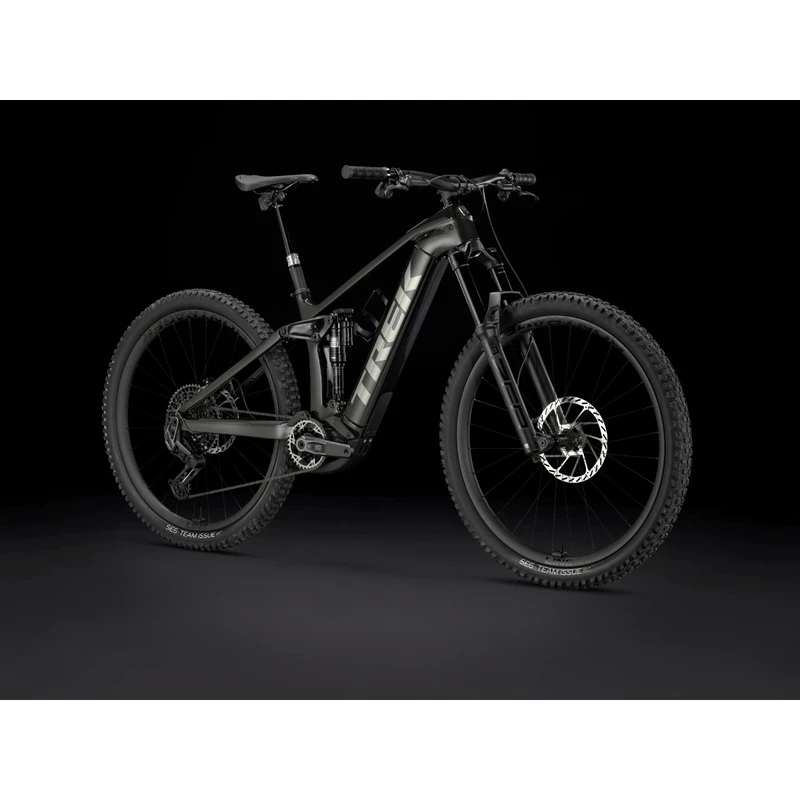

Trek Rail 9.9 X0 AXS T-Type Gen 4 Mountain E-Bike

TREK RAIL 9.9 X0 AXS T-TYPE GEN 4 MOUNTAIN E-BIKE

Rail 9.9 is Trek’s best long-travel electric mountain bike. You get an extra-beefy carbon frame, unbelievably smooth RockShox suspension, SRAM’s best wireless electronic drivetrain, and a powerful Bosch smart system Performance Line CX motor with an extra-long range battery and the new Mini Remote. The new System Controller display sits almost flush with the top tube for a sleek look wherever you roll that stays out of the way when you’re riding hard.

FEATURES

• Removable Integrated Battery
• Bosch Performance Line CX motor

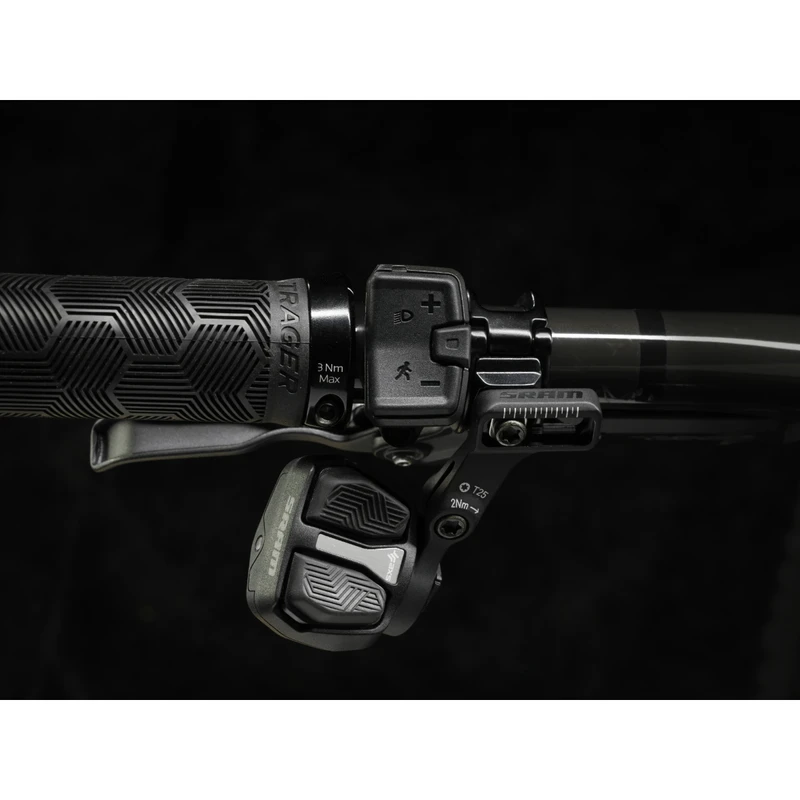

• Bosch Mini Remote
• Bosch System Controller
• Bosch eBike Flow app
• RockShox AirWiz and Quarq TireWiz
• Transition to transmission: SRAM Eagle T-Type transmission mounts directly to the frame, skipping that pesky derailleur hanger of yesteryear. This makes for a more robust system that’s not only cleaner looking, it’s also more precise under load, and easier to set up

TECH SPECS

Frameset

• Frame: OCLV Mountain Carbon main frame, 1.8” lower head tube, Bosch System Controller compatible, Removable Integrated Battery (RIB), Knock Block 2.0, guided internal routing, 34.9mm seat tube, magnesium rocker link, Motor Armor, Mino Link, ABP, Boost148, 12mm thru axle, 150mm travel
• Fork: RockShox ZEB Ultimate, AirWiz, DebonAir spring, Charger 3 RC2 damper, 1.8” oversized tapered steerer, eMTB optimized crown, 44mm offset, Boost110, 15mm Maxle Stealth, 160mm travel

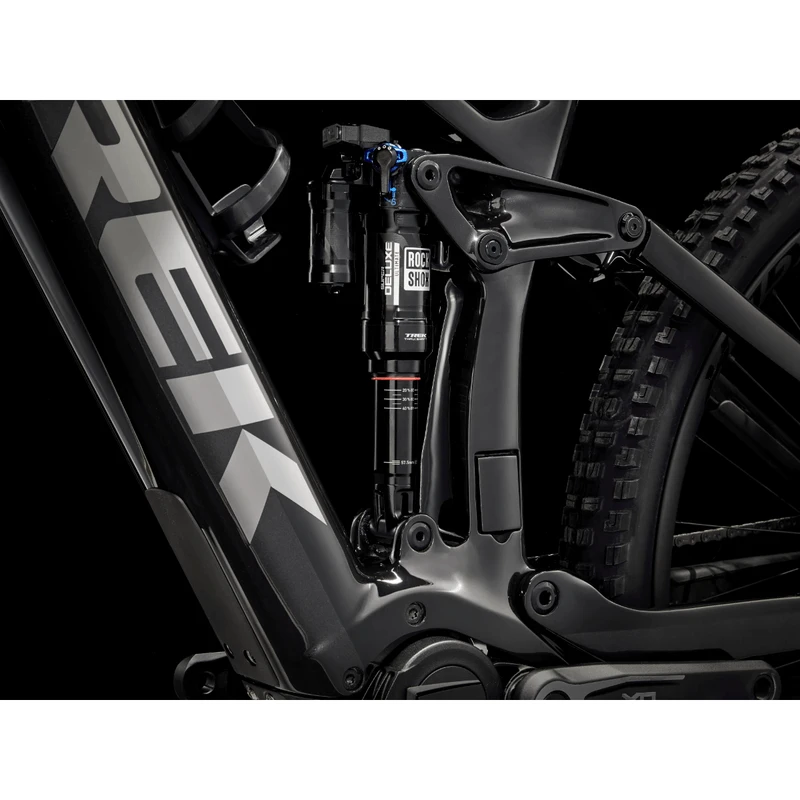

• Shock: RockShox Super Deluxe Thru Shaft, AirWiz, 230mm x 57.5mm
• Max compatible fork travel: 170mm (580mm axle-to-crown)

Wheels

• Wheel front: Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle
• Wheel rear: Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12mm thru axle
• Skewer rear: Bontrager Switch thru axle, removable lever
• Tire
• Size: S, M, L, XL: Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29×2.50”
• Size: S, M, L, XL: Bontrager SE6 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29×2.50”
• Tire Part:
• Size: S, M, L, XL: Bontrager TLR sealant, 6oz
• Size: S, M, L, XL: Quarq TyreWiz tire pressure monitors
• Max tire size Frame: 29×2.60″, Fork: See manufacturer

Drivetrain

• Shifter: SRAM AXS POD Ultimate

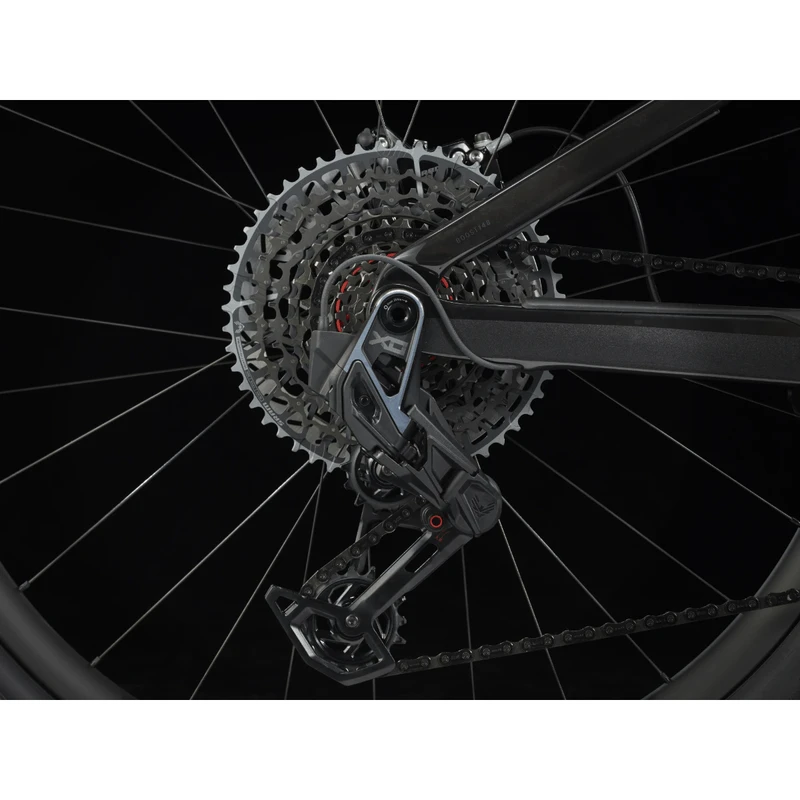

• Rear derailleur: SRAM X0 Eagle AXS, T-Type
• Crank: SRAM X0 Eagle, 34T, T-Type,160mm length
• Chainring: SRAM XX T-Type, 34T, steel
• Cassette: SRAM Eagle XS-1295, T-Type, 10-52, 12 speed
• Chain: SRAM X0 Eagle, T-Type, 12 speed
• Pedal: VP-536 nylon platform
• Max chainring size: 1x: 34T

Components

• Saddle: Bontrager Arvada, austenite rails, 138mm width
• Seatpost:
• Size: S: RockShox Reverb AXS, 100mm travel, wireless, 34.9mm, 340mm length
• Size: M: RockShox Reverb AXS, 150mm travel, wireless, 34.9mm, 440mm length
• Size: L, XL: RockShox Reverb AXS, 170mm travel, wireless, 34.9mm, 480mm length
• Handlebar/stem (integrated): Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5mm handlebar rise, 820mm width, 0 degree stem rise, 45mm stem length
• Grips: Bontrager XR Trail Elite, nylon lock-on
• Brake: SRAM Code Silver 4-piston hydraulic disc
• Brake Rotor:
• Size: S, M, L, XL: SRAM 6-bolt, 200mm
• Size: S, M, L, XL: SRAM HS2, 6-bolt, 220mm
• Rotor size Max brake rotor sizes – Frame: 200mm, Fork: see fork manufacturer

Accessories

• Battery:
• Size: S: Bosch PowerTube 625Wh, smart system
• Size: S, M, L, XL: SRAM eTap battery pack (with charger)
• Size: M, L, XL: Bosch PowerTube 750Wh, smart system
• Charger: Bosch standard 4A, 110V, smart system
• Controller:

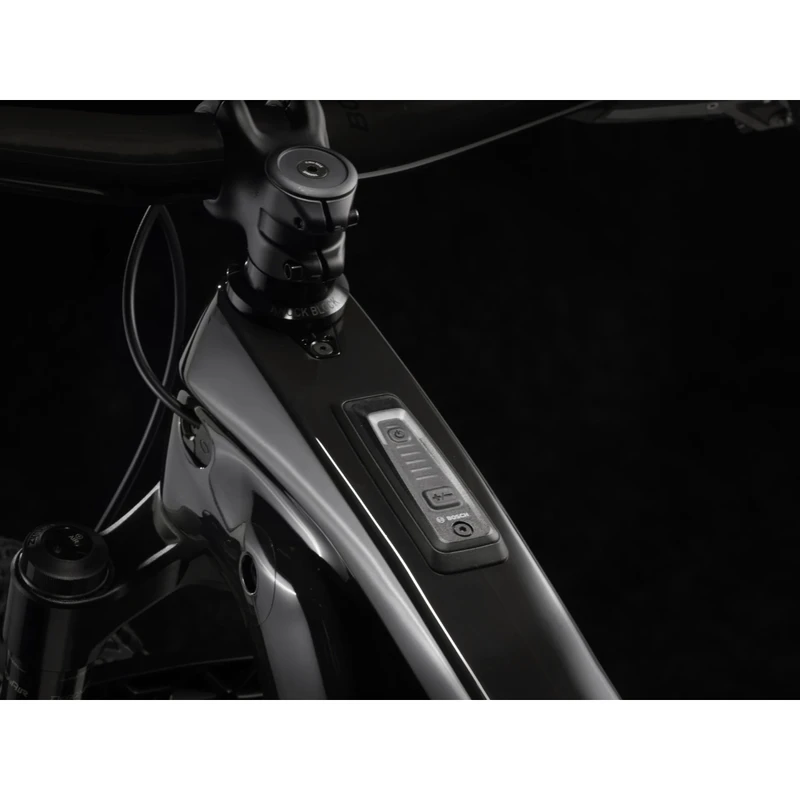

• Size: S, M, L, XL: Bosch System Controller BRC3100, smart system
• Size: S, M, L, XL: Bosch Mini Remote BRC3300, smart system, 22.2mm

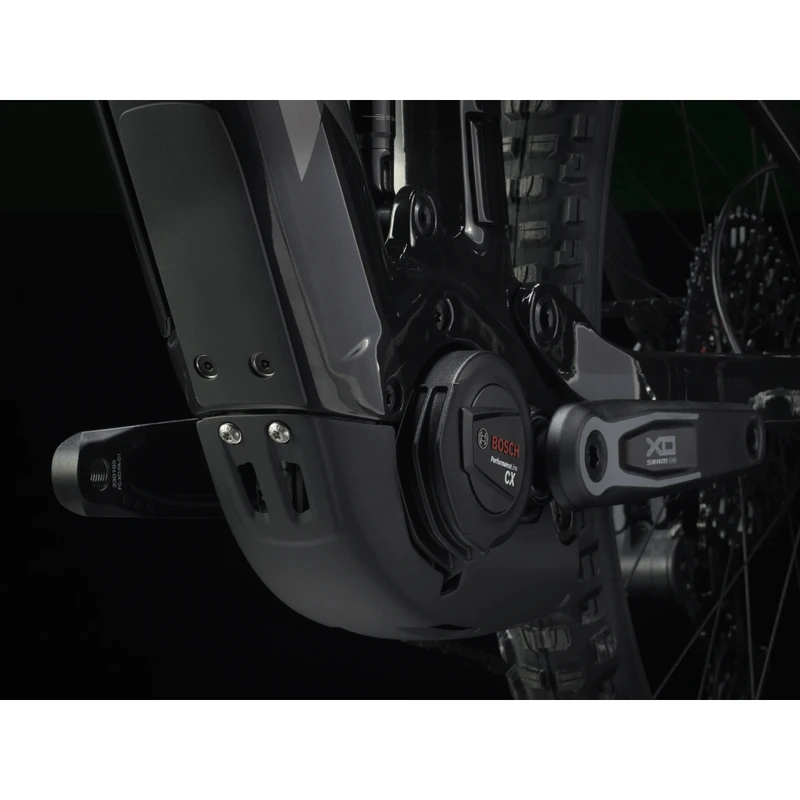

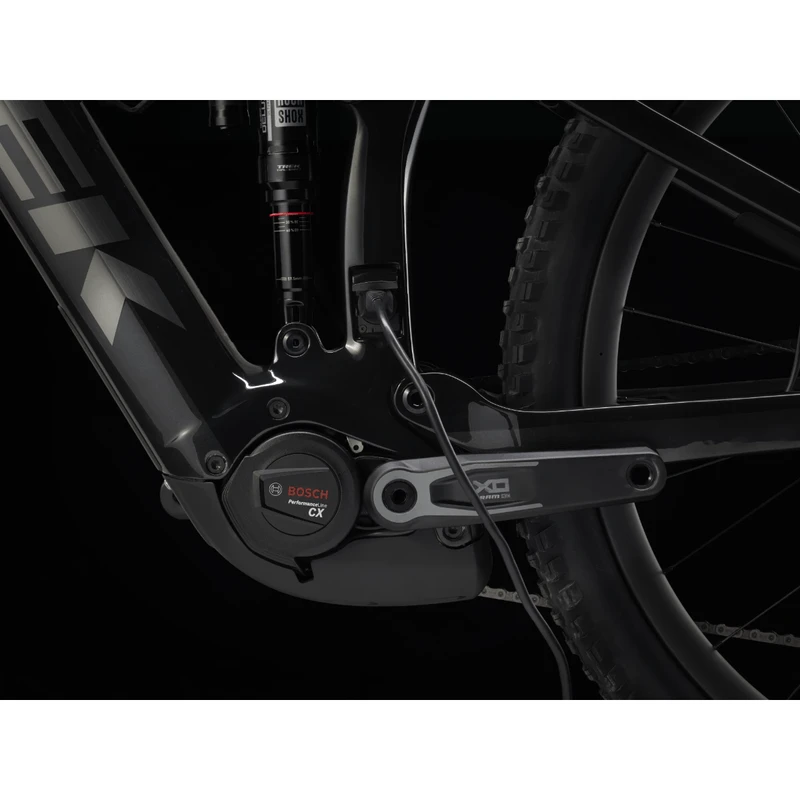

• Motor: Bosch Performance Line CX, smart system, magnesium motor body, 85 Nm

Weight

• Weight: M – 23.75 kg / 52.36 lbs (with TLR sealant, no tubes)
• Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg)
