Trek Top Fuel 5

TREK TOP FUEL 5

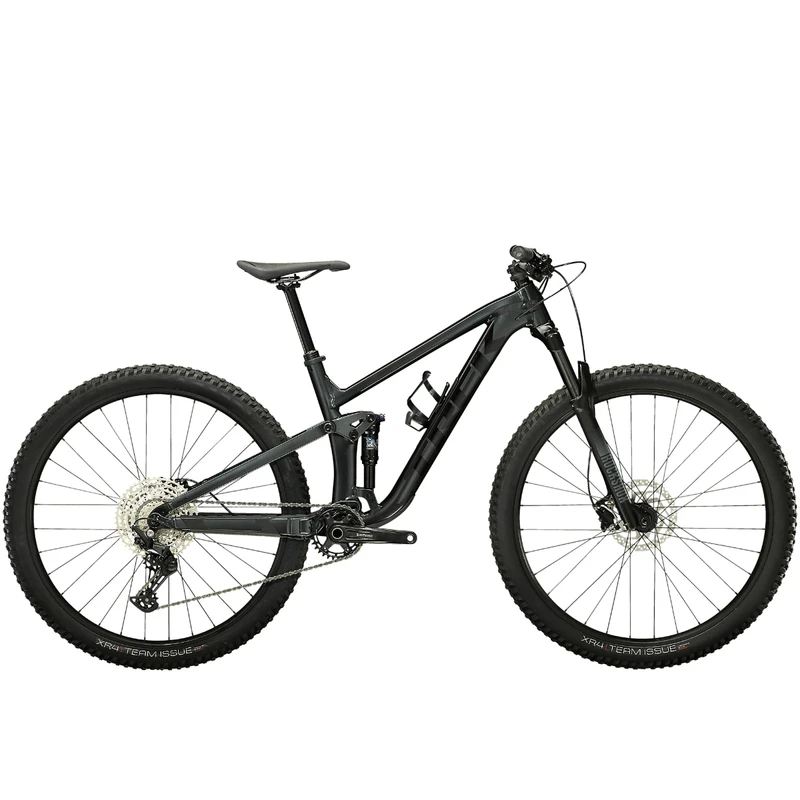

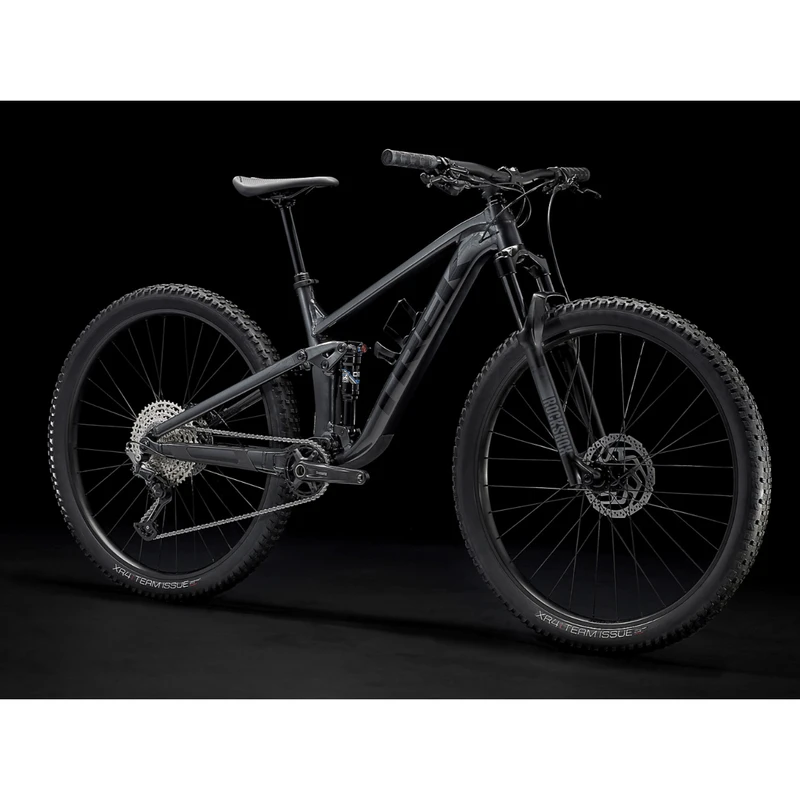

Top Fuel 5 is a full suspension mountain bike that’s equal parts efficient and capable. It soaks up rough, rugged descents but still flies like a rocket up hills and on flat stretches. The light and sturdy alloy frame is built with parts picked for performance and value, making this bike perfect for your first full suspension trail bike.

FEATURES

Frameset

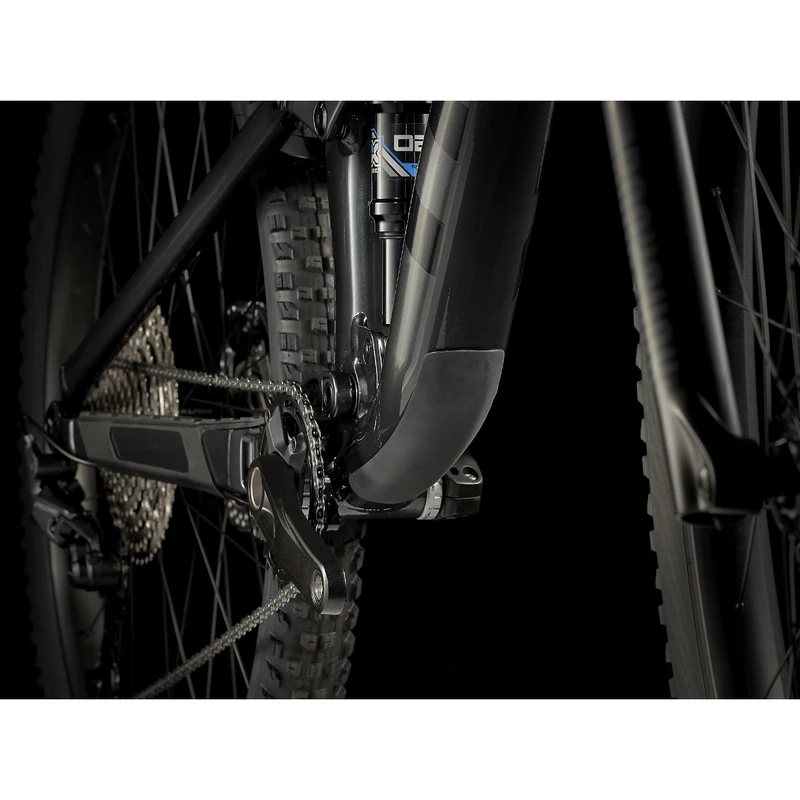

• Frame: Alpha Platinum Aluminum, internal storage, tapered head tube, Knock Block 2.0, internal guided routing, downtube guard, magnesium rocker link, Mino Link, ABP, Boost148, 120mm travel
• Fork: RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 42mm offset, Boost110, 15mm Maxle Stealth, 120mm travel

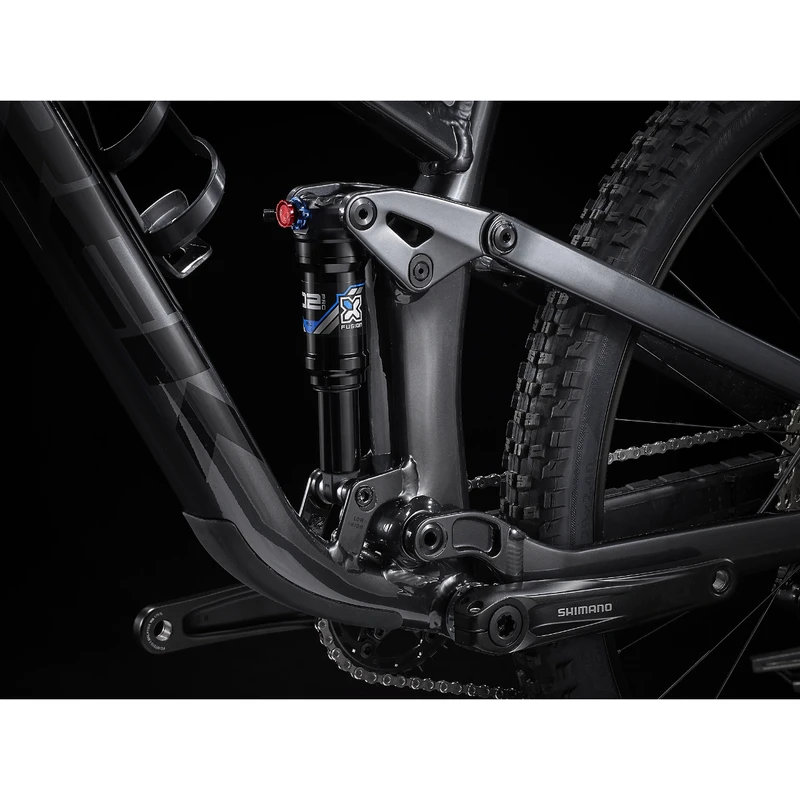

• Shock: X-Fusion Pro 2, 2-position damper, 185mm x 50mm
• Max compatible fork travel: 130mm (541mm axle-to-crown)

Wheels

• Hub front: Bontrager alloy, 6-bolt, Boost110, 15mm thru axle
• Hub rear: Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle
• Skewer rear: Bontrager Switch thru axle, removable lever
• Rim: Alex MD35, tubeless compatible, 32-hole, 35mm width, presta valve
• Tire:

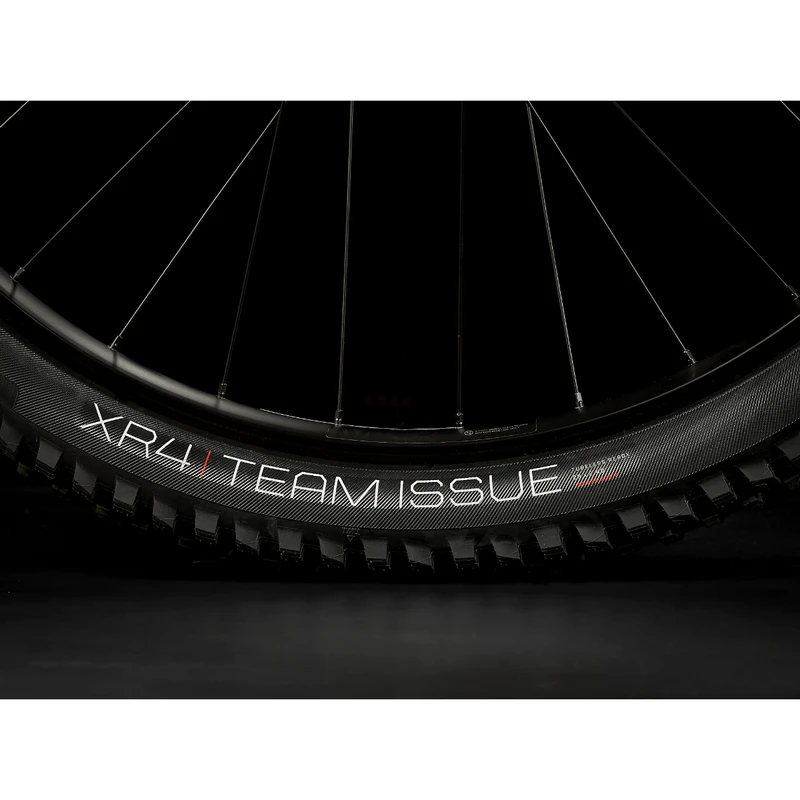

• Size S, M, M/L, L, XL, XXL: Bontrager XT3 Elite, wire bead, 60 tpi, 29×2.40”, Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120tpi, 29.×2.40”
• Tire part:
• Size S, M, M/L, L, XL, XXL: Bontrager TLR sealant, 6oz, Bontrager TLR valve, 50mm
• Rim strip: Bontrager TLR
• Max tire size: Frame: 29×2.5″ Fork: see manufacturer

Drivetrain

• Shifter: Shimano Deore M6100, 12 speed

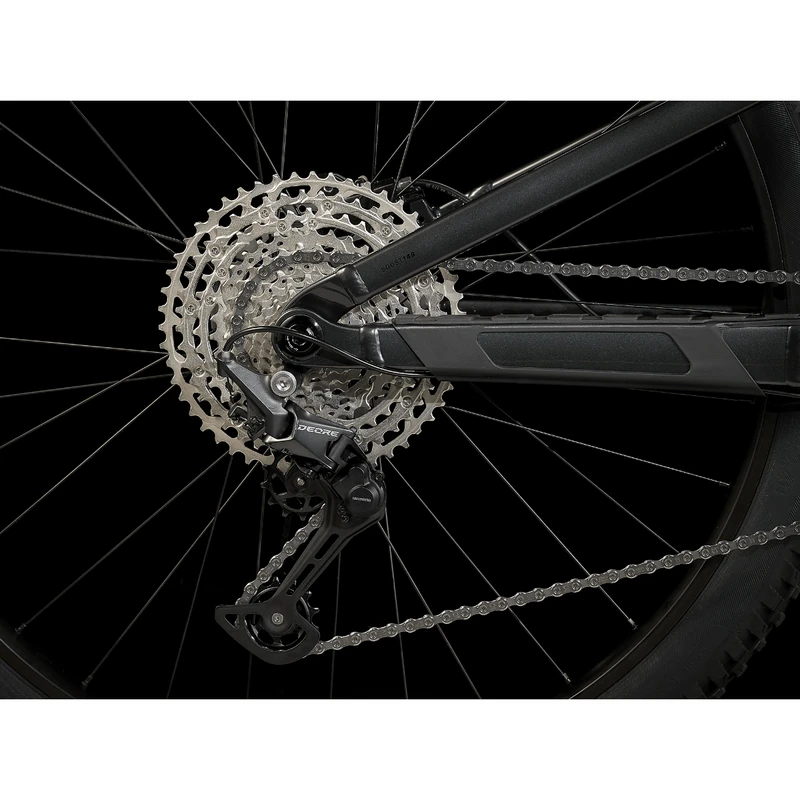

• Rear: derailleur Shimano Deore M6100, long cage
• Crank:

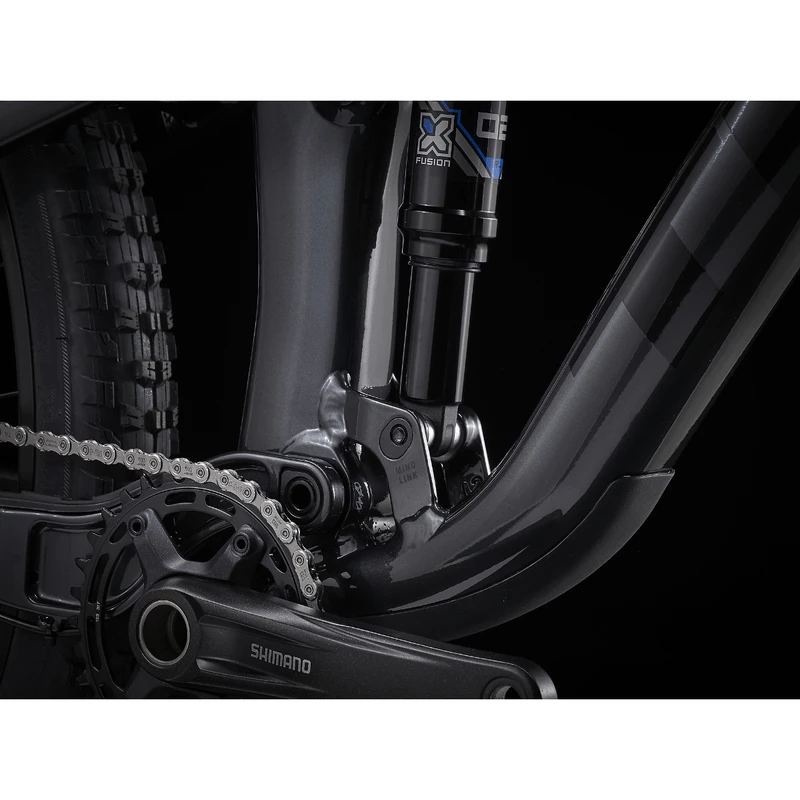

• Size S, M, M/L, L: Shimano MT512, 30T ring, 55mm chainline, 170mm length
• Size XL, XXL: Shimano MT512, 30T ring, 55mm chainline, 175mm length
• Bottom bracket:
• Size S, M, M/L, L, XL, XXL: Shimano BB-MT501 BSA, Shimano SM-BB52, 73mm, threaded external bearing
• Cassette: Shimano Deore M6100, 10-51, 12 speed
• Chain: Shimano Deore M6100, 12 speed
• Max chainring size: Max: 36T (oval – 34T) Min: 28T

Components

• Saddle: Bontrager Arvada, steel rails, 138mm width
• Seatpost:
• Size S: TranzX JD-YSI-22PLQ, 100mm travel, internal routing, 34.9mm, 346mm length
• Size M, M/L: TranzX JD-YSI-22PLQ, 150mm travel, internal routing, 34.9mm, 454mm length
• Size L, XL, XXL: TranzX JD-YSI-22PLQ, 170mm travel, internal routing, 34.9mm, 497mm length
• Handlebar:
• Size S, M, M/L, L, XL, XXL: Bontrager alloy, 31.8mm, 15mm rise, 750mm width, Bontrager Rhythm Comp, alloy, 31.8mm, 15mm rise, 750mm width
• Grips: Bontrager XR Trail Comp, nylon lock-on
• Stem: Bontrager Rhythm Comp, 31.8mm, Knock Block, 0 degree, 50mm length
• Headset: Knock Block 2.0 Integrated, 72-degree radius (includes infinite-radius chip), sealed cartridge bearing, 1-1/8” top, 1.5” bottom
• Brake: Shimano MT200 hydraulic disc
• Brake rotor:
• Size S, M, M/L, L, XL, XXL: Shimano RT26, 6-bolt,180mm, Shimano RT26, 6-bolt,160mm
• Brake Set: Shimano MT200 hydraulic disc
• Rotor size: Max brake rotor sizes: Front see fork manufacturer, rear 180mm

Accessories

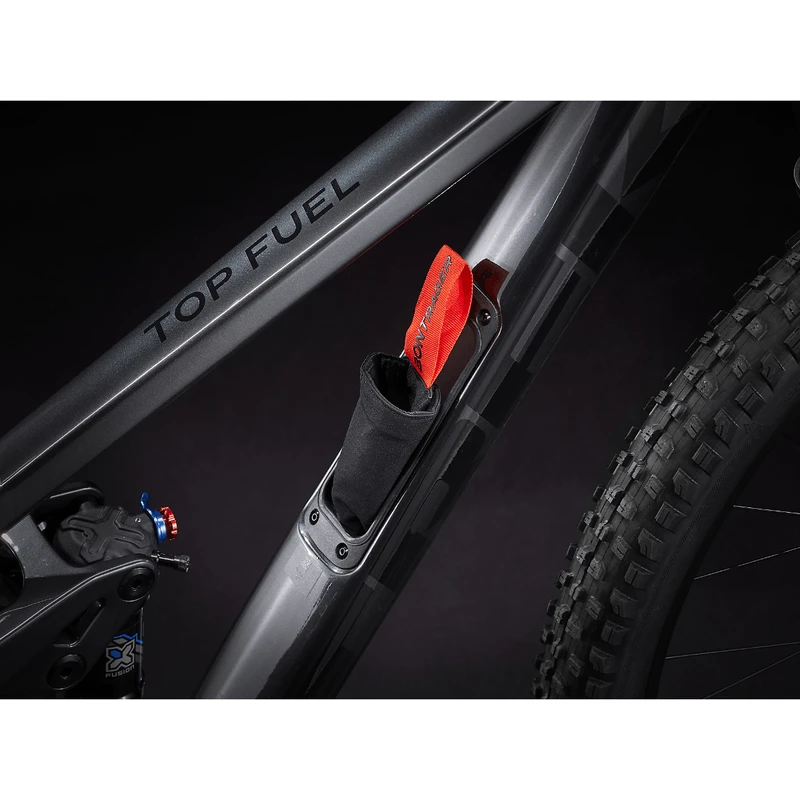

• Bag: Bontrager BITS Internal Frame Storage Bag

Weight

• Weight: M – 15.29 kg / 33.71 lbs
• Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
