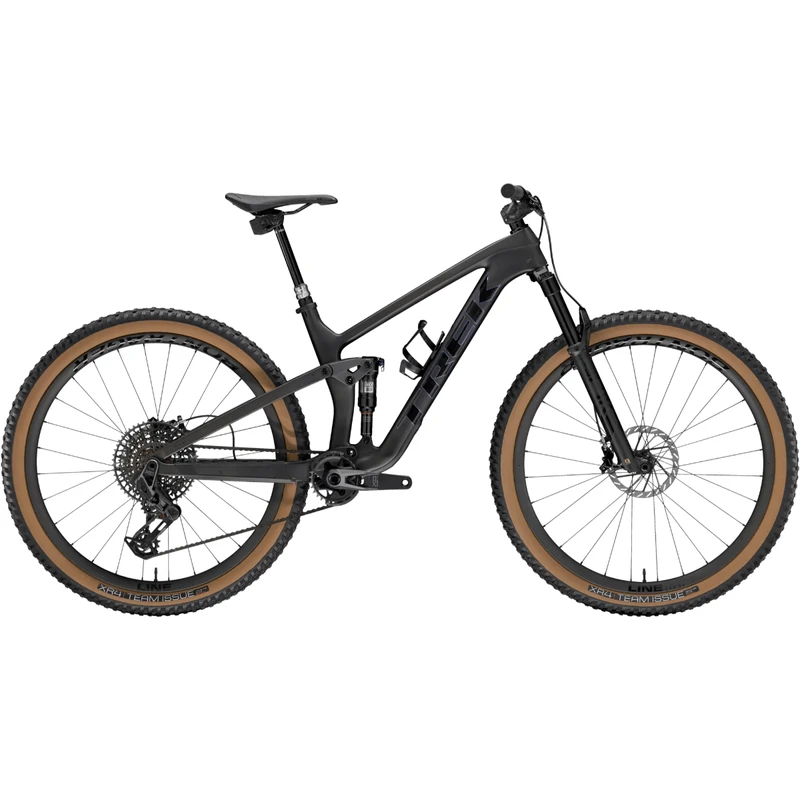

Trek Top Fuel 9.9 X0 AXS T-Type Mountain Bike

TREK TOP FUEL 9.9 X0 AXS T-TYPE MOUNTAIN BIKE

Top Fuel 9.9 is a full suspension carbon mountain bike for riders who don’t settle. Not for parts nor for one style of riding. It combines a high-end component package with a low-weight carbon frame for one unbelievably fun rig that’s fast on flow and fun to ride on techy singletrack.

It’s right for you if…
You’re looking for a do-it-all full suspension mountain bike that’s efficient and fast, but doesn’t shy away from some bigger stuff. You want the added stiffness and weight savings of a carbon frame, and want parts packed with performance advantages.

The tech you get
A light and stiff OCLV Mountain Carbon frame, 130mm RockShox Pike Ultimate fork with DebonAir spring and Charger 3 RC2 damper, 120mm of rear travel with a RockShox Deluxe Ultimate RCT shock, and SRAM’s wireless 12-speed X0 AXS direct-mount transmission that’s as tough as it is precise. Plus, wide carbon Bontrager Line Elite 30 wheels with a 108-tooth Rapid Drive hub for instant engagement, 4-piston brakes for confident descents, a RockShox Reverb AXS Dropper, and carbon handlebar/stem combo.

The final word
Top Fuel 9.9 is a performance-built carbon down-country bike with top-tier parts that give you noticeable benefits on the trail, like more speed from the carbon wheels, more grip from the ultra-smooth suspension, and incredible shifting performance from SRAM’s wireless X0 AXS transmission.

FEATURES

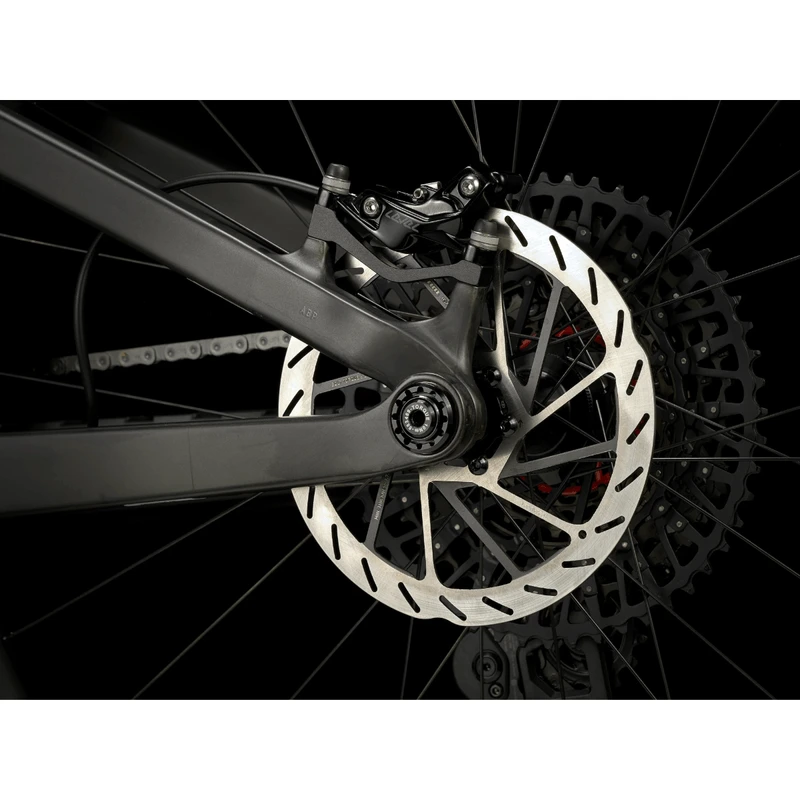

• Active Braking Pivot allows Trek engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most.
• 120mm of rear travel combined with progressive trail geometry gives you a fast, responsive ride that helps you keep your cool when the trail turns rowdy.

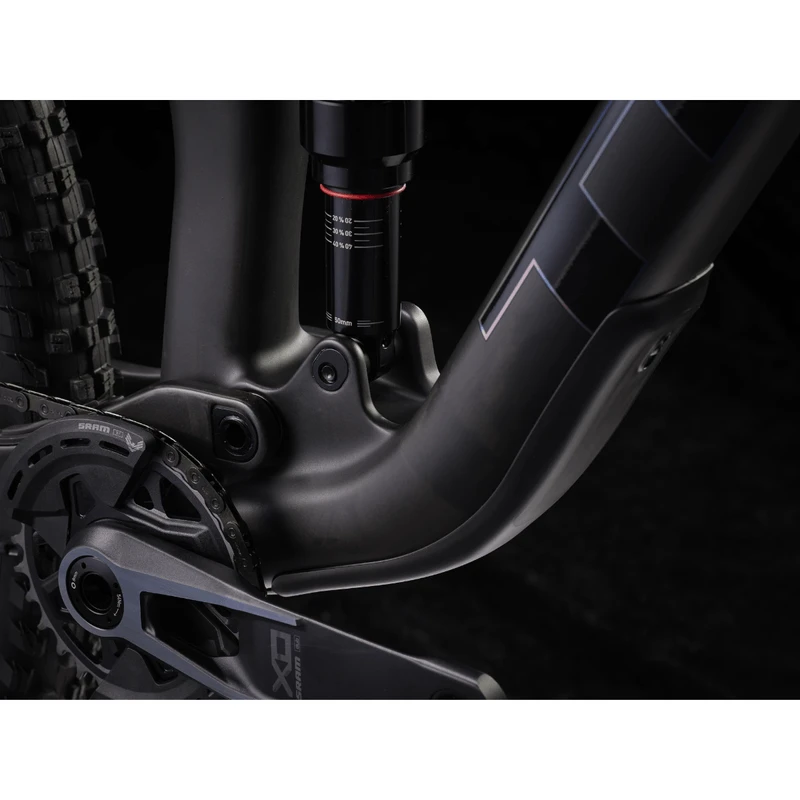

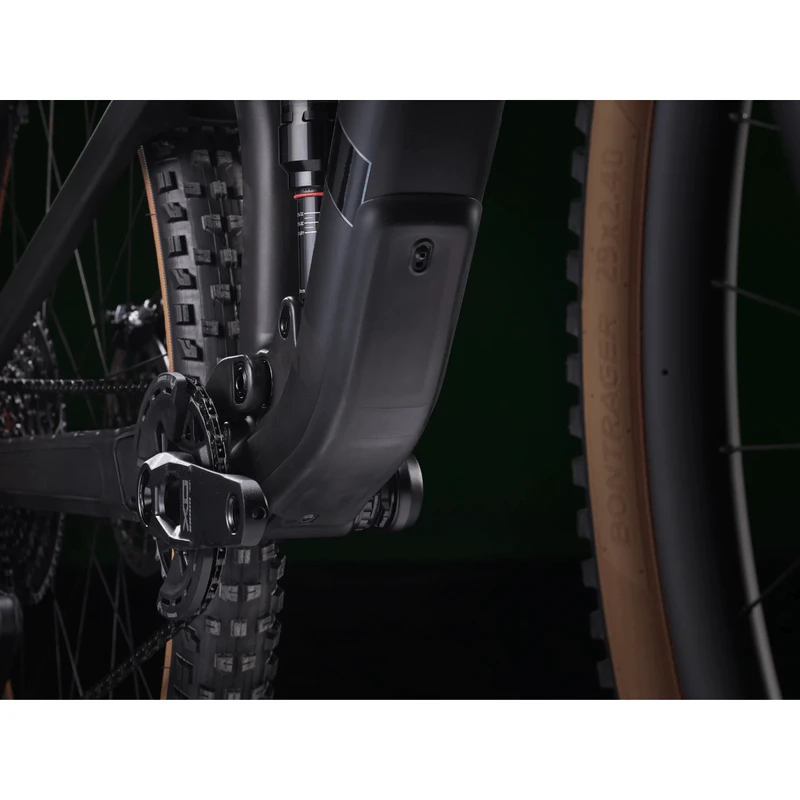

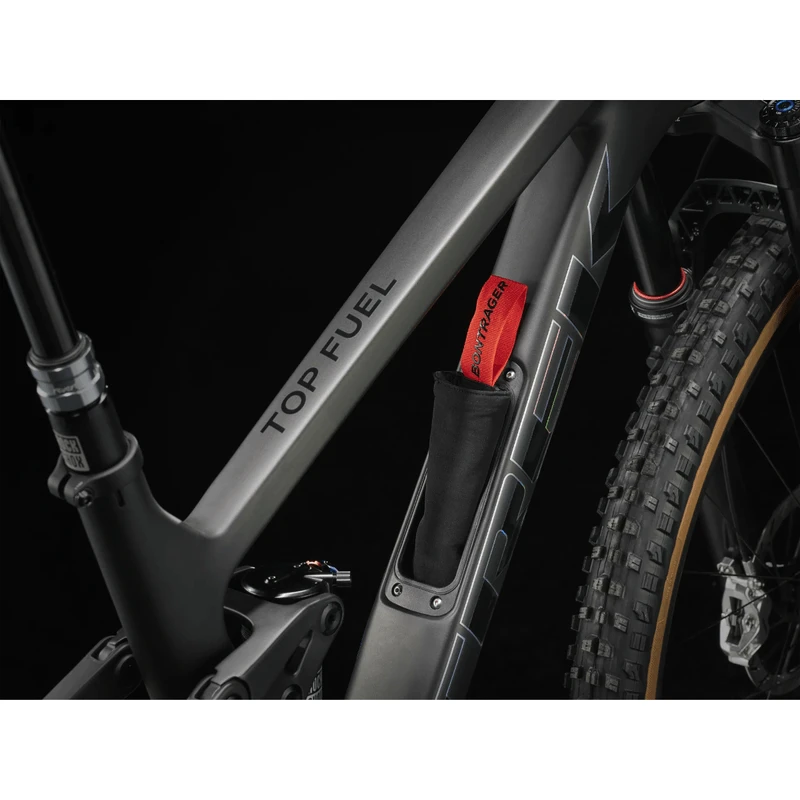

• Internal frame storage makes it easy to ditch the pack and still carry your ride essentials.
• Cleverly integrated into the steerer tube, the included BITS multi-tool has everything you need for trailside adjustments and repairs.
• SRAM Eagle T-Type transmission mounts directly to the frame, skipping that pesky derailleur hanger of yesteryear. This makes for a more robust system that’s not only cleaner looking, it’s also more precise under load, and easier to set up.
• Guided internal cable routing keeps Top Fuel quiet on the trail and maintenance a breeze.
• Smaller frames (XS and S) have a curved top tube. This design makes for a lower standover height, which allows shorter riders to straddle the bike more easily. Larger frames (M and up) have a straight top tube because taller riders with longer legs typically don’t have the same issues with standover height.

TECH SPECS

**Subject to change without notice**

Frameset

• Frame: OCLV Mountain Carbon, internal storage, tapered head tube, Knock Block 2.0, internal guided routing, downtube guard, magnesium rocker link, Mino Link, ABP, Boost148, 120mm travel
• Fork: RockShox Pike Ultimate, DebonAir spring, Charger 3 RC2 damper, 44mm offset, Boost110, Maxle Stealth, 130mm travel

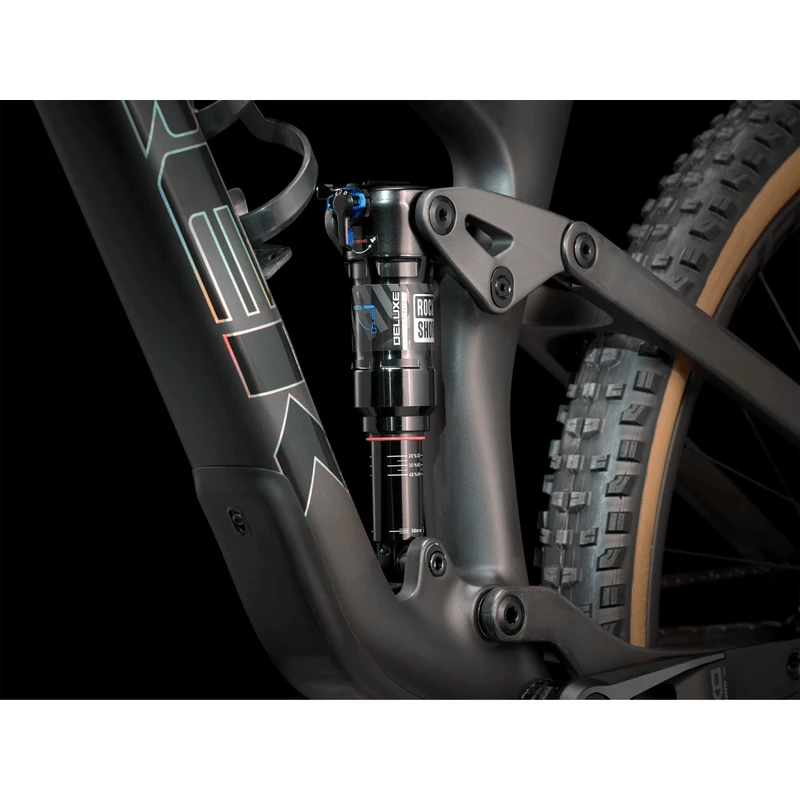

• Shock: RockShox Deluxe Ultimate RCT, 185mm x 50mm
• Max compatible fork travel: 130mm (541mm axle-to-crown)

Wheels

• Wheel front: Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle
• Wheel rear: Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12mm thru axle
• Skewer rear: Bontrager Switch thru axle, removable lever

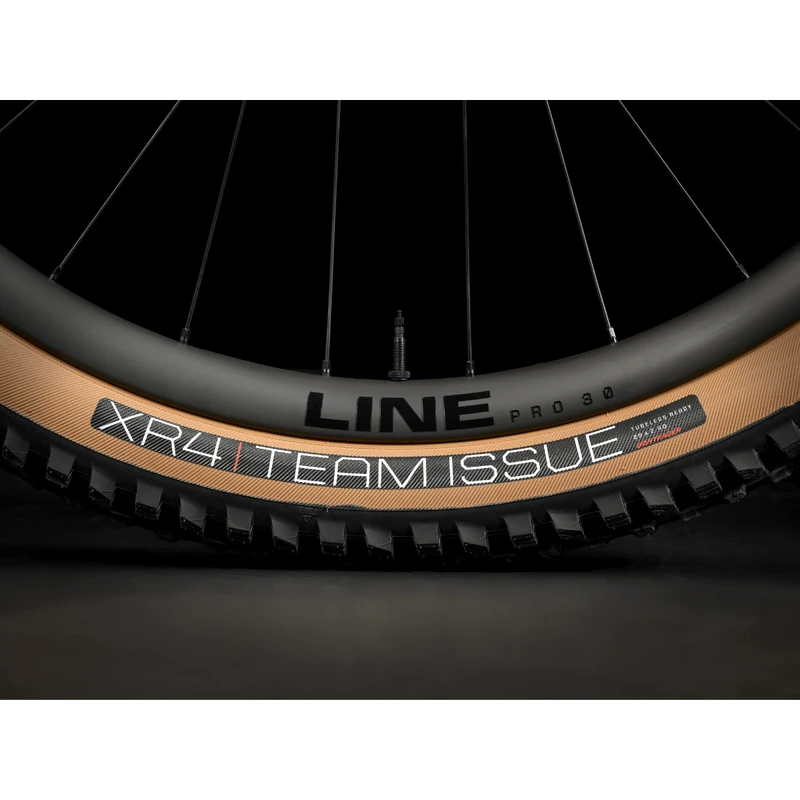

• Tire: Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120tpi, 29×2.40”
• Tire part: Bontrager TLR sealant, 6oz
• Max tire size: Frame: 29×2.50″, Fork: See manufacturer

Drivetrain

• Shifter: SRAM AXS POD Ultimate

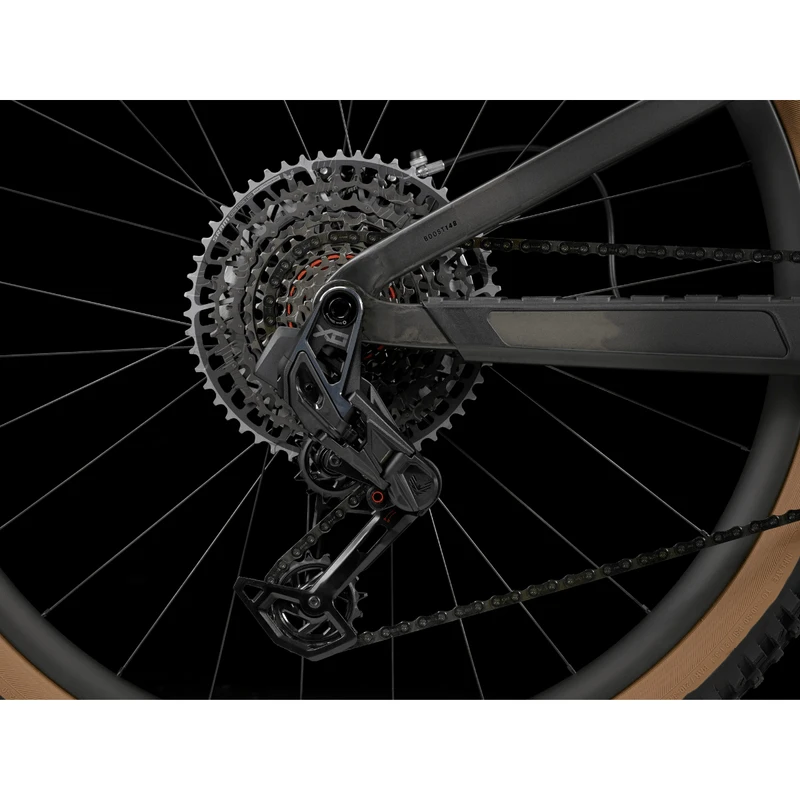

• Rear derailleur: SRAM X0 Eagle AXS, T-Type

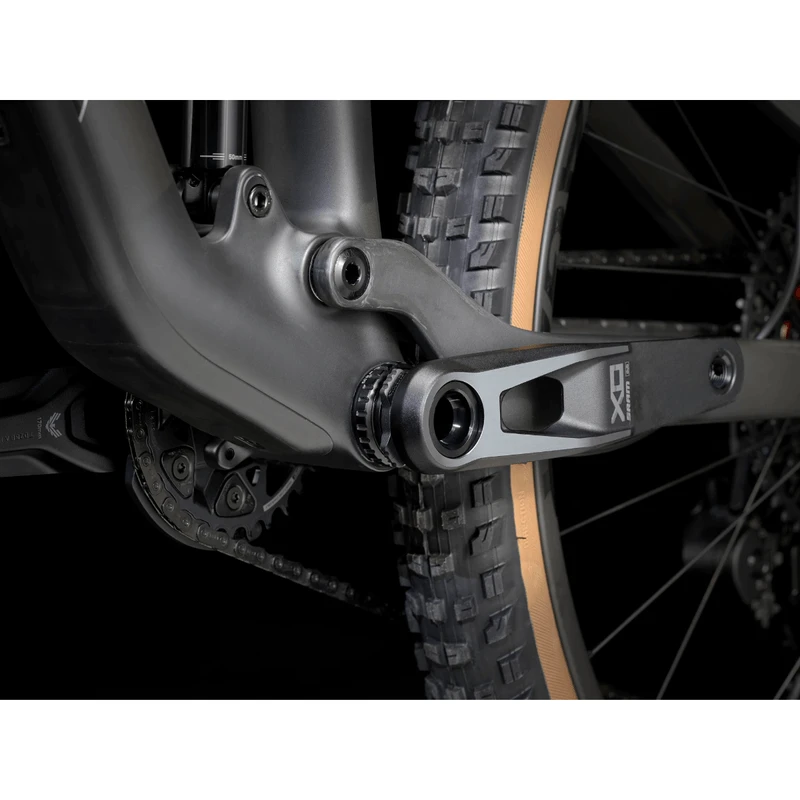

• Crank: SRAM X0 Eagle, DUB, 30T, T-Type, 55mm chainline, 170mm length
• Bottom bracket: SRAM DUB MTB Wide, 73mm, BSA threaded
• Cassette: SRAM Eagle XS-1295, T-Type, 10-52, 12 speed
• Chain: SRAM X0 Eagle, T-Type, 12 speed
• Max chainring size: 1x: 36T round, 34T oval, min 28T

Components

• Saddle: Bontrager Arvada, austenite rails, 138mm width
• *Seatpost:
• Size: S – RockShox Reverb AXS, 100mm travel, wireless, 34.9mm, 340mm length
• Size: M, M/L – RockShox Reverb AXS, 150mm travel, wireless, 34.9mm, 440mm length
• Size: L, XL – RockShox Reverb AXS, 170mm travel, wireless, 34.9mm, 480mm length

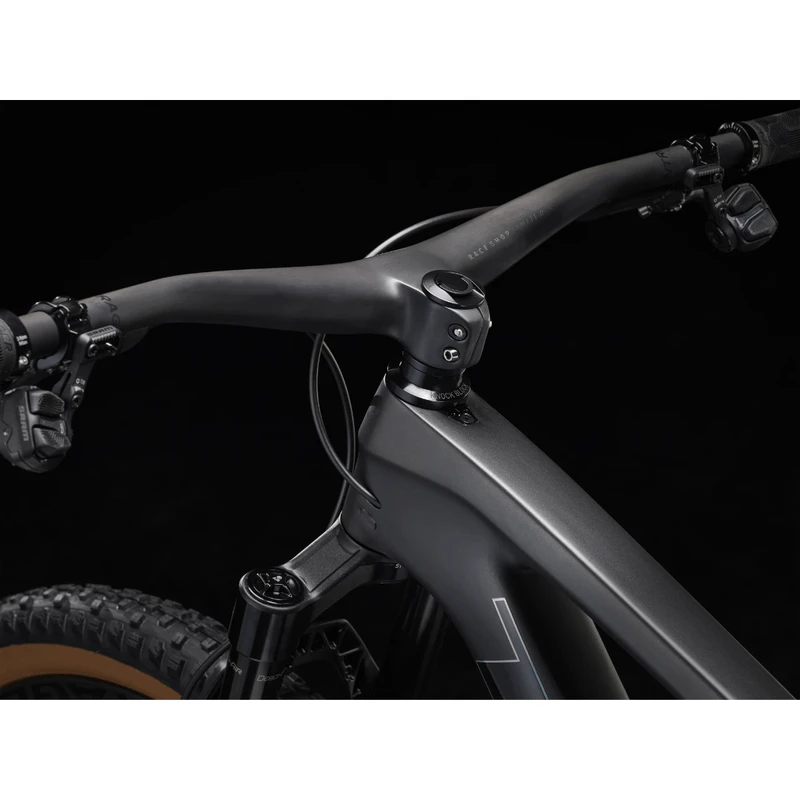

• *Handlebar/stem (integrated):
• Size: S – Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5mm handlebar rise, 820mm width, 0 degree stem rise, 35mm stem length
• Size: M, M/L, L, XL – Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5mm handlebar rise, 820mm width, 0 degree stem rise, 45mm stem length
• Rotor size: Max brake rotor sizes – Frame: 180mm, Fork: see fork manufacturer

Accessories

• Battery: SRAM eTap battery pack (with charger)

Weight

• Weight: M – 12.95 kg / 28.55 lbs (with TLR sealant, no tubes)
• Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
